PowerFlex 3.6: UI Shows An Alert When Performing An RCG Switchover/Failover

Summary: While performing a Replication Consistency Group (RCG) Switchover or 'Test Failover', the command completes successfully without any error, but the PowerFlex UI, the Presentation Server (PS), shows an alert. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

While performing an RCG Failover or Switchover, PS shows an alert:

The RCG consistent image is too large to be consumed by the destination in one piece.



After performing a Switchover/Failover, the command completes successfully.

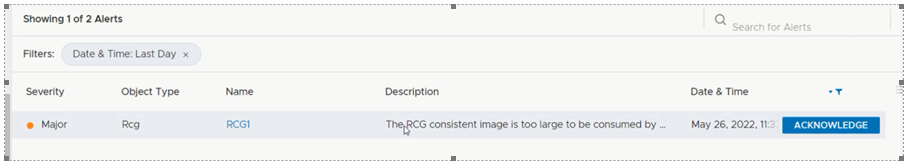

PS shows an alert on Source and Target systems:

alert: The RCG consistent image is too large to be consumed by the destination in one piece

There are no errors logged in the MDM show events (/opt/emc/scaleio/mdm/bin/showevents.py).



Impact

No impact

Cause

A false alert is shown by the PS when an RCG is in a Switchover/Failover state.

Resolution

If, after performing the Switchover/Failover, no errors are shown in the MDM show events, it is safe to ignore the alert.

To remove the alert, perform a Restore/Reverse replication. See the documentation (Getting to Know Dell PowerFlex) for more details on restore and reverse replication.



Impacted Versions

PowerFlex 3.6.0.5 and lower

Fixed In Version

PowerFlex 3.6.2

PowerFlex 4.x

Affected Products

PowerFlex Software
Article Properties
Article Number: 000204779
Article Type: Solution
Last Modified: 03 Jul 2025
Version:  6
