PowerConnect: Enabling DHCP server on PowerConnect 2800

Summary: PowerConnect: Enabling DHCP server on PowerConnect 2800

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

The PowerConnect 2800 Series lets you enable the DHCP Server feature from the Switch. This article will detail the procedure.

Table of Contents:

  1. Enable Management Mode in Switch
  2. Enable DHCP Server on the Switch
  3. Set DHCP Pool scope
  4. Common configuration errors



1 - Enable mode Management in Switch:

  1. If the switch is not in managed mode, follow article HOW10276.

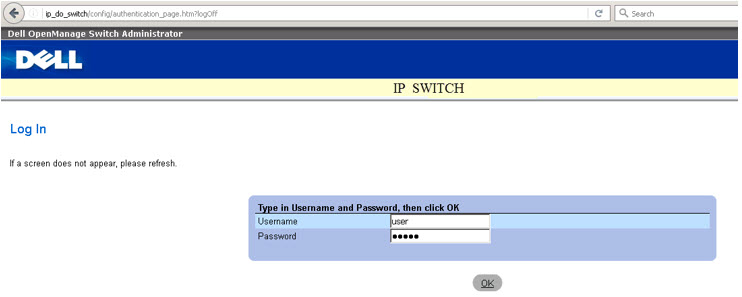

  2. Access Switch with your management IP

    HOW11976_en_US__11
Back to Top

2 - Enable DHCP Server on the Switch.

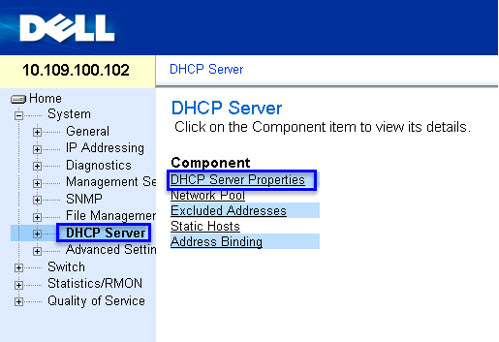

  1. To enable the DHCP server, go to System > DHCP Server > DHCP Server Properties:

    HOW11976_en_US__22

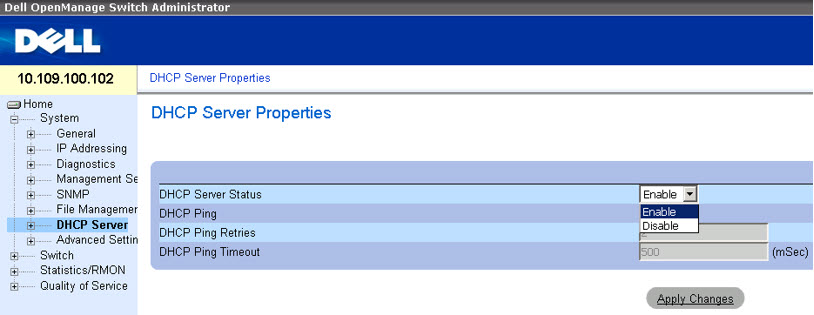

  2. On the option DHCP Server Status, select Enable and click Apply Changes:

    HOW11976_en_US__33

Back to Top

3 - Configuring Network Pool.

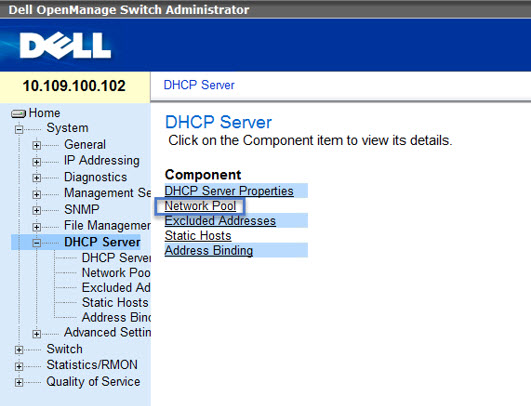

  1. After enabling the DHCP Server, the Network Pool needs to be configured. Browse DHCP Server > Network Poll.

    HOW11976_en_US__44

  2.  Here you will choose the network addresses ranges and polls that will be delivered throughout the network and click Apply Change.

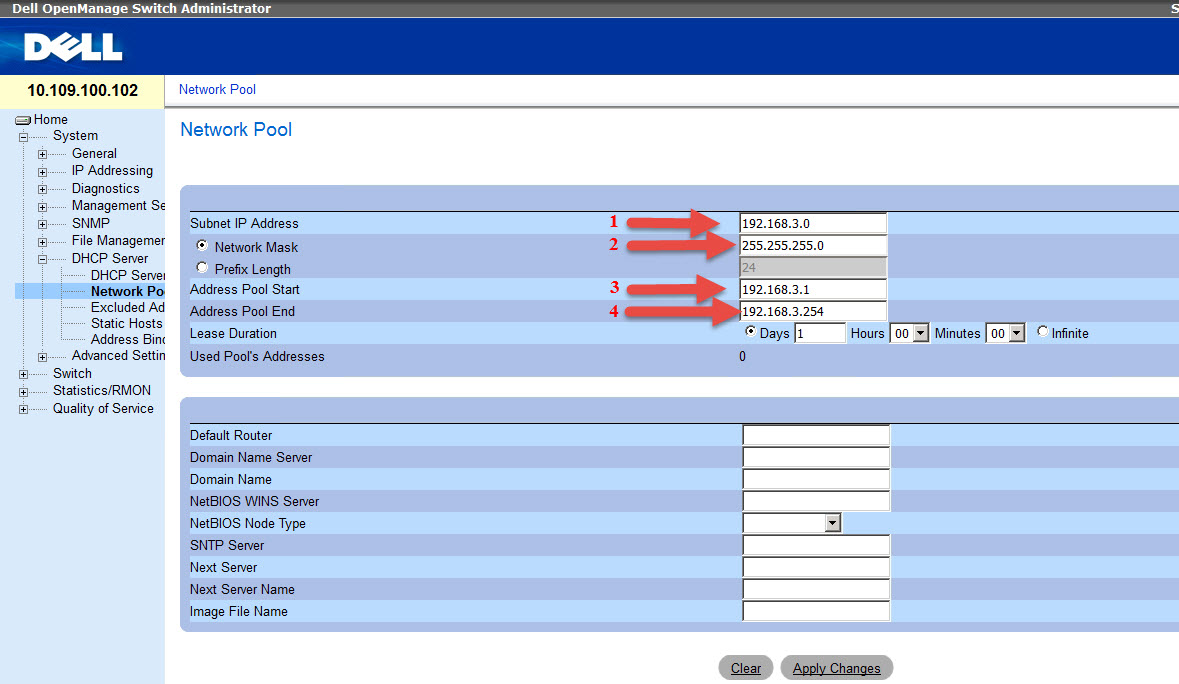

HOW11976_en_US__5icon Enter the Network Address(1) and Mask (2) and it will fill the Address Pool Start (3) and End (4) automatically.



HOW11976_en_US__65

Back to Top

4 - Common configuration errors

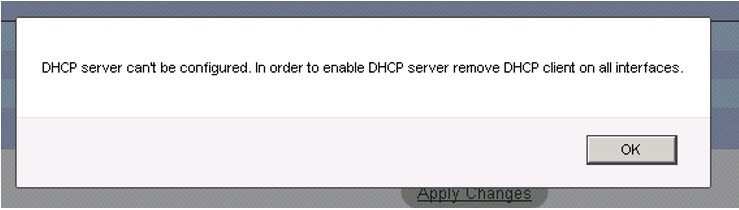

  1. Error enabling the DHCP Server: "DHCP Server can't be configured. In order to enable DHCP server remove DHCP client on all interfaces."

    HOW11976_en_US__76
Solution: Go to IP Addessing > IP Interface > DHCP. Disable and set IP management .



This error is due to the fact that DHCP is being used in the IP management. It must be disabled and a fixed IP needs to be set on the Switch.

  1. Addressing error for DHCP Pool:
    "Illegal IP addresses rage or subnet configuration. Trying to configure a network pool on default IP interface."

    HOW11976_en_US__89



This error happens because the default manage address 192.168.2.X is being used on the DHCP Pool. This address can't be used because it is reserved to manage.


Back to Top

Affected Products

PowerConnect 2808, PowerConnect 2816, PowerConnect 2824, PowerConnect 2848
