How to configure Virtual Router Redundancy Protocol (VRRP) for IPv6 clients on DELL EMC Networking OS10 switches

Summary: How to configure Virtual Router Redundancy Protocol (VRRP) for IPv6 clients on DELL EMC Networking OS10 switches

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Table of Contents

What is VRRP
Requirement
Configuration
Sample IPv6 VRRP setup
Topology
Sample Output
Verify that VRRP is working.


What is VRRP


VRRP allows us to configure virtual routers from groups of physical routers/layer three switches on a LAN. These virtual routing platforms form primary and backup pairs. VRRP helps us to avoid a single point of failure of a routers/layer three switches in the network.


Requirement


By Default OS10 is having VRRP version 2. We must configure VRRP Version 3 on switches to support IPv6. Changing the VRRP version in a switch must be done with proper planning. Click here for more details on VRRP Version 3


Configuration


Command Purpose
OS10-Switch1# configure terminal Enter Configure Mode
OS10-Switch1(config)# vrrp version 3 Configure a VRRP version for the system
OS10-Switch1(config)# interface vlan <ID>/Interface <Port> Configure Vlan/Interface
OS10-Switch1(conf-if-XX-X)# ipv6 address <IPv6> Configure IPv6 IP address
OS10-Switch1(conf-if-XX-X)# vrrp-ipv6-group <ID> Enter a VRRP group identification number (1 to 255)
OS10-Switch1(conf-XX-vrid-v6-Y)# virtual-address <IPv6 address> Configures virtual router IPv6 addresses
OS10-Switch1(conf-XX-vrid-v6-Y)# priority <Priority> Set a virtual router priority  <Value 1 - 254, default 100> (Optional)
OS10-Switch1(conf-XX-vrid-v6-Y)# advertise-interval <Interval> Change the advertisement interval setting <Value Centiseconds : 25 - 4075, default 100> (Optional)



Sample VRRP IPv6 Setup


To demonstrate the configuration of VRRP lets use a sample topology.

IPv6 address is configured in vlan 1 on both VRRP peers.
IPv6 address on vlan 1 in Switch 1: 1000::1/64
IPv6 address on vlan 1 in Switch 2: 1000::2/64
IPv6 Virtual Address of VRRP:         1000::1000
VRRP Priority on Switch 1:               150
VRRP Priority on Switch 2:               200 =>This causes the switch 2 to be elected as primary.

The Switch 1  Vlan 1 IPv6 address is able to ping to Switch 2  Vlan 1 IPv6 address


Topology


SLN319048_en_US__1image(13350)





Cause

Sample Configuration


OS10-Switch1

 OS10-Switch1# configure terminal
OS10-Switch1(config)# vrrp version 3
OS10-Switch1(config)# interface vlan 1
OS10-Switch1(conf-if-vl-1)# ipv6 address 1000::1/64
OS10-Switch1(conf-if-vl-1)# vrrp-ipv6-group 1
OS10-Switch1(conf-vlan1-vrid-v6-1)# virtual-address 1000::1000
OS10-Switch1(conf-vlan1-vrid-v6-1)# priority 150

OS10-Switch1# show running-configuration interface vlan 1
!
interface vlan1
 no shutdown
 ipv6 address 1000::1/64
 !
 vrrp-ipv6-group 1
priority 150
virtual-address 1000::1000



OS10-Switch2

OS10-Switch2# configure terminal
OS10-Switch2(config)# vrrp version 3
OS10-Switch2(config)# interface vlan 1
OS10-Switch2(conf-if-vl-1)# ipv6 address 1000::2/64
OS10-Switch2(conf-if-vl-1)# vrrp-ipv6-group 1
OS10-Switch2(conf-vlan1-vrid-v6-1)# virtual-address 1000::1000
OS10-Switch2(conf-vlan1-vrid-v6-1)# priority 200

OS10-Switch2# show running-configuration interface vlan 1
!
interface vlan1
no shutdown
ipv6 address 1000::2/64
!
vrrp-ipv6-group 1
priority 200
virtual-address 1000::1000

Resolution

Verify that VRRP is Working


Use the command show vrrp brief and show vrrp ipv6 <VRRP ID> to verify if VRRP is working as expected

OS10-Switch1

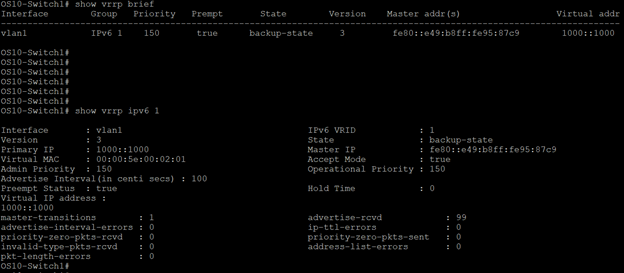

SLN319048_en_US__2image(13367)


OS10-Switch2

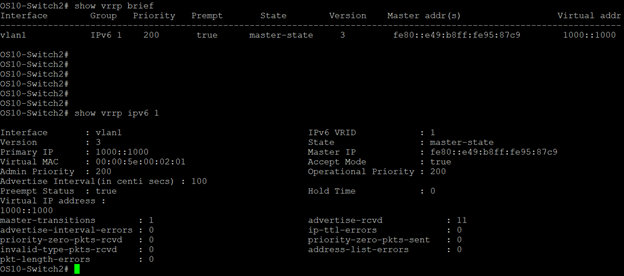

SLN319048_en_US__3image(13368)

NOTE:  VRRP uses preempt to determine what happens after a VRRP backup router becomes the primary. Click here for more details on Preemption
