PowerProtect Data Manager - Server Disaster Recoveryは、プライマリー ソース ストレージ ユニットを同期できません。

Summary: ASDR0009: サーバーのディザスター リカバリーで、プライマリー ソースのストレージ ユニットMTreeを同期できません。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

ASDR0009アラートは、PowerProtect Data Managerユーザー インターフェイスの[Alert]タブに表示されます。
ASDR0009: Server Disaster recovery is unable to synchronize the primary source storage unit mtree: //MTREE/data/col1/SysDR_ppdm with the following replication target storage unit: mtree://MTREE/data/col1/SysDR_R_ppdm

[アラート]タブ

serverdr.logのPowerProtect Data Managerログ バンドルから、次の情報を確認できます。

 "errorCode" : "DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION",
    "message" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\"",
    "statusCode" : "INTERNAL_SERVER_ERROR",
    "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "remediation" : "none",
    "objects" : [ "Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target" ],
    "errorResponse" : {
      "code" : 500,
      "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
      "remediation" : "none",
      "timestamp" : 0,
      "path" : null
    },
    "superReason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "statusCodeNumber" : 500,
    "suppressed" : [ ],
    "localizedMessage" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\""
  },
  "operation" : "REPLICATION:DO_ON_MONITOR_FAILURE"
}

Cause

Data Domain証明書はData Domain側からアップデートされましたが、PowerProtect Data Managerではアップデートされませんでした。

証明 書

Resolution

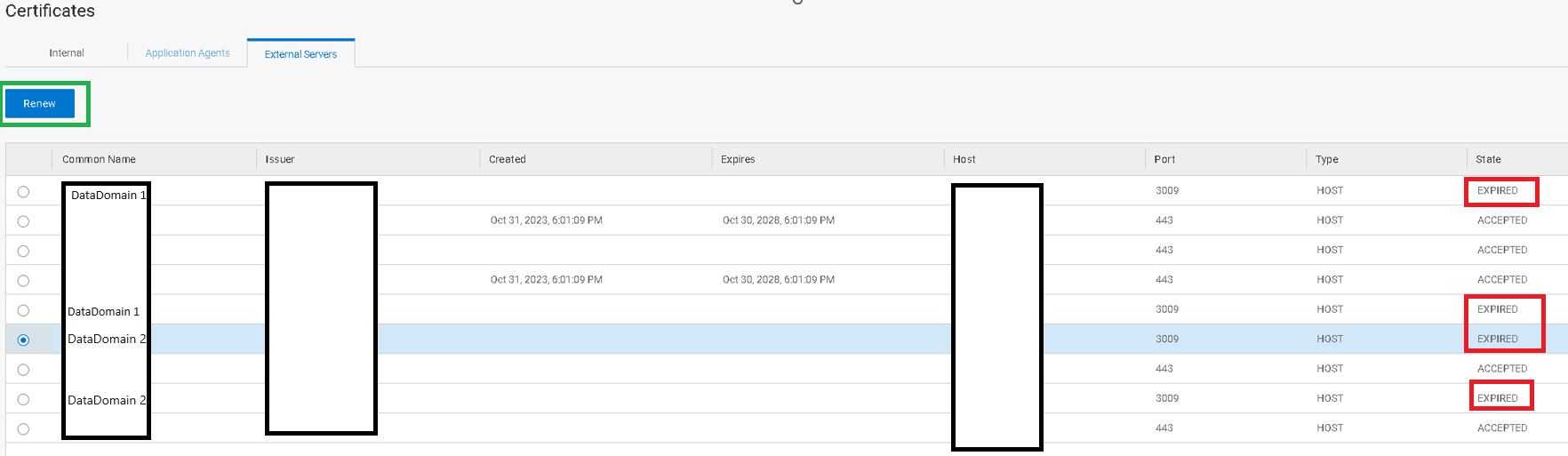

PowerProtect Data Manager UIの[Administration] → [Certificates] → [External Servers]で、期限切れの証明書が必要な各Data Domainを選択し、[renew]をクリックします。

証明書の更新

Affected Products

PowerProtect Data Manager
