PowerProtect Data Manager – Server Disaster Recovery kan inte synkronisera den primära källlagringsenheten.

Summary: ASDR0009: Server Disaster Recovery kan inte synkronisera MTree för primär källlagring.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

ASDR0009 Varningar visas på fliken Alert i PowerProtect Data Manager-användargränssnittet.
ASDR0009: Server Disaster recovery is unable to synchronize the primary source storage unit mtree: //MTREE/data/col1/SysDR_ppdm with the following replication target storage unit: mtree://MTREE/data/col1/SysDR_R_ppdm

Fliken Avisering

Från serverdr.log, från PowerProtect Data Manager-loggpaketet, har vi följande:

 "errorCode" : "DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION",
    "message" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\"",
    "statusCode" : "INTERNAL_SERVER_ERROR",
    "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "remediation" : "none",
    "objects" : [ "Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target" ],
    "errorResponse" : {
      "code" : 500,
      "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
      "remediation" : "none",
      "timestamp" : 0,
      "path" : null
    },
    "superReason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "statusCodeNumber" : 500,
    "suppressed" : [ ],
    "localizedMessage" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\""
  },
  "operation" : "REPLICATION:DO_ON_MONITOR_FAILURE"
}

Cause

Data Domain-certifikaten uppdaterades från Data Domain-sidan, men uppdaterades aldrig på PowerProtect Data Manager:

certifikaten

Resolution

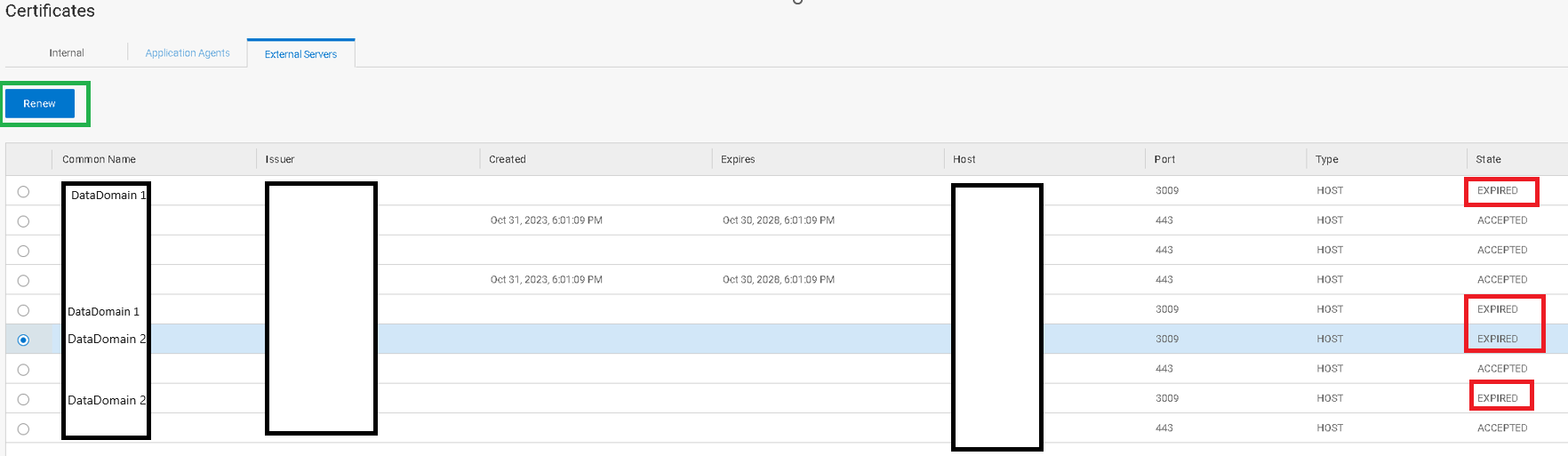

I användargränssnittet för PowerProtect Data Manager går du till "Administration – Certifikat – Externa servrar" och väljer varje Data Domain som behöver ha utgångna certifikat och klickar på "förnya":

Förnya certifikat

Affected Products

PowerProtect Data Manager
Article Properties
Article Number: 000226680
Article Type: Solution
Last Modified: 05 Jul 2024
Version:  1
