Latitude 7300: Visual Guide to your Computer
Summary: The following article provides a visual guide to your Latitude 7300 laptop and lists the external ports and features of your computer.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View

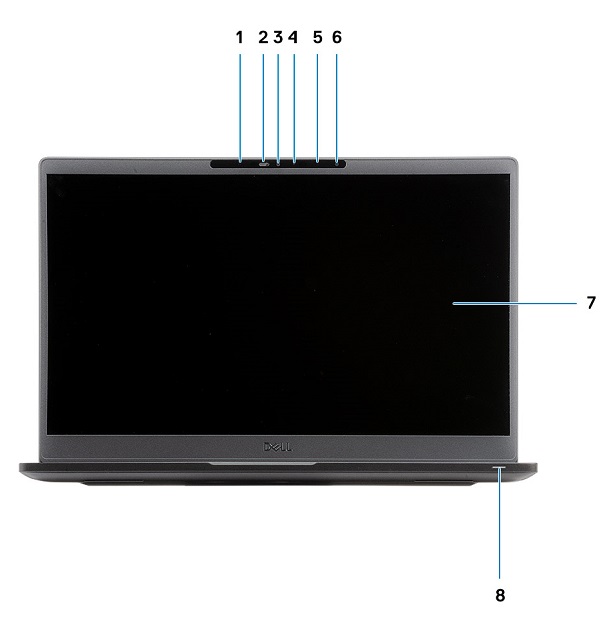

(Fig.1 Front View)
| 1 | IR Emitter | 2 | SafeView Switch |
| 3 | Camera | 4 | Camera Status LED |
| 5 | IR Emitter | 6 | Microphone Array |
| 7 | Display Panel | 8 | Battery Status LED |
Top View

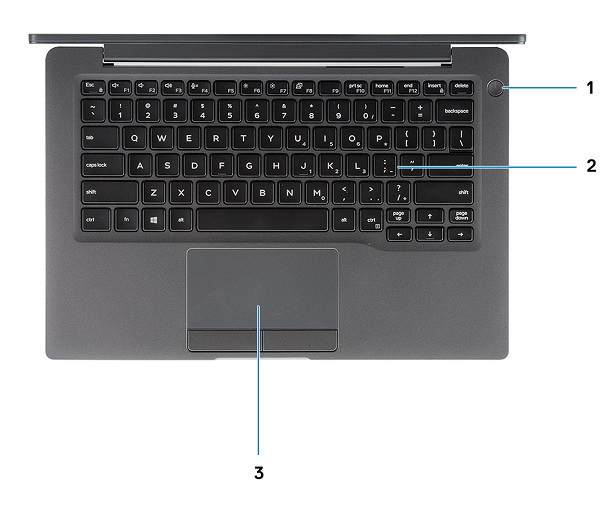

(Fig.2 Top View)
| 1 | Power Button w/fingerprint reader (Optional) | 2 | Keyboard |
| 3 | Touchpad |
Bottom View

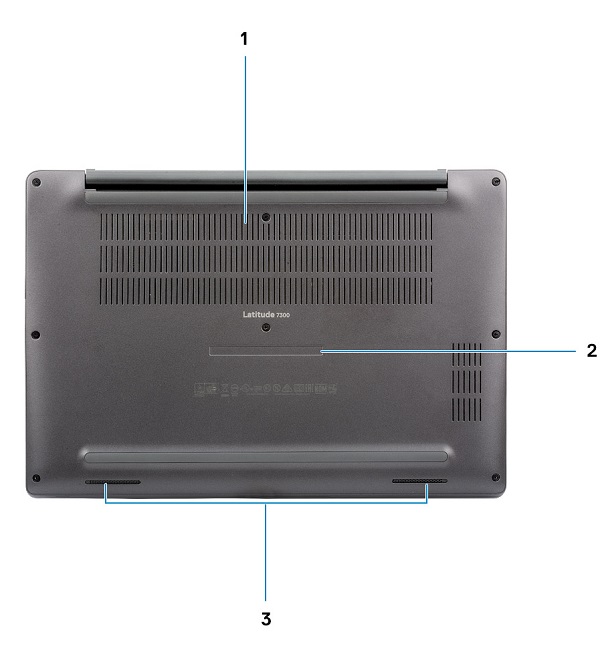

(Fig.3 Bottom View)
| 1 | Thermal Vent | 2 | Service Tag Label |
| 3 | Speakers |
Left-Hand Side View

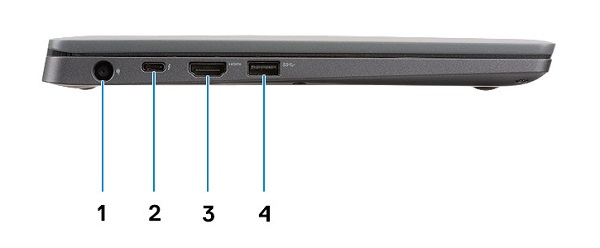

(Fig.4 Left-Hand Side View)
| 1 | Power Adapter Connector | 2 | USB Type-C 3.1 Gen2 Connector (Thunderbolt) |
| 3 | HDMI 1.4a Connector | 4 | USB Type-A 3.1 Gen1 Connector |
Right-Hand Side View

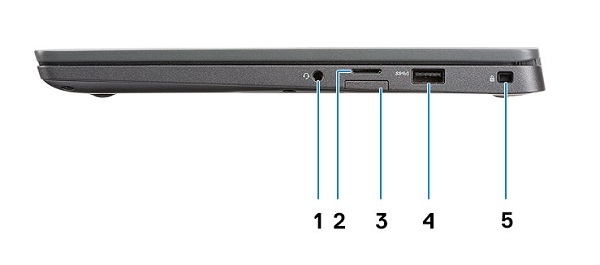

(Fig.5 Right-Hand Side View)
| 1 | Universal Audio Connector | 2 | microSD 4.0 Memory Card Reader |
| 3 | SIM Card Slot | 4 | USB Type-A 3.1 Gen1 Connector (PowerShare Capable) |
| 5 | Noble Wedge Lock Slot |
AC Adapter View

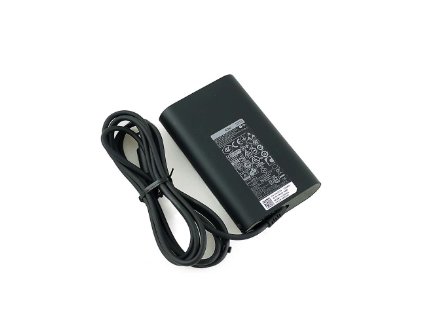

(Fig.7 65W AC Adapter)
| Type 65W E5 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Cause
Not applicable
Resolution
Not applicable
