PowerEdge：如何启动到 PowerEdge 服务器上的 BIOS 或生命周期控制器

Summary: 本文介绍了如何使用快捷键F2进入PowerEdge戴尔服务器的系统菜单(BIOS)。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

提醒：本文摘自服务器教程：支持工具。



要进入 BIOS，请按功能 <F> 键。按哪个功能键取决于您的特定服务器。一般准则如下：

  • <F2>键允许您进入系统设置 （BIOS）。
  • <F10> 键允许您进入系统服务和启动 Lifecycle Controller（适用于启用了 iDRAC/Lifecyle Controller 的系统）
  • <F11> 型允许您进入引导管理器。
  • <F12> 型允许您进入 PXE 引导。

每 2 秒按一次所需的 <F> 键，直到屏幕上显示您正在进入正确模式的确认。
<F> 键菜单位于屏幕右侧，如图 1 所示。

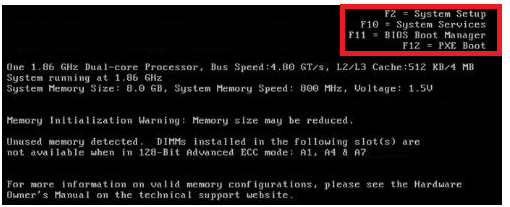

显示 F2、F10、F11、F12 启动选项的传统 BIOS 开机自检屏幕
图 1.

提醒：在较旧的系统上，您可能无法获得确认信息。如果您没有在屏幕上收到该模式的确认信息，请继续每 2 秒按一次正确的键，直到屏幕上显示该模式。



在较新的服务器上，当您看到戴尔闪屏时，必须按<一次 F2> 键。在屏幕的右上角，您应该会看到启动模式的确认信息。


其他 BIOS 可能包括远程访问卡或 PERC 控制器。方法相同。2s 规则仍然适用。您仍然在戴尔闪屏时启动。唯一的区别是两个组合键。服务器的开机自检将显示所需的双键字符。<Ctrl>+<e> 和 <Ctrl>+<p> 在许多戴尔实施中都很常用。



提醒：也可以通过按 <F2> 键访问 DRAC。



System Setup Main Menu 允许您配置：


选项 描述
系统BIOS 允许您配置 BIOS 设置

iDRAC设置 允许您配置 iDRAC 设置

iDRAC 设置实用程序是使用 UEFI 设置和配置 iDRAC 参数的接口。您可以使用iDRAC设置实用程序启用或禁用各种iDRAC参数。有关此实用程序的更多信息，请参阅《Integrated Dell Remote Access Controller User's Guide》，网址：Dell.com/iDRAC Manuals（手册）。
设备设置 允许您配置设备设置（PERC、网卡）



Affected Products

PowerEdge c6320, PowerEdge c6320p, PowerEdge C6420, PowerEdge C6520, PowerEdge C6525, PowerEdge C6615, PowerEdge C6620, Poweredge FC430, Poweredge FC630, PowerEdge FC640

Products

PowerEdge XR2, Poweredge FC830, PowerEdge M630, PowerEdge M630 (for PE VRTX), PowerEdge M640, PowerEdge M640 (for PE VRTX), PowerEdge M830, PowerEdge M830 (for PE VRTX), PowerEdge MX5016s, PowerEdge MX740C, PowerEdge MX750c, PowerEdge MX760c , PowerEdge MX840C, PowerEdge R230, PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R330, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R430, PowerEdge R440, PowerEdge R450, PowerEdge R530, PowerEdge R530xd, PowerEdge R540, PowerEdge R550, PowerEdge R630, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515, PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R730, PowerEdge R730xd, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R830, PowerEdge R840, PowerEdge R860, PowerEdge R930, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge T130, PowerEdge T140, PowerEdge T150, PowerEdge T160, PowerEdge T330, PowerEdge T340, PowerEdge T350, PowerEdge T360, PowerEdge T430, PowerEdge T440, PowerEdge T550, PowerEdge T560, PowerEdge T630, PowerEdge T640, PowerEdge XE2420, PowerEdge XE7420, PowerEdge XE7440, PowerEdge XE8545, PowerEdge XE8640, PowerEdge XE9640, PowerEdge XE9680, PowerEdge XR11, PowerEdge XR12, PowerEdge XR4510c, PowerEdge XR4520c ...
