The login attempt to an ESXi server results in the error "No supported authentication methods available (server sent: publickey)"

Symptom 1:

SSH login attempt to an ESXi server results in the error "No supported authentication methods available (server sent: publickey)" as follows below:

The login attempt from a different ESXi server, the following error is displayed:

Symptom 2:

SSH login attempt to an ESXi server results in the error "No supported authentication methods available (server sent: publickey,keyboard-interactive)" as follows below:

Cause for Symptom 1:

The server refuses the SSH session because the "challengeresponseauthentication" parameter in the sshd_config file is set to "no" and the servers are not properly configured for asymmetric authentication (RSA Public and Private key authentication).
As a result, the attempt to connect to the server using Putty results in the error "No supported authentication methods available (server sent: publickey).

A similar behavior is observed when attempting to establish an SSH connection from another ESXi host. In this case, the error 'Load key '/.ssh/id_rsa': error in libcrypto' is received, but there is no prompt to enter a password, and the connection fails.

If the servers are not properly configured for asymmetric authentication, but the 'ChallengeResponseAuthentication' parameter is set to 'yes,' an error message is displayed, followed by a prompt to enter a password. When the password is correctly entered, the connection is successfully established.

Cause for Symptom 2:

Lockdown Mode is enabled for the host.

Resolution for Symptom 1:

Connect to the target server console using the DCUI and then edit the challengeresponseauthentication parameter to "yes" in the /etc/ssh/sshd_config configuration file.

The ChallengeResponseAuthentication setting specifies whether challenge-response authentication is allowed for SSH connections. When this option is enabled, the SSH server requires that clients respond to a challenge before allowing them to authenticate. It is enabled by default in some SSH server implementations, but it may be disabled for security reasons on some systems, such as in Red Hat, as described in Red Hat article 336773.

ChallengeResponseAuthentication is a deprecated alias for KbdInteractiveAuthentication. Reference: OpenSSH: Release Notes

Resolution for Symptom 2:

Disable Lockdown Mode or add a user to the Exception Users list. For more details on this task, consult the following Broadcom Article: Enabling or disabling Lockdown mode on an ESXi host

More Details:

• The combination of setting challengeresponseauthentication and passwordauthentication produces a slightly different prompt:
  challengeresponseauthentication set to no and passwordauthentication set to yes:

challengeresponseauthentication set to no and passwordauthentication set to yes OR both set to yes:


More Troubleshooting Steps:

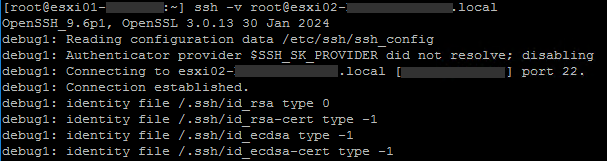

• From the client side, use -v option in the ssh command to print debugging messages about ssh progress.
  Multiple -v options increase the verbosity (the maximum is three):
  …

• In the target server, increase the verbosity level of the LogLevel setting to retrieve more details on the failed SSH session attempt: LogLevel
  Gives the verbosity level that is used when logging messages from sshd(8). The possible values are: QUIET, FATAL, ERROR, INFO, VERBOSE, DEBUG, DEBUG1, DEBUG2, and DEBUG3 The default is INFO. DEBUG and DEBUG1 are equivalent. DEBUG2 and DEBUG3 each specify higher levels of debugging output. Logging with a DEBUG level violates the privacy of users and is not recommended.
• Review the /var/run/log/auth.log in the target server for more details on the error.
