Intégration d’Avamar et de cloud disaster recovery: Impossible d’ajouter Avamar à Cloud Disaster Recovery Appliance en raison d’une chaîne de communauté SNMPv2 vide

cdra/logs/cdra/cdra.log

ERROR [2023-05-22 19:07:53,734] [taskScheduler-18] [AvamarBackupService:reconnectAndGetHealthDetails:166]: Avamar is unhealthy; no connectivity. No response due to invalid hostname: avamar.example.com, or port number 9443, org.apache.axis2.AxisFault: Connection refused (Connection refused)

cdra/logs/cdra/cdra.log

DEBUG [2023-04-27 16:14:04,931] [taskScheduler-28] [AvamarSoapClientAPI:connect:88]: Trying to connect to avamar with host name: avamar.example.com
ERROR [2023-04-27 16:14:05,109] [taskScheduler-28] [AvamarSoapClientAPI:connect:99]: RemoteException caught in AvamarSoapClientAPI due to invalid host or port number Connection or outbound has closed
ERROR [2023-04-27 16:14:05,109] [taskScheduler-28] [BackupServersManager:addAdapter:194]: Could not initialize Avamar adapter.
com.emc.cloud_dr.cdr.commons.common_models.exceptions.NoConnectivityException: No response due to invalid host name: avamar.example.com, or port number 9443, org.apache.axis2.AxisFault: Connection or outbound has closed
        at com.emc.cloud_dr.cdr.adapters.avamar_adapter_soap.AvamarSoapClientAPI.connect(AvamarSoapClientAPI.java:102)
        at com.emc.cloud_dr.cdr.commons.backup_service.impl.avamar.AvamarBackupService.init(AvamarBackupService.java:46)
        at com.emc.cloud_dr.cdr.commons.backup_servers_manager.impl.BackupServersManager.addAdapter(BackupServersManager.java:189)
        at com.emc.cloud_dr.cdr.cdra.cdra_backup_servers_manager.CdraBackupServersManager.addAdapter(CdraBackupServersManager.java:96)
        at com.emc.cloud_dr.cdr.commons.remote_server.model.AbstractRemoteServersManager.getAdapterInstance(AbstractRemoteServersManager.java:154)
        at com.emc.cloud_dr.cdr.commons.monitor.impl.collectors.AbstractRemoteServerDataCollector.getAdapterDetails(AbstractRemoteServerDataCollector.java:52)
        at com.emc.cloud_dr.cdr.commons.monitor.impl.collectors.AbstractRemoteServerDataCollector.lambda$collectData$2(AbstractRemoteServerDataCollector.java:
41)

ERROR [2023-04-27 16:14:05,109] [taskScheduler-28] [AbstractRemoteServersManager:getAdapterInstance:157]: could not initialize adapter 2b356007-de19-42c4-9346
-067ce80f68ab

/usr/local/avamar/var/mc/server_log/mcserver.log.0

05/25-08:30:43.00047 [MCWebServices-MCSDK-QueuedThreadPool-295#295] com.avamar.mc.axis2.logging.LogHandler.invoke
WARNING: MCSDK[mcsdk20] Call[urn:getTaskInfo][urn:uuid:3362594b-c177-4fe9-89eb-a042c6f8e889] end with error. SOAP output:




soapenv:Receiver


java.lang.RuntimeException: Can not serialize OM Element Envelope

/usr/local/avamar/var/mc/server_log/axis2.log

2023-05-25 09:21:56,914 [MCWebServices-MCSDK-QueuedThreadPool-293] ERROR org.apache.axis2.transport.http.AxisServlet  - Can not serialize OM Element Envelope
java.lang.RuntimeException: Can not serialize OM Element Envelope
        at org.apache.axiom.om.impl.llom.OMElementImpl.toString(OMElementImpl.java:963)
        at org.apache.axis2.handlers.soapmonitor.SOAPMonitorHandler.invoke(SOAPMonitorHandler.java:101)
        at org.apache.axis2.engine.Phase.invokeHandler(Phase.java:340)
        at org.apache.axis2.engine.Phase.invoke(Phase.java:313)
        at org.apache.axis2.engine.AxisEngine.invoke(AxisEngine.java:262)
        at org.apache.axis2.engine.AxisEngine.send(AxisEngine.java:427)
        at org.apache.axis2.receivers.AbstractInOutMessageReceiver.invokeBusinessLogic(AbstractInOutMessageReceiver.java:43)
        at org.apache.axis2.receivers.AbstractMessageReceiver.receive(AbstractMessageReceiver.java:114)
        at org.apache.axis2.engine.AxisEngine.receive(AxisEngine.java:181)
        at org.apache.axis2.transport.http.HTTPTransportUtils.processHTTPPostRequest(HTTPTransportUtils.java:172)
        at org.apache.axis2.transport.http.AxisServlet.doPost(AxisServlet.java:146)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)
        at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:865)
        at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:542)
        at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:146)
        at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:548)
        at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
        at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:257)
        at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1700)
        at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:255)
        at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1345)
        at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:203)
        at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:480)
        at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1667)
        at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:201)
        at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1247)
        at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:144)
        at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
        at org.eclipse.jetty.rewrite.handler.RewriteHandler.handle(RewriteHandler.java:335)
        at org.eclipse.jetty.server.handler.HandlerCollection.handle(HandlerCollection.java:152)
        at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
        at org.eclipse.jetty.server.Server.handle(Server.java:505)
        at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:370)
        at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:267)
        at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:305)
  at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:267)
        at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:305)
        at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:103)
        at org.eclipse.jetty.io.ssl.SslConnection$DecryptedEndPoint.onFillable(SslConnection.java:427)
        at org.eclipse.jetty.io.ssl.SslConnection.onFillable(SslConnection.java:321)
        at org.eclipse.jetty.io.ssl.SslConnection$2.succeeded(SslConnection.java:159)
        at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:103)
        at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:117)
        at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.runTask(EatWhatYouKill.java:333)
        at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:310)
        at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.tryProduce(EatWhatYouKill.java:168)
        at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:126)
        at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:366)
        at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:786)
        at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:743)
        at java.lang.Thread.run(Unknown Source)
Caused by: org.apache.axis2.databinding.ADBException: snmpCommunity cannot be null!!
        at com.avamar.mc.sdk20.DdrConfigInfo.serialize(DdrConfigInfo.java:675)
        at com.avamar.mc.sdk20.TaskInfo.serialize(TaskInfo.java:619)
        at com.avamar.mc.sdk20.TaskInfo.serialize(TaskInfo.java:476)
        at com.avamar.mc.sdk20.GetTaskInfoResponse.serialize(GetTaskInfoResponse.java:120)
        at com.avamar.mc.sdk20.GetTaskInfoResponse.serialize(GetTaskInfoResponse.java:81)
        at org.apache.axis2.databinding.ADBDataSource.serialize(ADBDataSource.java:90)
        at org.apache.axiom.om.impl.llom.OMSourcedElementImpl.internalSerialize(OMSourcedElementImpl.java:635)
        at org.apache.axiom.om.impl.util.OMSerializerUtil.serializeChildren(OMSerializerUtil.java:556)
        at org.apache.axiom.om.impl.llom.OMElementImpl.internalSerialize(OMElementImpl.java:846)
        at org.apache.axiom.soap.impl.llom.SOAPEnvelopeImpl.internalSerialize(SOAPEnvelopeImpl.java:214)
        at org.apache.axiom.om.impl.llom.OMSerializableImpl.serialize(OMSerializableImpl.java:120)
        at org.apache.axiom.om.impl.llom.OMSerializableImpl.serialize(OMSerializableImpl.java:108)
        at org.apache.axiom.om.impl.llom.OMElementImpl.toString(OMElementImpl.java:957)
        ... 49 more

Caused by: org.apache.axis2.databinding.ADBException: snmpCommunity cannot be null!!

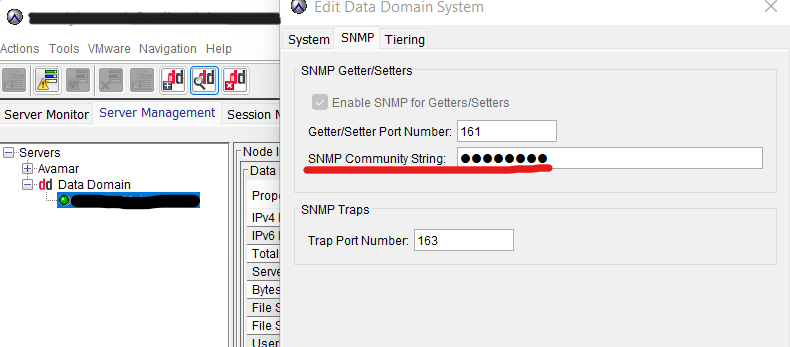

Figure 1 : Chaîne de communauté SNMP fournie pour Avamar
