PowerStore Alerts: Remote Protection System Connection Non-Compliance Alert - Node Connection
Riepilogo: This KB article discusses the Remote Protection System Connection Non-Compliance Alert for Node Connection.
Questo articolo si applica a
Questo articolo non si applica a
Questo articolo non è legato a un prodotto specifico.
Non tutte le versioni del prodotto sono identificate in questo articolo.
Sintomi
When Dell PowerStore encounters a problem, an error alert is generated to help identify the issue. This article explains the different possible causes and the relevant solutions for these error alerts. If your problem is not resolved despite the solution that is provided, check the technical support contact options.
Note: Cannot find the information that you need? Let us know using the feedback form at the bottom of this article.
Causa
The cause is specified in the Resolution section.
Risoluzione
| Alert ID | REMOTE_PROTECTION_REMOTE_SYSTEM_FC_DATA_CONNECTION_PS_NOT_COMPLIANT_NODE_CONNECTION |
| Alert Text | The data connection from the local system to the remote system is not highly available. The data connections between local node and remote nodes [A1.NodeB->A1.NodeA],A1.NodeA->A2.NodeB]] are missing. |
| Error Code | 0x01702A02 |
| Impact |

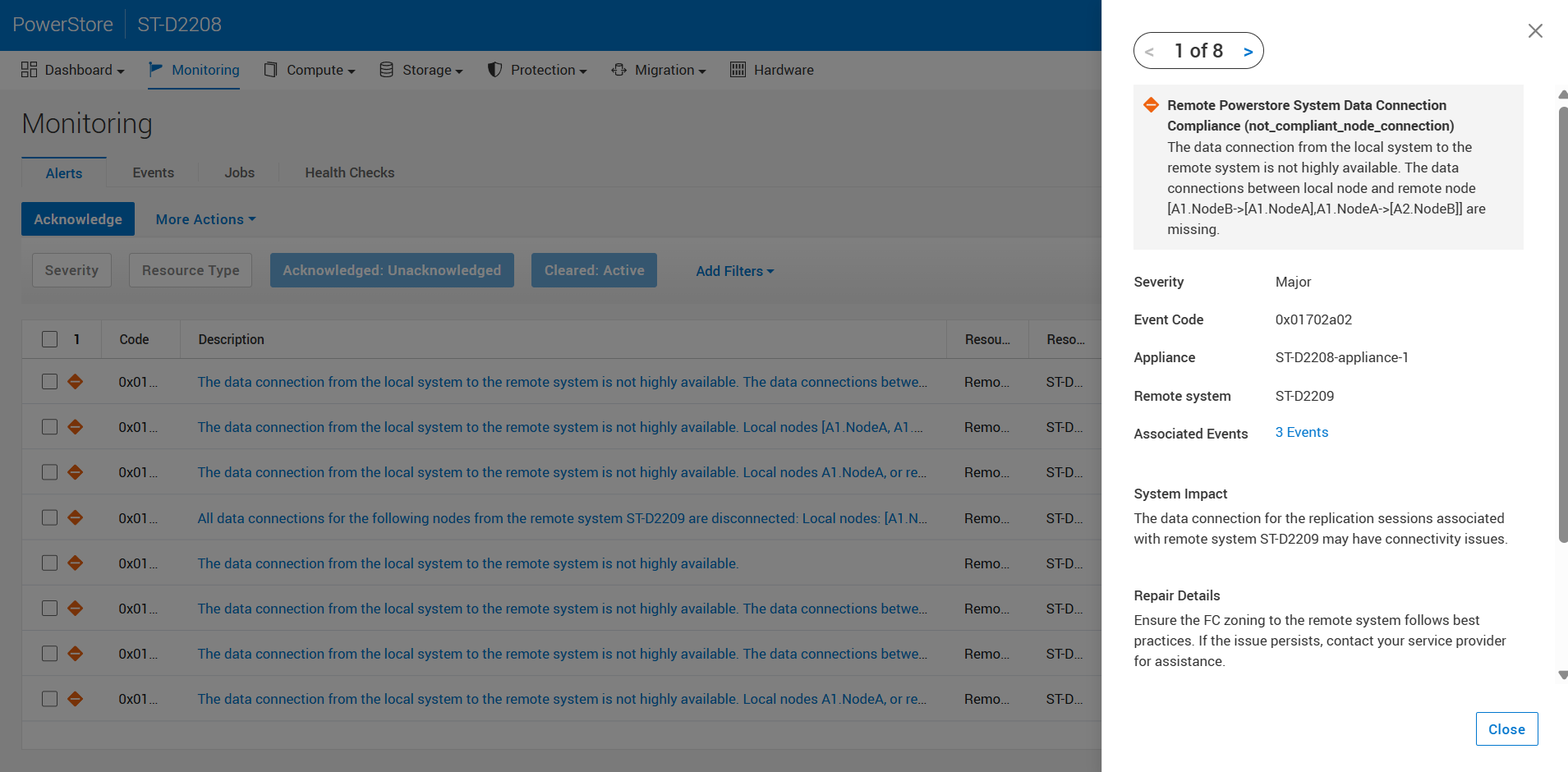

The data connection for the replication sessions associated with a remote system may have connectivity issues. Alert seen in UI:
|
| Resolution | Cause:
One or more nodes of the arrays for the remote did not have at least one FC connection to the other node. This is likely a Zoning issue. Solution: Check whether the FC ports for those reported nodes are correctly zoned. |
Prodotti interessati
PowerStoreProprietà dell'articolo
Numero articolo: 000453886
Tipo di articolo: Solution
Ultima modifica: 14 mag 2026
Versione: 1
