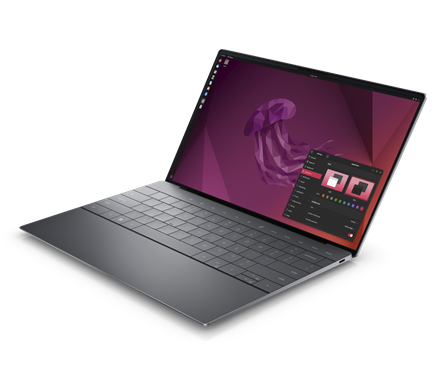

Cloud native app development using Dell XPS 13 Plus Developer Edition and MicroK8s

Get Started

If you’re not familiar with MicroK8s, that’s ok. MicroK8s is a lightweight, secure version of  Kubernetes  than can easily run on an array of devices from developer workstations to production. In this case, we’ll be using our XPS 13 Plus Developer laptop to run small single and multi-node Kubernetes clusters for local offline development and testing. In my opinion this is a great way to perform local proof of concepts and quickly test code changes before pushing it to a proper CI/CD environment with full-fledged Kubernetes infrastructure. Let’s dive in.

Ubuntu 22.04 LTS comes with support for [ snapd ] which makes the installation of microk8s simple.

Open a terminal and run the following command to install MicroK8s using Kubernetes 1.25 channel. If you need an earlier release, update “1.25” to the Kubernetes version you need.

dell@dell-XPS-9320:~$  sudo snap install microk8s --classic --channel=1.25

Then make sure to set the user and associate it with the Microk8s group.

dell@dell-XPS-9320:~$  USER=dell

dell@dell-XPS-9320:~$  sudo usermod -a -G microk8s $USER

dell@dell-XPS-9320:~$  sudo chown -f -R $USER ~/.kube

You will also need to re-enter the session for the group update to take place.

dell@dell-XPS-9320:~$  su - $USER

Now you should be ready to run microk8s. Some output from this commend is removed because of the verbosity, so its okay if you see more information describing what add-ons are enabled or not.

dell@dell-XPS-9320:~$  microk8s status --wait-ready

microk8s is running

That’s it, you now have a single node Kubernetes cluster to use. Run these commands to view your single node Kubernetes environment.

dell@dell-XPS-9320:~$ microk8s kubectl get nodes

NAME    STATUS ROLES AGE VERSION

dell-xps-9320 Ready 11m v1.25.2

Running a single node is great for some basic testing against Kubernetes APIs or maybe running a small application. However, this doesn’t represent a full cluster and sometimes you may want to run a cluster of nodes for testing multi-node applications such as a NodeJS web application using a multi-node Redis Sentinel cluster as we will use four our example.

If you ran  microk8s start  on your XPS machine directly, let’s stop and cleanup that single node.

dell@dell-XPS-9320:~$ microk8s stop

To enable multiple nodes, we need some virtualization. Ubuntu offers both  LXD  and  multipass  as ways in which we can enable multiple virtual Microk8s nodes on a single machine. For this example, we’re going to use  multipass . First install  multipass  using  snap .

dell@dell-XPS-9320:~$ sudo snap install multipassmultipass 1.10.1 from Canonical✓ installed\

Next, let’s add three VMs to represent the three nodes in our Kubernetes cluster.

dell@dell-XPS-9320:~$ multipass launch -c 2 -m 2G -d 20G --name microk8s-vm2 22.04

Launched: microk8s-vm2

dell@dell-XPS-9320:~$ multipass launch -c 2 -m 2G -d 20G --name microk8s-vm2 22.04

Launched: microk8s-vm2

dell@dell-XPS-9320:~$ multipass launch -c 2 -m 2G -d 20G --name microk8s-vm3 22.04

Launched: microk8s-vm3

dell@dell-XPS-9320:~$ multipass listName         State   IPv4           Image

microk8s-vm1 Running 10.251.159.221 Ubuntu 22.04 LTS10.1.132.192

microk8s-vm2 Running 10.251.159.151 Ubuntu 22.04 LTS10.1.169.192

microk8s-vm3 Running 10.251.159.96 Ubuntu 22.04 LTS10.1.83.0

Now, we can install Microk8s on these nodes. You can run the commands on each node by using “ multipass shell ” or you can use the following script to save a little time. Save the file as a bash script named “ install-microk8s-vms.sh ” and make it executable and run it with  bash ./install-microk8s-vms.sh .

vms="microk8s-vm1 microk8s-vm2 microk8s-vm3"

for vm in $vms; do

multipass exec $vm -- sudo snap install microk8s --classic --channel=1.25/stable

multipass exec $vm -- sudo iptables -P FORWARD ACCEPT

multipass exec $vm -- sudo  usermod -a -G microk8s ubuntu

multipass exec $vm -- sudo  chown -f -R ubuntu ~/.kube
done

After the script runs, we should have Microk8s on each VM ready to start. For our cluster we will start one of the nodes as our control node and the other two as worker nodes. Login to the first VM and start MicroK8s.

dell@dell-XPS-9320:~$ multipass shell microk8s-vm1

ubuntu@microk8s-vm1:~$ microk8s start

ubuntu@microk8s-vm1:~$ microk8s status --wait-ready

microk8s is running

Next, we want to enable DNS as our example later in this document will need to find application services in our cluster by name.

ubuntu@microk8s-vm1:~$ microk8s enable dns

Enabling DNS

Applying manifest

serviceaccount/coredns created

configmap/coredns created

deployment.apps/coredns created

service/kube-dns created

clusterrole.rbac.authorization.k8s.io/coredns created

clusterrolebinding.rbac.authorization.k8s.io/coredns created

Restarting kubelet

DNS is enabled

Now we need to add the other two nodes as workers. To do that, first run  add-node  from  microk8s-vm1  and use the command in the output to add the first worker which will be  microk8s-vm2 .

ubuntu@microk8s-vm1:~$ microk8s add-node

From the node you wish to join to this cluster, run the following:

microk8s join 10.251.159.221:25000/f332590e3d42a8a3cceec787f9ac6761/1bcd2a12b6fc

Use the '--worker' flag to join a node as a worker not running the control plane, eg:

microk8s join 10.251.159.221:25000/f332590e3d42a8a3cceec787f9ac6761/1bcd2a12b6fc --worker

If the node you are adding is not reachable through the default interface you can use one of the following:

microk8s join 10.251.159.221:25000/f332590e3d42a8a3cceec787f9ac6761/1bcd2a12b6fc

Run the join command within the  microk8s-vm2  vm, we can use multipass to execute this commend in the VM.

dell@dell-XPS-9320:~$ multipass exec microk8s-vm2 -- sudo microk8s join 10.251.159.221:25000/f332590e3d42a8a3cceec787f9ac6761/1bcd2a12b6fcContacting cluster at 10.251.159.221

The node has joined the cluster and will appear in the nodes list in a few seconds.

Repeat this process of running add-node and  join  for  microk8s-vm3  and you will have a three-node local Kubernetes cluster for development. You can use  kubectl  from the control node to list all your nodes.

ubuntu@microk8s-vm1:~$ alias kubectl="microk8s kubectl "

ubuntu@microk8s-vm1:~$ kubectl get no

NAME         STATUSROLES  AGE   VERSION

microk8s-vm2 Ready 2m35s v1.25.2

microk8s-vm3 Ready 32s v1.25.2

microk8s-vm1 Ready 11m v1.25.2

Cloud-native development with Docker and MicroK8s

Now that we have our small Kubernetes cluster running with MicroK8s, lets walk through an example of using it for some basic development and testing using  Docker  as our build utility. First, let’s install docker so we can use it for our local build tool.

dell@dell-XPS-9320:~$ sudo snap install docker

docker 20.10.14 from Canonical✓ installed

dell@dell-XPS-9320:~$ sudo addgroup --system docker

dell@dell-XPS-9320:~$ sudo adduser $USER docker

dell@dell-XPS-9320:~$ newgrp docker

dell@dell-XPS-9320:~$ sudo snap disable docker

dell@dell-XPS-9320:~$ sudo snap enable docker

First, let’s get our application running, we can use the previously mentioned NodeJS app called moby-counter for our example. Pull the repository and open it in your favorite editor. We’ll use  Visual Code .

dell@dell-XPS-9320:~$ git clone --branch k8s https://github.com/wallnerryan/moby-counter

Cloning into 'moby-counter'...remote:

Enumerating objects: 149, done.

remote: Counting objects: 100% (18/18), done.

remote: Compressing objects: 100% (16/16), done.

remote: Total 149 (delta 6), reused 7 (delta 2), pack-reused 131

Receiving objects: 100% (149/149), 84.87 KiB | 3.14 MiB/s, done.

Resolving deltas: 100% (72/72), done.

Next, let’s mount our development workspace into our Kubernetes cluster and launch the current version of the application. Mount the workspace into the first VM,  microk8s-vm1 .

dell@dell-XPS-9320:~$ multipass mount $HOME/workspace/moby-counter microk8s-vm1

dell@dell-XPS-9320:~$ multipass info microk8s-vm1

Name: microk8s-vm1

State: Running

IPv4: 10.251.159.22 110.1.132.19

2Release: Ubuntu 22.04.1 LTS

Image hash: 473ffcd1c65c (Ubuntu 22.04 LTS)Load: 1.26 0.55 0.24

Disk usage: 3.2G out of 19.2G

Memory usage: 943.6M out of 1.9G

Mounts: /home/dell/workspace/moby-counter => /home/dell/workspace/moby-counter

UID map: 1001:defaultGID map: 1001:default

Now from within our  microk8s-vm1  we can use the Kuberntes CLI ( kubectl)   to create our application directly from our development workspace.

ubuntu@microk8s-vm1:~$ cd /home/dell/workspace/moby-counter/

ubuntu@microk8s-vm1:/home/dell/workspace/moby-counter

$ kubectl create -f k8s.yaml

deployment.apps/k8s-counter-deployment created

service/k8s-counter-service created

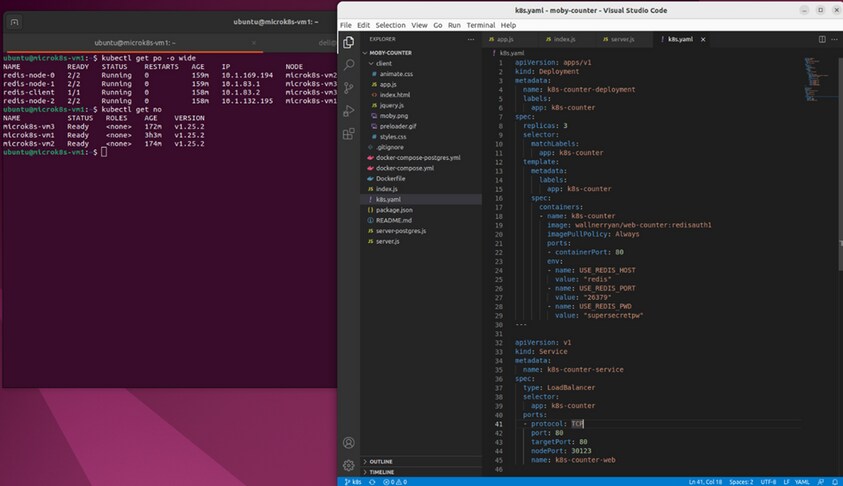

Next, access the application by viewing the  NodePort  via  kubectl  and heading to the  NodePort  on any of the IPs of any of your Kubernetes worker nodes. In short, copy the Cluster-IP of  k8s-counter-service  and port 30123 which is defined in the  k8s.yaml  and put that into a local browser  http:// :30123/

ubuntu@microk8s-vm1:$ kubectl get po

NAME         READY STATUS  RESTARTS AGE

redis-node-0  2/2  Running 0        174m

redis-node-1  2/2  Running 0        174m

redis-client  1/1  Running 0        173m

redis-node-2  2/2  Running 0        173m

k8s-counter-deployment-645c58bf8c-mqbbz 1/1 Running 0 2m15s

k8s-counter-deployment-645c58bf8c-j6jsg 1/1 Running 0 2m15s

k8s-counter-deployment-645c58bf8c-whcvk 1/1 Running 0 2m15s

ubuntu@microk8s-vm1:/home/dell/workspace/moby-counter$ kubectl get svc k8s-counter-service

NAME                TYPE     CLUSTER-IP    EXTERNAL-IP PORT(S)      AGE

k8s-counter-service NodePort 10.152.183.2080:30123/TCP 2m27s

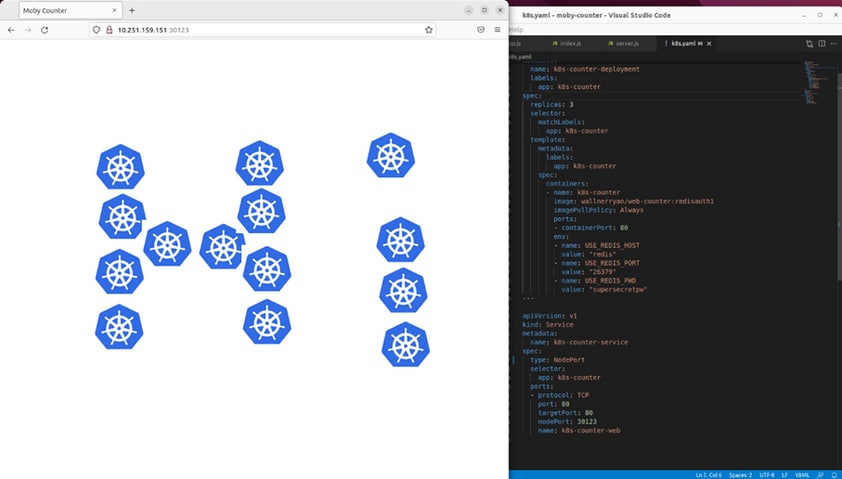

Here we can see the application working by clicking on the screen to create logos. You should be able to refresh the browser and all logos remain. This simple application records clicks via coordinates (X:Y) on screen with NodeJS and writes them to Redis.

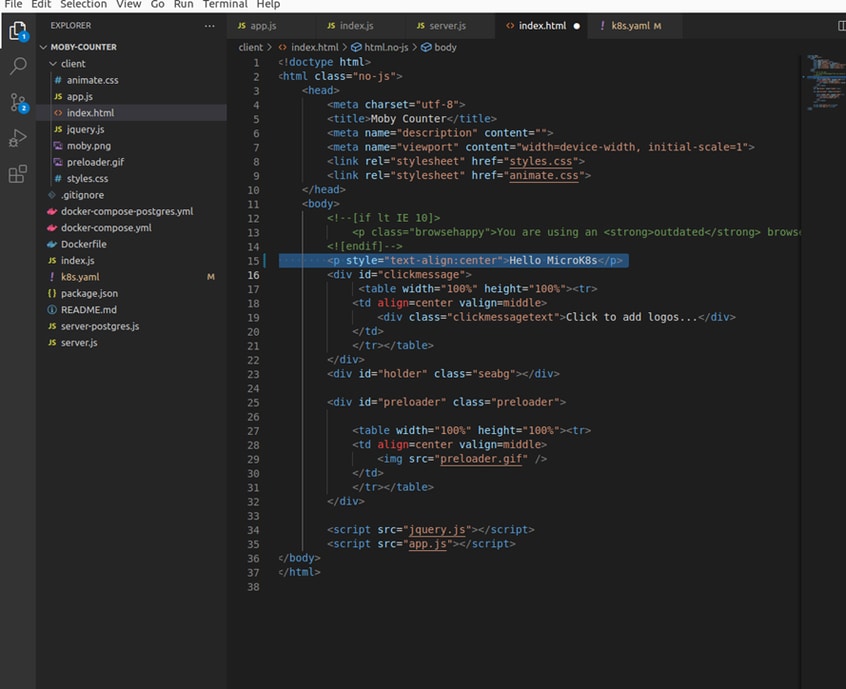

Now we can make a small update to our code base to show a very basic example of local development.

Now that we have modified our code, we can run a  docker build  on our local Dockerfile.

dell@dell-XPS-9320:~/workspace/moby-counter$ docker build . -t wallnerryan/web-counter:hello-microk8s

Sending build context to Docker daemon 353.3kB

Step 1/7 : FROM developer/iojs-minimal-runtime:v1.0.1

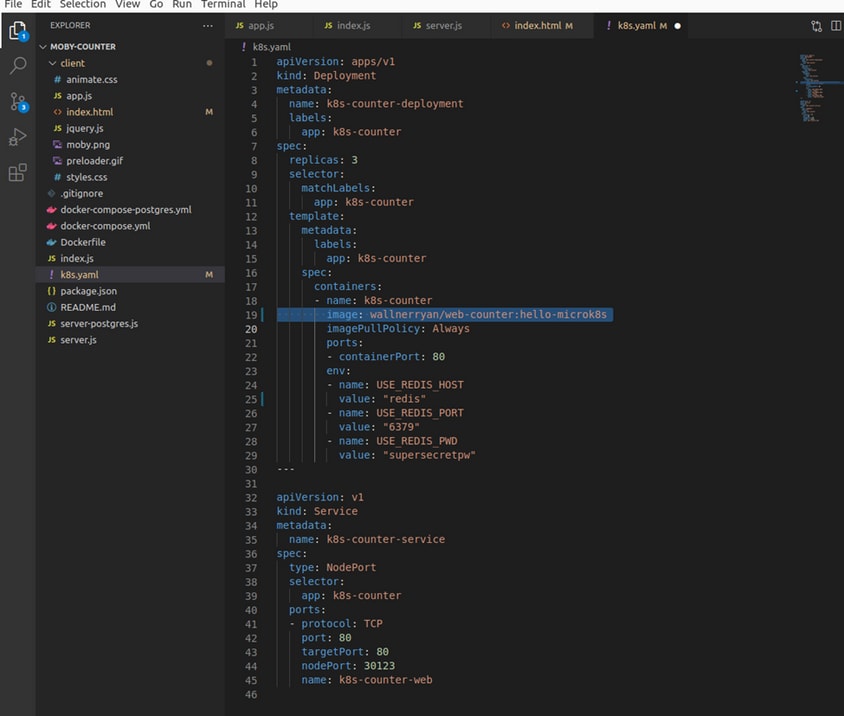

Once we push that to a registry, we can update our YAML file and quickly re-apply. Note you can use a  locally deployed docker registry  if you truly want to run locally instead of pushing to a public registry like Dockerhub.

Make sure to save the YAML file and it should be automatically available within your workspace on microk8s-vm1.

ubuntu@microk8s-vm1:/home/dell/workspace/moby-counter$ kubectl apply -f k8s.yaml

deployment.apps/k8s-counter-deployment configured

service/k8s-counter-service unchanged

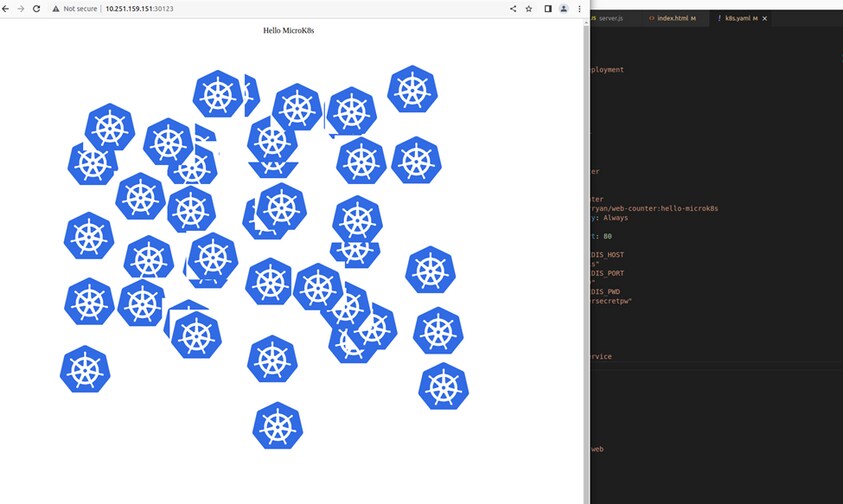

When we head back to our service running on our cluster, we see our code change from our local development environment. You may continue to click on the screen to add logos.

Parting thoughts

I hope this blog was useful in showing one way of using the Dell XPS 13 Plus Developer edition and MicroK8s for local cloud-native development without needing access to a separate Kubernetes cluster on infrastructure you may not have access to. This will help with initial proof of concept for local development and basic testing before pushing your changes into a proper CI/CD pipeline.
