Amazon Simple Storage Service (Amazon S3) provides a set of APIs that enable applications to access object storage. With the popularity of S3 object storage, more storage vendors are implementing their own object-storage engines with S3-compatible APIs. However, some Amazon S3 APIs are designed specifically for Amazon Web Services (AWS), with example services including life cycle management, charging, and analytics. Third-party S3-compatible storage usually implements a subset of Amazon S3 official APIs to enable object access.

Starting with Dell EMC™ OneFS™ version 9.0, Dell PowerScale™ introduces the capability of data access by exposing the compatible S3 APIs. To facilitate administration and application deployment with the OneFS S3 implementation, this document shows how OneFS S3 API compatibility compares with the latest version of the Amazon S3 API.

Dell Technologies and the authors of this document welcome your feedback on this document. Contact the Dell Technologies team by email.

Author: Lieven Lin

Contributors: Miles Ohlrich, Takafumi Yonekura

Note: For links to other documentation for this topic, see the PowerScale Info Hub.

The Amazon S3 API was originally developed as the data-access interface of Amazon S3. As applications were developed using the S3 API, it became a common standard for object storage. This document refers to the S3 API for object storage as the S3 protocol. This provides a consistent nomenclature along with other NAS protocols regarding the OneFS file service.

Starting with OneFS 9.0, PowerScale OneFS supports the Amazon S3 protocol with OneFS S3, an object-storage interface that is compatible with the Amazon S3 API. OneFS S3 enables access to file-based data that is stored on OneFS clusters as objects.

This section compares OneFS S3 API compatibility with the Amazon S3 official APIs. OneFS supports both path-style requests and virtual hosted-style requests. It uses port 9020 for HTTP and port 9021 for HTTPS by default.

Table 1 lists the latest versions of AWS S3 APIs (sourced from Amazon S3 API documentation), and shows the compatibility with OneFS S3. See section 2 and section 3 for details about each OneFS supported S3 API. The APIs are sorted alphabetically as in the Amazon S3 API documentation.

Table 1.      OneFS AWS S3 API compatibility

Many request parameters of Amazon S3 APIs are designed for Amazon S3 features, and OneFS does not support these parameters in its supported APIs. This section introduces the request parameters of bucket S3 APIs that are supported by OneFS. For more information about request and response examples, see the documentation AWS S3 API Reference. OneFS supports the following bucket APIs:

• CreateBucket
• DeleteBucket
• GetBucketAcl
• GetBucketLocation
• GetBucketLogging
• GetObjectLockConfiguration
• HeadBucket
• ListBuckets
• ListMultipartUploads
• ListObjects
• ListObjectsV2
• PutBucketAcl
• PutBucketLogging
• PutObjectLockConfiguration

Table 2 shows the details about the OneFS S3 CreateBucket API request parameters and request body. If not specified, all unsupported request parameters and the request body are silently ignored by OneFS without an error code being returned to client.

Table 2.      OneFS S3 CreateBucket API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-read, x-amz-grant-write, x-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support the email address to specify a grantee, and 501 NotImplemented code is returned.

Table 3 shows the details about the OneFS S3 DeleteBucket API request parameters and request body. When a bucket is deleted, OneFS only removes the bucket information while preserving the data under the bucket. If not specified, all unsupported request parameters and the request body are silently ignored by OneFS without an error code being returned to client.

Table 3.      OneFS S3 DeleteBucket API request parameters

Table 4 shows the details about the OneFS S3 GetBucketAcl API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 4.      OneFS S3 GetBucketAcl API request parameters

Table 5 shows the details about the OneFS S3 GetBucketLocation API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 5.      OneFS S3 GetBucketLocation API request parameters

Table 6 shows the details about the OneFS S3 GetBucketLogging API request parameters and request body.

Table 6.      OneFS S3 GetBucketLogging API request parameters

Table 7 shows the details about the OneFS S3 GetObjectLockConfiguration API request parameters and request body, return a 404 Not Found error if the bucket is not locked.

Table 7.      OneFS S3 GetObjectLockConfiguration API request parameters

This API determines if a bucket exists and if permission is granted to access it. Table 8 shows the details about the OneFS S3 HeadBucket API request parameters and request body.

Table 8.      OneFS S3 HeadBucket API request parameters

This API returns a list of all buckets that are owned by the authenticated sender of the request. There are no request parameters and request body required for this API.

This API lists in-progress multipart uploads of a OneFS bucket. Table 9 shows the details about the OneFS S3 ListMultipartUploads API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 9.      OneFS S3 ListMultipartUploads API request parameters

This API returns some or all (up to 1,000) of the objects in a bucket. Table 10 shows the details about the OneFS S3 ListObjects API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 10.  OneFS S3 ListObjects API request parameters

This API returns some or all (up to 1,000) of the objects in a bucket. Table 11 shows the details about the OneFS S3 ListObjectsV2 API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 11.  OneFS S3 ListObjectsV2 API request parameters

This API sets the permissions on an existing bucket using access control lists (ACLs). Table 12 shows the details about the OneFS S3 PutBucketACL API request parameters and request body. If not specified, all unsupported request parameters and request body are silently ignored by OneFS without an error code being returned to client.

Table 12.  OneFS S3 PutBucketACL API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-read, x-amz-grant-write, x-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support an email address to specify a grantee, and a 501 NotImplemented code is returned.

Table 13 shows the details about the OneFS S3 PutBucketLogging API request parameters and request body.

Table 13.  OneFS S3 PutBucketLogging API request parameters

Places an Object Lock configuration on the specified bucket. Table 14 shows the details about the OneFS S3 PutObjectLockConfiguration API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 14.  OneFS S3 PutObjectLockConfiguration API request parameters

Many request parameters of Amazon S3 APIs are designed for Amazon S3 features, and OneFS does not support these parameters in its supported APIs. This section introduces the request parameters of supported OneFS S3 APIs on objects. For the request and response examples, see the Amazon S3 API Reference. OneFS supports the following bucket APIs:

• AbortMultipartUpload
• CompleteMultipartUpload
• CopyObject
• CreateMultipartUpload
• DeleteObject
• DeleteObjects
• GetObject
• GetObjectAcl
• GetObjectRetention
• HeadObject
• ListParts
• PutObject
• PutObjectAcl
• PutObjectRetention
• UploadPart
• UploadPartCopy

Table 15 shows the details about the OneFS S3 AbortMultipartUpload API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 15.  OneFS S3 AbortMultipartUpload API request parameters

This API completes a multipart upload by assembling previously uploaded parts. Table 16 shows the details about the OneFS S3 CompleteMultipartUpload API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 16.  OneFS S3 CompleteMultipartUpload API request parameters

This API creates a copy of an object that is already stored in OneFS. Table 17 shows the details about the OneFS S3 CopyObject API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 17.  OneFS S3 CopyObject API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-read, x-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support an email address to specify a grantee, and a 501 NotImplemented code is returned.

This API Initiates a multipart upload and returns an upload ID. Table 18 shows the details about the OneFS S3 CreateMultipartUpload API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 18.  OneFS S3 CreateMultipartUpload API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-read, x-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support an email address to specify a grantee, and a 501 NotImplemented code is returned.

This API deletes a specific object in a bucket. Table 19 shows the details about the OneFS S3 DeleteObject API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 19.  OneFS S3 DeleteObject API request parameters

This API allows you to delete multiple objects from a bucket using a single HTTP request. Table 20 shows the details about the OneFS S3 DeleteObjects API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 20.  OneFS S3 DeleteObjects API request parameters

This API retrieves objects from OneFS through the S3 protocol. If read permission is granted to the nobody user in OneFS, a client can retrieve the object without using an authorization header. Table 21 shows the details about the OneFS S3 GetObject API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 21.  OneFS S3 GetObject API request parameters

This API returns the access control list (ACL) of an object. Table 22 shows the details about the OneFS S3 GetObjectAcl API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 22.  OneFS S3 GetObjectAcl API request parameters

Retrieves an object's retention settings. Table 23 shows the details about the OneFS S3 GetObjectRetention API request parameters and request body.

Table 23.  OneFS S3 GetObjectRetention API request parameters

This API retrieves metadata from an object without returning the object data. Table 24 shows the details about the OneFS S3 HeadObject API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 24.  OneFS S3 HeadObject API request parameters

This API lists the parts that have been uploaded for a specific multipart upload. Table 25 shows the details about the OneFS S3 ListParts API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 25.  OneFS S3 ListParts API request parameters

Table 26 shows the details about the OneFS S3 PutObject API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 26.  OneFS S3 PutObject API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-read, x-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support an email address to specify a grantee, and a 501 NotImplemented code is returned.

This API sets the permissions on an existing object using ACLs. Table 27 shows the details about the OneFS S3 PutObjectACL API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 27.  OneFS S3 PutObjectACL API request parameters

Note: Amazon S3 allows specifying a grantee using the following headers: email address, id, uri in the x-amz-grant-readx-amz-grant-read-acp, x-amz-grant-write-acp, and x-amz-grant-full-control. OneFS does not support an email address to specify a grantee, and a 501 NotImplemented code is returned.

Places an Object Retention configuration on an object. Table 28 shows the details about the OneFS S3 PutObjectRetention API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 28.  OneFS S3 PutObjectRetention API request parameters

This API uploads a part in a multipart upload. Each part must be at least 5 MB in size, except for the last part. The maximum size of each part is 5 GB. Table 29 shows the details about the OneFS S3 UploadPart API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.OneFS S3 UploadPart API request parameters

Table 29.  OneFS S3 UploadPart API request parameters

This API uploads a part by copying data from an existing object as the data source. Each part must be at least 5 MB in size, except for the last part. The maximum size of each part is 5 GB. Table 30 shows the details about the OneFS S3 UploadPartCopy API request parameters and request body. If not specified, OneFS silently ignores all unsupported request parameters and the request body, without returning an error code to the client.

Table 30.  OneFS S3 UploadPartCopy API request parameters

OneFS S3 Object Lock

Amazon S3 Object Lock helps prevent objects from being deleted or overwritten for a specified retention period or indefinitely using a write-once-read-many (WORM) storage model. This feature is commonly used to meet regulatory compliance requirements that mandate WORM storage, or to provide an additional layer of protection against accidental or malicious data modification or deletion. For more information about S3 Object Lock, refer to AWS S3 Object Lock documentation.

Starting with OneFS 9.12, the OneFS S3 service introduces support for S3 Object Lock, implemented on top of the OneFS SmartLock feature within the file system. OneFS S3 Object Lock supports both object-level (Object Lock) and bucket-level (Bucket Lock) locking semantics.

Bucket-Level Locking (Bucket Lock)

• Bucket-level locking enables all objects within the bucket to inherit a default retention policy.
• Once enabled, bucket lock mode cannot be disabled.
• The retention period (in days or years) is applied dynamically to each object, starting from the time it is committed to the file system.
• Modifying the bucket’s retention policy updates the retention settings for all objects in the bucket.
• Reducing the retention period of the bucket is a privileged operation and requires the ISI_PRIV_IFS_WORM_DELETE permission.
• In a Bucket Lock configuration, all objects are locked, and objects can only be deleted after their retention period has expired.
• The S3 Bucket Lock feature is only supported through S3 protocol. Other protocols such as SMB, NFS, or SSH are not supported and the files will not be automatically locked when they are added inside a bucket with ‘BucketLock’ enabled.




Object-Level Locking (Object Lock)

• Object-level locking allows setting individual retention periods at the time an object is committed.
• The Default retention can be specified in days or years from the object’s commit time.
• The retention date of individual objects within the bucket can be modified. Modifying  the retention date to a shorter value requires the IFSI_PRIV_IFS_WORM_DELETE privilege.
• A privileged deletion is allowed for locked objects before their expiry date. This requires the ISI_PRIV_IFS_WORM_DELETE privilege.

By integrating S3 Object Lock with OneFS SmartLock, OneFS provides a robust, compliant storage solution for customers requiring WORM capabilities using S3, either for regulatory adherence or for enhanced data protection.

Note: OneFS S3 Object Lock does not support legal hold and compliance retention mode.

OneFS S3 server access logging

Server access logging provides detailed records for the requests that are made to a bucket. Server access logs are useful for many applications. For example, accessing log information can be useful in security and access audits. Please refer to AWS S3 Server Access Logging documentation for more details.

Starting with OneFS 9.12, the OneFS S3 service introduces support for S3 server access logging. When you enable access logging on a bucket, you need to specify a target bucket to store the logs file along with a log file prefix.

OneFS supports to use object lock enabled bucket as the server access log target bucket. The target bucket must have the WRITE ACL/ FULL_CONTROL permission granted to the source bucket owner. Additionally, the source bucket owner should ensure that the OneFS ACL permissions are appropriately configured for the target bucket directory. Failure to properly configure these permissions causes the logging configuration to fail.

Log object key format

The log object key format supports date-based partitioning, offering a more hierarchical and structured layout that simplifies troubleshooting and significantly reduces the risk of exceeding S3’s object limits under a single prefix. Compared to non-date-based partitioning, this approach improves both operational scalability and data manageability. Please refer to AWS S3 Log Object Key Format documentation for more information. The OneFS log object key format follows the structure:

[DestinationPrefix][ZoneId]/[UserId]/[SourceBucket]/[YYYY]/[MM]/[DD]/[YYYY]-[MM]-[DD]-[hh]-[mm]-[ss]-[UniqueString]

An example log object shown below, where DestinationPrefix=bkt01-log, ZoneId=1, and UserId=user01.

bkt01-log1/user01/bkt01/2025/07/08/2025-07-08-07-40-35-DB64FAC840EC564B

This format is largely aligned with the standard AWS S3 date-based partitioning approach. However, key differences include the replacement of:

• SourceAccountId → ZoneId
• SourceRegion → UserId

These substitutions map more directly to PowerScale S3 concepts, providing better contextual alignment within the PowerScale environment.

Log record format

The log format follows the AWS S3 server access log format, ensuring familiarity and consistency for users accustomed to S3 logging standards. For fields that are either not applicable to specific operations or not currently supported by PowerScale S3, the log record will display a placeholder value of '-', examples include:

• Version ID: Shown as '-' since PowerScale S3 does not currently support S3 versioning.
• Access Point ARN: Replaced with '-' as this field is specific to AWS infrastructure.

Below is an example of the access log content:

vonefs-1# cat 2025-07-08-07-40-35-DB64FAC840EC564B

root bkt01 [08/Jul/2025:07:49:10 +0000] 192.168.1.10 1_root_accid 564950498 REST.GET.LOGGING_STATUS - "GET /bkt01 HTTP/1.1" 200 - 188 - 1 1 "-" "Boto3/1.39.3 md/Botocore#1.39.3 ua/2.1 os/windows#11 md/arch#amd64 lang/python#3.12.6 md/pyimpl#CPython m/b,Z,D,N cfg/retry-mode#legacy Botocore/1.39.3" - 192.168.1.20 SigV4 - AuthHeader "192.168.1.20:9020" - - Yes

root bkt01 [08/Jul/2025:21:08:54 +0000] 192.168.1.25 1_root_accid 564950502 REST.GET.BUCKET - "GET /bkt01/ HTTP/1.1" 200 - 213 - 2 2 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:08:59 +0000] 192.168.1.25 1_root_accid 564950504 REST.GET.BUCKET - "GET /bkt01/ HTTP/1.1" 200 - 213 - 1 1 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:09:02 +0000] 192.168.1.25 1_root_accid 564950506 REST.GET.BUCKET - "GET /bkt01/ HTTP/1.1" 200 - 213 - 1 2 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:20:02 +0000] 192.168.1.25 1_root_accid 564950509 REST.GET.BUCKET - "GET /bkt01/ HTTP/1.1" 200 - 189 - 2 2 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:20:02 +0000] 192.168.1.25 1_root_accid 564950510 REST.PUT.OBJECT /h14071-dell-objectscale-overview-and-architecture.pdf "PUT /bkt01/h14071-dell-objectscale-overview-and-architecture.pdf HTTP/1.1" 200 - 0 2784536 2015 2015 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:20:05 +0000] 192.168.1.25 1_root_accid 564950511 REST.GET.BUCKET - "GET /bkt01/ HTTP/1.1" 200 - 524 - 12 12 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:20:20 +0000] 192.168.1.25 1_root_accid 564950512 REST.HEAD.OBJECT /h14071-dell-objectscale-overview-and-architecture.pdf "HEAD /bkt01/h14071-dell-objectscale-overview-and-architecture.pdf HTTP/1.1" 200 - 0 - 4 4 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

root bkt01 [08/Jul/2025:21:20:20 +0000] 192.168.1.25 1_root_accid 564950513 REST.GET.OBJECT /h14071-dell-objectscale-overview-and-architecture.pdf "GET /bkt01/h14071-dell-objectscale-overview-and-architecture.pdf HTTP/1.1" 200 - 0 2784536 6 6 "-" "S3 Browser/12.2.9 (https://s3browser.com)" - 192.168.1.20 SigV4 TLS_AES_256_GCM_SHA384 AuthHeader "192.168.1.20:9021" TLSv1.3 - Yes

OneFS S3 ETag

AWS S3 may use an MD5 Checksum as an ETag value for objects. This value may be specified in the HTTP Header “Content-MD5”. In OneFS 9.0 and OneFS 9.1, OneFS uses the MD5 value from client as an ETag directly instead of calculating it by itself. If the MD5 is not specified in client request, OneFS generates a unique string for that file as an ETag in response. This behavior is different from AWS S3.

Most S3 applications do not send the MD5 value in their requests, thus, OneFS generates a unique string for that file as an ETag in response. This behavior causes many issues with applications that rely on the ETag value. Therefore, starting from OneFS 9.2, OneFS introduces two new options to allow administrators to specify if the MD5 should be calculated and verified.

These two options are under the S3 zone settings. You can configure them using CLI isi s3 settings zone modify --use-md5-for-etag=true/false  --validate-content-md5=true/false or WebUI, shown as Figure 1.

# isi s3 settings zone view

                   Root Path: /ifs

                 Base Domain:

           Object ACL Policy: replace

Bucket Directory Create Mode: 0777

            Use Md5 For Etag: No

        Validate Content Md5: No

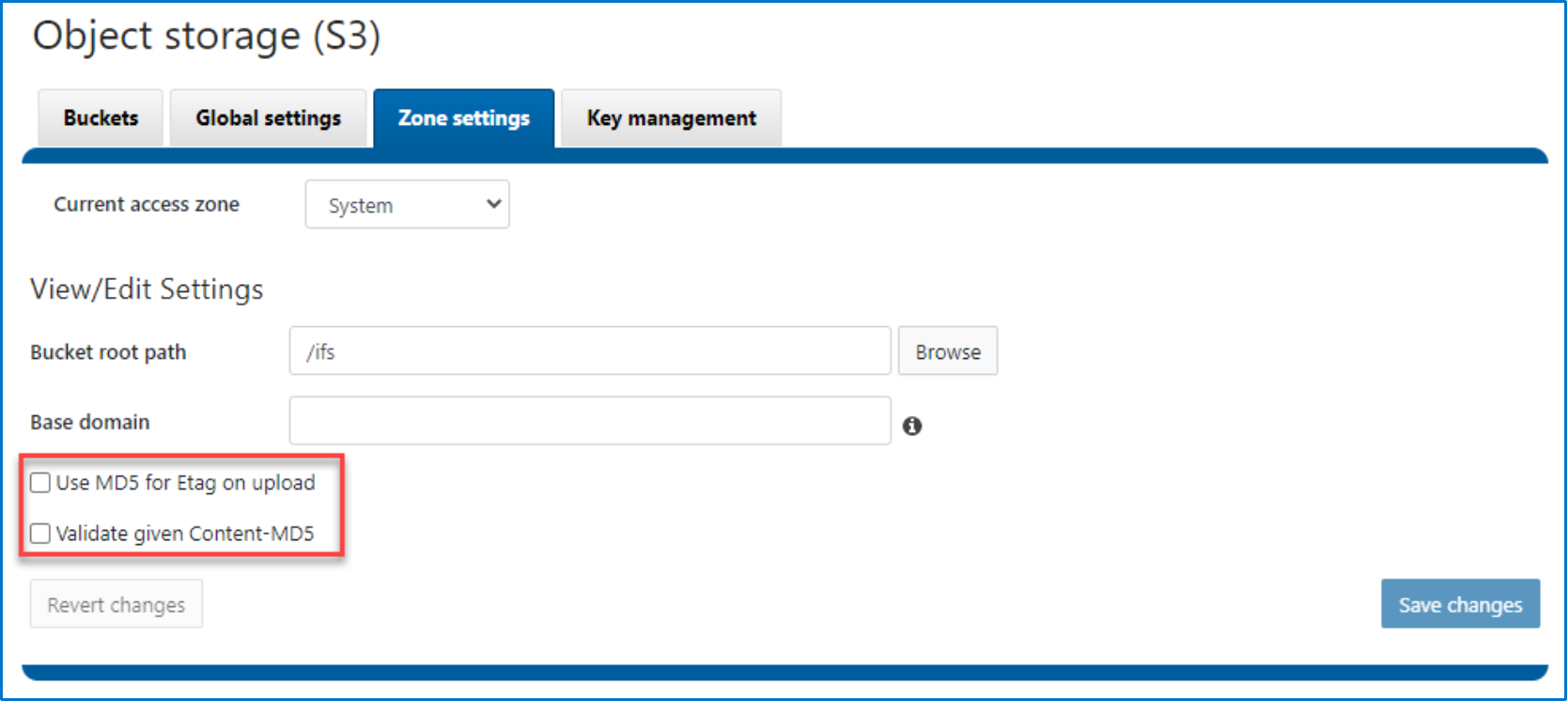

Figure 1.   S3 ETag options

Table 31 shows the different behaviors by using the two new options.

Table 31.  OneFS S3 ETag behavior

Note: Objects created with a multipart upload request do not use MD5 value as ETag.

Presigned URLs

A presigned URL gives you access to the object identified in the URL, OneFS supports presigned URLs to allow users to access objects without needing credentials. Please refer to AWS S3 Presigned URLs for more details.

Chunked upload

There are two types of uploading options when authenticating requests using the Authorization header of AWS Signature Version 4:

• Transfer payload in a single chunk
• Transfer payload in multiple chunks (chunked upload)

Starting with OneFS 9.3.0, the chunked upload is introduced. With chunked upload, you can break up your payload into chunks. These can be fixed or variable-size chunks. By uploading data in chunks, you avoid reading the entire payload to calculate the signature. Instead, for the first chunk, you calculate a seed signature that uses only the request headers. The second chunk contains the signature for the first chunk, and each subsequent chunk contains the signature for the chunk that precedes it. At the end of the upload, you send a final chunk with 0 bytes of data that contains the signature of the last chunk of the payload. You can refer to AWS S3 Chunked Upload for more details.

Inter-level directory

Starting from OneFS 9.3.0, the concept of "inter-level directory" is introduced. An inter-level directory in OneFS refers to directories within an S3 bucket that contain the .isi_s3_dir file.

When uploading an object that requires a parent directory, such as uploading an object with the key "a/b/c" and directories "a/" and "b/" do not exist in OneFS, OneFS will automatically create these directories to store the file "c". Additionally, OneFS will create a file named .isi_s3_dir in each newly created directory.

The introduction of inter-level directories changes the OneFS behavior of the delete bucket and list objects S3 API.

Table 32.  Delete bucket and list objects behavior

Delete bucket examples

• Empty bucket path

• Bucket path: /ifs/data/s3-bkt, the bucket path is empty, see below:

# tree -a /ifs/data/s3-bkt/

/ifs/data/s3-bkt/

0 directory, 0 files

• Before OneFS 9.3.0: delete bucket successfully using DeleteBucket S3 API.
• OneFS 9.3.0 and above: delete bucket successfully using DeleteBucket S3 API.

• Bucket path contains directories or files

• Bucket path: /ifs/data/s3-bkt, the bucket path contains a normal directory, see below:

# tree -a /ifs/data/s3-bkt/

/ifs/data/s3-bkt/

└── dir01

1 directory, 0 files

• Before OneFS 9.3.0: delete bucket failed using DeleteBucket S3 API.
• OneFS 9.3.0 and above: delete bucket failed using DeleteBucket S3 API.

• Bucket path contains inter-level directories

• Bucket path: /ifs/data/s3-bkt, the bucket path contains an inter-level directory, see below:

# tree -a /ifs/data/s3-bkt/

/ifs/data/s3-bkt/

└── dir01

    └── .isi_s3_dir

1 directory, 1 file

• Before OneFS 9.3.0: delete bucket failed using DeleteBucket S3 API.
• OneFS 9.3.0 and above: delete bucket successfully using DeleteBucket S3 API.

Enhanced compatibility with directory objects

In AWS S3, the object keys "a/" and "a/b" represent distinct data entities. AWS S3 permits users to delete the object "a/" while retaining the object "a/b".

However, within OneFS, if you explicitly upload two objects "a/" and "a/b", the object "a/" functions as a directory in OneFS, while "a/b" is recognized as a file nested under the directory "a/". Attempting to delete the object "a/" in OneFS fails with HTTP error 200 because the directory "a/" is not empty.

To align OneFS S3 behavior more closely with AWS S3, starting from OneFS 9.7.0, when deleting a directory object, the directory transitions into an inter-level directory with the creation of a .isi_s3_dir file. This transition occurs seamlessly without triggering any error prompts for clients. Below is an example:

1. Assume there is a bucket using bucket path /ifs/data/s3-bkt/
2. Put object “dir01/” to OneFS cluster, OneFS will create a directory /ifs/data/s3-bkt/dir01/
3. Put object “dir01/file01” to OneFS cluster, OneFS will create a file /ifs/data/s3-bkt/dir01/file01
4. Try to delete the object “dir01/”  with S3 DeleteObject API,

• Before OneFS 9.3.0: delete object “dir01/”  failed using S3 DeleteObject API.
• OneFS 9.3.0 and above: delete object “dir01/”  successfully using S3 DeleteObject API, and OneFS creates a .isi_s3_dir file under directory /ifs/data/s3-bkt/dir01/.

S3A connector support

S3A is an open-source connector that allows big data applications like Apache Hadoop, Spark, and Hive to efficiently access and interact with data stored in Amazon S3 and S3 compatible storage. It uses the s3a:// URI scheme. Starting from OneFS 9.11, S3A is officially supported. To access OneFS data using S3A, the following configuration should be done:

1. Enable OneFS S3 service and create an S3 bucket.
2. Generate S3 user ID and access key.
3. Configure your application to use OneFS S3 service, for example of Hadoop, you can refer to Apache Hadoop Amazon Web Services support – Connecting to an Amazon S3 Bucket through the S3A Connector.

Note: Some of S3A clients only work if OneFS uses MD5 as etag.

By default, S3A uploads files as a temporary file first, then copy it to target file name to mimic rename. This is unnecessary because S3 provides atomicity guarantee. Consider using the direct upload option. For example, hadoop fs has -d option and distcp has --direct option.

S3 cluster status API

Starting from OneFS 9.11, OneFS S3 provides the ability to query cluster health and performance status via a special S3-compatible API, making it easy to integrate system telemetry directly into existing S3 workflows or monitoring pipelines.

By performing a GET request on a virtual bucket/object pair, authenticated S3 users can get the following cluster status information:

• Total capacity and free space (in TB and TiB)
• Cluster health (overall state, percentage health score)
• Network status (Full, Half, Critical, Unknown)
• Read/write bandwidth (15-minute average)

How it Works

The OneFS S3 Cluster Status API provides a simple way to retrieve infrastructure insights by targeting a specific virtual bucket and object (by default: cluster_status/s3_cluster_status_v1). It supports only HEAD and GET operations, while all other S3 methods (such as PUT or DELETE) will return a 405 Method Not Allowed error. The API is enabled and configured using the isi_gconfig tool. Once activated, it allows tools like s5cmd or custom S3 clients to access cluster status data easily, eliminating the need for SSH access or separate monitoring APIs.

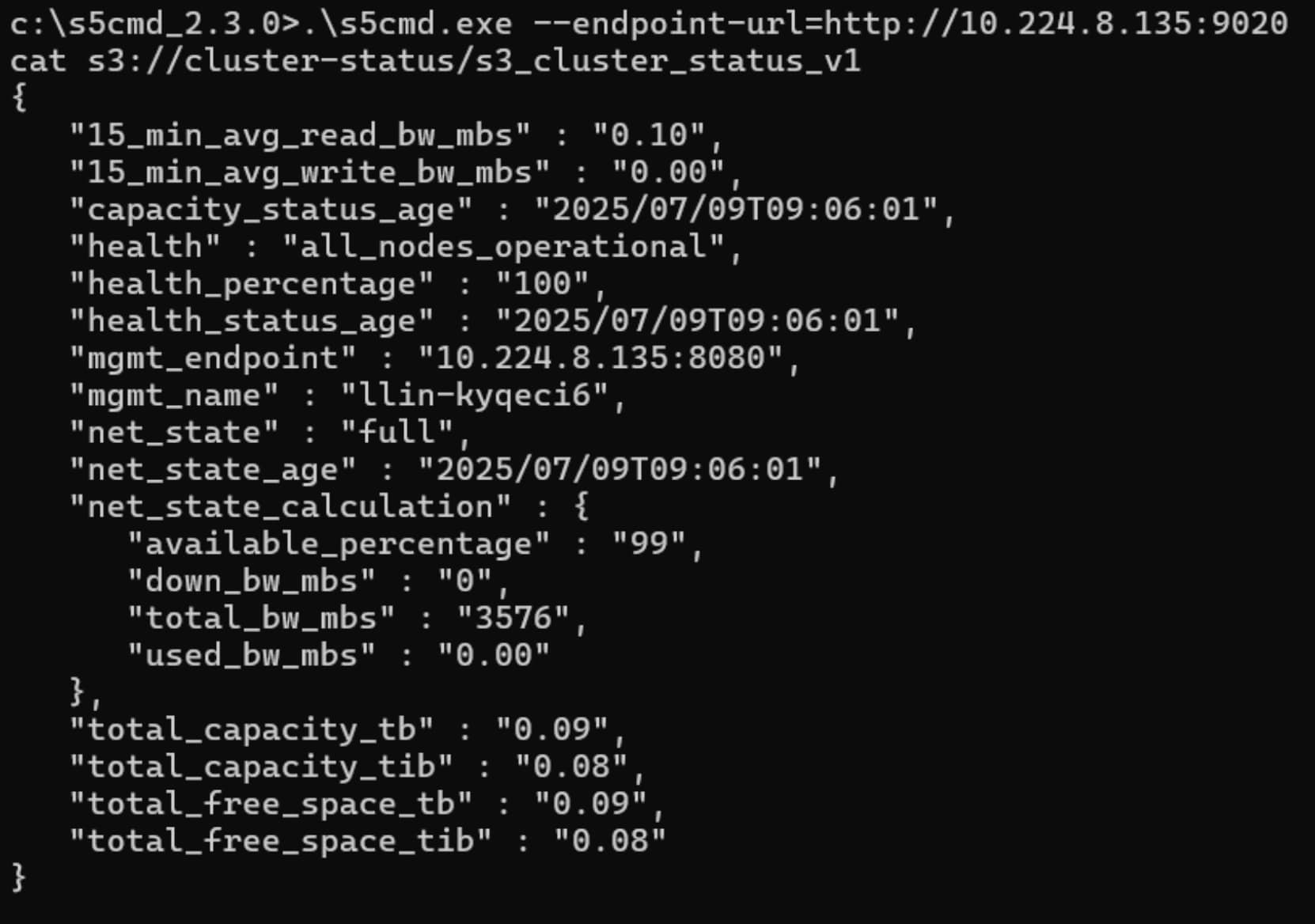

Figure 2 is an example using s5cmd:

Figure 2.   S3 cluster status API using s5cmd

Table 33 shows the details of returned information.

Table 33.  Cluster status fields

How to configure?

The S3 cluster status API can be enabled and configured using the isi_gconfig tool. The Table 34 shows the available options and the default settings. Please note that the S3 service must be restarted to make the S3 cluster status API option changes effective.

Table 34.  S3 cluster status API options

Below is a default settings example:

llin-x2ystz3-1# isi_gconfig | grep s3.S3ClusterStatus

registry.Services.lwio.Parameters.Drivers.s3.S3ClusterStatusBucketName (char*) = cluster-status

registry.Services.lwio.Parameters.Drivers.s3.S3ClusterStatusCacheExpirationInSec (uint32) = 300

registry.Services.lwio.Parameters.Drivers.s3.S3ClusterStatusEnabled (uint32) = 0

registry.Services.lwio.Parameters.Drivers.s3.S3ClusterStatusObjectName (char*) = s3_cluster_status_v1

Get multipart upload (MPU) completion progress

Multipart upload (MPU)

OneFS S3 provides the option to upload large files as multiple parts, rather than as a single request. To initiate a multipart upload, the client sends a POST request with the `uploads` query parameter and the object key, along with any optional metadata attributes and ACL for the file. A unique `uploadId` is generated and returned to the client, and a directory named `.s3_parts_<uploadId>` is created in the target directory to store the parts. Each part is uploaded with a part number and stored in this directory, with a maximum size of 5GB and a minimum size of 5MB (except for the last part).

Fast path and slow path

As mentioned above, OneFS S3 Multipart Upload (MPU) allows clients to increase upload throughput and reduce the cost of failed transmissions by splitting objects into equal-sized parts. The typical MPU workflow involves uploading parts, with only failed parts being re-uploaded. To optimize completion times, PowerScale's MPU completion process follows a fast path if the following conditions are met:

• Parts are equal-sized (except for the final part)
• Parts are only re-uploaded in case of failure; the re-uploaded part will have the same size as the original
• All uploaded parts are included in the final object at completion time
• Part numbers start from 1
• There are no gaps in the part number sequence

If any of these conditions are not met, the system falls back to a slow path, which may result in longer completion time. Additionally, even if the fast path is initially followed, if any recovered part fails validation or processing, the process will also revert to the slow path.

As of OneFS version 9.13.0.0, the S3 API has been enhanced with the introduction of the GetMPUCompletionProgress API. This new API enables clients to monitor the progress of the Multipart Upload (MPU) completion process, providing greater visibility and control over the upload process.

To support the GetMPUCompletionProgress API, the CompleteMultipartUpload API response header has been extended to include three additional fields when MPU completion progress is enabled:

• Completion-Id: An identifier used by the GetMPUCompletionProgress call to retrieve the progress of the MPU completion process.
• Fast-Path: A boolean value indicating whether the MPU completion is using the fast path optimization.
• Completion-State-Info: A field providing detailed information about the completion state, as outlined in Table 35:

Table 35.  Completion-State-Info details

GetMPUCompletionProgress API Request Pattern

The GetMPUCompletionProgress API is invoked using the following HTTP GET request pattern:

• GET http://{endpoint}/{bucket_name}/{object_key}?completionId={completion_id}&uploadId={upload_id}

For example, the client would send a GET request to:

• http://192.168.1.100:9020/mpubucket/file1?completionId=c20c8afe-b8ce-7aa4-6e35-817b144b2568&uploadId=1_1000000018001_1

GetMPUCompletionProgress API Response

The response from the GetMPUCompletionProgress API includes the following information:

• Fast Path : Indicates whether the MPU completion is using the fast path optimization.
• Total Parts : The total number of parts in the multipart upload.
• Total Recovery Parts : The total number of parts that require recovery.
• Completed Parts : The number of parts that have been successfully completed.
• Recovered Parts : The number of parts that have been successfully recovered.

This section addresses the limitations of the OneFS S3 implementation. It is recommended to take these limitations into consideration when designing an application to work with OneFS S3.

Table 36 shows the details about OneFS S3 limitations.

Table 36.  OneFS S3 limitations

When creating a bucket through S3, OneFS provides an optional S3 extension to specify a OneFS directory as a bucket path. The following is an example of adding the extended header through boto3.

import boto3

HOST=<ip/fqdn>  # Your SmartConnect name or cluster IP goes here

USERNAME='1_local_user01_accid'  # Your access ID

USERKEY='mWQbXkadl2CR_x2_WRj4tYu_d11j'   # Your secret key

URL = 'http://{}:9020'.format(HOST)

s3 = boto3.resource('s3')

session = boto3.Session()

s3client = session.client(service_name='s3',aws_access_key_id=USERNAME,aws_secret_access_key=USERKEY,endpoint_url=URL,use_ssl=False,verify=False)

bucket_name='bucket01'

bucket _path = "/ifs/data/s3buckets/{}".format(bucket_name)

headers = {'x-isi-path': bucket_path}

# pass in custom headers before CreateBucket call

add_headers = (lambda **kwargs: kwargs['params']['headers'].update(headers))

s3client.meta.events.register('before-call.s3.CreateBucket', add_headers)

s3client.create_bucket(Bucket=bkt_name)

By default, a bucket cannot be deleted if it is not empty. With the x-isi-force-delete extension, a bucket can be deleted from OneFS while preserving the data under the bucket. This option is effective if it is contained in a request. A value does not have to be assigned for this header, and an empty string is acceptable. The following is an example of adding the extended header through boto3.

import boto3

HOST=<ip/fqdn>  # Your SmartConnect name or cluster IP goes here

USERNAME='1_local_user01_accid'  # Your access ID

USERKEY='mWQbXkadl2CR_x2_WRj4tYu_d11j'   # Your secret key

URL = 'http://{}:9020'.format(HOST)

s3 = boto3.resource('s3')

session = boto3.Session()

s3client = session.client(service_name='s3',aws_access_key_id=USERNAME,aws_secret_access_key=USERKEY,endpoint_url=URL,use_ssl=False,verify=False)

bucket_name='bucket01'

headers = {'x-isi-force-delete': ''}

# pass in custom headers before DeleteBucket call

add_headers = (lambda **kwargs: kwargs['params']['headers'].update(headers))

s3client.meta.events.register('before-call.s3.DeleteBucket', add_headers)

s3client.delete_bucket(Bucket=bkt_name)

Dell.com/support is focused on meeting customer needs with proven services and support.

Storage technical documents and videos provide expertise that helps to ensure customer success on Dell Technologies storage platforms.

• AWS S3 API Reference
• Boto3 Documentation
