OneFS inline data reduction combines both real-time compression and deduplication. Compression uses a lossless algorithm to reduce the physical size of data when it is written to disk and decompresses the data when it is read back. More specifically, lossless compression reduces the number of bits in each file by identifying and reducing or eliminating statistical redundancy. No information is lost in lossless compression, and a file can easily be decompressed to its original form.

Deduplication differs from data compression in that it eliminates duplicate copies of repeating data. While compression algorithms identify redundant data inside individual files and encode the redundant data more efficiently, deduplication inspects data and identifies sections, or even entire files, that are identical. Then, it replaces them with a shared copy.

Both compression and deduplication are transparent to all applications that sit on top of the file system including protocol-based services like NFS, SMB, HDFS, or S3. The primary purpose of OneFS inline data reduction is to reduce the storage requirements for data. This ability results in a smaller storage footprint, reduced power and cooling requirements, and a reduction in the overall per-TB storage cost. Also, inline data reduction helps to shrink the total amount of physical data written to storage devices. This feature is particularly beneficial for solid state drives (SSDs) and other media with finite overwrite limits, by significantly reducing flash-drive wear rates.

There are three primary measures of storage capacity that are relevant here:

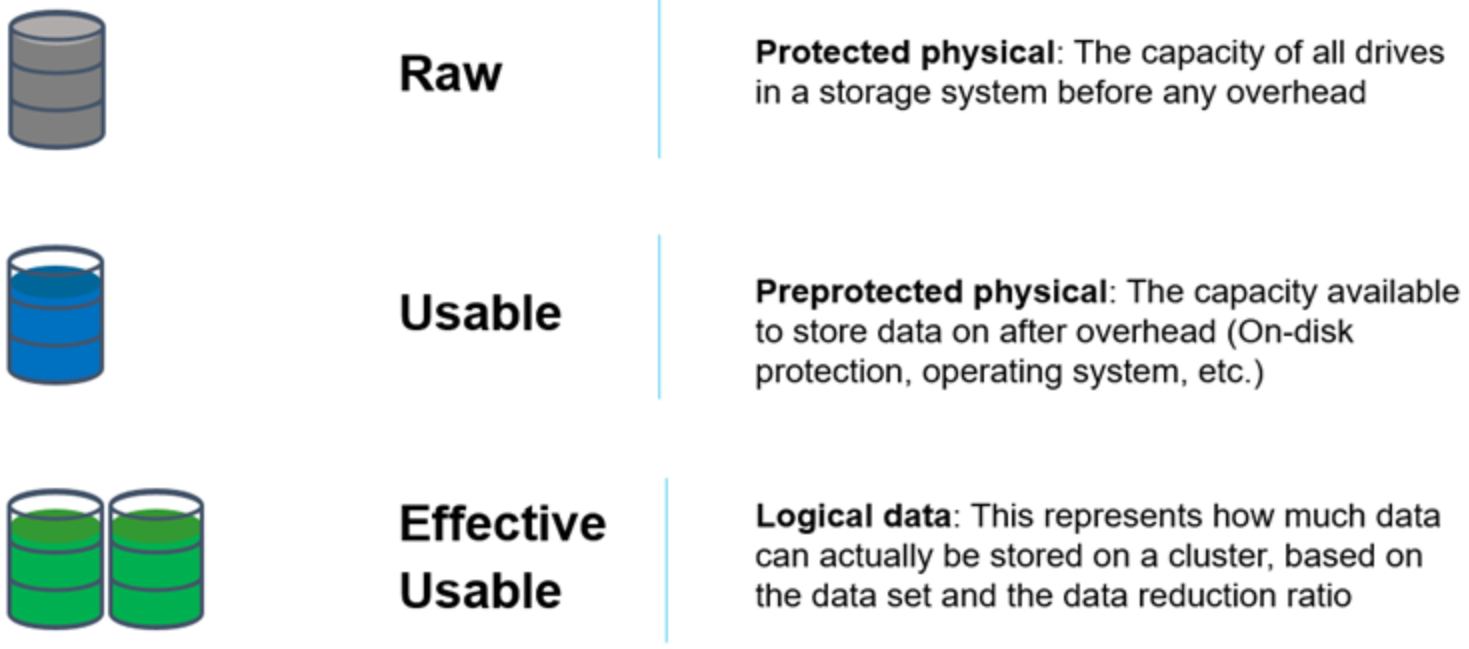

Figure 1.   The primary measures of storage capacity

Savings due to inline data reduction are highly dependent on the data and can vary considerably. This variance means that accurate rates of savings are not able to be predicted without comprehensive analysis of the actual dataset. Any estimates provided in this document are for broad guidance only.

This paper presents information for deploying and managing inline data reduction on a Dell PowerScale all-flash cluster. This paper does not intend to provide a comprehensive background to the OneFS architecture.

See the OneFS Technical Overview white paper for further details on the OneFS architecture.

The target audience for this white paper is anyone configuring and managing inline data reduction in a Dell PowerScale clustered storage environment containing F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, or A300/3000 nodes. It is assumed that the reader has an understanding and working knowledge of the OneFS components, architecture, commands, and features.

More information about OneFS commands and feature configuration is available in the OneFS Administration Guide.

Table 1.      Glossary of terms

Dell Technologies and the authors of this document welcome your feedback on this document. Contact the Dell Technologies team by email.

Author: Nick Trimbee

Note: For links to other documentation for this topic, see the PowerScale Info Hub.

OneFS data reduction offers both inline data compression and inline deduplication, and the supporting OneFS architecture is comprised of the following principal components:

• Data Reduction Platform
• Compression Engine and Chunk Map
• Zero block removal phase
• Deduplication In-memory Index and Shadow Store Infrastructure
• Data Reduction Alerting and Reporting Framework
• Data Reduction Control Path

The inline data reduction control path consists of the OneFS command-line interface (CLI) and RESTful platform API and is responsible for managing the configuration and reporting of the feature.

Inline data reduction is supported on the Dell PowerScale F910, F900, F710, and F600, and F210-NVMe and F200 SSD nodes, PowerScale H700/7000 and A300/3000 node, and the Isilon F810 and H5600 platforms.

The specific OneFS versions required to support a cluster or node pool with the following characteristics include:

• OneFS 8.2.1 or later for an F810 node pool.
• OneFS 8.2.2 or later for an H5600 node pool.
• OneFS 9.0 or later for an F600 or F200 node pool.
• OneFS 9.2 or later for an F900 node pool.
• OneFS 9.2.1 or later for an H700, H7000, A300, or A3000 node pool.
• OneFS 9.7 or later for an F710 of F210 node pool.
• OneFS 9.8 or later for an F910 node pool.

Unlike the other platforms above, each F810 node includes a data reduction hardware offload adapter. This adapter off-loads certain tasks from the CPU. Specifically, data compression and inflation are transparently performed by the offload adapter with minimal latency, avoiding the need for consuming a node’s expensive CPU and memory resources.

Each F810 node’s data reduction offload adapter contains an FPGA chip, which is dedicated to the compression of data received over client connections to the node. These cards reside in the backend PCIe slot in each of the four nodes. The two Ethernet ports in each adapter are used for the node’s redundant backend network connectivity.

Data from network clients is accepted as is and makes its way through the OneFS write path until it reaches the BSW engine, where it is broken up into individual chunks. The inline data reduction write path consists of three main phases:

• Zero Block Removal
• Inline Deduplication
• Inline Compression

If both inline compression and deduplication are enabled on a cluster, zero block removal is performed first, followed by deduplication, and then compression. This order allows each phase to reduce the scope of work each subsequent phase.

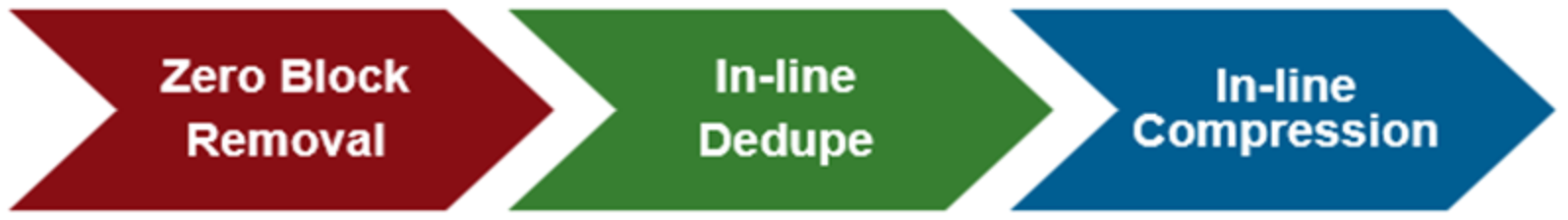

Figure 2.   Inline data reduction workflow

The inline data reduction zero block removal phase detects blocks that contain only zeros and prevents them from being written to disk. This action both reduces disk space requirements and avoids unnecessary writes to SSD, resulting in increased drive longevity.

Zero block removal occurs first in the OneFS inline data reduction process. As such, it has the potential to reduce the amount of work that both inline deduplication and compression need to perform. The check for zero data does incur some overhead. However, for blocks that contain non-zero data the check is terminated on the first non-zero data found, which helps to minimize the impact.

The following characteristics are required for zero block removal to occur:

• A full 8 KB block of zeroes
• A partial block of zeroes being written to a sparse or preallocated block

The write will convert the block to sparse if not already. A partial block of zeroes being written to a non-sparse, non-preallocated block will not be zero eliminated.

With inline data reduction, deduplication is performed in real time, as data is written to the cluster. Storage efficiency is achieved by scanning the data for identical blocks as it is received and then eliminating the duplicates.

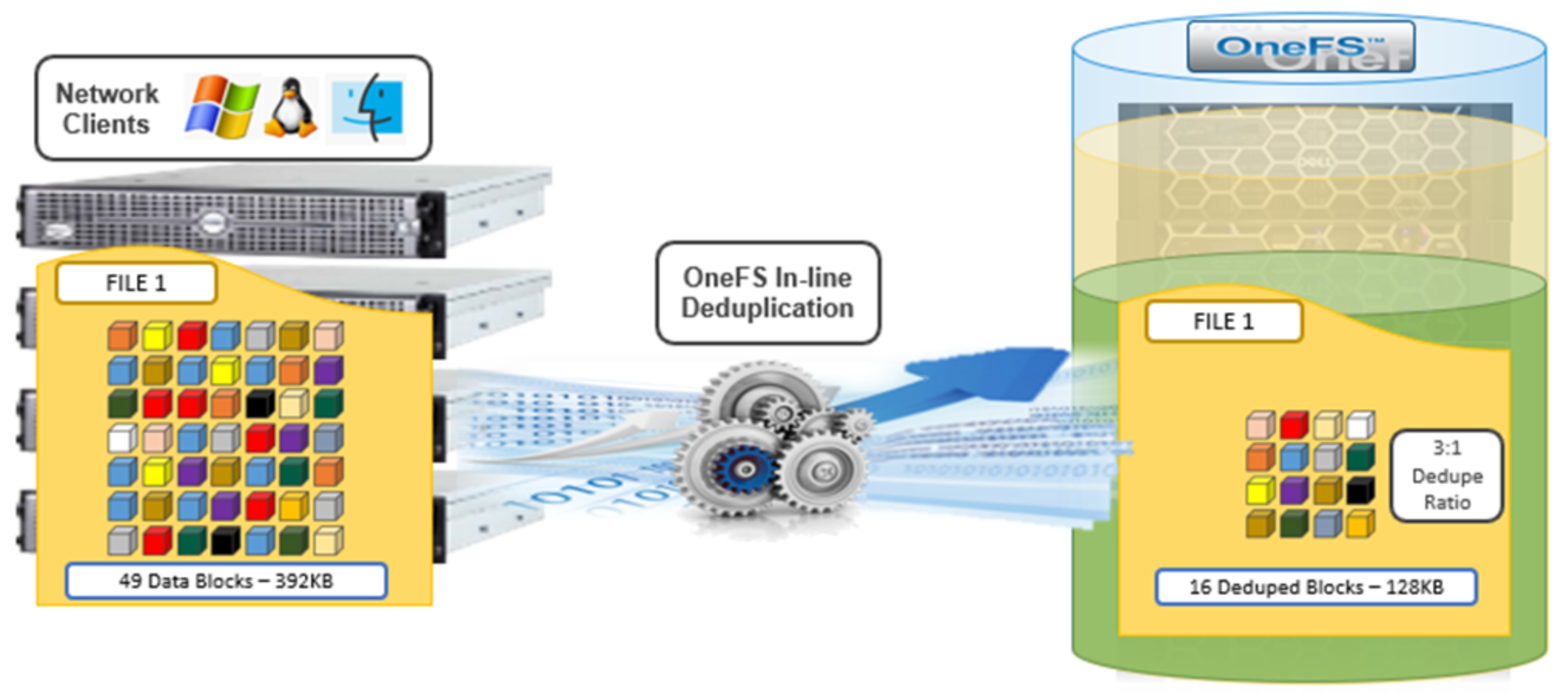

Figure 3.   OneFS inline deduplication

When a duplicate block is discovered, inline deduplication moves a single copy of the block to a special set of files known as shadow stores. OneFS shadow stores are file system containers that allow data to be stored in a shareable manner. As such, files on OneFS can contain both physical data and pointers, or references, to shared blocks in shadow stores.

Shadow stores were initially introduced to support OneFS file clones, and there are many overlaps between cloning and deduplicating files. The other main consumer of shadow stores is OneFS Small File Storage Efficiency. This feature maximizes the space utilization of a cluster by decreasing the amount of physical storage required to house the small files that consist of a typical healthcare dataset.

Shadow stores are similar to regular files but are hidden from the file system namespace, so they cannot be accessed by a pathname. A shadow store typically grows to a maximum size of 2 GB, which is around 256 K blocks, with each block able to be referenced by 32,000 files. If the reference count limit is reached, a new block is allocated, which may or may not be in the same shadow store. Also, shadow stores do not reference other shadow stores. And snapshots of shadow stores are not permitted because the data contained in shadow stores cannot be overwritten.

When a client writes a file to a node pool configured for inline deduplication on a cluster, the write operation is divided up into whole 8 KB blocks. Each of these blocks is hashed, and its cryptographic ‘fingerprint’ is compared against an in-memory index for a match. At this point, one of the following operations will occur:

1. If a match is discovered with an existing shadow store block, a byte-by-byte comparison is performed. If the comparison is successful, the data is removed from the current write operation and replaced with a shadow reference.
2. When a match is found with another LIN, the data is written to a shadow store instead and replaced with a shadow reference. Next, a work request is generated and queued that includes the location for the new shadow store block, the matching LIN and block, and the data hash. A byte-by-byte data comparison is performed to verify the match, and the request is processed.
3. If no match is found, the data is written to the file natively and the hash for the block is added to the in-memory index.

In order for inline deduplication to be performed on a write operation, the following conditions need to be true:

• Inline deduplication must be globally enabled on the cluster.
• The current operation is writing data (not a truncate or write zero operation).
• The ‘no_dedupe’ flag is not set on the file.
• The file is not a special file type, such as an alternate data stream (ADS) or an EC (endurant cache) file.
• Write data includes fully overwritten and aligned blocks.
• The write is not part of a ‘rehydrate’ operation.
• The file has not been packed (containerized) by SFSE (small file storage efficiency).

OneFS inline deduplication uses the 128-bit CityHash algorithm, which is both fast and cryptographically strong. This contrasts with the OneFS post-process SmartDedupe, which uses SHA-1 hashing.

Each F910, F900, F810, F600, F200, F700/7000, H5600, or A300/3000 node in a cluster with inline deduplication enabled has its own in-memory hash index that it compares block ‘fingerprints’ against. The index is in system RAM, is allocated using physically contiguous pages, and is accessed directly with physical addresses. This system avoids the need to traverse virtual memory mappings and does not incur the cost of translation lookaside buffer (TLB) misses, minimizing deduplication performance impact.

The maximum size of the hash index is governed by a pair of sysctl settings, one of which caps the size at 16 GB, and the other which limits the maximum size to 10% of total RAM. The strictest of these two constraints applies. While these settings are configurable, the recommended best practice is to use the default configuration. Any changes to these settings should only be performed under the supervision of Dell support.

Since inline deduplication and SmartDedupe use different hashing algorithms, the indexes for each are not shared directly. However, the work performed by each deduplication solution can be used by each other. For instance, if SmartDedupe writes data to a shadow store, when those blocks are read, the read hashing component of inline deduplication will see those blocks and index them.

When a match is found, inline deduplication performs a byte-by-byte comparison of each block to be shared to avoid the potential for a hash collision. Data is prefetched before the byte-by-byte check and then compared against the L1 cache buffer directly, avoiding unnecessary data copies and adding minimal overhead. Once the matching blocks have been compared and verified as identical, they are shared by writing the matching data to a common shadow store and creating references from the original files to this shadow store.

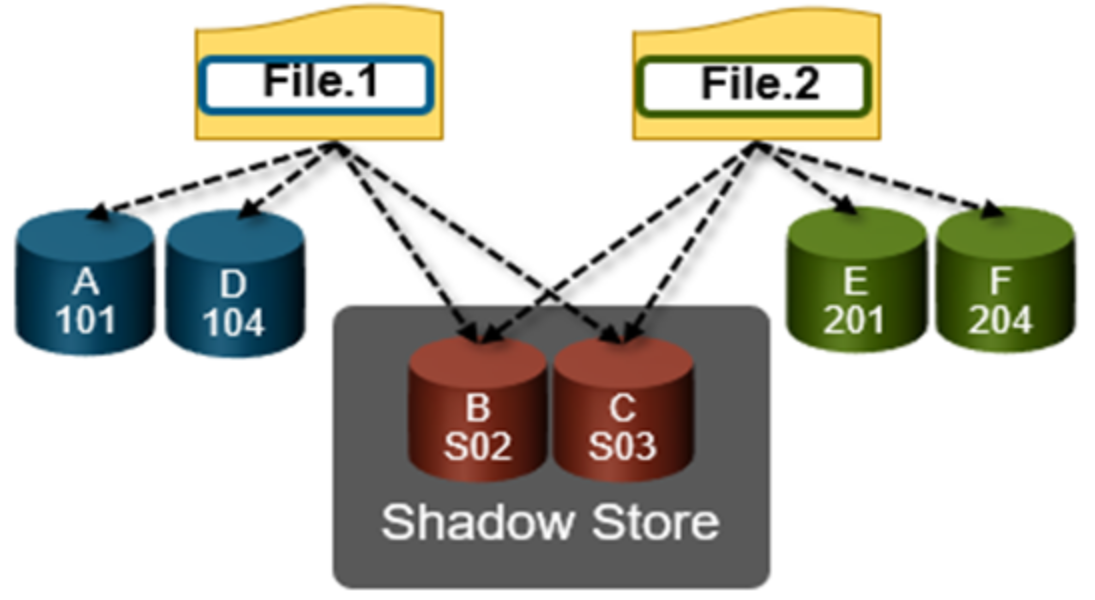

Figure 4.   OneFS duplicate block sharing

Inline deduplication samples every whole block written and handles each block independently, so it can aggressively locate block duplicity. If a contiguous run of matching blocks is detected, inline deduplication will merge the results into regions and process them efficiently.

Inline deduplication also detects deduplication opportunities from the read path, and blocks are hashed as they are read into L1 cache and inserted into the index. If an existing entry exists for that hash, inline deduplication detects there is a block-sharing opportunity between the block that it most recently read and the one previously indexed. It combines that information and queues a request to an asynchronous deduplication worker thread.  As such, it is possible to deduplicate a dataset purely by reading it all. To help mitigate the performance impact, the hashing is performed out-of-band in the prefetch path, rather than in the latency-sensitive read path.

OneFS 9.15 introduces a set of inline deduplication robustness enhancements that strengthen the interaction between the deduplication engine and the L1 read cache. Architecturally, these improvements focus on how shadow store data is cached. Rather than each vnode maintaining a separate copy, cached pages are now shared (or "wired") between a shadow store and the regular files that reference it. In addition, data read from the shadow store L1 cache is promoted into the native file's L1 cache.

Operationally, this means that when a deduplicated block is first read, its pages become immediately available for subsequent reads of the referencing file through a combination of a cache-miss callback and prefetching from the shadow store. Valid cached data is also no longer discarded when a file is cloned.Inline deduplication handling of lock contention has also been made more resilient. Because both deduplication and prefetch operations can acquire locks across large data ranges, a previously disabled lock acquisition timeout (efs.lk.lk_data_lock_timeout_sec) is now enabled with a default value of 30 seconds. This allows an inline deduplication operation to abort cleanly rather than stall indefinitely.

The benefits are reduced memory consumption from eliminating redundant cache copies, lower I/O and improved read performance for deduplicated and cloned data, and greater stability. These changes are entirely in-memory, so on-disk structures are unmodified and both rollback and mixed-mode operation are supported during upgrade, while new isi_cache_stats categories (l1_data_sstore and l1_meta_sstore) provide dedicated visibility into shadow store cache behavior.

The F810 nodes use an FPGA-based hardware offload engine resident on the back-end PCIe network adapter to perform real-time data compression. This action occurs as files are written to from a node in the cluster using a connected client session. Similarly, files are re-inflated on demand as they are read by clients.

On top of the FPGA, the OneFS hardware offload engine uses a proprietary implementation of DEFLATE with the highest level of compression, while incurring minimal to no performance penalty for highly compressible datasets.

The compression engine consists of three main components:

Table 2.      OneFS data reduction engine components

Since they reside on the same card, the data compression engine shares PCIe bandwidth with the node’s backend Ethernet interfaces. In general, there is plenty of bandwidth available. A best practice is to run highly compressible datasets through the F810 nodes with compression enabled. However, it is not advisable to run non-compressible datasets with compression enabled.

OneFS provides software-based compression for the F910, F900, F710, F600, F210, F200, H700/7000, H5600, and A300/3000 platforms. Compression in software is also used as fallback in the event of an F810 hardware failure, and in a mixed cluster for use in nodes without a hardware offload capability. Both hardware and software compression implementations are DEFLATE compatible.

When a file is written to OneFS using inline data compression, the file’s logical space is divided up into equal-sized chunks called compression chunks. Compaction is used to create 128 KB compression chunks, with each chunk consisting of sixteen 8 KB data blocks. This setup is optimal since 128 KB is the same chunk size that OneFS uses for its data protection stripe units, providing simplicity and efficiency, and avoids the overhead of additional chunk packing.

For example, consider the following 128 KB chunk:

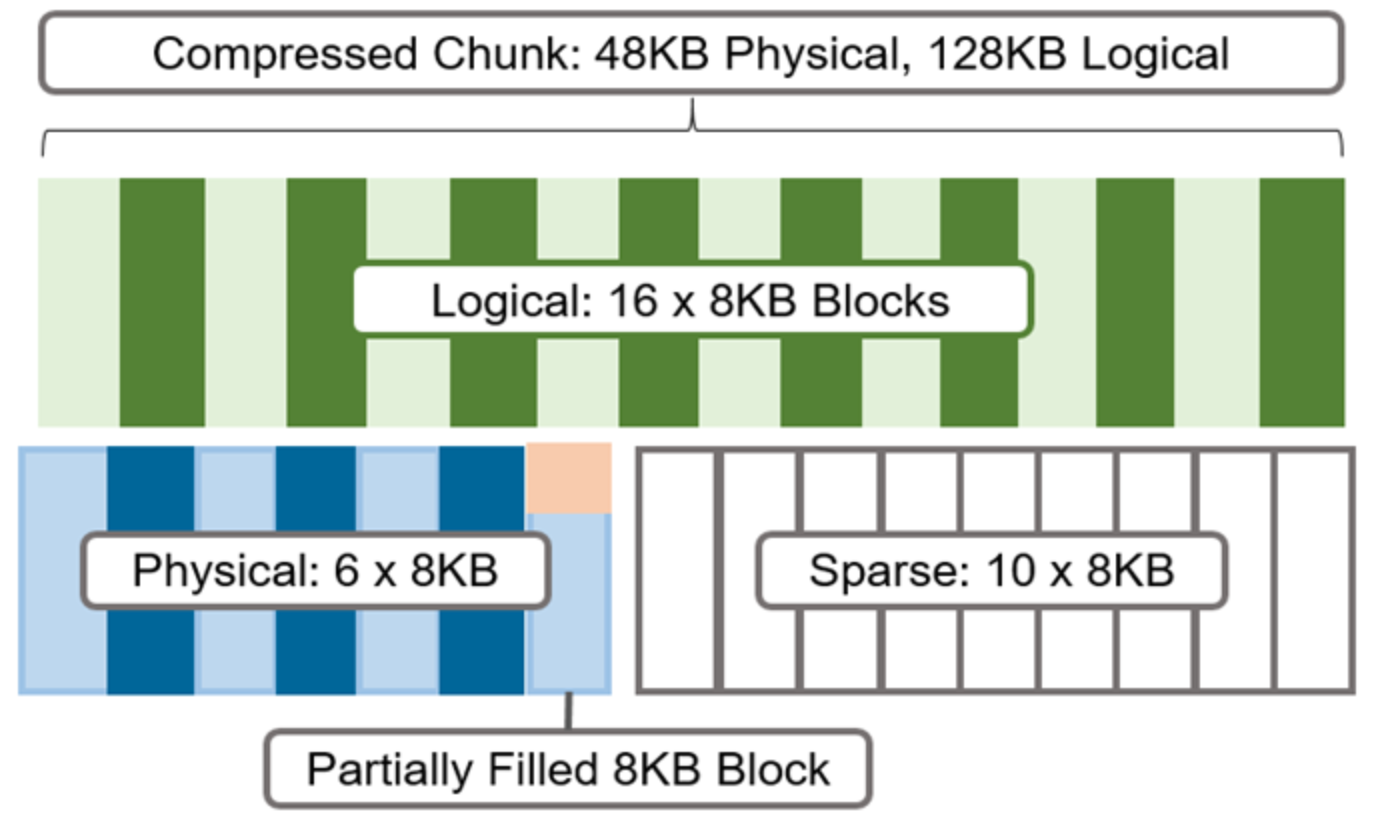

Figure 5.   Compression chunks and OneFS transparent overlay

After compression, this chunk is reduced from sixteen to six 8 KB blocks in size. This reduction means that this chunk is now physically 48 KB in size. OneFS provides a transparent logical overlay to the physical attributes. This overlay describes whether the backing data is compressed or not and which blocks in the chunk are physical or sparse, such that file system consumers are unaffected by compression. As such, the compressed chunk is logically represented as 128 KB in size, regardless of its actual physical size. The orange sector in the illustration above represents the trailing, partially filled 8 KB block in the chunk. Depending on how each 128KB chunk compresses, the last block may be under-utilized by up to 7KB after compression.

Efficiency savings must be at least 8 KB (one block) for compression to occur, otherwise that chunk or file will be passed over and remain in its original, uncompressed state. For example, a file of 16 KB that yields 8 KB (one block) of savings would be compressed. Once a file has been compressed, it is protected with Forward Error Correction (FEC) parity blocks, reducing the number of FEC blocks and therefore providing further overall storage savings.

Compression chunks will never cross node pools, avoiding the requirement to decompress or recompress data to change protection levels, perform recovered writes, or otherwise shift protection-group boundaries.

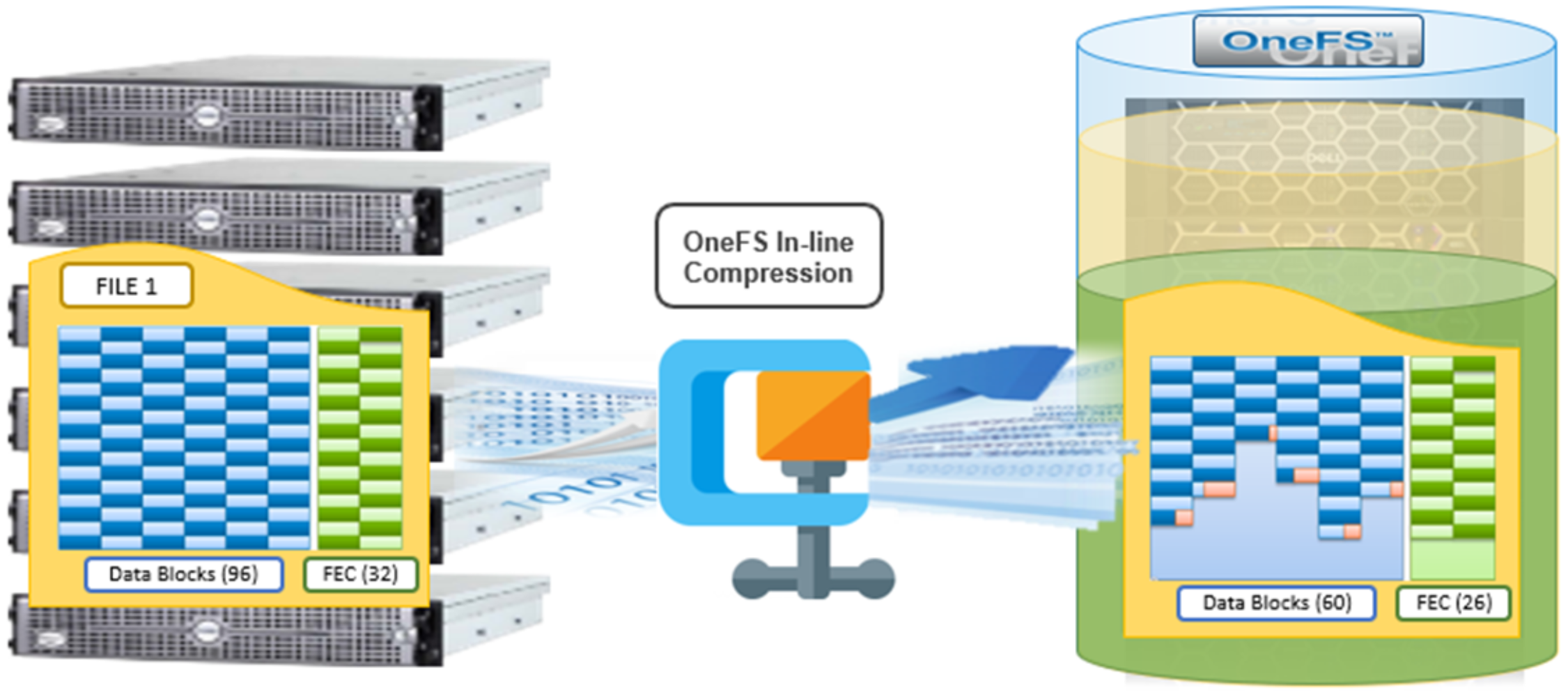

Figure 6.   OneFS inline compression

In the illustration above, a 768 KB file (file 1) is written from a Windows client to an F810 cluster. After passing through the OneFS inline compression engine, the logical data footprint of that file is reduced from ninety-six to sixty 8 KB blocks, across six chunks. This is represented by the blue data blocks. Then, the file is FEC protected using twenty-six parity blocks, shown in green.

In a PowerScale cluster, data, metadata, and inodes are all distributed across multiple drives on multiple nodes. When reading or writing to the cluster, a client is directed by SmartConnect to the desired protocol head on a particular node, or initiator. This node then acts as the ‘captain’ for the operation. It performs the chunking and data compression, orchestrates the layout of data and metadata, creates erasure codes, and performs normal operations of lock management and permissions control.

For example, assume you have a four-node F810 cluster. A Windows client connects to the top half, or initiator, on node 1 to write a file. After the SMB session is established and write request granted, the client begins to send the file data across the front-end network to the cluster where it is initially buffered in the coalescer, or OneFS write cache. The purpose of the coalescer is to build up a large contiguous range of data that will make the write operation more efficient.

When the coalescer is flushed, data chunks, typically sized on protection group boundaries, are passed through the data reduction pipeline. First, if inline deduplication is enabled, the incoming data is scanned for zero block removal and deduplication opportunities. When found, any zero blocks are stripped out and any matching blocks are deduplicated. Next, chunks that meet the ‘compressibility’ criteria described above are compressed by the FPGA. Finally, the initiator runs its ‘write plan’ for the file data. This action optimizes for layout efficiency and the selected protection policy, and the chunks/stripes are written to SSDs on the bottom half of the participant nodes.

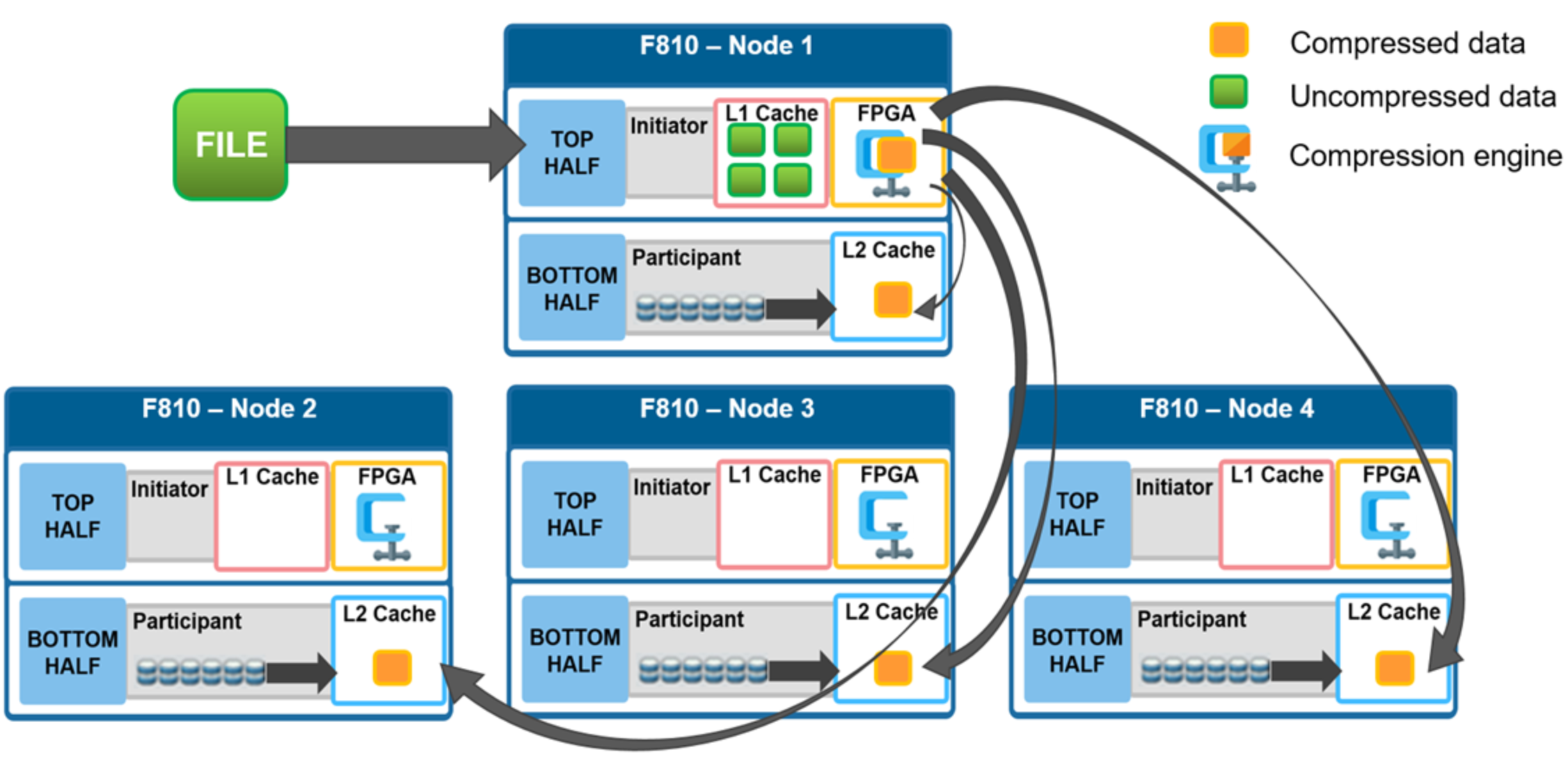

Figure 7.   File writes with compression

OneFS stripes data across all nodes—and not simply across disks—and protects the files, directories, and associated metadata using software erasure-code or mirroring technology. Erasure coding can provide beyond 80% efficiency on raw disk with five nodes or more, and on large clusters can even do so while providing quadruple-level redundancy. For any given file, the stripe width is the number of nodes (not disks) that a file is written across. For example, on the 4-node F810 cluster above with the recommended +2d:1n protection level, OneFS will use a stripe width of 8 and protection level of 6+2, where each node is used twice: Two data stripe units are written to each of three nodes, and two FEC units to the remaining node.

For further details about OneFS data protection, see the OneFS Technical Overview white paper.

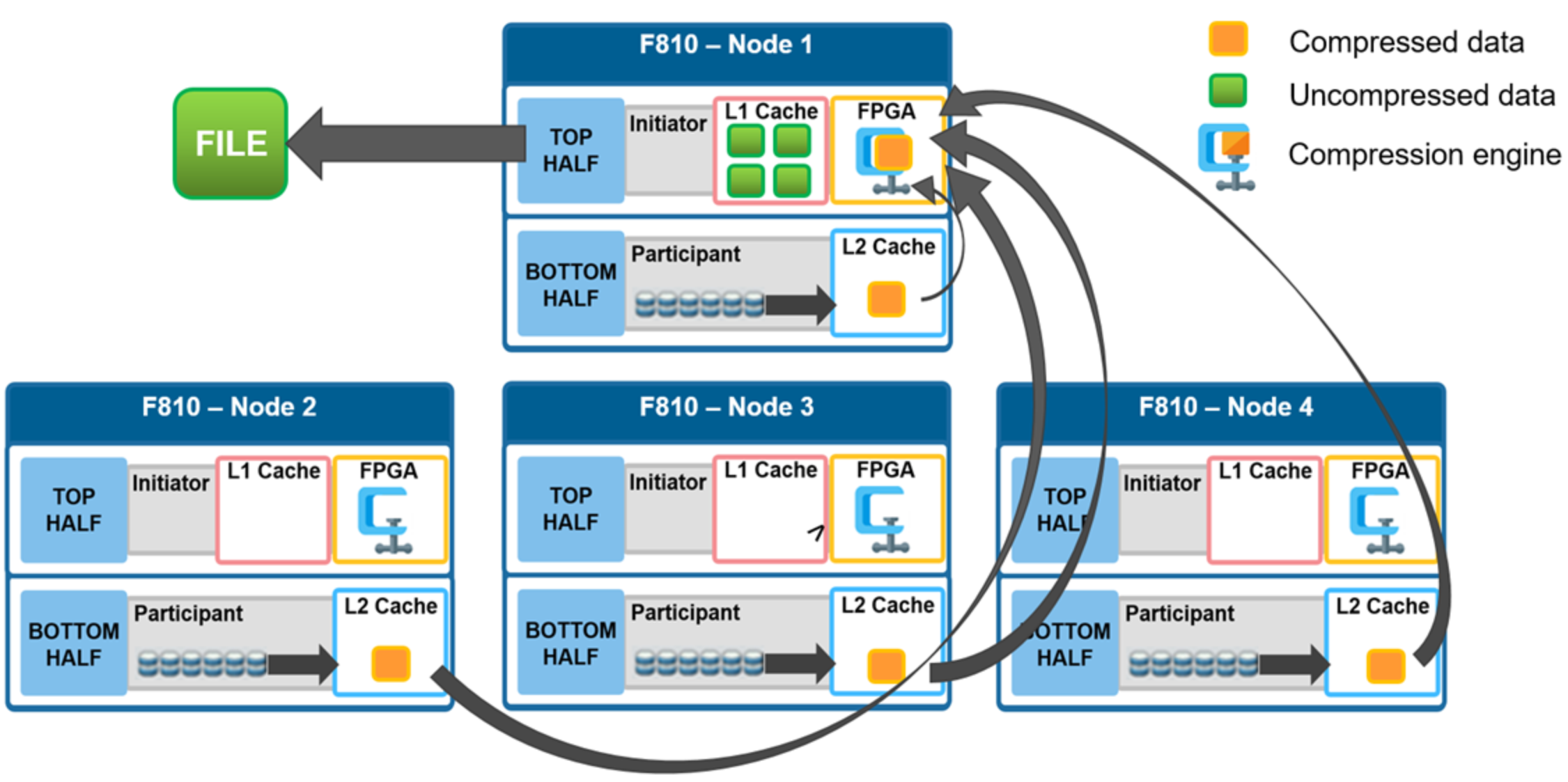

In the diagram below, an NFS client attaches to node 1 and issues a read request for a file. Node 1, the captain, gathers all the chunks of data from the various nodes in the cluster and presents it in a cohesive way to the requesting client. Since the file’s data has been stored in a compressed form on nodes’ SSDs, node 1 needs to gather all the constituent chunks and decompress the data so the file can be sent across the wire to the client in its original form.

Figure 8.   File reads with compression

During this read process, the L2 read cache on the participant nodes (nodes 2-4) is populated with the compressed data chunks that are sent to node 1. This means that any additional read requests for this file can be served straight from low latency cache, rather than reading again from the drives. This process both accelerates read performance and reduces wear on the SSDs.

To support OneFS inline compression, a node’s L1, or client-side, read cache is divided into separate address spaces so that both the on-disk compressed data and the logical uncompressed data can be cached. The address space for the L1 cache is already split for data and FEC blocks, so a similar technique is used to divide it again. Data in the uncompressed L1 cache is fed from data in the compressed L1 cache which, in turn, is fed from disk.

OneFS prefetch caching has also been enhanced to accommodate compressed data. Since reading part of a compressed chunk results in the entire compression chunk being cached, it will effectively mean that prefetch requests are rounded to compression chunk boundaries. Since a prefetch request is not complete until the uncompressed data is available in cache, the callback used for prefetch requests performs the decompression.

A mixed, or heterogeneous, cluster is one that comprises two or more different types or node. For compression, there are two main concepts in play in a mixed cluster:

4. Reading compressed data to return the logical data (for client traffic, NDMP, or otherwise).
5. Writing a previously compressed file to disk in uncompressed format (because the target tier does not support compression).

The former happens in L1 memory and not on-disk. As such, only F910, F900, F810, F600, F200, F700/7000, H5600, and A300/3000 storage pools may contain compressed data.

In general, OneFS does not allow deduplication across different disk pool policies. For inline deduplication, a deduplicated file that is moved to another tier will retain the shadow references to the shadow store on the original disk pool. While this behavior violates the rule for deduping across different disk pool policies, it is preferred to do this than rehydrate files that are moved. Further deduplication activity on that file will no longer be allowed to reference any blocks in the original shadow store. The file will need to be deduplicated against other files in its new node pool.

Figure 9 below depicts a file write in a mixed cluster environment. A client connects to an H400 node and writes a file with a path-based file pool policy that directs the file to an F810 nodepool. In this scenario, the H400 node first scans the incoming data for zero block removal or deduplication opportunities.

Zero block elimination and inline deduplication will only be enabled on nodes that have local drives in a disk pool with the data reduce flag set.

The data reduce flag will only be set on F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, and A300/3000 disk pools and therefore zero block elimination and inline deduplication will only be performed on those platforms. When found, any zero blocks are stripped out and any matching blocks are deduplicated.

Next, the data is divided into 128 KB compression chunks as usual. However, since the H400 node does not have an FPGA offload card, it instead performs compression on the chunks in software.

Unlike inline deduplication, compression does not require the initiator node to be a member of a disk pool with the data reduce flag set. If the target disk pool for the write has data reduction set and the cluster has inline compression enabled, compression will be performed.

A different compression algorithm is used to help minimize the performance impact. Each compressed chunk is then FEC protected and the H400 uses its write plan to place blocks on the participant nodes. The chunks are written in compressed form over the back-end network to the appropriate F810 nodes.

Figure 9.   File write in a mixed cluster with software compression

In the following mixed cluster scenario, a client connects to an H400 node and issues a read request for a compressed file housed on an F810 node pool. The H400 retrieves all the compressed chunks from the pertinent F810 nodes over the backend network. Since the H400 has no FPGA offload card, the decompression of the chunks is performed in software. Software compression uses a different DEFLATE-compatible algorithm to help minimize the performance impact of non-offloaded decompression. After the chunks have been decompressed, the file is reassembled and sent over Ethernet in uncompressed form to the requesting client.

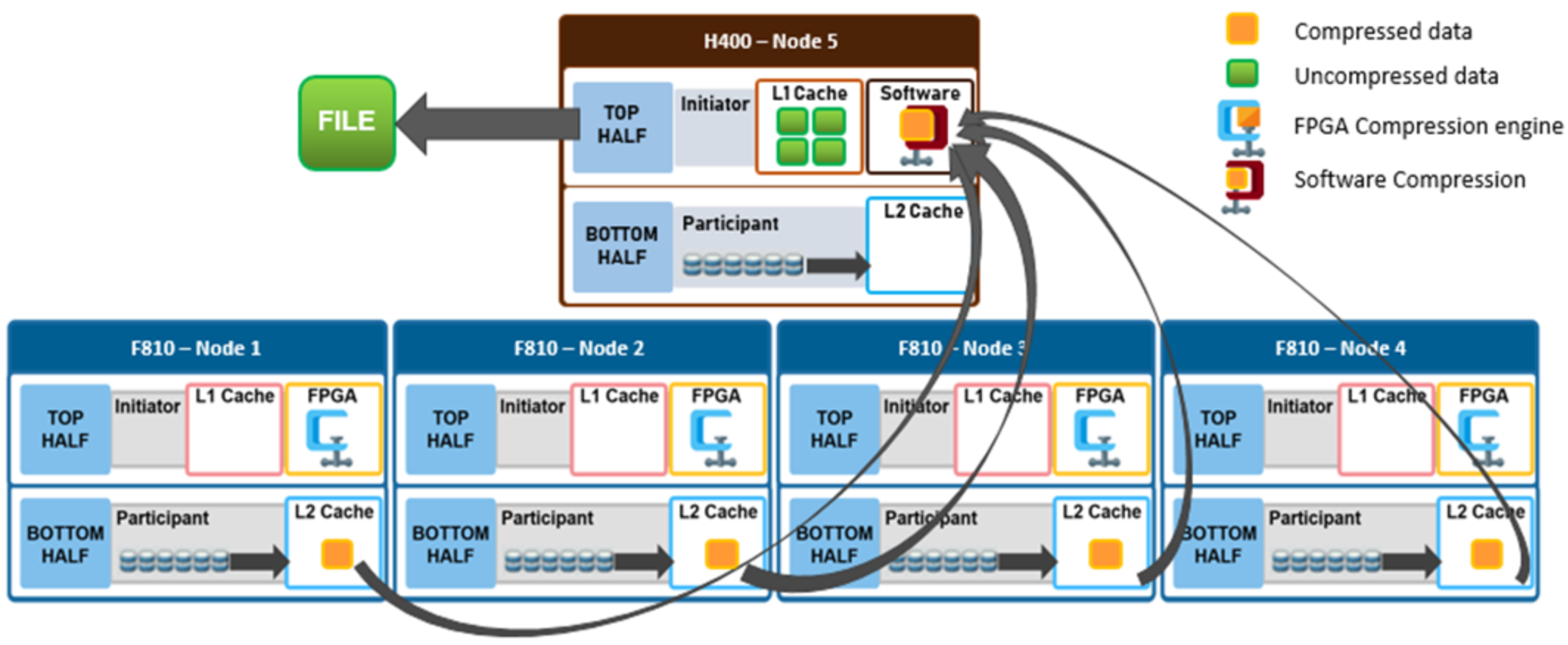

Figure 10.    File read in a mixed cluster with software compression

Consider a mixed cluster consisting of an F810 flash performance tier and an A2000 archive tier. SmartPools is licensed, and a file pool policy is crafted to move data over three months old from the F810 flash tier to the archive tier. Files are stored in a compressed form on the F810 tier.

When SmartPools runs, decompression occurs as the files targeted for down-tiering are restriped from the F810 tier to the A2000 tier inside the SmartPools job. The SmartPools job runs across all the nodes in the cluster, both the F810 and A2000, and the availability of hardware assisted decompression depends on which node or nodes are running the job worker threads. After files are on the A2000 tier, they remain uncompressed.

If a file has been deduplicated, whether by inline or post process deduplication, the deduplicated state of the file will remain unchanged when tiered. This is true even if the file is moved from a disk pool that supports data reduce to a disk pool that does not.

If another file pool policy is created to up-tier files from the A2000 back up to the F810, the file chunks will be compressed when they are restriped onto the F810 nodes. Once again, all nodes in the cluster will participate in the SmartPools job.

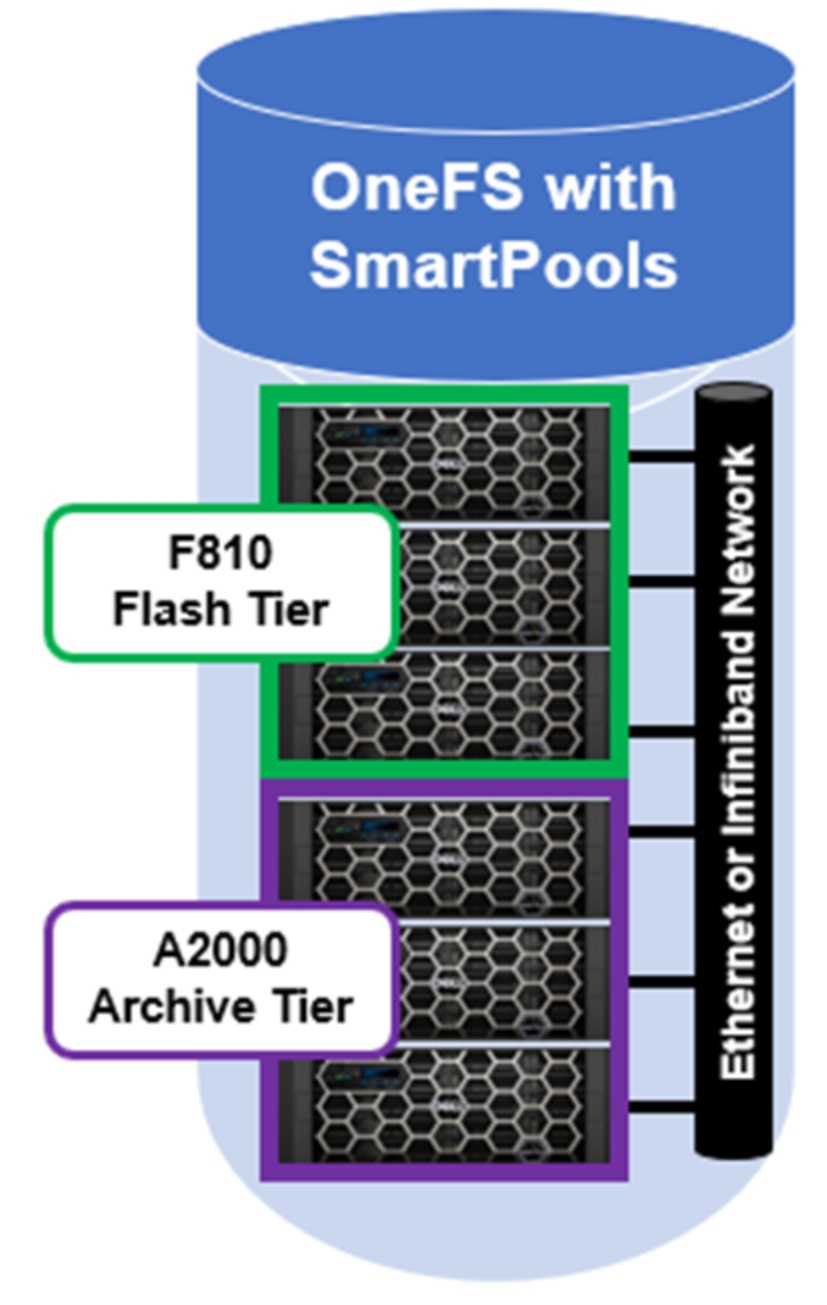

Figure 11.    A SmartPools cluster with an all-flash performance tier and an archive tier

As data moves between tiers in a mixed cluster, it must be re-written from the old to new drives. If the target tier has a different ‘data-reduce’ setting than the source tier, data is compressed or decompressed as appropriate. The sizing of the F810 pool should be independent of whether it is participating in a mixed cluster or not. However, because up-tiering using the job-engine can run job tasks on the lower tier nodes, the achievable compression ratios may be slightly less efficient when software compression is used.

SyncIQ is licensed on a mixed F810 and A2000 cluster and a SyncIQ policy is configured to replicate data to a target cluster. On the source cluster, replication traffic is isolated to only the A2000 nodes. When SyncIQ is run, worker threads on the A2000 nodes gather all the compressed chunks from the F810 nodes over the backend network (RBM). Then, the A2000 nodes perform decompression of the chunks in software. As discussed previously, software compression uses a different DEFLATE-compatible algorithm from hardware offload to help minimize the performance impact of non-offloaded decompression. After the chunks have been decompressed, the data is sent over Ethernet to the target cluster in uncompressed form.

Similarly, deduplicated data is always rehydrated when it exits a cluster. For a data service such as SyncIQ, data is replicated in its entirety and shadow stores and shadow links are not preserved on the target. This means that the target cluster must have sufficient space to house the full size of the replicated dataset. If the target cluster happens to also be F810 hardware and inline data reduction is enabled, compression or deduplication (or both) will be performed as the replication data is ingested by each target node.

A mixed F810 and A2000 cluster is configured for NDMP backup from the A2000 nodes. When a backup job runs, the A2000 nodes retrieve all the compressed chunks from the pertinent F810 nodes over the backend network (RBM). Since the A2000 has no FPGA offload card, the decompression of the chunks is performed in software. Once the chunks have been decompressed, each file is reassembled and sent over Fibre Channel (2-way NDMP) or Ethernet (3-way NDMP) in uncompressed form to the backup device or devices.

With NDMP, deduplicated data is rehydrated when it leaves the cluster, and shadow stores and shadow links are not preserved on the backup. The NDMP tape device or VTL will need to have sufficient space to house the full size of the dataset.

OneFS inline data reduction uses a simple administrative control plane. Configuration is through the command-line interface (CLI), using the ‘isi compression’ and ‘isi dedupe inline’ commands. There are also utilities provided to decompress, or rehydrate, compressed and deduplicated files if necessary. Plus, there are tools for viewing on-disk capacity savings that inline data reduction has generated.

The ‘isi_hw_status’ CLI command can be used to confirm and verify the node or nodes in a cluster. For example:

# isi_hw_status –i | grep Product

Product: F810-4U-Single-256GB-1x1GE-2x40GE SFP+-24TB SSD

Since Compression configuration is binary, either on or off across a cluster, it can be easily controlled using the OneFS command-line interface (CLI). For example, the following syntax will enable compression and verify the configuration:

# isi compression settings view

    Enabled: No

# isi compression settings modify --enabled=True

# isi compression settings view

    Enabled: Yes

Note: Inline compression is enabled by default on the following:
     -- New F810 clusters running OneFS 8.2.1 and later
     -- New H5600 clusters running OneFS 8.2.2 and later
     -- New F600 and F200 clusters running OneFS 9.0 and later
     -- F900 clusters running OneFS 9.2 and later
     -- H700/7000 and A300/3000 clusters running OneFS 9.2.1 and later
     -- F710 and F210 clusters running OneFS 9.7 and later
     -- F910 clusters running OneFS 9.8 and later

In a mixed cluster containing other node styles in addition to compression nodes, files will only be stored in a compressed form on F910, F900, F810, F710, F600, F210, F200, H5600, H700/7000, and A300/3000 node pool or pools. Data that is written or tiered to storage pools of other hardware styles will be uncompressed at that time when it moves between pools. A node on the cluster that does not support inline compression can be an initiator for compressed writes in software to a compression node pool. However, this configuration may generate significant CPU overhead for lower powered nodes, such as the A-series hardware and provide only software fallback based compression with lower compressibility.

While there are no visible userspace changes when files are compressed, the ‘isi get’ CLI command provides straightforward method to verify whether a file is compressed. If compression has occurred, both the ‘disk usage’ and the ‘physical blocks’ metric reported by the ‘isi get –DD’ CLI command will be reduced. Also, at the bottom of the command’s output, the logical block statistics will report the number of compressed blocks. For example:

Metatree logical blocks:

   zero=260814 shadow=0 ditto=0 prealloc=0 block=2 compressed=1328

For more detailed information, the –O flag, which displays the logical overlay, can be used with the ‘isi get’ command. This command is described in more detail later in this paper.

OneFS inline data compression can be disabled from the CLI with the following syntax:

# isi compression settings modify --enabled=False

# isi compression settings view

    Enabled: No

Since inline deduplication configuration is binary, either on or off across a cluster, it can be easily controlled using the OneFS command-line interface (CLI). For example, the following syntax will enable inline deduplication and verify the configuration:

# isi dedupe inline settings view

    Mode: disabled

# isi dedupe inline settings modify –-mode enabled

# isi dedupe inline settings view

    Mode: enabled

Note: Inline deduplication is enabled by default for new clusters running OneFS 9.4 and supporting inline data reduction. For earlier OneFS releases, inline deduplication is disabled by default. When upgrading to OneFS 9.4, a cluster’s existing inline deduplication configuration is preserved.

Table 3.      OneFS inline compression and deduplication defaults

While there are no visible userspace changes when files are deduplicated, if deduplication has occurred, both the ‘disk usage’ and the ‘physical blocks’ metric reported by the ‘isi get –DD’ CLI command will be reduced. Also, at the bottom of the command’s output, the logical block statistics will report the number of shadow blocks. For example:

Metatree logical blocks:

   zero=260814 shadow=362 ditto=0 prealloc=0 block=2 compressed=0

OneFS inline data deduplication can be disabled from the CLI with the following syntax:

# isi dedupe inline settings modify –-mode disabled

# isi dedupe inline settings view

    Mode: disabled

OneFS inline data deduplication can be paused from the CLI with the following syntax:

# isi dedupe inline settings modify –-mode paused

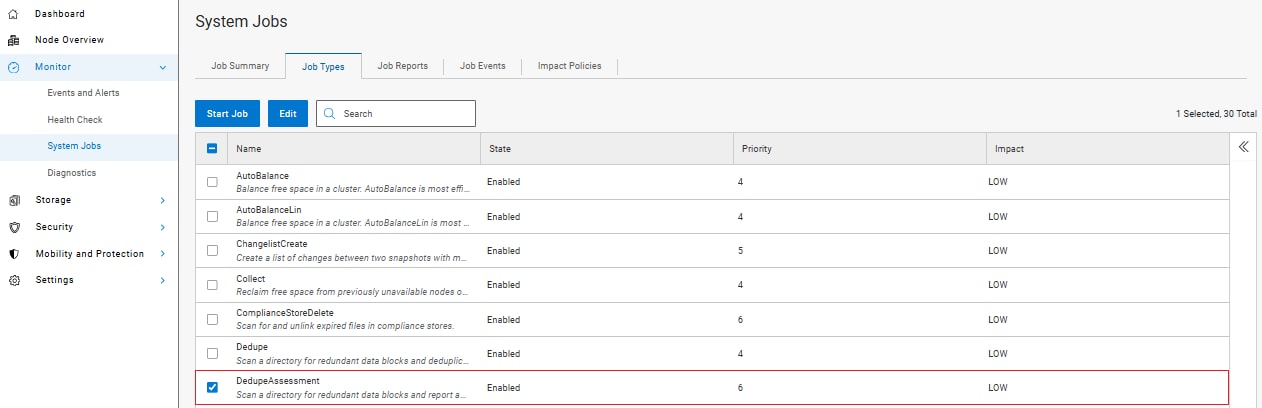

OneFS inline data deduplication can be run in assess mode from the CLI with the following syntax:

# isi dedupe inline settings modify –-mode assess

Issues with inline compression may generate the following OneFS events and alerts. These include:

Table 4.      OneFS inline compression events and alerts

Similarly, problems with inline deduplication may generate the following OneFS events and alerts. These include:

Table 5.      OneFS inline deduplication events and alerts

In the event that inline deduplication encounters an unrecoverable error, it will restart the write operation with inline deduplication disabled. If any of the above alert conditions occur, contact Dell Technical Support for further evaluation.

Compression and deduplication can significantly increase the storage efficiency of data. However, the actual space savings will vary depending on the specific attributes of the data itself.

The table below illustrates the relationship between the effective to usable and effective to raw ratios for the F910, F900, F810, F600, F200, H700, H7000, H5600, A300, and A3000 platforms:

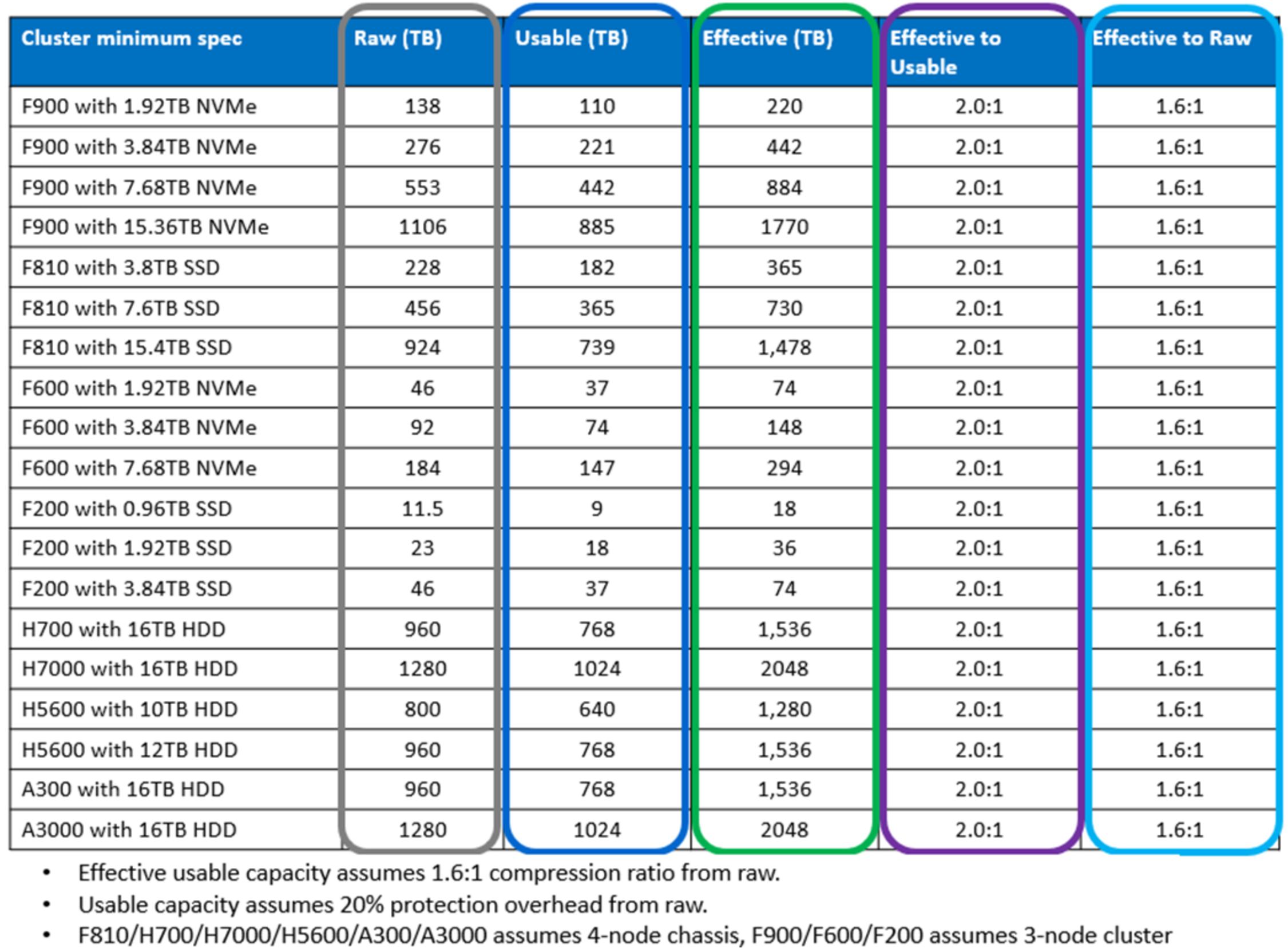

Table 6.      Effective to usable and raw relationships in various PowerScale configurations

The following table provides descriptions for the various OneFS reporting metrics, such as those returned by the ‘isi statistics data-reduction’ command described below. The table attempts, where appropriate, to equate the OneFS nomenclature with more general industry terminology:

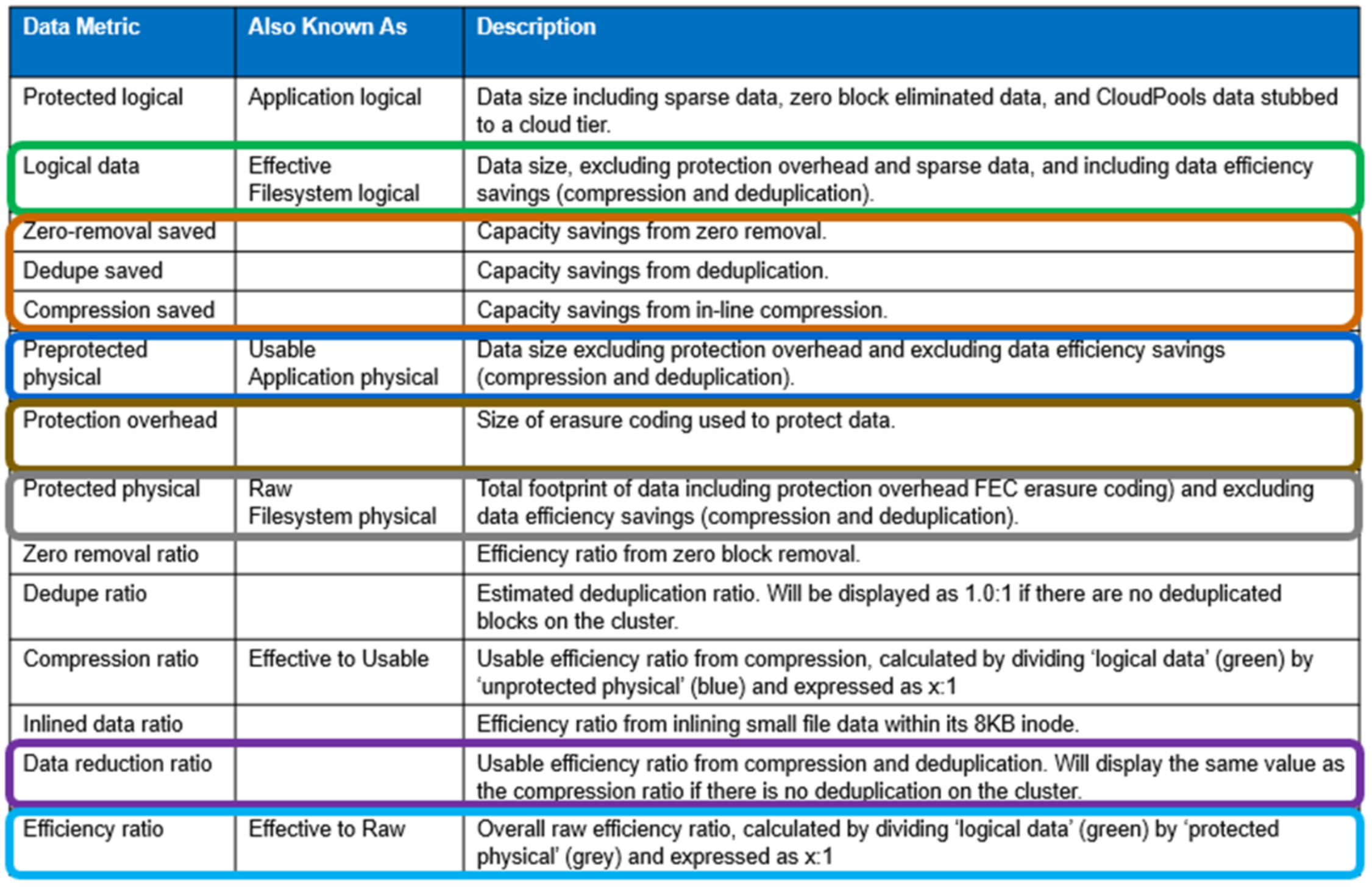

Table 7.      OneFS data reduction reporting metrics

The color scheme in this table is used throughout this paper to categorize and distinguish between the various data metrics.

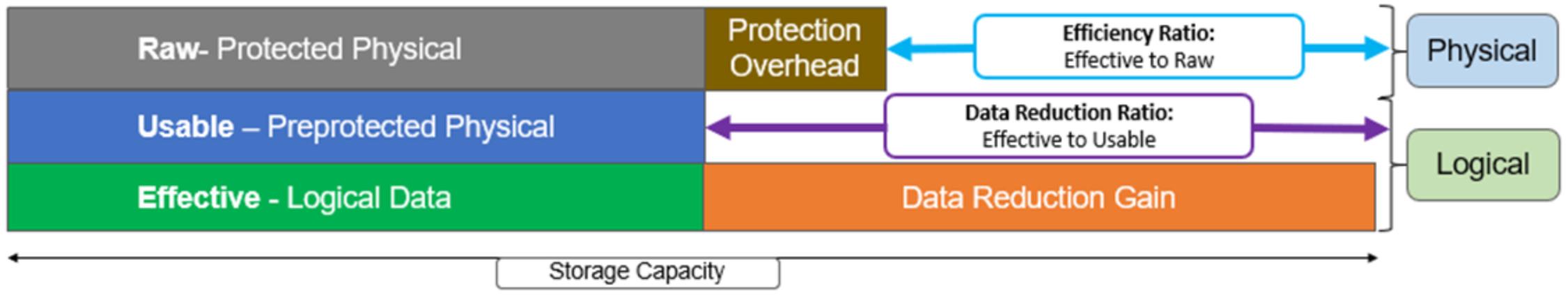

The interrelation of the data capacity metrics described above can be illustrated in a graphical representation.

Figure 12.    OneFS data capacity metrics interrelation

As we can see, the preprotected physical (usable) value, is derived by subtracting the protection overhead from the protected physical (raw) metric. Similarly, the difference in size between preprotected physical (usable) and logical data (effective) is the efficiency savings. If OneFS SmartDedupe is also licensed and running on the cluster, this data reduction savings value will reflect a combination of compression, inline deduplication, and post-process deduplication savings.

Inline data efficiency statistics

OneFS provides six principal reporting methods for obtaining efficiency information with inline data reduction.

• Using the ‘isi statistics data-reduction’ CLI command
• Via the ‘isi compression’ CLI command

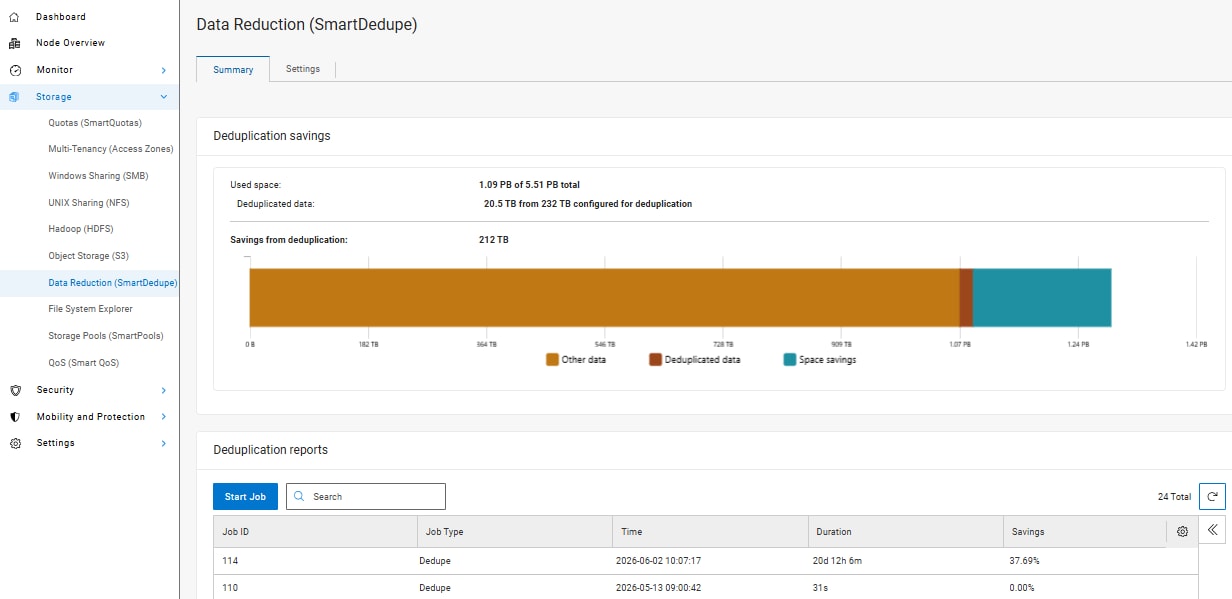

• Via the ‘isi dedupe’ CLI command and WebUI chart
• From the ‘isi get -O’ CLI command

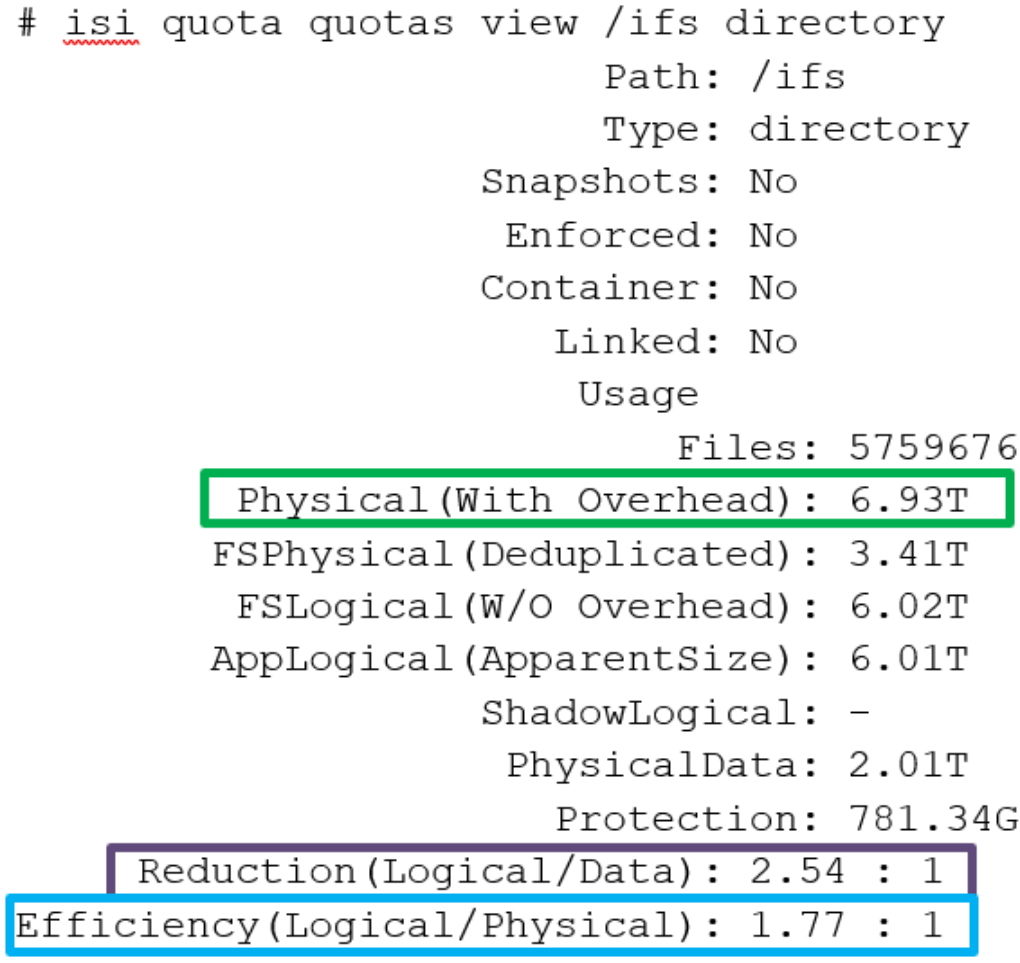

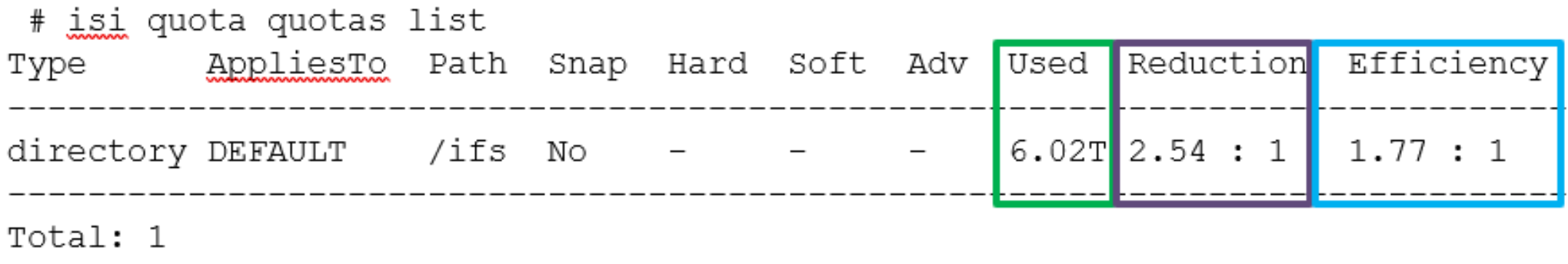

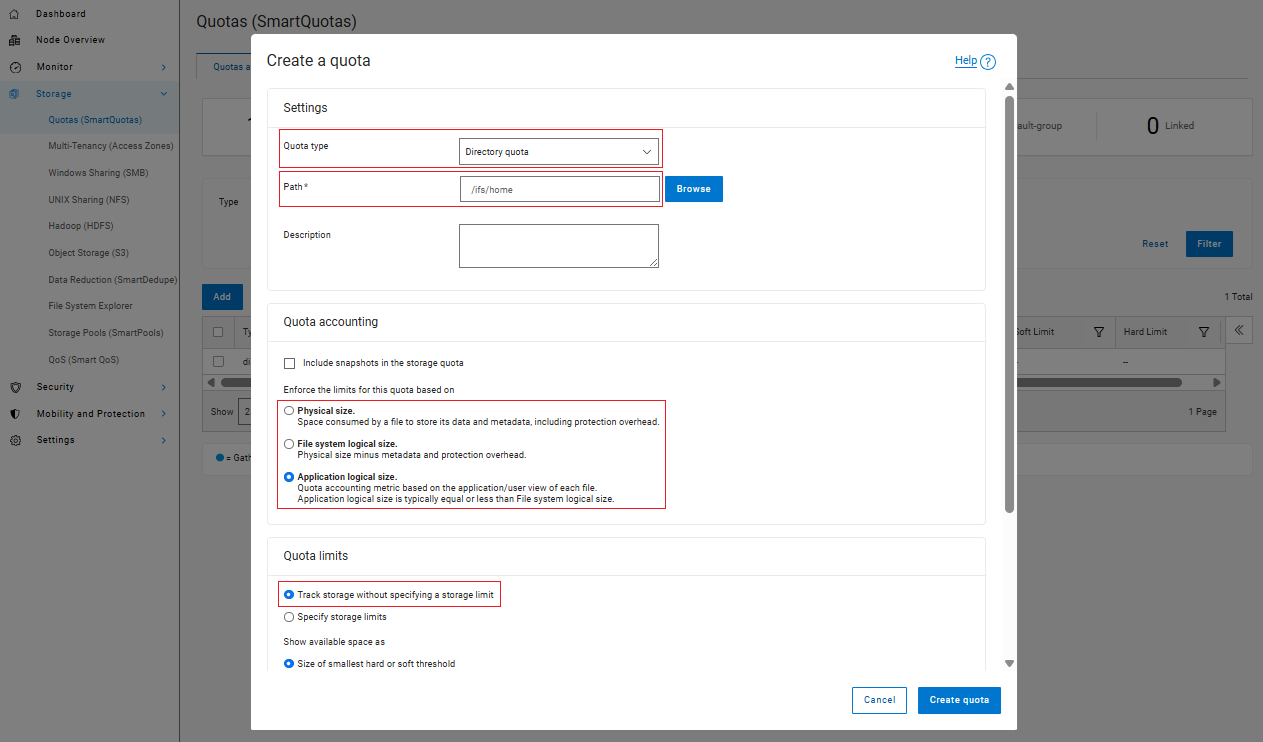

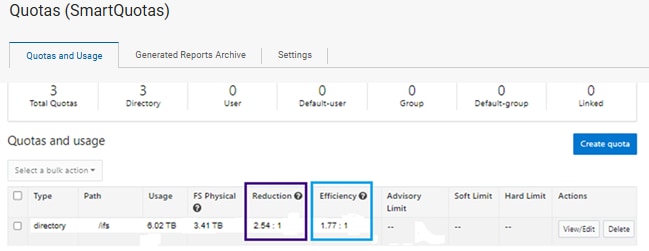

• Configuring SmartQuotas reporting

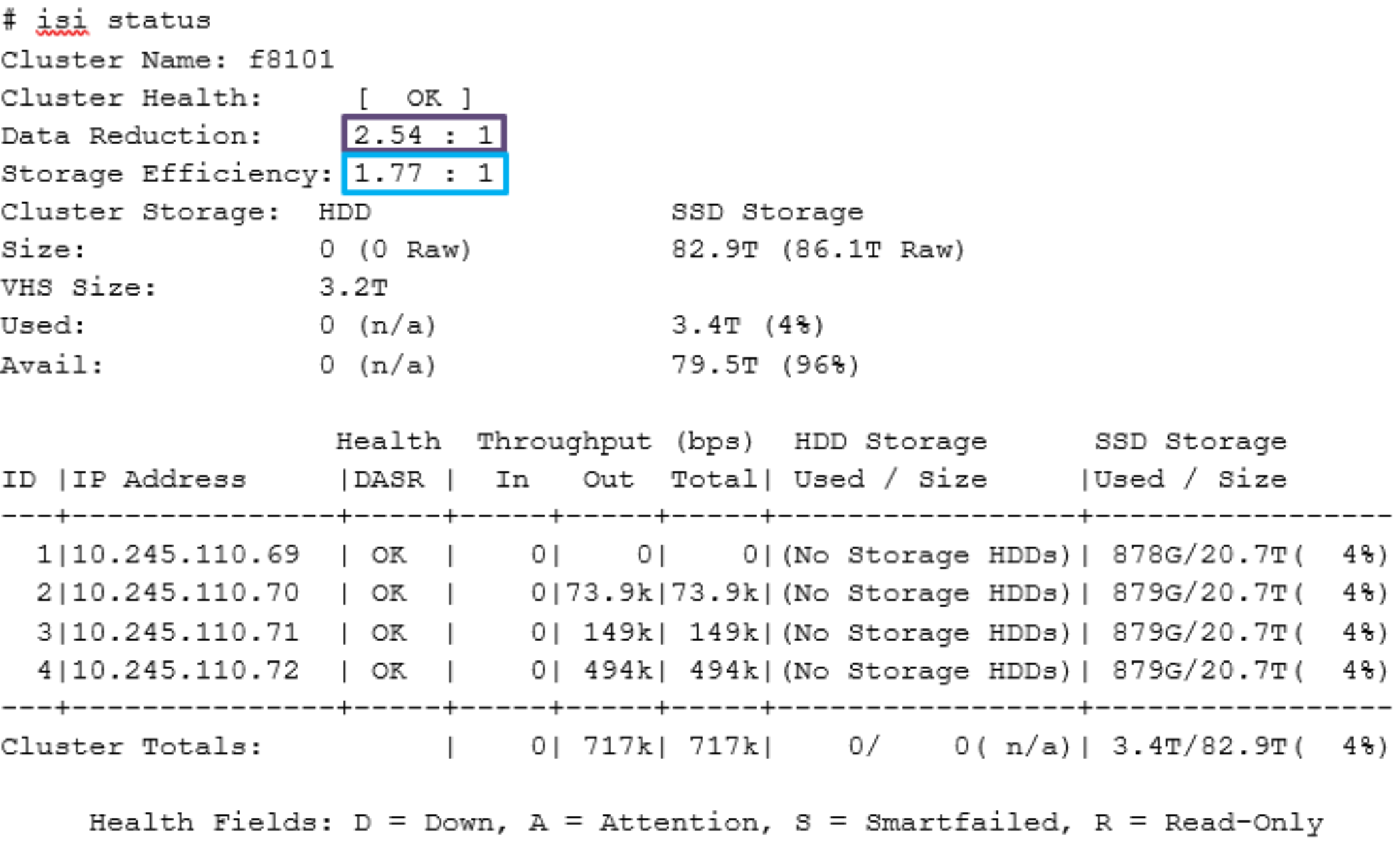

• Via the ‘isi status’ CLI command

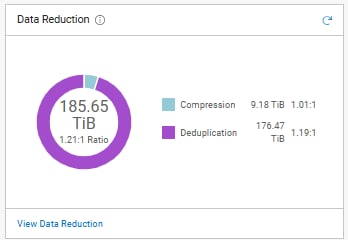

• OneFS WebUI Cluster Dashboard Storage Efficiency Summary

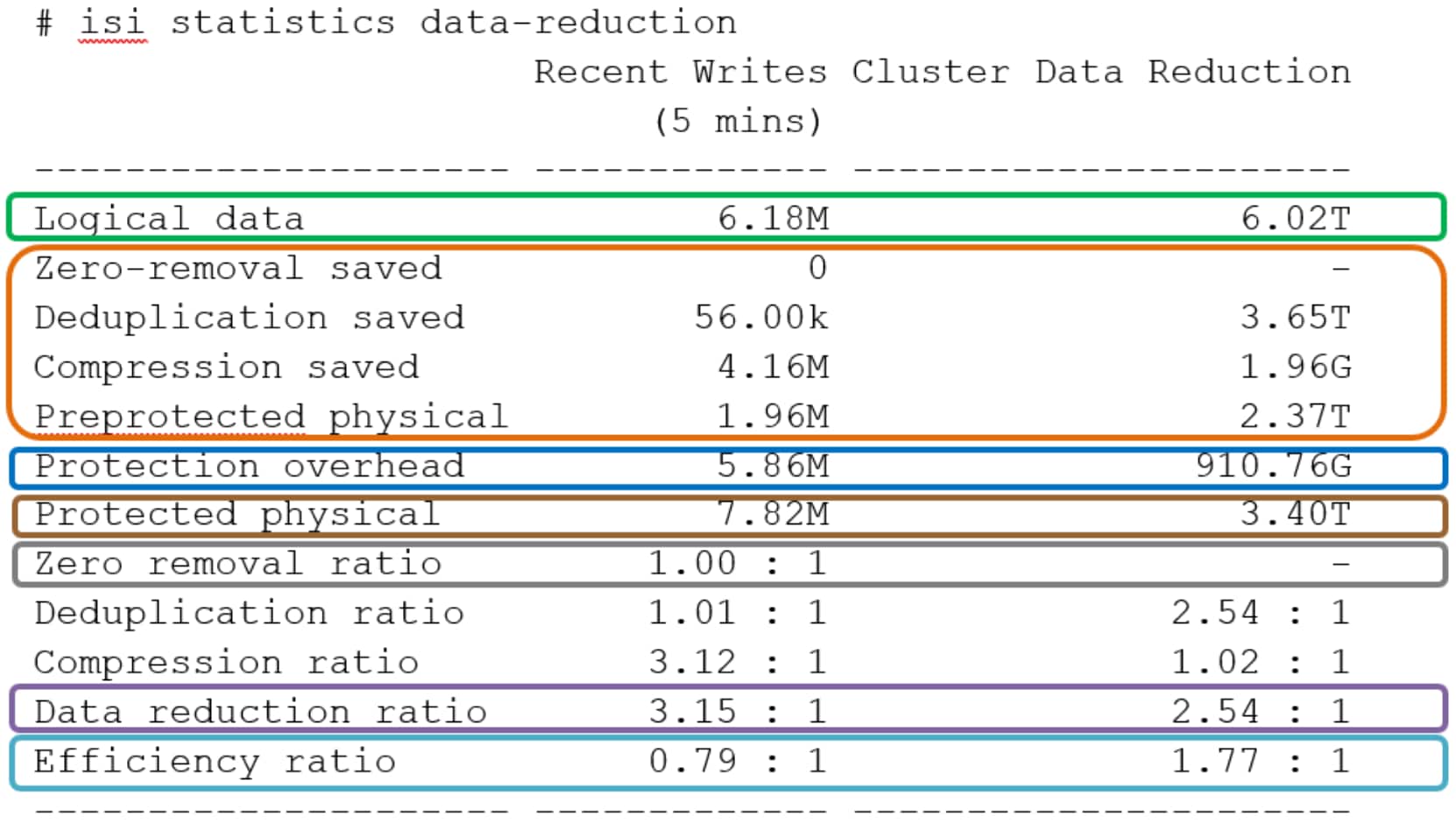

Isi statistics data-reduction command

The most comprehensive of the data reduction reporting CLI utilities is the ‘isi statistics data-reduction’ command. For example:

‘Recent writes’ data to the left of the output provides precise statistics for the five-minute period before running the command. By contrast, the ‘cluster data reduction’ metrics on the right of the output are slightly less than real time but reflect the overall data and efficiencies across the cluster.

Note: In OneFS 9.1 and earlier, the right-side column metrics are designated by the ‘Est’ prefix, denoting an estimated value. However, in OneFS 9.2 and later, the ‘logical data’ and ‘preprotected physical’ metrics are now tracked and reported accurately, rather than estimated.

The ratio data in each column is calculated from the values above it. For instance, to calculate the data reduction ratio, the ‘logical data’ (effective) is divided by the ‘preprotected physical’ (usable) value. From the output above, the ratio would be as follows:

6.02 / 2.37 = 2.54 Or a Data Reduction ratio of 2.54:1

Similarly, the ‘efficiency ratio’ is calculated by dividing the ‘logical data’ (effective) by the ‘protected physical’ (raw) value. From the output above, this yields:

6.02 / 3.40= 1.77 Or an Efficiency ratio of 1.77:1

Isi compression stats command

From the OneFS CLI, the ‘isi compression stats’ command provides the option to either view or list compression statistics. When run in ‘view’ mode, the command returns the compression ratio for both compressed and all writes, plus the percentage of incompressible writes, for a prior five-minute (300 seconds) interval. For example:

# isi compression stats view

  stats for 300 seconds at: 2021-04-14 15:46:04 (1618429564)

    compression ratio for compressed writes:  3.12 : 1

    compression ratio for all writes:  3.12 : 1

    incompressible data percent:  6.25%

    total logical blocks: 784

    total physical blocks: 251

    writes for which compression was not attempted:  0.00%

If the ‘incompressible data’ percentage is high in a mixed cluster, there is a strong likelihood that the majority of the writes are going to a non-compression pool.

The ‘isi compression stats’ CLI command also accepts the ‘list’ argument, which consolidates a series of recent reports into a list of the compression activity across the file system. For example:

# isi compression stats list

Statistic   compression  overall  incompressible  logical   physical  compression

             ratio    ratio %      blocks    blocks    skip %

1618425636  3.07:1       3.07:1 10.59%     68598   22849 1.05%

1618425636  3.20:1       3.20:1 7.73%      4142   1293 0.00%

1618425636  3.14:1       3.14:1 8.24%      352   112  0.00%

1618425636  2.90:1       2.90:1 9.60%      354   122  0.00%

1618425636  1.29:1       1.29:1 75.23%     10839207  8402380 0.00%

The ‘isi compression stats’ data is used for calculating the right-side estimated ‘Cluster Data Reduction’ values in the ‘isi statistics data-reduction’ command described above. It also provides a count of logical and physical blocks and compression ratios, plus the percentage metrics for incompressible and skipped blocks.

The value in the ‘statistic’ column at the left of the table represents the epoch timestamp for each sample. This epoch value can be converted to a human readable form using the ‘date’ CLI command. For example:

# date -d 1618425636

Wed Apr 14 15:47:34 EDT 2021

Isi dedupe stats command and WebUI chart

From the OneFS CLI, the ‘isi dedupe stats’ command provides cluster deduplication data usage and savings statistics, in both logical and physical terms. For example:

# isi dedupe stats

      Cluster Physical Size: 86.14T

          Cluster Used Size: 3.43T

  Logical Size Deduplicated: 4.01T

             Logical Saving: 3.65T

Estimated Size Deduplicated: 5.42T

  Estimated Physical Saving: 4.93T

Inline deduplication and post-process SmartDedupe both deliver very similar end results, just at different stages of data ingestion. Since both features use the same core components, the results are combined. As such, the isi deduplication stats output reflects the sum of both inline deduplication and SmartDedupe efficiency. Similarly, the OneFS WebUI’s deduplication savings histogram combines the efficiency savings from both inline deduplication and SmartDedupe.

Figure 13.    Deduplication cluster capacity savings WebUI chart

The deduplication statistics do not include zero block removal savings. Since zero block removal is technically not due to data deduplication, it is tracked separately but is included as part of the overall data reduction ratio.

Isi get statistics

OneFS includes a ‘-O’ logical overlay flag to ‘isi get’ CLI utility for viewing a file’s compression details.

For example:

# isi get –DDO file1

* Size:  167772160

* PhysicalBlocks: 10314

* LogicalSize: 167772160

PROTECTION GROUPS

lbn0: 6+2/2

2,11,589365248:8192[COMPRESSED]#6

0,0,0:8192[COMPRESSED]#10

2,4,691601408:8192[COMPRESSED]#6

0,0,0:8192[COMPRESSED]#10

Metatree logical blocks:

zero=32 shadow=0 ditto=0 prealloc=0 block=0 compressed=64000

The logical overlay information is described under the ‘protection groups’ output. This example shows a compressed file where the sixteen-block chunk is compressed down to six physical blocks (#6) and ten sparse blocks (#10). Under the ‘Metatree logical blocks’ section, a breakdown of the block types and their respective quantities in the file is displayed - including a count of compressed blocks.

When compression has occurred, the ‘df’ CLI command will report a reduction in used disk space and an increase in available space. The ‘du’ CLI command will also report less disk space used.

A file that for whatever reason cannot be compressed will be reported as such:

4,6,900382720:8192[INCOMPRESSIBLE]#1

OneFS 9.2 and later releases use inode version 8, which includes a couple of additional inode delta attributes for storing data reduction metrics. These new attributes are displayed by the ‘isi get -D’ CLI command, and report a file’s physical data blocks, compressed size, and protection blocks. For example:

# isi get -D file1

POLICY   W   LEVEL PERFORMANCE COAL  ENCODING      FILE              IADDRS

default      6+2/2 concurrency on    UTF-8         file1    <1,4,201744384:8192>, <2,3,59752448:8192>, <4,3,176726016:8192> ct: 1613083429 rt: 0

*************************************************

* IFS inode: [ 1,4,201744384:8192, 2,3,59752448:8192, 4,3,176726016:8192 ]

*************************************************

*

*  Inode Version:      8

*  Dir Version:        2

*  Inode Revision:     214

*  Inode Mirror Count: 3

*  Recovered Flag:     0

*  Restripe State:     0

*  Link Count:         1

*  Size:               524288000

*  Mode:               0100644

*  Flags:              0xe0

*  SmartLinked:        False

*  Physical Blocks:    15552

*  Phys. Data Blocks:  9299

*  Compressed Size:    20.528%

*  Protection Blocks:  6064

SmartQuotas data reduction efficiency reporting

OneFS SmartQuotas reports the capacity saving from inline data reduction as a storage efficiency ratio. SmartQuotas reports efficiency as a ratio across the chosen dataset as specified in the quota path field. The efficiency ratio is for the full quota directory and its contents, including any overhead, and reflects the net efficiency of compression and deduplication. On a cluster with licensed and configured SmartQuotas, this efficiency ratio can be easily viewed from the WebUI by going to Storage > Quotas > Quotas and Usage, or File System > SmartQuotas > Quotas and Usage in OneFS 9.14 and earlier releases. In addition to the storage efficiency ratio, the data reduction ratio is also displayed.

Figure 14.    OneFS WebUI SmartQuotas Quotas and Usage Status Detailing Data Reduction and Efficiency Ratios

Similarly, the same data can be accessed from the OneFS command line using is ‘isi quota quotas list’ CLI command. For example:

More detail, including both the physical (raw) and logical (effective) data More detail, including both the physical (raw) and logical (effective) data capacities, is also available using the ‘isi quota quotas view <path> <type>’ CLI command. For example:

To configure SmartQuotas for inline data efficiency reporting, create a directory quota at the top-level file system directory of interest, for example /ifs. Creating and configuring a directory quota is a simple procedure and can be performed from the WebUI, as follows:

Go to Storage > Quotas > Quotas and Usage, or File System > SmartQuotas > Quotas and Usage in OneFS 9.14 and later releases, and select Create a Quota. In the create pane, field, set the Quota type to Directory quota, add the preferred top-level path to report on, select File system logical size for Quota Accounting, and set the Quota Limits to Track storage without specifying a storage limit. Finally, select the Create Quota button to confirm the configuration and activate the new directory quota.

Figure 15.    OneFS WebUI SmartQuotas Directory Quota configuration

The efficiency ratio is a single, current-in time efficiency metric that is calculated per quota directory and includes the sum of inline compression, zero block removal, inline deduplication and SmartDedupe. This is in contrast to a history of stats over time, as reported in the ‘isi statistics data-reduction’ CLI command output, described above. As such, the efficiency ratio for the entire quota directory will reflect what is actually there.

The quota directory efficiency ratio, and other statistics, are not available using the platform API as of OneFS 9.0.

Isi status command

The isi status CLI command output includes a Data Reduction field:

OneFS WebUI cluster dashboard storage efficiency summary

The OneFS WebUI cluster dashboard displays a storage efficiency tile. This tile shows physical and logical space utilization histograms and reports the capacity saving from inline data reduction as a storage efficiency ratio. In OneFS 9.2 and later, a data reduction ratio is also included in the dashboard view. This cluster status view is displayed by default upon opening the OneFS WebUI in a browser and can be easily accessed by going to Dashboard or File System > Dashboard > Cluster Overview in OneFS 9.14 and earlier releases.

Figure 16.    OneFS WebUI cluster status dashboard – Storage efficiency summary tile

All above storage efficiency tools are available on any cluster running OneFS 8.2.1 and later. However, the inline compression metrics will only be relevant for clusters containing compression node pools.

As with most things in life, data efficiency is a compromise. To gain increased levels of storage efficiency, additional cluster resources (CPU, memory, and disk IO) are utilized to perform the compressing and deduping and re-inflating of files. As such, the following factors can affect the performance of inline data reduction and the I/O performance of compressed and deduplicated pools:

• Application and the type of dataset being used
• Data access pattern (for example, sequential compared to random access, the size of the I/O)
• Compressibility and duplicity of the data
• Amount of total data
• Average file size
• Nature of the data layout
• Hardware platform: the amount of CPU, RAM, and type of storage in the system
• Amount of load on the system
• Level of protection

Clearly, hardware offload compression will perform better, both in terms of speed and efficiency, than the software fallback option. This improvement is evident on both on F810 nodes where the hardware compression engine has been disabled, and on all other node types where software data reduction is the only available option.

Another important performance impact consideration with inline data efficiency is the potential for data fragmentation. After compression or deduplication, files that previously enjoyed contiguous on-disk layout will often have chunks spread across less optimal file system regions. This can lead to slightly increased latencies when accessing these files directly from disk, rather than from cache.

Because inline data reduction is a data efficiency feature rather than performance-enhancing tool, usually the consideration will be around cluster impact management. This consideration includes both the client data access performance front and from the data reduction execution perspective, as additional cluster resources are consumed when shrinking and inflating files.

With inline data reduction enabled, highly incompressible datasets may experience a small performance penalty. Conversely, for highly compressible and duplicate data, there may be a performance boost. Workloads performing small, random operations will likely see a small performance degradation.

Since they reside on the same card, the compression FPGA engine shares PCIe bandwidth with the node’s backend Ethernet interfaces. In general, there is plenty of bandwidth available. However, a best practice is to run incompressible performance streaming workflows on F810 nodes with inline data reduction disabled to avoid any potential bandwidth limits.

In general, rehydration requires considerably less overhead than compression.

When considering effective usable space on a cluster with inline data reduction enabled, understand that every capacity saving from file compression and deduplication also serves to reduce the per-TB compute ratio (CPU, memory). For performance workloads, the recommendation is to size for performance (IOPS, throughput) rather than effective capacity.

Similarly, it is challenging to broadly characterize the inline deduplication performance overhead with any accuracy since it depends on various factors including the duplicity of the dataset, whether matches are found against other LINs or SINs. Workloads requiring a large amount of deduplication might see an impact of 5-10%, although they experience an attractive efficiency ratio. In contrast, certain other workloads may see a slight performance gain because of inline deduplication. If there is block scanning but no deduplication to perform, the overhead is typically in the 1-2% range.

Typically, SmartDedupe space savings in addition to inline deduplication fail a cost benefit analysis against performance trade-offs. Minimally intrusive Cost-Benefit analysis can be performed in the following manner:

• With only inline deduplication in operation, obtain a performance baseline of user sensitive Key Performance Indicators (KPIs).
• While monitoring the chosen KPIs, run the DedupeAssessment job to obtain an estimate of additional space savings.

Note: This job puts less load on the cluster than the regular SmartDedupe job.

• Review estimated space saving vs performance changes but be aware that SmartDedupe will add more load than observed during the DedupeAssessment job run.
• Enable SmartDedupe if estimated space savings offer business benefit above performance trade-off.

Inline data reduction is included as a core component of OneFS on the F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, and A300/3000 hardware platforms and does not require a product license key to activate. Inline compression is enabled by default, and inline deduplication can be activated using the following CLI command:

# isi dedupe inline settings modify --enabled=True

Note that an active SmartQuotas license is required to use quota reporting. A SmartQuotas license key can be purchased through your Dell account team. An unlicensed cluster will show a SmartQuotas warning until a valid product license has been purchased and applied to the cluster.

License keys can be easily added using the ‘Activate License’ section of the OneFS WebUI, accessed by going to Settings > Dynamic Licensing, or Cluster Management > Licensing in OneFS 9.14 and earlier releases.

Below are some examples of typical space reclamation levels that have been achieved with OneFS inline data reduction efficiency.

These data efficiency space savings values are provided solely as rough guidance. Since no two datasets are alike (unless they are replicated), actual results can and will vary considerably from these examples.

Table 8.      Typical workload space savings with inline data reduction

Tests of various datasets have demonstrated that data efficiency ratios can easily range from 1:1 (no reduction) to over 3:1.

The Live Optics Dossier utility can be used to estimate the potential benefits of OneFS’ inline data reduction on a dataset. Dossier is available for Windows and Linux and has no dependency on a Dell PowerScale cluster. This makes it useful for analyzing and estimating efficiency across real data in place, without the need for copying data onto a cluster.

Dossier operates in three phases:

Table 9.      Live Optics Dossier phases

To obtain a Live Optics Dossier report, first download, extract, and run the Live Optics collector (from https://www.liveoptics.com/). Local and remote UNC paths can be added for scanning. Ensure you are authenticated to the wanted UNC path before adding it to Dossier’s ‘custom paths’ configuration.

Be aware that the Dossier compression option only processes the first 64 KB of each file to determine its compressibility. Also, the configuration samples 20% (by default) of the dataset, but this setting is configurable. Increasing this value improves the accuracy of the estimation report, albeit at the expense of extended job execution time.

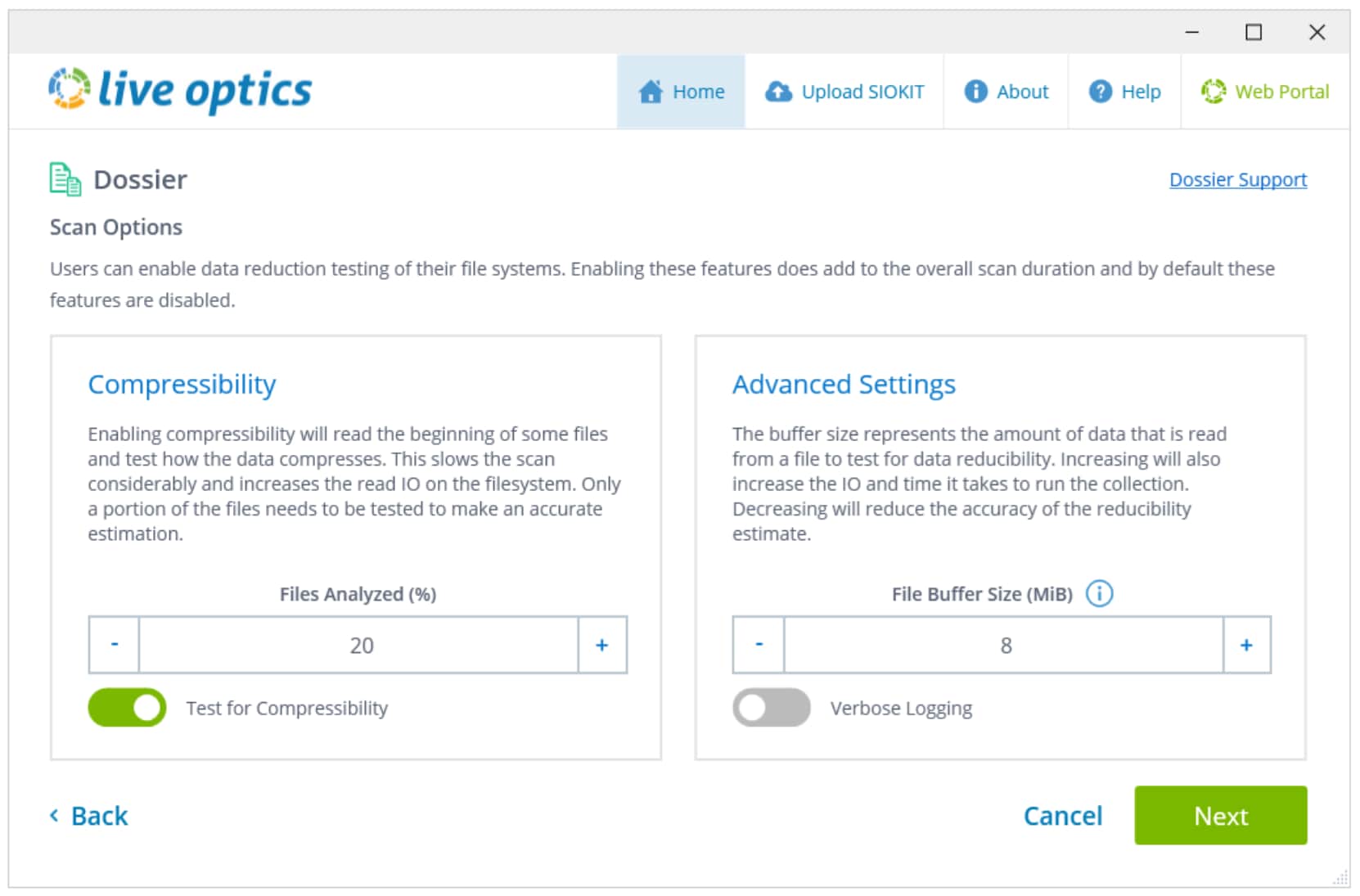

Figure 17.    Dossier configuration

The compressibility scan runs rapidly, with minimal CPU and memory resource consumption. It also provides thread and memory usage controls, progress reporting, and a scheduling option to allow throttling of scanning during heavy usage windows.

When the scan is complete, a ‘*.dossier’ file is generated. This file must be manually uploaded to the Live Optics web portal to generate the PowerPoint and Excel report. See https://support.liveoptics.com/hc/en-us/articles/17358092010779 for more information on uploading the .dossier file to generate the reports.

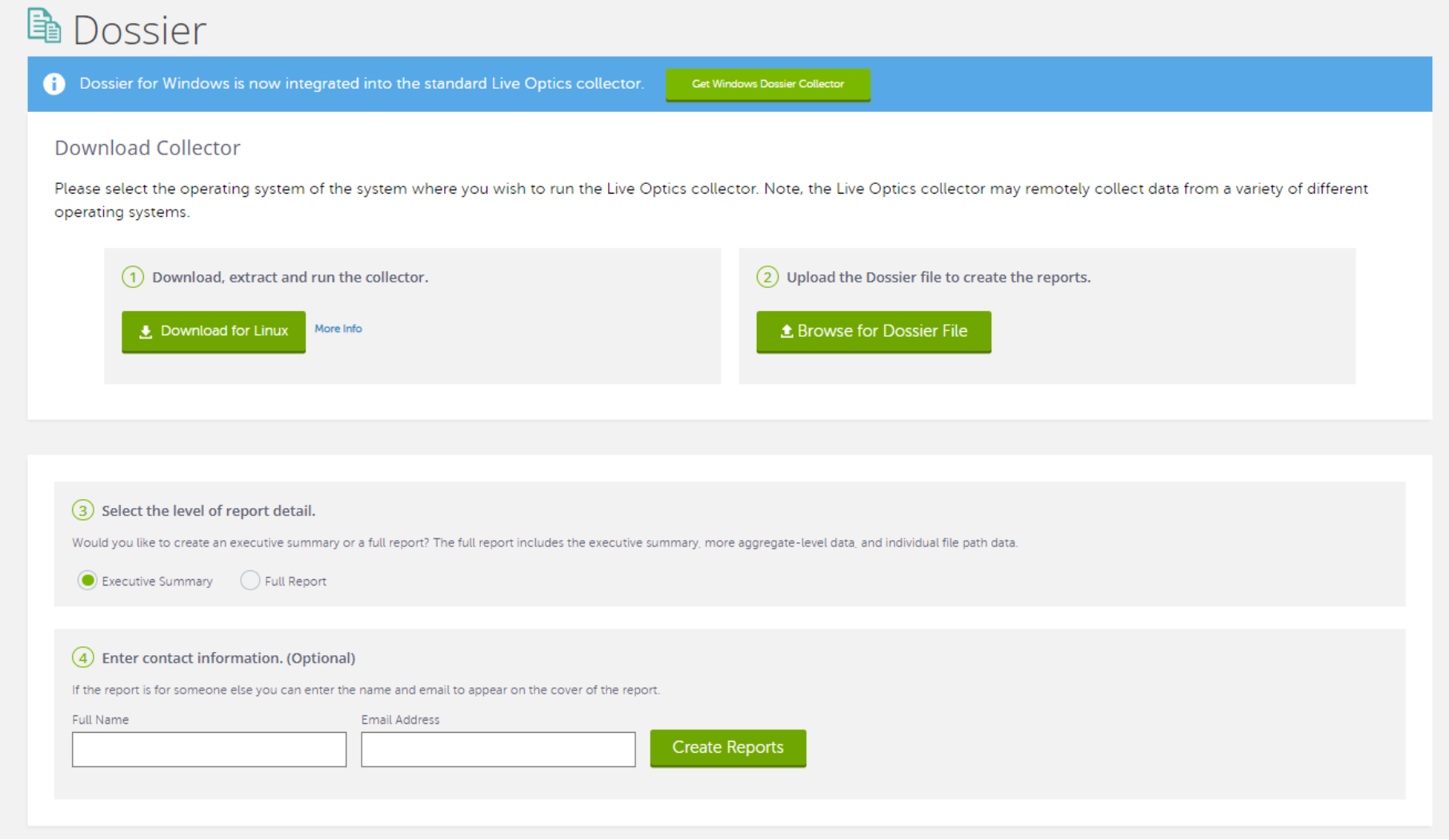

Figure 18.    Live Optics Dossier file upload

Once uploaded and processed, a PowerPoint and Excel report are generated in real time and downloaded to your computer.

Figure 19.    Dossier PowerPoint report

Compression reports are easy to comprehend. If multiple SMB shares or paths are scanned, a summary is generated at the beginning of the report, followed by the details of each individually selected path.

Live Optics Dossier can be found at: https://app.liveoptics.com/tools/dossier

Documentation is at: https://support.liveoptics.com/hc/en-us/sections/360012122533

When running the Live Optics Dossier tool, keep in mind the following considerations:

• Does not provide exactly the same algorithm as the OneFS hardware inline compression.
• Dossier looks at the software compression, not the hardware compression. So actual results will generally be better than Dossier report.
• There will be some data for which dossier overestimates compression, for example with files whose first blocks are significantly more compressible than later blocks.
• Intended to be run against any SMB shares on any storage array or DAS. No NFS export support.
• Dossier tool can take a significant amount of time to run against a large dataset.
• By default, it only samples a portion (first 64 KB) of the data, so results can be inaccurate.
• Dossier does not attempt to compress files with certain known extensions which are generally uncompressible.
• Dossier assessment tool only provides the size of the uncompressed and compressed data. It does not provide performance estimates of different compression algorithms.

A dry run Dedupe Assessment job is provided to help estimate the amount of space savings that will be seen on a dataset. Run against a specific directory or set of directories on a cluster, the deduplication assessment job reports a total potential space savings. The assessment job uses a separate configuration. It also does not require a product license and can be run before purchasing F910, F900, F810, F600, F200, F700/7000, H5600, and A300/3000 hardware to determine whether deduplication is appropriate for a particular dataset or environment.

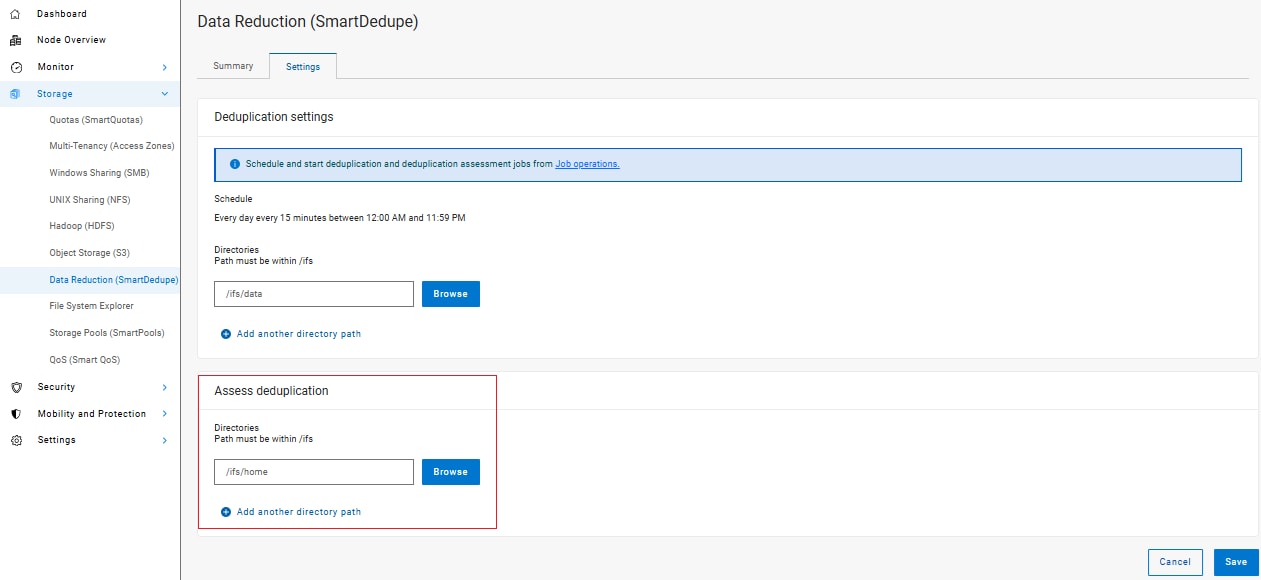

Figure 20.    Deduplication assessment job configuration

The deduplication assessment job uses a separate index table to both inline deduplication and SmartDedupe. For efficiency, the assessment job also samples fewer candidate blocks and does not actually perform deduplication. Using the sampling and consolidation statistics, the job provides a report which estimates the total deduplication space savings in bytes.

Figure 21.    DedupeAssessment job control using the OneFS WebUI

The DedupeAssessment job can also be run from the OneFS command line (CLI):

# isi job jobs start DedupeAssessment

Alternatively, inline deduplication can be enabled in assessment mode:

# isi dedupe inline settings modify –mode assess

One the job has completed, review the following three metrics from each node:

# sysctl efs.sfm.inline_dedupe.stats.zero_block

# sysctl efs.sfm.inline_dedupe.stats.dedupe_block

# sysctl efs.sfm.inline_dedupe.stats.write_block

The formula to calculate the estimated deduplication rate from these statistics is:

dedupe_block / write_block * 100 = dedupe%

The deduplication assessment does not differentiate the case of a fresh run from the case where a previous SmartDedupe job has already performed some sharing on the files in that directory. We recommend that the user should run the assessment job once on a specific directory, since it does not provide incremental differences between instances of the job.

The following table describes the integration, influence, and compatibility between inline data reduction and the various OneFS data services.

Except for the job engine and non-disruptive upgrade (NDU), the following services each require a product license and are not enabled, configured, and active by default on a cluster.

Table 10.  OneFS data reduction and data services integration

For optimal cluster performance, we recommend observing the following inline data reduction best practices. Some of this information may be covered elsewhere in this paper.

• Inline data reduction is supported on F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, A300/3000 nodepools only. Legacy F800 nodes cannot be upgraded or converted to F810 nodes.
• Run the assessment tool on a subset of the data to be compressed or deduplicated.
• When replicating compressed or deduplicated (or both) data, to avoid running out of space on target, it is important to verify that the logical data size (the amount of storage space saved plus the actual storage space consumed) does not exceed the total available space on the target cluster.
• In general, additional capacity savings may not warrant the overhead of running SmartDedupe on node pools with inline deduplication enabled. See the ‘Performance with Inline Data Reduction’ chapter for additional detail.
• Data reduction can be disabled on a cluster if the overhead of compression and deduplication is considered too high or performance is impacted, or both.
• The software data reduction fall-back option on F810 nodes is less performant, more resource intensive, and less efficient (lower compression ratio) that hardware data reduction. Consider removing F810 nodes with failing offload hardware from the node pool.
• Run the deduplication assessment job on a single root directory at a time. If multiple directory paths are assessed in the same job, you will not be able to determine which directory should be deduplicated.
• Recommend enabling inline deduplication before rebooting the F910, F900, F810, F600, F200, and H5600 nodes in a cluster.

Inline data reduction is supported with the following caveats:

• OneFS 8.2.1and later will support from 4 to 252 F810 nodes, or 36 chassis, per cluster.
• OneFS 9.0 will support from 4 to 252 F810 or H5600 nodes, or from 3 to 252 F600 or F200 nodes per cluster.
• OneFS 9.2 will support from 4 to 252 F810 or H5600 nodes, or from 3 to 252 F900, F600, or F200 nodes per cluster.
• OneFS 9.2.1 and later will support from 4 to 252 F810, H5600, F700/7000 or A300/3000 nodes, or from 3 to 252 F900, F600, or F200 nodes per cluster.
• OneFS 9.7 and later will support from 4 to 252 F810, H5600, F700/7000 or A300/3000 nodes, or from 3 to 252 F900, F710, F600, F210, or F200 nodes per cluster.
• OneFS 9.8 and later will support from 4 to 252 F810, H5600, F700/7000 or A300/3000 nodes, or from 3 to 252 F910, F900, F710, F600, F210, or F200 nodes per cluster.
• Data reduction savings depend heavily on factors like the data, cluster composition, and protection level.
• Compressed and deduplicated data does not exit the file system compressed or deduplicated in any shape or form.
• Decompression is substantially less expensive than compression.
• Inline data reduction is exclusive to the F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, and A300/3000 platforms and does not require a software license.
• There is no compatibility or equivalency between F800 and F810 nodes: They cannot share the same node pool and the F800 nodes will not be able to store compressed data.
• There is no OneFS WebUI support for data reduction. Configuration and management are through the CLI only.
• Partial writes to compression chunks may require reading the entire compression chunk first and decompressing it. This is true even if most of the compression chunk is being written.
• Modifications to compression chunks may require rewriting the entire compression chunk even if only a single logical block is changed.
• Some workloads will have data access patterns that exacerbate the above issues and have the potential to cause more writes than if compression was not used.
• Data integrity failures with compressed data will likely mean that corruption does not just affect a single block but instead the entire compression chunk.
• If SmartPools is used on a mixed cluster containing F910, F900, F810, F710, F600, F210, F200, H700/7000, H5600, or A300/3000 nodes, data will only be compressed and/or inline deduplicated when it physically resides on the node pool or pools. If data is tiered to non-compression node pools it will be uncompressed before it is moved, so full uncompressed capacity will be required on the compressed pool. Conversely, if SmartPools moves data between compression pools, for example F810 to F200, the data will remain in a compressed state throughout the transfer.
• Post-process SmartDedupe can run in concert with compression and inline deduplication. It is supported but not widely used. The SmartDedupe job will have to decompress data first to perform deduplication, which is an additional resource expense.
• Even though compressed files are unintelligible when stored on disk, this does not satisfy the encryption requirements for secure data at rest compliance. However, PowerScale nodes are available with SED drives.
• InsightIQ is not yet fully integrated with inline data reduction and will not report compression savings. This will be addressed in a future release.
• As discussed earlier, inline compression is not free. There is always trade-off between cluster resource consumption (CPU, memory, disk), the potential for data fragmentation and the benefit of increased space efficiency.
• Since compression extends the capacity of a cluster, it also has the effect of reducing the per-TB compute resource ratio (CPU, memory, I/O).
• Depending on an application’s I/O profile and the effect of Inline data reduction on the data layout, read and write performance and overall space savings can vary considerably.
• OneFS metadata structures (inodes, b-trees) are not compressed.
• Since compression trades cluster performance for storage capacity savings, compression may not be ideally suited for heavily accessed data, or high-performance workloads.
• SmartFlash (L3) caching is not applicable to F810 nodes since they contain exclusively SSD flash media anyway.
• If a heterogeneous cluster contains F810 nodes plus F800 or other non-compression nodes, data will be uncompressed at the time when it moves between pools. A non-compression node on the cluster can be an initiator for compressed writes to an F810 or H5600 pool and will perform compression in software. However, this may generate significant overhead for lower powered Archive class nodes.
• Inline deduplication will not permit block sharing across different hardware types or node pools to reduce the risk of performance asymmetry.
• Inline deduplication will not share blocks across files with different protection policies applied.
• OneFS metadata is not deduplicated.
• Inline deduplication will not deduplicate the data stored in a snapshot.
• There is no inline deduplication of CloudPools files.
• Inline deduplication can deduplicate common blocks within the same file and a sequence of consecutive blocks to a single block in a shadow store, resulting in even better data efficiency.

Compression is one of several components of OneFS that enable Dell PowerScale to deliver a very high level of storage efficiency. Another enabler is OneFS SmartDedupe, which employs post-process deduplication to share common data blocks across the file system. Other features such as SmartQuotas thin provisioning, SnapshotIQ, and small file packing also contribute to the overall efficiency equation.

However, one of the most significant storage efficiency attributes is the way that OneFS natively manages data protection in the file system. Unlike most file systems that rely on hardware RAID, OneFS protects data at the file level and, using software-based erasure coding, allows most customers to enjoy raw to usable utilization levels of 85% or higher. This is in contrast to the scale up NAS industry mean of around 60% raw disk capacity utilization. Inline data reduction serves to further extend this storage efficiency headroom, bringing an even more compelling and demonstrable TCO advantage to primary file-based storage.

Up until now, traditional compression and deduplication implementations have often been resource intensive, limited to software, and detrimental to performance.

OneFS inline data reduction, integrated with the industry’s leading Scale-Out NAS architecture, delivers on the promise of simple data efficiency at scale by providing significant storage cost savings, without sacrificing performance, ease of use or data protection.

With its simple interface and transparent operation, OneFS inline data reduction is easy to manage on your Dell PowerScale cluster, delivering enterprise data efficiency within a single, highly extensible storage pool.  Scalability to petabytes and the ability to seamlessly increase capacity and add new technologies, across multiple performance tiers in the same system, means strong investment protection. Integration with OneFS core functions eliminates data risks and gives the user control over what system resources are allocated to data movement.

To learn more about inline data reduction and other storage efficiency products, see Dell PowerScale.

Dell.com/support is focused on meeting customer needs with proven services and support.

The Dell Technologies Info Hub provides expertise that helps to ensure customer success on Dell storage platforms.
