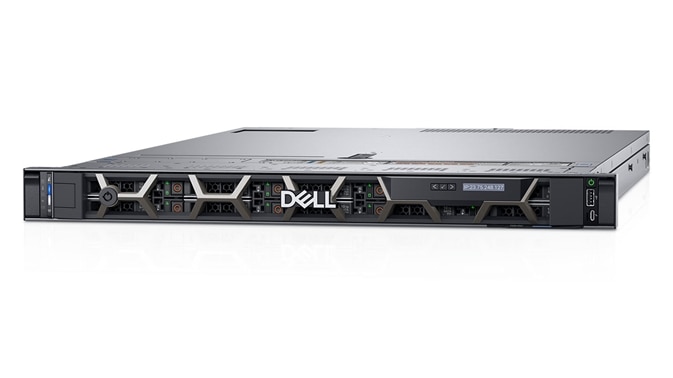

Video: The PowerEdge R640 Rack Server 1:30
Get scalable computing and storage in a 1U, 2-socket platform with an ideal mix of performance, cost and density for most data centers.
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Canonical® Ubuntu® LTS
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi
Optional LCD or Security bezel
TPM 1.2/2.0 optional Cryptographically signed firmware
Chassis Max depth (with bezel):
757.75 mm - For the 8 x 2.5” front bay drive configuration.
808.51 mm - For the 4 x 3.5” or 10 x 2.5” front bay drive configurations (plus up to 2 rear drives).
Front drive bays:
Up to 10 x 2.5” with up to 8 NVMe, SAS/SATA/SSD/NVMe, max 58TB , or up to 10 NVMe drives max 64TB. Or Up to 4 x 3.5” SAS/SATA, max 48TB
Rear drive bays:
Up to 2 x 2.5” SAS/SATA/SSD/NVMe, max 12TB
Up to 1 FPGA
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
OpenManage Power Center
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Microsoft® System Center
BMC software (available from BMC)
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
VGA, NVIDIA NVS310 available as PCIe card Up to 3 x Gen3 slots, all x16
Titanium 750W, Platinum 495W, 750W, 1100W, and 1600W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy
PERC H330, H730p, H740p, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID):
12Gbps SAS HBAs (non-RAID):
External- 12Gbps SAS HBA (non-RAID)
Internal- HBA330 (non-RAID)
The poweredge R640 is the ideal dual-socket platform for dense scale-out data center computing and storage. Benefit from the flexibilty of 2.5” or 3.5” drives, the performance of NVMe and embedded intelligence to ensure optimized application performance in a secure platform. With embedded diagnostics and SupportAssist, the R640 delivers maximum uptime in a worry-free environment.
Data center evolution starts with modern platforms that easily scale and are optimized for application performance. The PowerEdge R640 is built upon a scalable system architecture and provides the choice and flexibility to easily meet performance demands.
Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.
Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.
Optimizing the IT lifecycle is vital. We have expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Gain the freedom to focus on your business transformation with the support expertise and insights Dell EMC is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
