VxRail: Node Add Operation Failure "Error adding 3 host to the cluster. Health monitoring is disabled during this task"

Summary: When adding nodes to a cluster the operation fails on building the disk group, but the task is still running in vSphere.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

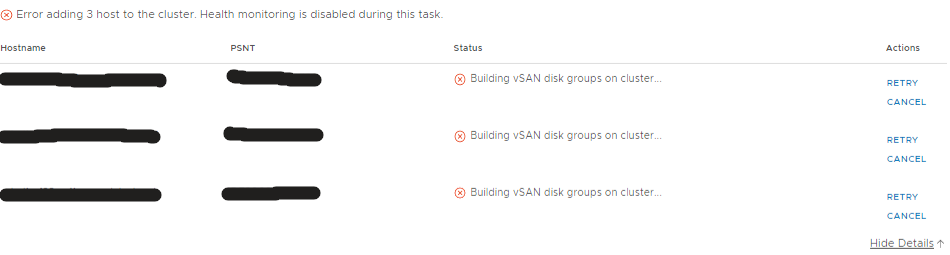

Node add fails at step "Building vSAN disk groups on cluster" from VxRail plug-in:

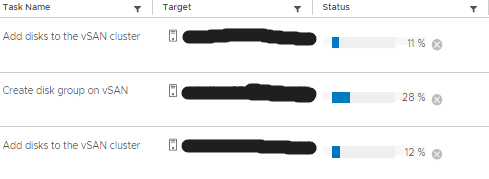

However, the task to create the disk group continues in vCenter:


short.term.log:

2022-03-02-21:56:03 microservice.nano-service "Traceback (most recent call last):"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/atomic.py"", line 236, in execute"
2022-03-02-21:56:03 microservice.nano-service "    self._return = self.perform(*args, **kwargs)"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/hostvsandiskgroupscreate/host_vsan_diskgroups_create.py"", line 214, in perform"
2022-03-02-21:56:03 microservice.nano-service "    params=(self.host_name,))"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/atomic.py"", line 278, in raise_error"
2022-03-02-21:56:03 microservice.nano-service "    raise NanoException(code=code, params=params, message=message)"
2022-03-02-21:56:03 microservice.nano-service "common.nano_exception.NanoException: {""code"": ""E3100_Storage_4"", ""params"": [""esxi-01***""], ""message"": ""Failed to create multiplue disk group esxi-01***""}"
2022-03-02-21:56:03 microservice.nano-service ""
2022-03-02-21:56:03 microservice.nano-service "[common.atomic] 2022-03-02 21:56:03,516 DEBUG 9:Dummy-374 [atomic.py:19] trigger_event(): step_message: HostVsanDiskgroupsCreate Fail."
2022-03-02-21:56:03 microservice.nano-service "[dayone] 2022-03-02 21:56:03,516 ERROR 9:Dummy-374 [utils.py:203] wrapper(): Caught for log, will raise this exception again.Traceback (most recent call last):"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/hostvsandiskgroupscreate/host_vsan_diskgroups_create.py"", line 210, in perform"
2022-03-02-21:56:03 microservice.nano-service "    do_storage.sync_call_do(do_storage.build_call_do_service_task_url(url), body, method=""POST"")"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/utils.py"", line 198, in wrapper"
2022-03-02-21:56:03 microservice.nano-service "    rets = func(*args, **kargs)"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/do.py"", line 308, in sync_call_do"
2022-03-02-21:56:03 microservice.nano-service "    'task {} for {} {} failed with timeout.'.format(task_id, method, path))"
2022-03-02-21:56:03 microservice.nano-service "Exception: task b4076ad8-d9a6-4e10-a360-aed4460e1935 for POST /rest/vxm/internal/do/v1/storage/vsan/diskgroups/initialize failed with timeout."

Cause

An underlying vSAN issue such as a slow connection to the KMS server could cause a longer task time. VxRail Manager times out before the task completes.

Resolution

To resolve this issue:

  1. Wait for the Disk Group creation task to complete in vCenter.
  2. Retry task from the VxRail Manager plug-in succeeds.

Affected Products

VxRail, VxRail Appliance Series, VxRail Software
Article Properties
Article Number: 000196967
Article Type: Solution
Last Modified: 04 Sept 2025
Version:  2
