PowerEdge XE7740 System Stops at the "Loading BIOS Drivers" Screen

Summary: PowerEdge XE7740 system stops at the "Loading BIOS Drivers" screen after an iDRAC 1.20.80.50 update.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

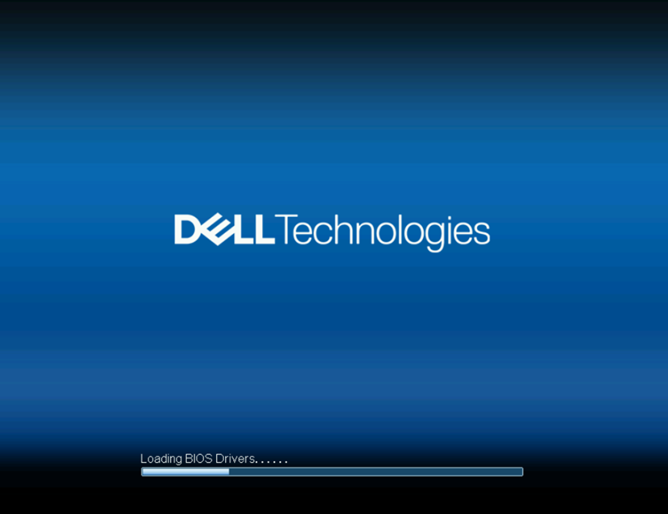

PowerEdge XE7740 system stops at the Loading BIOS Drivers screen when the iDRAC has been updated to version 1.20.80.50, while the BIOS remains at version 1.3.1 or earlier.

Cause

The BIOS receives an invalid payload size from the iDRAC firmware.

Resolution

Short Term Workaround:

  1. Revert iDRAC to a version older than 1.20.80.50.
  2. Update the BIOS to version 1.6.4.
  3. Update iDRAC to version 1.20.80.50.

    Running firmware updates carries a risk of system non‑boot if power is lost during the process. Ensure that the server is connected to an uninterrupted power supply (UPS) and avoid interrupting the update.

    Dell plans to release corrected iDRAC firmware in March 2026. When the update becomes available, you can apply it to eliminate the need for the rollback workaround.

    If you encounter any issues or are unsure about any steps, contact Dell Support for assistance. Do not attempt additional troubleshooting without guidance.

    Affected Products

    PowerEdge XE7740
    Article Properties
    Article Number: 000396296
    Article Type: Solution
    Last Modified: 17 Dec 2025
    Version:  1
