VSI: VSI를 사용하여 볼륨을 생성할 수 없습니다. 오류는 다음과 같습니다. "vCenter가 등록되어 있는지 확인합니다. 상태 코드: 404, 찾을 수 없음"

Summary: VSI를 사용하여 데이터 저장소를 생성하려고 하는 동안 오류 404

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

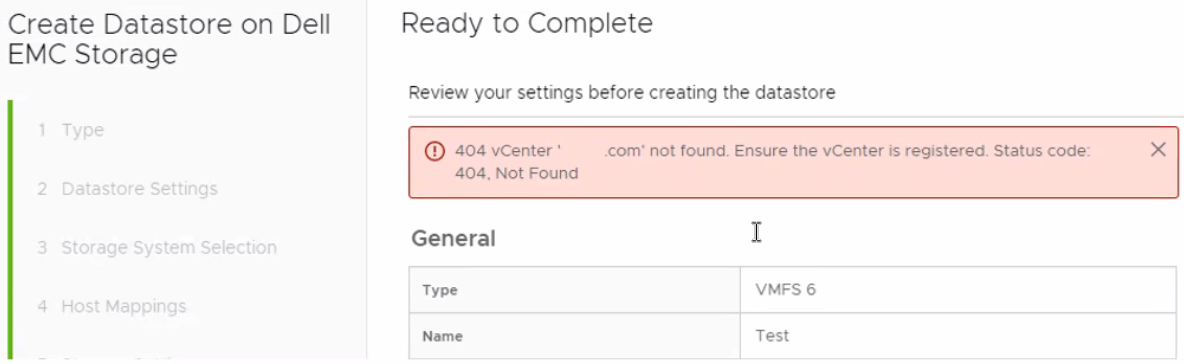

VSI를 사용하여 데이터 저장소를 생성하려는 시도가 실패하고


VSI 로그에 다음이 표시됩니다.
2022-04-15 07:42:40 [utow task-6] DEBUG o.j.s.HttpHandler - execution of: POST/api/powerstore/clusters/xxxx/datastores resulted in exception
com.emc.iapi.core.exception.IapiException: vCenter 'xxxxx-xxxx-xxxx.com' not found. Ensure the vCenter is registered. Status code: 404, Not Found
at com.emc.iapi.service.vcenter.inventory.mgr.impl.VcenterConnections.lambda$getByHost$6(VcenterConnections.java:192)
at com.emc.iapi.service.vcenter.inventory.mgr.impl.VcenterConnections$$Lambda$1138/0000000010031830.get(Unknown Source)
at java.util.Optional.orElseThrow(Optional.java:290)
at com.emc.iapi.service.vcenter.inventory.mgr.impl.VcenterConnections.getByHost(VcenterConnections.java:189)
at com.emc.iapi.service.powerstore.inventory.engine.utils.PlatformUtils.getUserGroups(PlatformUtils.java:121)
at com.emc.iapi.service.powerstore.inventory.mgr.impl.SystemInventoryServiceImpl.getUserGroups(SystemInventoryServiceImpl.java:693)
at com.emc.iapi.service.powerstore.rest.SystemRoutingService.beforeClustersRoutes(SystemRoutingService.java:76)
at com.emc.iapi.powerstore.client.rest.routes.ApiPowerStoreRoutes.lambda$new$0(ApiPowerStoreRoutes.java:17)
at com.emc.iapi.powerstore.client.rest.routes.ApiPowerStoreRoutes$$Lambda$305/0000000099FD56E0.handle(Unknown Source)
at org.jooby.Route$Before.handle(Route.java:1924)
at org.jooby.internal.RouteImpl.handle(RouteImpl.java:280)
at org.jooby.internal.RouteChain.next(RouteChain.java:262)
at org.jooby.Route$Chain.next(Route.java:2164)
at org.jooby.Route$Handler.handle(Route.java:1762)
at org.jooby.internal.RouteImpl.handle(RouteImpl.java:280)
at org.jooby.internal.RouteChain.next(RouteChain.java:262)
at org.jooby.Route$Chain.next(Route.java:2164)
at org.jooby.Route$Handler.handle(Route.java:1762)
at org.jooby.internal.RouteImpl.handle(RouteImpl.java:280)
at org.jooby.internal.RouteChain.next(RouteChain.java:262)
at org.jooby.Route$Chain.next(Route.java:2164)
at org.jooby.Route$Handler.handle(Route.java:1762)
at org.jooby.internal.RouteImpl.handle(RouteImpl.java:280)
at org.jooby.internal.RouteChain.next(RouteChain.java:262)
at org.jooby.Route$Chain.next(Route.java:2164)
at org.jooby.handlers.CorsHandler.handle(CorsHandler.java:279)
at org.jooby.internal.RouteImpl.handle(RouteImpl.java:280)
at org.jooby.internal.RouteChain.next(RouteChain.java:262)
at org.jooby.Route$Chain.next(Route.java:2164)
at org.jooby.internal.HttpHandlerImpl.handle(HttpHandlerImpl.java:496)
at org.jooby.internal.undertow.UndertowHandler.handleRequest(UndertowHandler.java:252)
at io.undertow.server.Connectors.executeRootHandler(Connectors.java:387)
at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:841)
at org.jboss.threads.ContextClassLoaderSavingRunnable.run(ContextClassLoaderSavingRunnable.java:35)
at org.jboss.threads.EnhancedQueueExecutor.safeRun(EnhancedQueueExecutor.java:2019)
at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.doRunTask(EnhancedQueueExecutor.java:1558)
at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1449)
at java.lang.Thread.run(Thread.java:821)
2022-04-15 07:42:40 [utow task-6] DEBUG i.u.r.error-response - Setting error code 500 for exchange HttpServerExchange{ POST /api/powerstore/clusters/xxxx/datastores/}

Cause

이 문제는 vCenter FQDN에 대문자가 포함되어 있는 경우에 발생합니다. VSI v9.1.0까지의 내부 로직은 대/소문자를 구분하며 모든 소문자를 기대합니다.

Resolution

VSI 버전 9.1.1에는 이 문제에 대한 수정 사항이 포함됩니다.
이 버전을 사용할 수 있게 되면 이 버전으로 업그레이드하는 것이 좋습니다.

Affected Products

PowerStore 1000X, PowerStore 1000T, PowerStore 3000X, PowerStore 3000T, PowerStore 5000X, PowerStore 5000T, PowerStore 500T, PowerStore 7000X, PowerStore 7000T, PowerStore 9000X, PowerStore 9000T
Article Properties
Article Number: 000199258
Article Type: Solution
Last Modified: 06 Nov 2022
Version:  5
