PowerEdge: R7525 VMware VM fails to power on with BIOS 2.14.1
Summary: Failed to power on VMware virtual machine (VM) on R7525 with NVIDIA A40/L40 GPUs and 2.14.1 BIOS
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
After updating the BIOS on PowerEdge R7525 to version 2.14.1, a virtual machine power on failure may occur when using NVIDIA A40/L40 GPUs with VMware.
The same virtual machine can be powered on with the old version of BIOS.

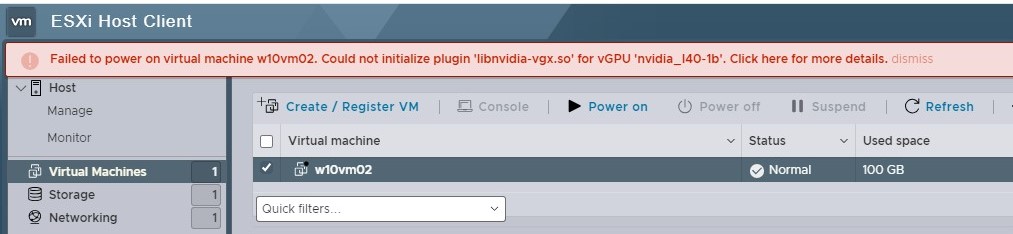

Example error messages as below:
This issue was only reported on R7525 with Milan (7003 Series) CPU. However, it may also impact the other 15G AMD platforms.
Cause
Certain AMD reference code added to the 2.14.1 BIOS causes the issue.
Resolution
Fix:
Update the BIOS to 2.15.2 or newer.
Update the BIOS to 2.15.2 or newer.
Affected Products
PowerEdge R7525, VMware ESXi 7.x, VMware ESXi 8.xProducts
OEMR R6515, OEMR R6525, OEMR R7515, OEMR R7525, PowerEdge C6525, PowerEdge R6515, PowerEdge R6525, PowerEdge R7515, PowerFlex appliance R6525, PowerFlex appliance R7525, Dell EMC XC Core XC7525Article Properties
Article Number: 000223583
Article Type: Solution
Last Modified: 01 May 2025
Version: 4
