Dell APEX Cloud Platform: Network validation failed during node addition

Summary: In the case of a Full converged Cluster, if user config more than 1 storage vlan ID for the traffic, network validation will be failed.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

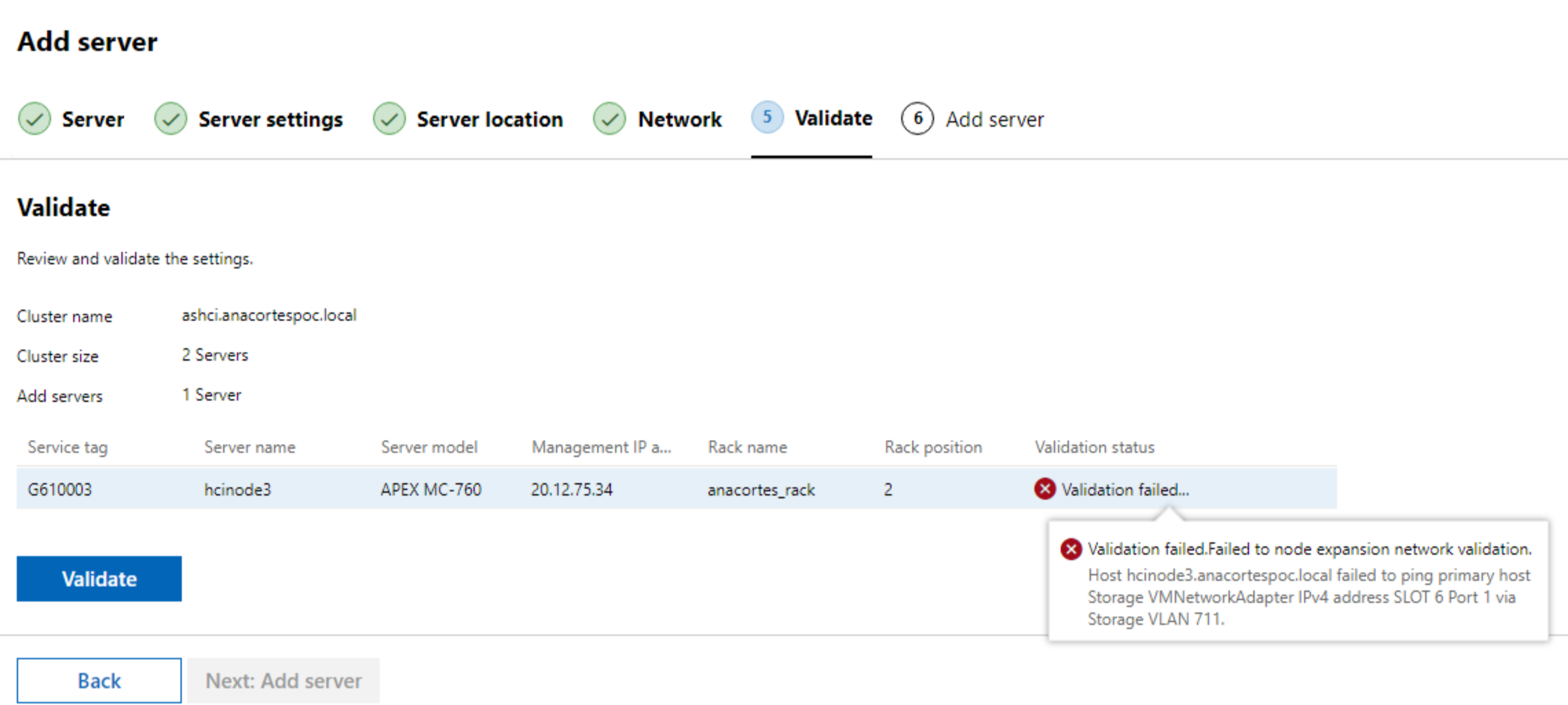

Validation will fail, and a notification will be prompted error screen

Cause

In a Fully converged Cluster, if user configured more than one storage VLAN ID for the traffic

   For example a two-storage VLAN configuration in a fully converged cluster:

  1. In the cluster, there are two storage VLAN IDs 711 and  712
  2. But on the new node, only VLAN 711 is configured for storage traffic during validation, then it failed to validate the VLAN 712 network connection.

Resolution

Use steps below to skip the validation:
1. Prepare JSON payload

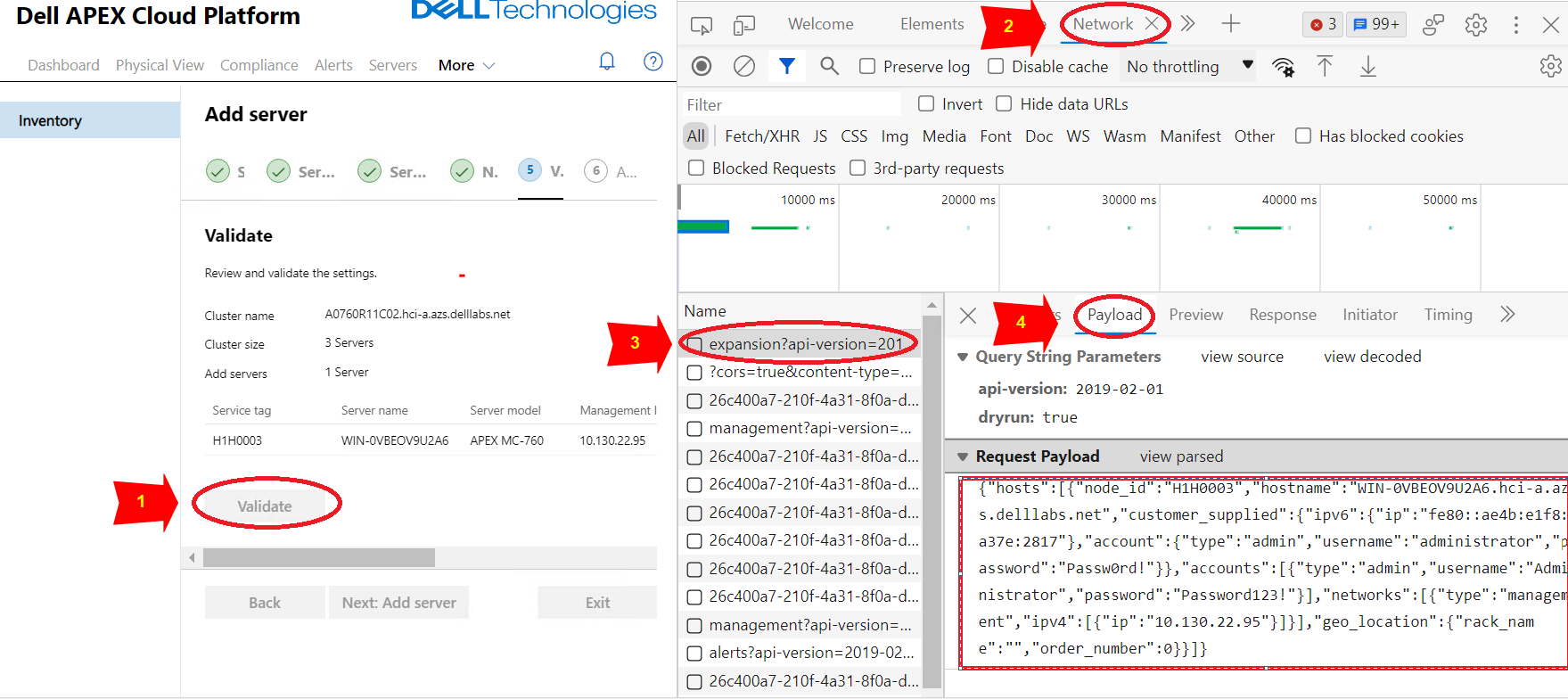

Use Chrome to open WAC UI interface, click F12 and then validate. In the network window, find "expansion api" and get request payload.


WAC UI interface
 save the payload JSON to a file named payload.json.

JSON payload content example:

{
    "hosts":[
        {
            "node_id":"H1H0003",
            "hostname":"WIN-0VBEOV9U2A6.hci-a.azs.delllabs.net",
            "customer_supplied":{
                "ipv6":{
                    "ip":"fe80::ae4b:e1f8:a37e:2817"
                },
                "account":{
                    "type":"admin",
                    "username":"administrator",
                    "password":"Passw0rd!"
                }
            },
            "accounts":[
                {
                    "type":"admin",
                    "username":"Administrator",
                    "password":"Password123!"
                }
            ],
            "networks":[
                {
                    "type":"management",
                    "ipv4":[
                        {
                            "ip":"10.130.22.95"
                        }
                    ]
                }
            ],
            "geo_location":{
                "rack_name":"",
                "order_number":0
            }
        }
    ]
}


2. Call Node expansion API get the “access token” for authorization

(The following API should be invoked in a place that has network access to APEX Cloud Platform Manager.)

a. Call private API(POST) get the “access token” for authorization:

curl -k -i -X POST https://<Manager_IP>/rest/apex-cp/v1/login -d '{"username":"<management username>","password":"<management password>"}' --header "Content-Type: application/json"

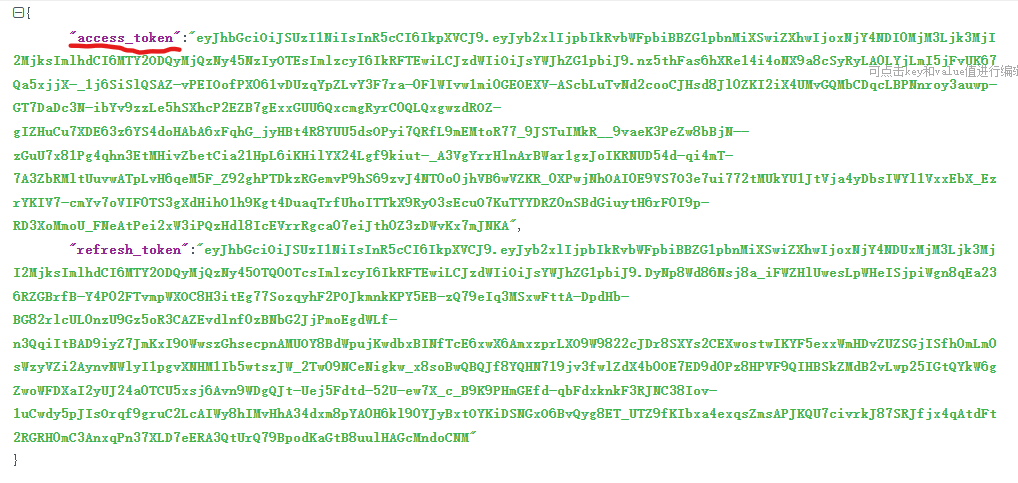

Result example:

command output


   b. Use the access token from last step to call private API(POST)  to add node

curl -k -i -X POST "https://<Manager_IP>/rest/apex-cp/private/v1/cluster/expansion?dryrun=false" --header "Authorization: Bearer<access_token_value>" --header "Content-Type: application/json" -d @</path/to/payload.json>


3. Monitor node addition status

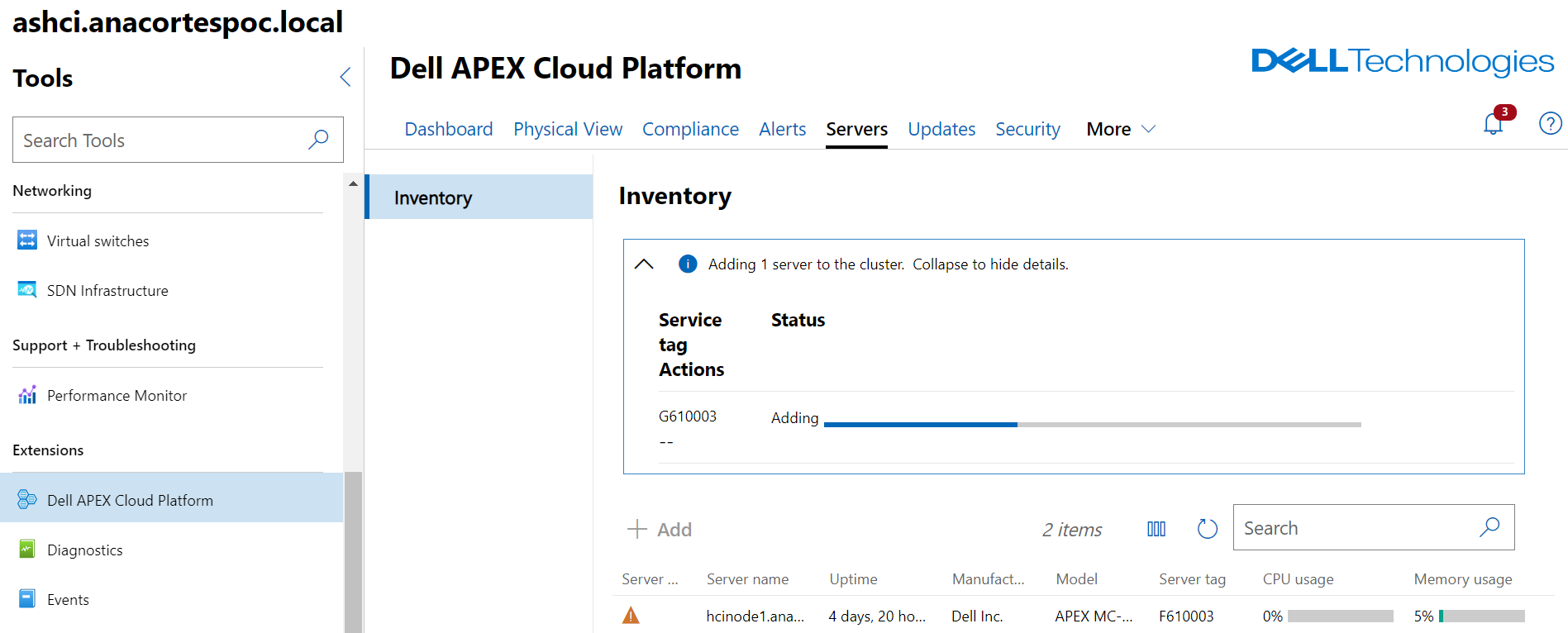

On WAC UI, we can see the job progress:
a
WAC UI





Note: All the device info in this KB is from LAB.
