NetWorker: Docker-container NetWorker-klientsikkerhedskopiering mislykkes med fejlen savefs: fail

NetWorker-klientsoftwaren er installeret i en docker-beholder.
Den klientbaserede sikkerhedskopiering af docker-klienten mislykkes med følgende fejl:

<client name>:savefs failed.
<client name>:savefs See the file '/nsr/logs/policy/<policy>/<workflow/backup_<jobid>_logs/<jobid>.log' for command output.
Stopped processing of the save set <cleint name>:<save set> because the savefs job job terminated with an error.
Job <jobid> host: <client name> savepoint: <save set> had ERROR indication(s) at completion
<client name>:<save set> abandoned.
Client '<client name>' is being skipped because no savesets of this client have been backed up as part of the backup action.
Action backup traditional 'backup' with job id <job id> is exiting with status 'failed', exit code 1

Der er i øjeblikket ingen understøttet metode til sikkerhedskopiering af docker-objektbeholdere som NetWorker-klienter. Hvis du ønsker, at denne funktionalitet skal findes i NetWorker, skal du kontakte din Dell-konto eller salgsrepræsentant vedrørende en anmodning om forbedring (RFE).

Hvis du vil forhindre en NetWorker-klient i at sikkerhedskopiere Docker-data, skal du springe vejledninger over på NetWorker-klienten til Docker-fil-/mappestrukturen.

Eksempel (ændring af stier og processer i henhold til dit system og Docker-konfiguration):

<< /var/lib/docker >>
skip: *
<< /var/lib/containers >>
skip: *
<< /run >>
skip: docker docker.sock containers podman crun

Du kan finde flere oplysninger om NetWorker-direktiver i NetWorker-administrationsvejledningen. NetWorker-dokumentation er tilgængelig via: Support til NetWorker | Vejledninger og dokumenter

Hvis du vil sikkerhedskopiere dockerbeholderdata, skal du bruge en af følgende løsninger:

Løsning One:

1. Få adgang til docker-værten via SSH.
2. Fra SSH-sessionen skal du oprette forbindelse til docker-beholderen. Den nøjagtige anvendte syntaks afhænger af beholderplatformen:

• Docker: docker exec -it CONTAINER_NAME sh
• Podman: podman exec -it CONTAINER_NAME sh

3. Opret en fstab fil ved hjælp af mtab Fil: cp /etc/mtab /etc/fstab
4. Gå ud af containeren: exit
5. Sikkerhedskopier beholderklienten fra NetWorker.

Løsning på to:

Opret "arkiver" af docker-containerdataene på docker-værten, sikkerhedskopier dataene som et filsystemlagringssæt fra docker-værten. Denne fremgangsmåde kan kræve scripting og brug af cron Job.

1. Opret et bash-script, der udfører følgende handlinger:
   1. Stop docker-beholderen midlertidigt. Dette er for at sikre databasekonsistens i docker-beholderen.
   2. Zip docker-beholderens mappeindhold.
   3. Start docker-beholderen
   4. (valgfrit) oprydningsarkiver, der er ældre end X dage.

#!/usr/bin/env bash
set -euo pipefail
# ===== Config (tunable) =====
CONTAINER_TOOL="podman"                  # container platform (podman or docker)
CONTAINER_NAME="npm"                     # the container name to verify after restart
COMPOSE_DIR="/root/docker/nginx"         # directory containing docker-compose.yaml/podman-compose.yaml
BACKUP_ROOT="/root/docker/backups"       # where backups are stored on the host
RETENTION_DAYS=3                         # delete archives older than N days
TIMESTAMP="$(date +%F_%H%M%S)"
ARCHIVE="${BACKUP_ROOT}/${CONTAINER_NAME}-backup-${TIMESTAMP}.tar.gz"
LOCK_FILE="/var/lock/${CONTAINER_NAME}_backup.lock"
# ========================================
mkdir -p "$BACKUP_ROOT" /var/lock
# --- Handle stale lock files (if previous run crashed) ---
if [[ -f "$LOCK_FILE" ]]; then
  # Try to find an owning process; if none, remove the stale lock
  LOCK_FD_OWNER="$(lsof -t -- "$LOCK_FILE" 2>/dev/null || true)"
  if [[ -z "$LOCK_FD_OWNER" || ! -d "/proc/$LOCK_FD_OWNER" ]]; then
    echo "[INFO] Removing stale lock file: $LOCK_FILE"
    rm -f "$LOCK_FILE"
  fi
fi
# --- Simple lock to avoid overlapping runs ---
exec 9>"$LOCK_FILE"
if ! flock -n 9; then
  echo "[INFO] Another backup is running. Exiting."
  exit 0
fi
# --- Safety checks ---
if [[ ! -d "$COMPOSE_DIR" ]]; then
  echo "[ERROR] Compose directory not found: $COMPOSE_DIR" >&2
  exit 1
fi
if [[ ! -f "${COMPOSE_DIR}/docker-compose.yaml" && ! -f "${COMPOSE_DIR}/podman-compose.yaml" ]]; then
  echo "[ERROR] No compose file found in ${COMPOSE_DIR}" >&2
  exit 1
fi
# --- Functions ---
prune_backups() {
  local root="$1" days="$2"
  echo "[INFO] Pruning backups older than ${days} days in ${root}..."
  find "$root" -maxdepth 1 -type f -name "${CONTAINER_NAME}-backup-*.tar.gz" -mtime +"$days" -print -delete || true
}
verify_running() {
  # Expect container named "${CONTAINER_NAME}" to be running again
  if ${CONTAINER_TOOL} ps --format '{{.Names}}' | grep -qx "${CONTAINER_NAME}"; then
    echo "[INFO] Container '${CONTAINER_NAME}' is running."
  else
    echo "[WARN] Container '${CONTAINER_NAME}' not found in '${CONTAINER_TOOL} ps'. Check '${CONTAINER_TOOL} ps -a' and logs."
  fi
}
# --- Stop stack cleanly using *-compose in its directory ---
echo "[INFO] Bringing down stack (${CONTAINER_TOOL}-compose down) in ${COMPOSE_DIR}..."
(
  cd "$COMPOSE_DIR"
  # Do NOT pass -p; let the project default to the directory name
  ${CONTAINER_TOOL}-compose down || {
    echo "[WARN] ${CONTAINER_TOOL}-compose down returned non-zero. Continuing (stack may not have been up)."
  }
)
# --- Create archive (compose dir: data, letsencrypt, compose file, etc.) ---
echo "[INFO] Archiving ${COMPOSE_DIR} to ${ARCHIVE}..."
# Preserve SELinux/xattrs and ownership; exclude the backups dir if it's under same parent
tar -C "$(dirname "$COMPOSE_DIR")" \
  --xattrs --selinux --same-owner --numeric-owner \
  --exclude "$(basename "$BACKUP_ROOT")" \
  -czf "$ARCHIVE" "$(basename "$COMPOSE_DIR")"
# Optional integrity checksum
sha256sum "$ARCHIVE" > "${ARCHIVE}.sha256"
# --- Start stack back up ---
echo "[INFO] Starting stack (${CONTAINER_TOOL}-compose up -d)..."
(
  cd "$COMPOSE_DIR"
  ${CONTAINER_TOOL}-compose up -d
)
# --- Verify expected container is running ---
verify_running
# --- Prune according to retention ---
prune_backups "$BACKUP_ROOT" "$RETENTION_DAYS"
echo "[OK] Backup completed: ${ARCHIVE}"

[root@rhel-client01 scripts]# ./backup_npm.sh
[INFO] Removing stale lock file: /var/lock/npm_backup.lock
[INFO] Bringing down stack (podman-compose down) in /root/docker/nginx...
npm
npm
14dc3c3871a7a9716142a1011f1039258d330be1ddb49543eb7a8e257256239a
nginx_default
[INFO] Archiving /root/docker/nginx to /root/docker/backups/npm-backup-2026-02-10_155107.tar.gz...
[INFO] Starting stack (podman-compose up -d)...
be491bf43aa17f1a767075ed8b2cd55d93cdf4581ad04abe66a58f3bce0b5e74
e677dbedd5fdd92a440896dc4cae22165cb34ce704ec3ed8f7620ce243183585
npm
[INFO] Container 'npm' is running.
[INFO] Pruning backups older than 3 days in /root/docker/backups...
[OK] Backup completed: /root/docker/backups/npm-backup-2026-02-10_155107.tar.gz
[root@rhel-client01 scripts]#
[root@rhel-client01 scripts]# ls -ltr /root/docker/backups/
total 8
-rw-r--r--. 1 root root 638 Feb 10 15:51 npm-backup-2026-02-10_155107.tar.gz
-rw-r--r--. 1 root root 123 Feb 10 15:51 npm-backup-2026-02-10_155107.tar.gz.sha256

[root@rhel-client01 scripts]# ln -s /root/scripts/backup_npm.sh /etc/cron.daily/backup_npm
[root@rhel-client01 scripts]#

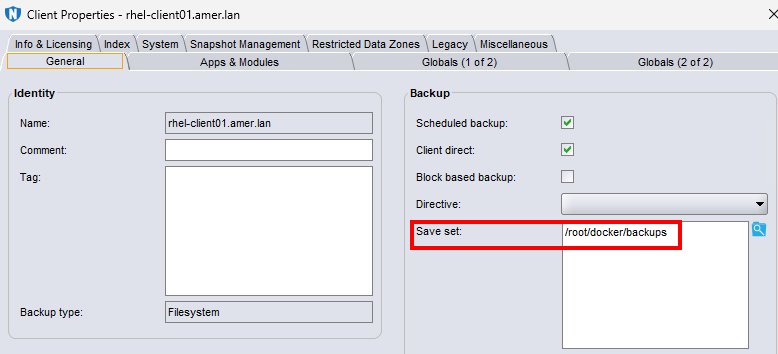

2. Opret en NetWorker-klient til det system, der hoster docker-containerne. "Gem sæt" er den mappe, der bruges til mappe, der indeholder docker tarball-arkiverne:

3. Foretag sikkerhedskopier af klienten. NetWorker-administrationsvejledningen indeholder flere oplysninger om oprettelse af sikkerhedskopieringspolitikker og planlægning. NetWorker-dokumentation er tilgængelig via: Support til NetWorker | Vejledninger og dokumenter

Klientsikkerhedskopien indeholder docker-arkiv-tarball-data:

[root@nsr ~]# mminfo -avot -q client=rhel-client01.amer.lan -r "nsavetime,savetime(20),name,sumflags,ssretent"
  save time    date     time   name                           fl  retent
...
 1770757763    02/10/2026 16:09 /root/docker/backups          cb 03/10/2026

[root@nsr ~]# nsrinfo -t 1770757763 rhel-client01.amer.lan
scanning client `rhel-client01.amer.lan' for savetime 1770757763(Tue 10 Feb 2026 04:09:23 PM EST) from the backup namespace
/root/docker/backups/npm-backup-2026-02-10_155107.tar.gz
/root/docker/backups/npm-backup-2026-02-10_155107.tar.gz.sha256
/root/docker/backups/
/root/docker/
/root/
/
6 objects found
