NetWorker: Docker-beholder Sikkerhetskopiering av NetWorker-klient mislykkes med error savefs: fail

NetWorker-klientprogramvaren installeres inne i en docker-beholder.
Den klientbaserte sikkerhetskopien av docker-klienten mislykkes med følgende feil:

<client name>:savefs failed.
<client name>:savefs See the file '/nsr/logs/policy/<policy>/<workflow/backup_<jobid>_logs/<jobid>.log' for command output.
Stopped processing of the save set <cleint name>:<save set> because the savefs job job terminated with an error.
Job <jobid> host: <client name> savepoint: <save set> had ERROR indication(s) at completion
<client name>:<save set> abandoned.
Client '<client name>' is being skipped because no savesets of this client have been backed up as part of the backup action.
Action backup traditional 'backup' with job id <job id> is exiting with status 'failed', exit code 1

Det finnes for øyeblikket ingen metode som støttes for å sikkerhetskopiere docker-containere som NetWorker-klienter. Hvis du vil at denne funksjonaliteten skal finnes i NetWorker, kontakter du Dell-kontoen din eller salgsrepresentanten din angående en forespørsel om forbedring (RFE).

Hvis du vil hindre at en NetWorker-klient sikkerhetskopierer Docker-data, må du bruke hoppedirektiver på NetWorker-klienten for Docker-fil-/mappestrukturen.

Eksempel (endre banene og prosessene i henhold til systemet og Docker-konfigurasjonen):

<< /var/lib/docker >>
skip: *
<< /var/lib/containers >>
skip: *
<< /run >>
skip: docker docker.sock containers podman crun

Du finner mer informasjon om NetWorker-direktiver i administrasjonsveiledningen for NetWorker. NetWorker-dokumentasjon er tilgjengelig gjennom: Støtte for NetWorker | Håndbøker og dokumenter

Hvis du vil sikkerhetskopiere docker-beholderdata, kan du bruke én av følgende løsninger:

Løsning én:

1. Få tilgang til docker-verten via SSH.
2. Fra SSH-økten kobler du til docker-beholderen. Den nøyaktige syntaksen som brukes, avhenger av beholderplattformen:

• Dokker: docker exec -it CONTAINER_NAME sh
• Podman: podman exec -it CONTAINER_NAME sh

3. Opprett en fstab ved hjelp av mtab Filen: cp /etc/mtab /etc/fstab
4. Gå ut av beholderen: exit
5. Sikkerhetskopier beholderklienten fra NetWorker.

Løsning to:

Opprett "arkiver" av docker-beholderdataene på docker-verten, og sikkerhetskopier dataene som et filsystemlagringssett fra docker-verten. Denne fremgangsmåten kan kreve noe skripting og bruk av cron Jobber.

1. Opprett et bash-skript som utfører følgende operasjoner:
   1. Stopp docker-beholderen midlertidig. Dette er for å sikre konsekvent database i dockerbeholderen.
   2. Pakk mappeinnholdet i docker-beholderen.
   3. Start docker-beholderen
   4. (valgfritt) oppryddingsarkiver eldre enn X dager.

#!/usr/bin/env bash
set -euo pipefail
# ===== Config (tunable) =====
CONTAINER_TOOL="podman"                  # container platform (podman or docker)
CONTAINER_NAME="npm"                     # the container name to verify after restart
COMPOSE_DIR="/root/docker/nginx"         # directory containing docker-compose.yaml/podman-compose.yaml
BACKUP_ROOT="/root/docker/backups"       # where backups are stored on the host
RETENTION_DAYS=3                         # delete archives older than N days
TIMESTAMP="$(date +%F_%H%M%S)"
ARCHIVE="${BACKUP_ROOT}/${CONTAINER_NAME}-backup-${TIMESTAMP}.tar.gz"
LOCK_FILE="/var/lock/${CONTAINER_NAME}_backup.lock"
# ========================================
mkdir -p "$BACKUP_ROOT" /var/lock
# --- Handle stale lock files (if previous run crashed) ---
if [[ -f "$LOCK_FILE" ]]; then
  # Try to find an owning process; if none, remove the stale lock
  LOCK_FD_OWNER="$(lsof -t -- "$LOCK_FILE" 2>/dev/null || true)"
  if [[ -z "$LOCK_FD_OWNER" || ! -d "/proc/$LOCK_FD_OWNER" ]]; then
    echo "[INFO] Removing stale lock file: $LOCK_FILE"
    rm -f "$LOCK_FILE"
  fi
fi
# --- Simple lock to avoid overlapping runs ---
exec 9>"$LOCK_FILE"
if ! flock -n 9; then
  echo "[INFO] Another backup is running. Exiting."
  exit 0
fi
# --- Safety checks ---
if [[ ! -d "$COMPOSE_DIR" ]]; then
  echo "[ERROR] Compose directory not found: $COMPOSE_DIR" >&2
  exit 1
fi
if [[ ! -f "${COMPOSE_DIR}/docker-compose.yaml" && ! -f "${COMPOSE_DIR}/podman-compose.yaml" ]]; then
  echo "[ERROR] No compose file found in ${COMPOSE_DIR}" >&2
  exit 1
fi
# --- Functions ---
prune_backups() {
  local root="$1" days="$2"
  echo "[INFO] Pruning backups older than ${days} days in ${root}..."
  find "$root" -maxdepth 1 -type f -name "${CONTAINER_NAME}-backup-*.tar.gz" -mtime +"$days" -print -delete || true
}
verify_running() {
  # Expect container named "${CONTAINER_NAME}" to be running again
  if ${CONTAINER_TOOL} ps --format '{{.Names}}' | grep -qx "${CONTAINER_NAME}"; then
    echo "[INFO] Container '${CONTAINER_NAME}' is running."
  else
    echo "[WARN] Container '${CONTAINER_NAME}' not found in '${CONTAINER_TOOL} ps'. Check '${CONTAINER_TOOL} ps -a' and logs."
  fi
}
# --- Stop stack cleanly using *-compose in its directory ---
echo "[INFO] Bringing down stack (${CONTAINER_TOOL}-compose down) in ${COMPOSE_DIR}..."
(
  cd "$COMPOSE_DIR"
  # Do NOT pass -p; let the project default to the directory name
  ${CONTAINER_TOOL}-compose down || {
    echo "[WARN] ${CONTAINER_TOOL}-compose down returned non-zero. Continuing (stack may not have been up)."
  }
)
# --- Create archive (compose dir: data, letsencrypt, compose file, etc.) ---
echo "[INFO] Archiving ${COMPOSE_DIR} to ${ARCHIVE}..."
# Preserve SELinux/xattrs and ownership; exclude the backups dir if it's under same parent
tar -C "$(dirname "$COMPOSE_DIR")" \
  --xattrs --selinux --same-owner --numeric-owner \
  --exclude "$(basename "$BACKUP_ROOT")" \
  -czf "$ARCHIVE" "$(basename "$COMPOSE_DIR")"
# Optional integrity checksum
sha256sum "$ARCHIVE" > "${ARCHIVE}.sha256"
# --- Start stack back up ---
echo "[INFO] Starting stack (${CONTAINER_TOOL}-compose up -d)..."
(
  cd "$COMPOSE_DIR"
  ${CONTAINER_TOOL}-compose up -d
)
# --- Verify expected container is running ---
verify_running
# --- Prune according to retention ---
prune_backups "$BACKUP_ROOT" "$RETENTION_DAYS"
echo "[OK] Backup completed: ${ARCHIVE}"

[root@rhel-client01 scripts]# ./backup_npm.sh
[INFO] Removing stale lock file: /var/lock/npm_backup.lock
[INFO] Bringing down stack (podman-compose down) in /root/docker/nginx...
npm
npm
14dc3c3871a7a9716142a1011f1039258d330be1ddb49543eb7a8e257256239a
nginx_default
[INFO] Archiving /root/docker/nginx to /root/docker/backups/npm-backup-2026-02-10_155107.tar.gz...
[INFO] Starting stack (podman-compose up -d)...
be491bf43aa17f1a767075ed8b2cd55d93cdf4581ad04abe66a58f3bce0b5e74
e677dbedd5fdd92a440896dc4cae22165cb34ce704ec3ed8f7620ce243183585
npm
[INFO] Container 'npm' is running.
[INFO] Pruning backups older than 3 days in /root/docker/backups...
[OK] Backup completed: /root/docker/backups/npm-backup-2026-02-10_155107.tar.gz
[root@rhel-client01 scripts]#
[root@rhel-client01 scripts]# ls -ltr /root/docker/backups/
total 8
-rw-r--r--. 1 root root 638 Feb 10 15:51 npm-backup-2026-02-10_155107.tar.gz
-rw-r--r--. 1 root root 123 Feb 10 15:51 npm-backup-2026-02-10_155107.tar.gz.sha256

[root@rhel-client01 scripts]# ln -s /root/scripts/backup_npm.sh /etc/cron.daily/backup_npm
[root@rhel-client01 scripts]#

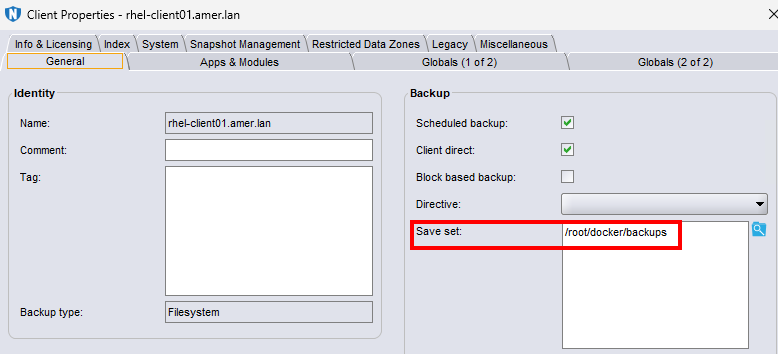

2. Opprett en NetWorker-klient for systemet som er vert for docker-containere. Den "Lagre sett" er katalogen som brukes til katalogen som inneholder docker tarball arkiver:

3. Utfør sikkerhetskopier av klienten. Administrasjonsveiledningen for NetWorker inneholder mer informasjon om hvordan du oppretter retningslinjer for sikkerhetskopiering og planlegging. NetWorker-dokumentasjon er tilgjengelig gjennom: Støtte for NetWorker | Håndbøker og dokumenter

Sikkerhetskopien av klienten inneholder docker-arkivet – tarball-data:

[root@nsr ~]# mminfo -avot -q client=rhel-client01.amer.lan -r "nsavetime,savetime(20),name,sumflags,ssretent"
  save time    date     time   name                           fl  retent
...
 1770757763    02/10/2026 16:09 /root/docker/backups          cb 03/10/2026

[root@nsr ~]# nsrinfo -t 1770757763 rhel-client01.amer.lan
scanning client `rhel-client01.amer.lan' for savetime 1770757763(Tue 10 Feb 2026 04:09:23 PM EST) from the backup namespace
/root/docker/backups/npm-backup-2026-02-10_155107.tar.gz
/root/docker/backups/npm-backup-2026-02-10_155107.tar.gz.sha256
/root/docker/backups/
/root/docker/
/root/
/
6 objects found
