Video Cables and their Capabilities

Summary: Information on display resolution capabilities of monitor cable connections.

Article Content


Symptoms

This article provides the information on display resolution capabilities of monitor cable connections.


Unable to configure optimal resolution

Modern LCD monitors have greater resolution capabilities than displays manufactured only a few years earlier. The new Ultra-High Definition and High Definition displays require modern cable connections to transmit the ever increasing volume of data required to support these resolutions.

Modern high resolution monitor options:

  • 8k Ultra High Definition (UHD) (7680 x 4320)
  • 5k Ultra High Definition (UHD) (5120 x 2880)
  • 4k Ultra High Definition (UHD) (3840 x 2160)
  • Quad High Definition (QHD) (2560 x 1600)
  • Wide Ultra eXtended Graphics Array (WUXGA) (1920 x 1200)
  • Full High Definition (FHD) (1920 x 1080)

Display cable capabilities

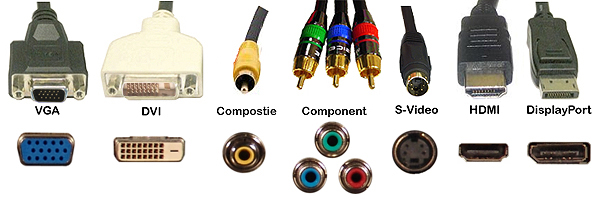

Here are the most common monitor cable connection types and the maximum resolution they support:

  • DisplayPort (DP) and Mini-DisplayPort (mDP) 1.3 - 8192 x 4320 @ 60 Hz (Figure 1.)
  • DisplayPort (DP) and Mini-DisplayPort (mDP) 1.2 (Dual Cable Connection) - 5120 x 2880 @ 60 Hz (Figure 1.)
  • DisplayPort (DP) and Mini-DisplayPort (mDP) 1.2 (Single Cable Connection) - 3840 x 2160 @ 60 Hz (Figure 1.)

    SLN301321_en_US__1DPtoMDP

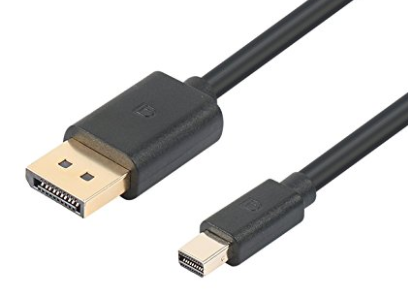

    Figure 1. DisplayPort to Mini-DisplayPort
  • High Definition Multimedia Interface (HDMI) 2.0 - 3820 x 2160 @ 60 Hz (Figure 2.)
    SLN301321_en_US__2Hdmi-hdmi

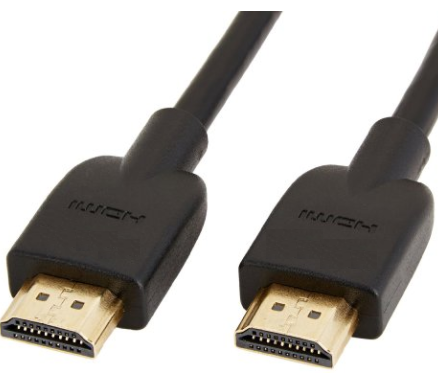

    Figure 2. HDMI to HDMI
  • Digital Visual Interface (DVI) (Dual Link)- 2560 × 1600 @ 60 Hz (Figure 3.)
    SLN301321_en_US__3DVI-Dual

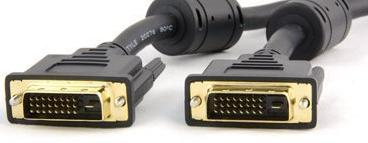

    Figure 3. Digital Video Interface (DVI) Dual-Link
  • Digital Visual Interface (DVI) (Single Link) - 1900 x 1200 @ 60 Hz (Figure 4.)
    SLN301321_en_US__4DVI-single

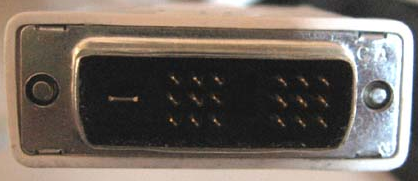

    Figure 4. Digital Video Interface (DVI) Single-Link
  • Video Graphics Array (VGA) - 2048 x 1536 @ 85 Hz (Figure 5.)
    SLN301321_en_US__5VGA
    Figure 5. Video Graphics Array (VGA)
