Avamar: Nástroj PDM selže s chybou při nasazování serveru proxy
Summary: Avamar: Nasazení serverů proxy pomocí nástroje Proxy Deployment Manager (PDM) selže: "Error deploying proxy".
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

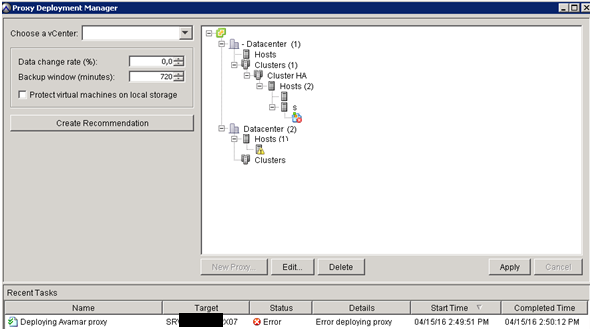

Nasazení proxy serverů pomocí proxy serveru Deployment Manager selže s chybou při nasazování proxy serveru.
Například:
Cause
Uzel nástroje Avamar nemůže během nasazení serveru proxy komunikovat s hostitelem ESX na portu 443.
Ze strany deploymanager.log (v /data01/avamar/var/log/vcs/ /tmp/proxydeploy/vcs/_
2016-05-15T21:57:10.329-0700 TRACE [cTaskExecutor-4][ impl.ConnectionManagerService# closeTicket]: Closing connection manager ticket: ...6c4657958ef8
2016-05-15T21:57:12.503-0700 TRACE [Thread-22 ][ util.VcConnection# keepAlive]: Keep-aliving VC session
2016-05-15T21:57:12.504-0700 TRACE [Thread-22 ][ impl.ConnectionManagerService# sendKeepAlive]: Keep-alive connection manager session: ...0de2820e9fc9
2016-05-15T21:57:12.611-0700 DEBUG [Thread-23 ][ worker.TaskWorker# updateProgress]: Updating task progress: 0
2016-05-15T21:57:12.616-0700 DEBUG [Thread-23 ][ events.VCSEvent# send]: Sending event: template: org.springframework.amqp.rabbit.core.RabbitTemplate@59074829 com.emc.avamar.vmware.vcs.deploymanager.deploy.status_event: com.emc.avamar.vmware.events.VCSEvent@2bf66009
2016-05-15T21:57:13.559-0700 ERROR [pool-8-thread-2][ worker.DeployWorker# run]: Error deploying proxy
java.net.ConnectException: Connection timed out
at java.net.PlainSocketImpl.socketConnect(Native Method)
at java.net.AbstractPlainSocketImpl.doConnect(Unknown Source)
at java.net.AbstractPlainSocketImpl.connectToAddress(Unknown Source)
at java.net.AbstractPlainSocketImpl.connect(Unknown Source)
at java.net.SocksSocketImpl.connect(Unknown Source)
at java.net.Socket.connect(Unknown Source)
at sun.security.ssl.SSLSocketImpl.connect(Unknown Source)
at sun.security.ssl.BaseSSLSocketImpl.connect(Unknown Source)
at sun.net.NetworkClient.doConnect(Unknown Source)
at sun.net.www.http.HttpClient.openServer(Unknown Source)
at sun.net.www.http.HttpClient.openServer(Unknown Source)
at sun.net.www.protocol.https.HttpsClient.<init>(Unknown Source)
at sun.net.www.protocol.https.HttpsClient.New(Unknown Source)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.getNewHttpClient(Unknown Source)
at sun.net.www.protocol.http.HttpURLConnection.plainConnect(Unknown Source)
at sun.net.www.protocol.https.AbstractDelegateHttpsURLConnection.connect(Unknown Source)
at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(Unknown Source)
at sun.net.www.protocol.https.HttpsURLConnectionImpl.getOutputStream(Unknown Source)
at com.emc.avamar.vmware.deploymanager.worker.DeployWorker.uploadVmdkFile(DeployWorker.java:917)
at com.emc.avamar.vmware.deploymanager.worker.DeployWorker.run(DeployWorker.java:340)
at java.util.concurrent.Executors$RunnableAdapter.call(Unknown Source)
at java.util.concurrent.FutureTask.run(Unknown Source)
at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
at java.lang.Thread.run(Unknown Source)Resolution

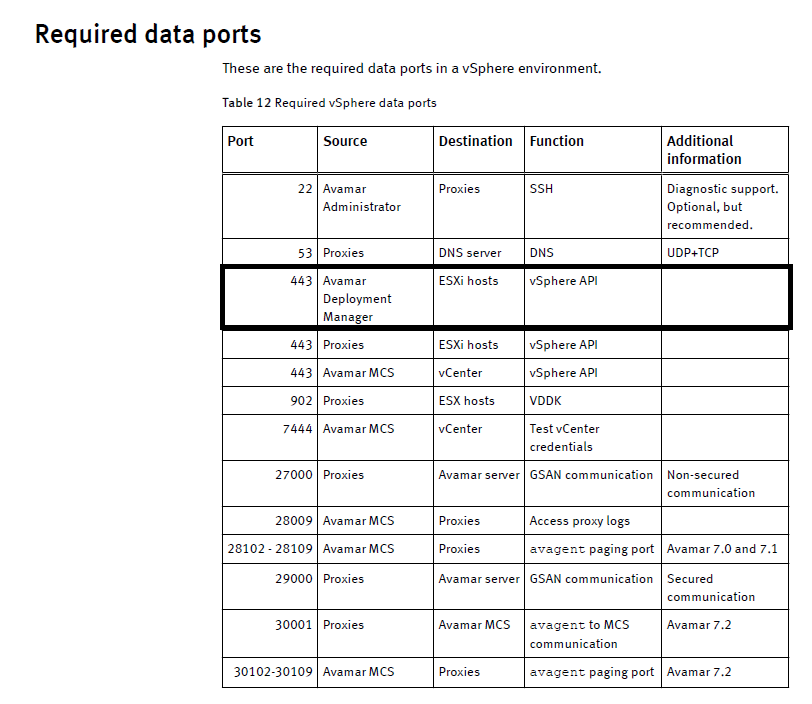

Povolte komunikaci mezi mřížkou Avamar a hostiteli ESXi na portu 443, jak je uvedeno v uživatelské příručce Avamar pro VMware:
