Dell VxRail: Nodutökning misslyckas vid validering med felmeddelandet "PrimaryStorageReadyForExpansionValidator"

Summary: Nodutökningen misslyckas vid validering med felet "PrimaryStorageReadyForExpansionValidator".

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Nodutökningen misslyckas vid validering med felet:
General Error
An unknown validation error occurred in PrimaryStorageReadyForExpansionValidator

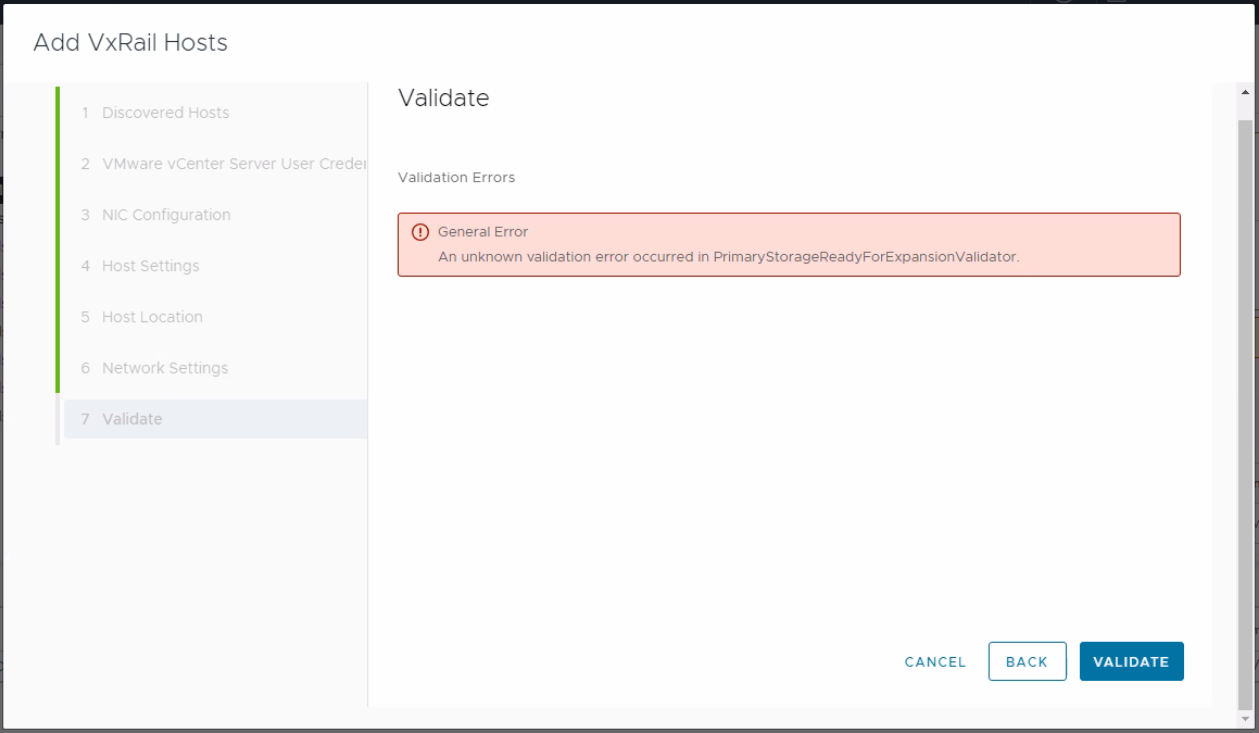

Skärmbild av felmeddelande
Bild 1: Skärmbild av felmeddelandet

Vid visning av Dayone.log eller shortterm.log misslyckas de konfigurerade värdarna med get_customized_vibs valda. Detta används för att jämföra den nya noden och den konfigurerade noden.
"2023-10-18 09:30:03,412" microservice.do-host "2023-10-18T09:30:02.599693731Z stderr F 2023-10-18 09:30:02,599 [ERROR] <Dummy-52:140561398021704> esxcli_client2.py run() (154): Error occurred when running: esxcli.software.component.list"
"2023-10-18 09:31:01,413" microservice.do-host "2023-10-18T09:31:01.21374762Z stderr F 2023-10-18 09:31:01,213 [ERROR] <Dummy-60:140561395805768> esxcli_client2.py run() (154): Error occurred when running: esxcli.hardware.platform.get"

"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.791005812Z stdout F INFO [wfengine.status] task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 failure"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.809971889Z stdout F INFO [wfengine.status] notify {'level': 'step', 'id': 'host_customized_driver_validation', 'state': 'FAILED', 'progress': 97, 'status': {'id': 'host_customized_driver_validation', 'internal_id': 'host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536', 'internal_family': 'host_customized_driver_validation', 'status': 'FAILED', 'startTime': 1697621394266, 'stage': '', 'params':

{'has_customized_component': False}
, 'error':

{'result': 'FAILED'}
}}"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.863154343Z stdout F INFO [luigi-interface] Informed scheduler that task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 has status FAILED"

Skriptet för noddiagnoskontroll har fastnat i frågan, den konfigurerade nodprocessen och i loggen node-health-check visas att den returnerar tidsgränsen för 504 Gateway.
23-10-19 02:59 - DEBUG - curl --unix-socket /var/lib/vxrail/nginx/socket/nginx.sock -H "Content-Type: application/json" http://127.0.0.1/rest/vxm/internal/do/v1/host/query -d '{"query": "{configuredHosts { moid, name, hardware{ sn, psnt, applianceId, model}, runtime{ agent {ready ,backend },  connectionState, powerState, inMaintenanceMode, overallStatus}, summary { config { product { version }}}, config { diskgroup{current{type}},network{vnic{device portgroup mtu interfaceTags}},biosUUID, isPrimary, product {name, version, build} }}}"}'
23-10-19 03:09 - DEBUG - <html>
<head><title>504 Gateway Time-out</title></head>
<body>
<center><h1>504 Gateway Time-out</h1></center>
<hr><center>nginx</center>
</body>
</html>

shortterm.log
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602210134Z stdout F 2023-10-18 09:29:53,602 ERROR [StorageDeviceService.py:352] get_configured_hosts_model_dg_map: Failed to get current hosts info by do-host graphql."
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602593053Z stdout F 2023-10-18 09:29:53,602 ERROR [validator.py:68] execute: Validator MultiDGConfigurationValidator raise a Exception {'message': ""(vmodl.fault.SystemError) {\n   dynamicType = <unset>,\n   dynamicProperty = (vmodl.DynamicProperty) [],\n   msg = 'A general system error occurred: Too many outstanding operations',\n   faultCause = <unset>,\n   faultMessage = (vmodl.LocalizableMessage) [],\n   reason = 'Too many outstanding operations'\n}"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"

"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602603034Z stdout F Traceback (most recent call last):"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602606355Z stdout F   File ""/home/app/common/validator.py"", line 66, in execute"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602608952Z stdout F     self.perform(*args, **kwargs)"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602611897Z stdout F   File ""/home/app/multidiskgroupconfigurationvalidator/multi_disk_group_configuration_validator.py"", line 70, in perform"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602616418Z stdout F     model_dg_map = StorageDeviceService().get_configured_hosts_model_dg_map()"
...........
...........
Unknown macro: {n   dynamicType = <unset>,n   dynamicProperty = (vmodl.DynamicProperty) [],n   msg = 'A general system error occurred}
"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.603258112Z stdout F 2023-10-18 09:29:53,603 INFO [utils.py:131] wrapper: log_call 72 return: [{'result': {'result': 'FAILED', 'name': 'MultiDGConfigurationValidator', 'context':

Unknown macro: {'invalid_fields'}
, 'errors': [{'type': 'THOROUGH-VALIDATOR', 'field': 'General Error ', 'code': 'config.validation.common.unknown.error', 'placeholders': ['MultiDGConfigurationValidator'], 'message': 'An unknown validation error occurred in MultiDGConfigurationValidator.'}], 'warnings': []}}]"

Cause

Det här problemet uppstår när en specifik rutinuppgift (vScheduleCheckVsanConfigLro) startas när vCenters LRO-jobbkö redan är full av köade uppgifter. Det gör att vpxd-tjänster på vCenter slutar svara. Detta kan ytterligare leda till att do-host inte erhåller information från den konfigurerade noden.

Läs VMware-artikeln om att vCenter Server vpxd-tjänsten kraschar på grund av "Too many outstanding operations" (89742) för mer information Den här hyperlänken tar dig till en webbplats utanför Dell Technologies..

Resolution

Problemet har åtgärdats i vCenter Server 7.0 Update 3i (versionnummer 20845200).

Workaround:
Ändra de specifika parametrarna config.vmacore.threadPool.TaskMax i vCenter till ett värde över eller liknande 200.

Starta om alla tjänster i vCenter och vpxa- och hostd-tjänsterna på varje värd. Sätt varje värd i underhållsläge innan du kör kommandona på den.
On ESXi hosts:
#Rolling restart the ESXi host daemon and vCenter Agent services using these commands:
/etc/init.d/hostd restart
/etc/init.d/vpxa restart

On vCenter
#take a snapshot of vcenter server
#service-control --stop --all
#service-control --start --all
