ECS: Behavior to Expect when System in Temporary Site Outage

Virtual Data Center (VDC)
Temporary Site Outage (TSO)
Access During Outage (ADO)

What is TSO?

Sustained loss of heartbeat for 15 minutes
Possible causes: Network issues, power loss at site or may be manually invoked in some customer impacting situations if data cannot be read from a specific VDC site.

What is ADO?

ADO is a feature that can be enabled at the bucket level. It allows the bucket to be available during a temporary site outage. TSO causes ECS to go into an eventually consistent state. Accesses during outage object create/update/delete operations are in an eventually consistent state.
ECS gives a choice however between consistency and availability. ADO-enabled buckets are eventually consistent while allowing data availability. To maintain strong consistency but at the cost of access during an outage, do not have ADO enabled.

Expected behavior for two Site Scenario (Pay particular attention to successful and failed operations on both sites)

To help follow the flow above:

Before TSO

• Bucket created in site 1 and replicated in site 2
• Obj 1 created in site 1 and replicated in site 2
• Obj 2 created in site 2 and replicated in site 1

Network outage occurs

• After 15 minutes, a Temporary Site Outage occurs
• See list of successful and failed operations in Site 1. For instance, in site 1 is only able to create objects, read, and update objects owned and replicated, list objects in bucket, and list buckets locally owned.
• Similarly in site 2, here is a List of successful and failed operations in site 2. As in Site 1, site 2 can create objects, read, and update objects owned and replicated, list objects in bucket, list buckets locally owned.
• Thus, obj 1 can be updated in either site.
• Obj 2 can be updated in either site.
• Objects can be created in either site.

With ADO enabled on a bucket and upon detecting a temporary outage, the system reverts to an eventual consistency model, that is, reads/writes from a secondary (non-owner) site are accepted and honored. Further, a write to a secondary site during a network outage causes the secondary site to take ownership of the object. This allows each VDC to continue to read and write objects from buckets in a shared namespace.

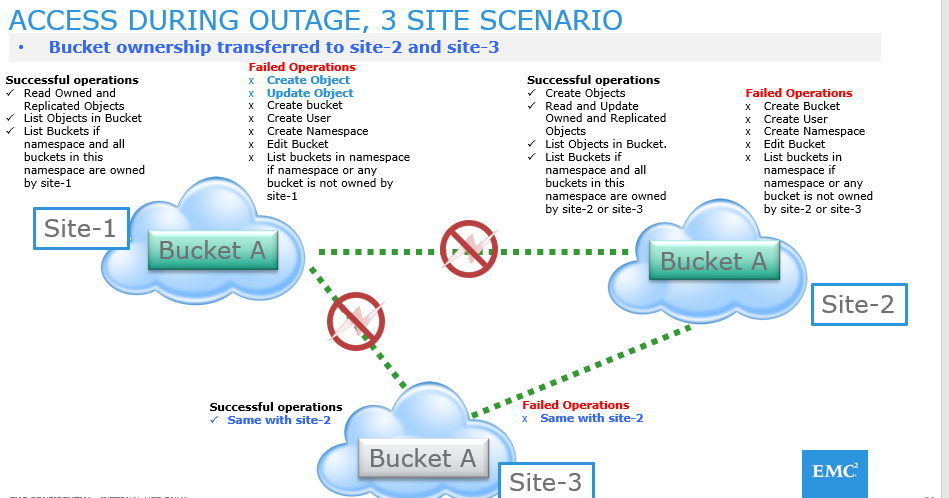

Expected behavior for three Site Scenario (Site 1 is lost or inaccessible from Site2 or Site3)

In this scenario, connections to site one are lost completely or site 1 is inaccessible from Site 2 and Site 3. Site 1 is the owner of Bucket A.

After 15 minutes, TSO occurs and the Bucket A ownership is transferred to site 2 and site 3. Between these two sites, the decision of object ownership is determined since the original bucket owner which is Site 1 is inaccessible.


Expected behavior for three Sites where only one site is down.

In this scenario, only one link is down and thus bucket ownership can be transferred to site 1 and site 3 or site 2 and site 3. ECS uses the PAXOS protocol to determine that Site 2 is down and Site 1 and Site 3 are two valid sites (in this example). The PAXOS protocol is a mechanism for solving and managing consensus. So in this example, object ownership is decided between site 1 and site 3. As in the previous slide, there is a limitation on access depending on the site.

For more details on expected behavior during TSO, see Administration guide. Here is the link to ECS 3.8 Administration Guide.
