Windows Server TPM-WMI Event ID 1801 Secure Boot Certificates

Summary: Event 1801 from Trusted Platform Module Windows Management Instrumentation (TPM-WMI) logs that Windows thinks Secure Boot certificates are not applied due to unsynchronized Secure Boot databases. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

In Windows Server PowerEdge server machines, Event ID 1801 of source TPM-WMI appears in the system event log. Alert details are as follows:

Source: TPM-WMI

Event ID: 1801

Message:

"Updated Secure Boot certificates are available on this device but have not yet been applied to the firmware. Review the published guidance to complete the update and maintain full protection. This device signature information is included here."

The server continues to function, but the Windows system log registers this error repeatedly. This indicates that Windows believes the updated Secure Boot certificates have not been applied.

The alert continues after following guidance of KB article PowerEdge: Server BIOS Update Guidelines for Microsoft Secure Boot Certificates.

The alert continues after updating the BIOS firmware to a version that includes the updated secure boot certificates.

The alert appears periodically. It can also be triggered by rebooting the machine.

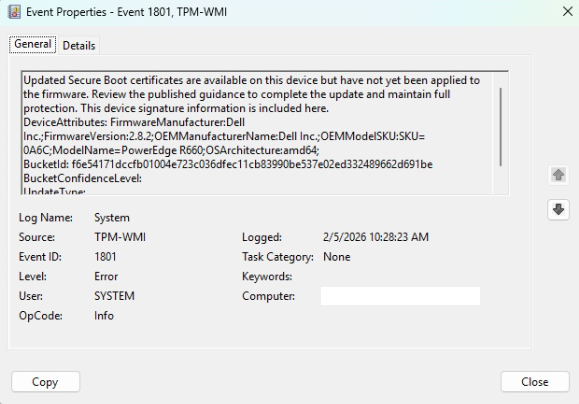

Sample Alert
Figure 1. Sample Alert

Cause

There are two databases where Secure Boot data exists in the firmware: Default (flashed by BIOS firmware updates) and Active (enforced at boot). Windows flags Event 1801 if these are not synchronized.

Resolution

The following steps force a synchronization of the Default and Active databases mentioned above:

  1. Ensure that BIOS and Windows updates are installed, and that the server has been rebooted. Filter the system event log by event ID 1808. This signals that the Default and Active databases are synchronized. If there is no event ID 1808 (only event ID 1801 are present), follow the steps below.
  2. Reboot the server, enter System Setup > System Security. Under Secure Boot, change the Secure Boot Policy from Standard to Custom. This enables the Secure Boot Custom Policy Settings menu:

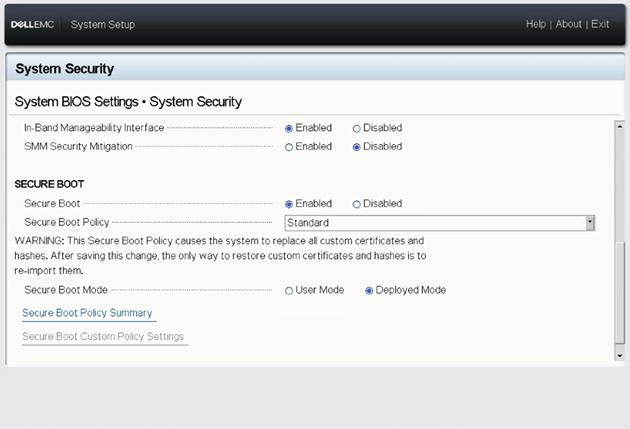

System Setup - Secure Boot Policy Summary
Figure 2. System Setup - Secure Boot Policy Summary.

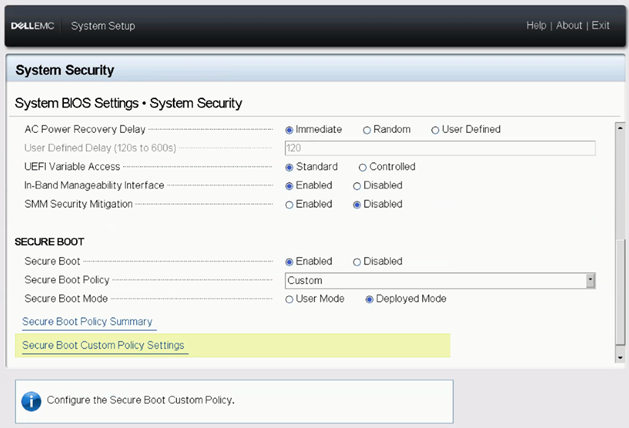

Secure Boot Custom Policy Settings
Figure 3. Secure Boot Custom Policy Settings.
  1.  In the Secure Boot Custom Policy Settings main menu, click Restore Default Policy Entries (PK,KEK,db and dbx). Confirm the operation. Save and Exit to Windows:

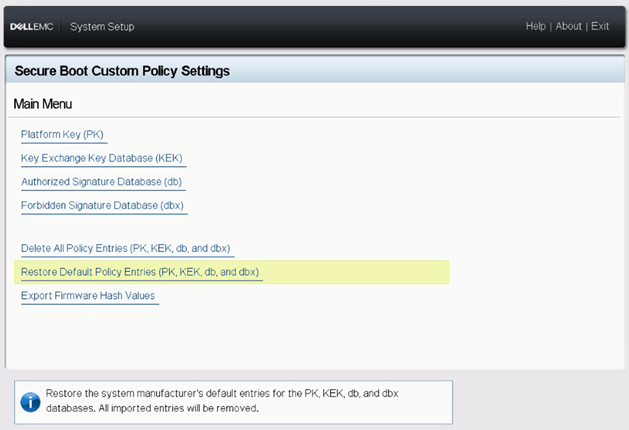

Restore Default Policy Entries
Figure 4. Restore Default Policy Entries.
  1. In Windows, open PowerShell as Admin and mark Secure Boot updates as pending using the following command (Regedit.exe screenshots are included for reference):
    reg add "HKLM\SYSTEM\CurrentControlSet\Control\SecureBoot" /v AvailableUpdates /t REG_DWORD /d 0x5944 /f

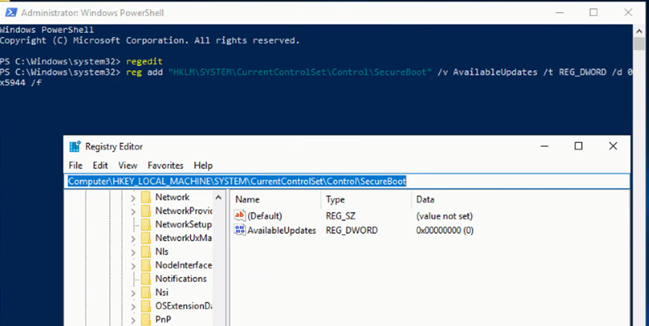

Updates Pending

Figure 5. Updates Pending

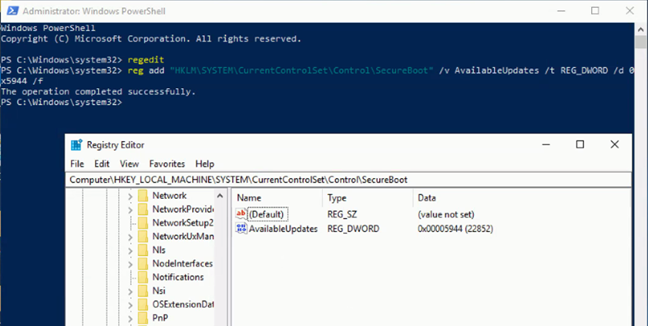

Operation Completed Successfully
Figure 6. Operation Completed Successfully.
  1. Reboot the server twice. Shortly after the second reboot (around five minutes), event ID 1808 registers, signaling that the secure boot databases are synchronized and event ID 1801 no longer appears:

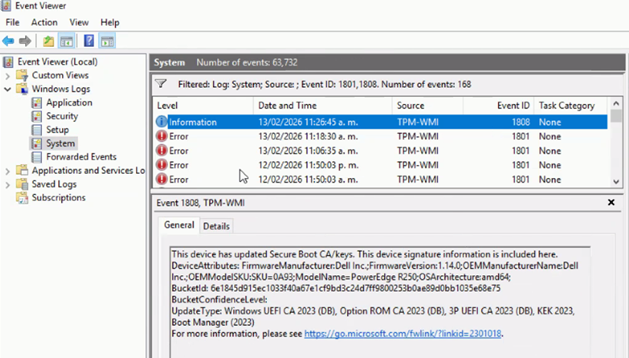

Filtered System Log
Figure 7. Filtered System Log
