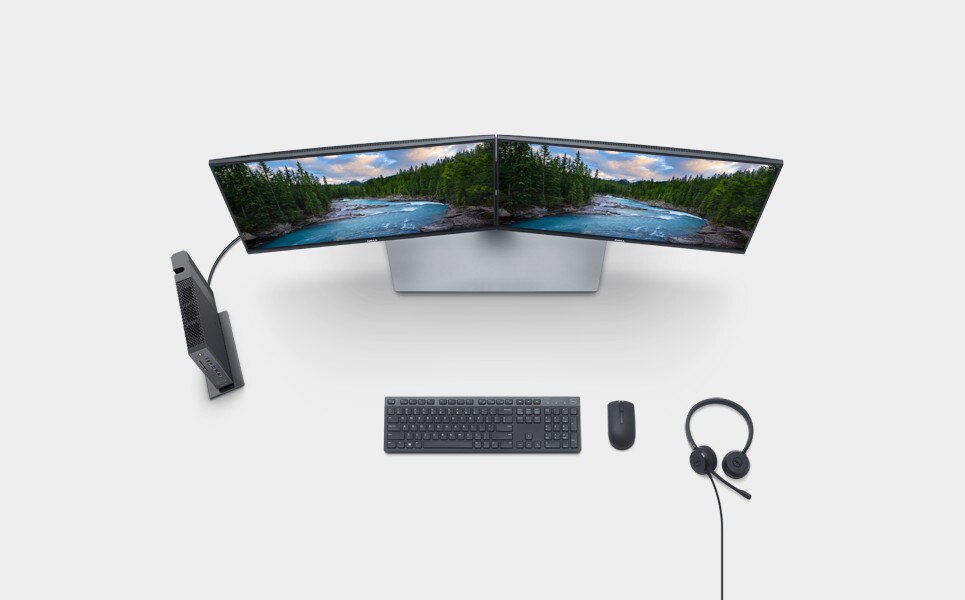

Dell Wyse Thin Client 5070
One platform. Every need.
Enjoy ultimate flexibility with multiple validated OS, connectivity and form factor options. Featuring world-renowned security and deployment.
Available for order beginning June 5, 2018
Available for order beginning June 5, 2018
Starting at CAD $731.00 CAD $731.00
One platform. Every need.
Enjoy ultimate flexibility with multiple validated OS, connectivity and form factor options. Featuring world-renowned security and deployment.
Available for order beginning June 5, 2018
Wyse 5070 thin client
CAD $731.00
DFS Business Lease
Order Code xcto5070slimthinclient2ca
-
Operating System
Win10 IoT 64-bit LTSC 2019, EnglishWyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware AccessPCoIP enabled Wyse ThinOS 8.6, English, includes Wyse ThinOS Firmware Access -
Processor
Intel Celeron™ J4105 (4 Cores/4MB/4T/up to 2.5GHz/10W) supports Windows10/Linux/ThinOS/ThinOS+PCoIPIntel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory4GB (1x4GB) 2400MHz DDR48GB (2x4GB) 2400MHz DDR48GB 2x4GB, 2400MHz DDR4 Memory -
Hard Drive
32G eMMC Included in Chassis32GB Solid State Drive64GB Solid State Drive -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $731.00
DFS Business Lease
Order Code xcto5070slimthinclient2ca
Wyse 5070 thin client extended chassis
CAD $961.00
DFS Business Lease
Order Code xcto5070extthinclient2ca
-
Operating System
Win10 IoT 64-bit LTSC 2019, EnglishWyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware AccessPCoIP enabled Wyse ThinOS 8.6, English, includes Wyse ThinOS Firmware Access -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory4GB (1x4GB) 2400MHz DDR48GB (2x4GB) 2400MHz DDR48GB 2x4GB, 2400MHz DDR4 Memory -
Hard Drive
32GB Solid State Drive64GB Solid State Drive256GB Solid State Drive -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
None RequiredAMD Embedded Radeon™ E9173 (1x DisplayPort + 2x mini DisplayPort)
CAD $961.00
DFS Business Lease
Order Code xcto5070extthinclient2ca
Wyse 5070 thin client
CAD $601.00
Low stock
DFS Business Lease
Order Code ss5070slimthinoscelwowifi164mx2ca
-
Operating System
Wyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware Access -
Processor
Intel Celeron™ J4105 (4 Cores/4MB/4T/up to 2.5GHz/10W) supports Windows10/Linux/ThinOS/ThinOS+PCoIP -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
16G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $601.00
Low stock
DFS Business Lease
Order Code ss5070slimthinoscelwowifi164mx2ca
Wyse 5070 thin client
CAD $651.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwowifi16465mx2ca
-
Operating System
Wyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware Access -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
16G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $651.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwowifi16465mx2ca
Wyse 5070 thin client
CAD $661.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwowifi16490mx2ca
-
Operating System
Wyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware Access -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
16G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $661.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwowifi16490mx2ca
Wyse 5070 thin client
CAD $721.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwifi16490mx2ca
-
Operating System
Wyse ThinOS 8.6, English, Does NOT support PCoIP, includes Wyse ThinOS Firmware Access -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
16G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $721.00
Low stock
DFS Business Lease
Order Code ss5070slimthinospenwifi16490mx2ca
Wyse 5070 thin client
CAD $881.00
Low Stock (7 or fewer left)
DFS Business Lease
Order Code ss5070slimpenwie10rs5wowifi648mx2ca
-
Operating System
Win10 IoT 64-bit LTSC 2019, English -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
8GB 2x4GB, 2400MHz DDR4 Memory -
Hard Drive
64GB Solid State Drive -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $881.00
Low Stock (7 or fewer left)
DFS Business Lease
Order Code ss5070slimpenwie10rs5wowifi648mx2ca
Wyse 5070 thin client
CAD $951.00
Low stock
DFS Business Lease
Order Code ss5070slimpenwie10rs5wifi64890mxca
-
Operating System
Win10 IoT 64-bit LTSC 2019, English -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
8GB 2x4GB, 2400MHz DDR4 Memory -
Hard Drive
64GB Solid State Drive -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $951.00
Low stock
DFS Business Lease
Order Code ss5070slimpenwie10rs5wifi64890mxca
Wyse 5070 thin client
CAD $731.00
DFS Business Lease
Order Code ss5070slimcelwie10rs5wowifi324mx2ca
-
Operating System
Win10 IoT 64-bit LTSC 2019, English -
Processor
Intel Celeron™ J4105 (4 Cores/4MB/4T/up to 2.5GHz/10W) supports Windows10/Linux/ThinOS/ThinOS+PCoIP -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
32G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $731.00
DFS Business Lease
Order Code ss5070slimcelwie10rs5wowifi324mx2ca
Wyse 5070 thin client
CAD $691.00
Low stock
DFS Business Lease
Order Code ss5070slim_penwowthinos9xca
-
Operating System
PCoIP enabled Wyse ThinOS 9.1 -
Processor
Intel® Pentium® Silver Processor J5005 1.5GHz (up to 2.80 GHz burst) -
Networking
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Ports
Slim Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
2 DisplayPort™ 1.2a (Celeron)
3 DisplayPort™ 1.2a (Pentium)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
1 Serial port, powered (2nd serial port optional)
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
Extended Chassis
3 USB 2.0 (2 front, 1 internal)
6 USB 3.0 (1 front, 4 rear, 1 int)
1 USB 3.1 Type C (front)
3 DisplayPort™ 1.2a
3 DisplayPort™ 1.2a (optional AMD Radeon 9173 GPU with 1 std + 2 mini)
1 VGA port (optional)
1 1Gb/s RJ45 (2nd RJ45 optional)
2 Serial port (one powered)
1 Parallel port
1 SFP networking port (optional)
1 Dual-antenna wireless networking module (optional, WiFi and Bluetooth)
1 Smartcard/CAC reader (optional front integrated)
1 PCI Express ½-height slot -
Connectivity
Integrated Realtek® Ethernet LAN 10Mb/100Mb/1Gb Copper RJ45
Optional Intel® Wireless-AC 9560 2x2 802.11ac with Bluetooth 5.0, external antennas
Wake on LAN -
Memoryi
4GB 1x4GB, 2400MHz DDR Memory -
Hard Drive
16G eMMC Included in Chassis -
Dimensions & Weight
Slim: Height 184 mm x Width 35.6 mm x Depth 184 mm
Extended: Height 184 mm x Width 56 mm x Depth 184 mm -
Security
Built-in chassis security lock slot (cable sold separately)
Trusted Platform Module (TPM) 2.0 -
Regulatory
-
Video Card
CAD $691.00
Low stock
DFS Business Lease
Order Code ss5070slim_penwowthinos9xca
Features
Versatility on every level
A wide range of operating systems: Stay covered with Windows 10 IoT Enterprise, Wyse ThinLinux or Dell's exclusive Wyse ThinOS: a highly secure malware-resistant firmware solution.
Easy to start. Easy to use: Get up and running fast with certified trouble-free deployment, no matter which broker environment you choose.
Ultimate configurability: Connect in all the ways you need to with our wide variety of mounting, display, wireless and wired connectivity options. Plus with expansion slots and forward-looking features, your setup easily addresses all your needs.
Easy to start. Easy to use: Get up and running fast with certified trouble-free deployment, no matter which broker environment you choose.
Ultimate configurability: Connect in all the ways you need to with our wide variety of mounting, display, wireless and wired connectivity options. Plus with expansion slots and forward-looking features, your setup easily addresses all your needs.
More use cases. More ROI.
With the widest range of vendors on the market, you can enjoy the most complete VDI support with certified VDI brokers like Microsoft, Citrix and VMWare.
Configure. Monitor. Manage.
Simple. Secure. Streamlined: Dell’s exclusive Wyse Management Suite sets the industry standard for a powerful, secure and highly scalable solution for managing and optimizing endpoints.
One tool that does it all: Managing and tracking tens of thousands of secure endpoints has never been easier with a single, dedicated tool.
Highly flexible: The Wyse Management Suite is an efficient hybrid cloud management solution with floating license allocation between on premise and cloud.
One tool that does it all: Managing and tracking tens of thousands of secure endpoints has never been easier with a single, dedicated tool.
Highly flexible: The Wyse Management Suite is an efficient hybrid cloud management solution with floating license allocation between on premise and cloud.
Ultimate peace of mind
Safe and secure: Enjoy peace of mind with the ultimate virtual OS for Malware and Intrusion resistance with Dell’s exclusive Wyse ThinOS.
Enhanced security: Keep apps and data-sensitive content safe with a secure data center and embedded protection.
Advanced protection: Dell Endpoint Security Suite Enterprise offers advanced threat prevention thanks to proactive malware security and enterprise-wide encryption from the data center to the endpoints.
Enhanced security: Keep apps and data-sensitive content safe with a secure data center and embedded protection.
Advanced protection: Dell Endpoint Security Suite Enterprise offers advanced threat prevention thanks to proactive malware security and enterprise-wide encryption from the data center to the endpoints.
Unmatched flexibility. A single platform.
Fast and powerful
Improve your efficiency with the Intel Gemini Lake Celeron QC processor and 4GB DDR4 RAM option, or amp it up with the Intel Gemini Lake Pentium QC processor, 8GB DDR4 RAM and discrete graphics in an extended form factor. Plus the USB 3.1 Type-C and dual-band wireless features help maximize your performance.
Eye-catching, intense visuals
With the power to see up to four 4K displays and two 2K displays at once, you can construct the ultimate setup option that best suits your content.
Compact and convenient
Take full advantage of robust expandability on the slim and sleek Wyse 5070 or add an even wider array of ports and slots on Wyse 5070 Extended.
Ports & Slots - Slim
1. Power Button | 2. Composite Audio (out) | 3. Composite Audio (in & out) | 4. USB-C Port | 5. SmartCard/CAC reader (optional) | 6. USB 3.0 Port | 7. 2 USB 2.0 Ports | 8. Composite Audio (in & out) (Pentium configuration only)| 9. Serial Port | 10. 4 USB 3.0 Ports | 11. 2 DisplayPorts | 12. DP Port (Pentium configuration only) | 13. RJ45 Ethernet | 14. Power Input | 15. Dual-Antenna Wireless Networking Module | 16. Auxiliary Port (shown with optional VGA)
Ports & Slots - Extended
1. Power Button | 2. Composite Audio (out) | 3. Composite Audio (in & out) | 4. USB-C Port | 5. SmartCard/CAC reader (optional) | 6. USB 3.0 Port | 7. 2 USB 2.0 Ports | 8. Composite Audio (in & out) | 9. 2 Serial Ports | 10. 4 USB 3.0 Ports | 11. 2 DisplayPorts | 12. DP Port (Pentium configuration only) | 13. RJ45 Ethernet | 14. Power Input | 15. Dual-Antenna Wireless Networking Module | 16. Parallel Port for Printer Connection | 17. Auxiliary Port (shown with optional VGA) | 18. Discrete Graphics Expansion Slot
Dimensions & Weight
Slim: 1. Height: 7.2" (184 mm) | 2. Width: 1.4" (35.6 mm) | 3. Depth: 7.2" (184 mm) | Weight: 2.65 lb (1.2 kg)
Extended: 1. Height 7.2" (184 mm) | 2. Width: 2.6" (66 mm) | 3. Depth: 7.2" (184 mm) | Weight: 3.0 lb (1.36 kg)
Extended: 1. Height 7.2" (184 mm) | 2. Width: 2.6" (66 mm) | 3. Depth: 7.2" (184 mm) | Weight: 3.0 lb (1.36 kg)
Essential mounts and stands for your Dell Wyse Thin Client 5070
Dell Wyse All-in-One Mount for P-Series and UltraSharp Displays
Create desk space by mounting your thin client to select Dell P-Series and UltraSharp displays.
Dell All-in-One Mount for E-Series
Create desk space by mounting your system to select Dell E-Series displays.
Dell Wyse Wall Mount
Open up your workspace while maintaining full access to your thin client.
Dell Wyse Behind-the-Monitor Mount
Completely open up your workspace with a behind-the-monitor mounting solution. Works with MR2416, U2518D, or U2718Q displays.
Essential accessories for your Dell Wyse Thin Client 5070
Dell Pro Stereo Headset - Skype for Business – UC350
Enjoy optimized in-person call quality and music clarity with HD wideband voice, a dynamic equalizer and a built-in noise-cancelling mic. Certified for Microsoft® Skype® for Business.
Dell Wyse 5070 Cable Covers
Keep your desk neat and organized with the cable cover. An attractive way to manage the various cords and cables on your workspace, it simply snaps-on to the system chassis without the need for a lock.
Dell UltraSharp 27 4K Monitor: U2718Q
The world’s first 27" 4K monitor with InfinityEdge and Dell HDR. See stunning colors and details on a virtually borderless display.
Awards & Reviews
Wyse 5070 Thin Client: StorageReview review
"After using the Wyse 5070 client for three weeks with both on-premise and cloud-based virtual desktops, and using a wide variety of configurations, I found the device to be an extremely powerful and well-built VDI client which is easy to configure and could handle any load that I put on it." — StorageReview
Support
Dell Support
From drivers and manuals to diagnostic tools and replacement parts, Dell Product Support has you covered.
Intel® Core™ Processors
Compare Products ()
Add the products you would like to compare, and quickly determine which is best for your needs.
