Dell AX System for Azure Local

Deployment and Operations Guide for Single-node Cluster

Nov 2, 2026


Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright

Copyright © Dell Inc. All Rights Reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

About copying commands from this guide

CAUTION: Many PDF editors and viewers add a line break to the end of each line of text in a PDF. As a result, when you copy commands that wrap across multiple lines in a PDF, the copied command is in the wrong format. It contains erroneous line breaks that might cause the script to fail.

To address this known limitation, do one of the following:

  • Paste the copied commands into a text editor and remove the line breaks.
  • Use the HTML version of this document when you are copying commands.

Revision history

The revision history of the document is listed in the following table.

Revision history. This table lists the dates on which this document was published and a description of the changes that are associated with each publishing date.
Date Document revision Description of changes
October 2026 12
  • Added the chapter "External SAN support for Azure Local".
  • Updated the "Deployment prerequisites for Azure Local deployment using local identity" topic to add DNS suffix as a required management service.
  • Updated the "Configure Broadcom NICs" topic to document support for Broadcom 57416 NICs.
June 2026 8 Minor updates across the document for 2606
April 2026 7
  • Added the chapter "Solution Deployment with Local Identity"
  • Removed "preview" from "Configurator app" in "Register machines with Azure Arc" topic
  • Removed "which is in preview" from the note in "Register machines with Azure Arc" topic
  • Added a new section "Drift detection for Azure Local" in "Register machines with Azure Arc" topic
  • Updated the “Adapter requirements” section in the “Operating system deployment” topic to reflect support for configuring Network ATC intents using the Azure portal or ARM templates, starting with Azure Local Solution version 2603.
April 2026 6
  • Removed bullet related to Windows Server in “Audience and scope” topic
  • Removed first sentence and updated SBE version number to 4.1.2505.1501 in “Download Connector” topic
  • Added note to “SBE package update prerequisites” topic
  • Added note to steps in Basics section in “Deploy Azure Local Instance using Azure portal” topic
  • Substantial revisions to "Configuration to prepare node" topic
  • Removed table and revised information and references in "Antivirus exclusions" topic
  • Updated procedure of "Restart a cluster node or take a cluster node offline" topic and added a link to current Microsoft procedures and renamed the topic to “Suspend and resume a cluster node"
  • Removed "Azure portal-based" from the doc title and revised the abstract to include Azure Arc template deployment method
  • Restructured document into chapters and moved content as to match other deployment guides
  • Removed any references to Azure Stack HCI 23H2 operating system as it is no longer possible to deploy the 23H2 version
  • Renamed "About using this guide" to "About copying commands from this guide"
  • Added "GPU Integration" chapter
  • Added a note and updated command in the first step in "Configure host networking" topic
  • Update command in "Change the hostname" topic
  • Updated text and image in "Install Windows Admin Center" topic
  • Minor image updates and added reference revised final step and to "Deploy an Azure Local instance using Azure portal" topic
  • Added a QoS table regarding network priorities to Step 12 of "Deploy Azure Local instance using Azure portal" topic
  • Updated QoS table regarding network priorities to Step 17 of "Deploy Azure Local instance using Azure ARM template" topic
  • Updated steps in "Prerequisites before deploying Azure Local Instance using Microsoft ARM template" topic
  • Added a note to the "Check Azure Arc registration after reboot" topic
  • Updates to steps in "Update SBE package using Azure portal" topic
  • Added "Configure Broadcom 57504 network adapter" topic to "Single-node configuration" section
  • Revised note in "Manually deploy operating system using Dell golden-image ISO" topic
  • Reformatted "View HCI compliance summary" into tables to try to improve the usability and readability of information
  • Minor updates across document
October 2025 5
  • Added a topic "Check Azure Arc registration after reboot"
  • In “Install Windows Admin Center” topic, removed high-availability content. Windows Admin Center no longer supports it from release 2410 onwards
  • In “Configure host networking” topic, added link and caution about optional automation deployment script
  • In "Configuration to prepare node" topic, removed duplicate command in code block
  • Renamed "Cluster deployment prerequisites" to "Azure Local Instance deployment prerequisites"
  • In "Register machine with Azure Arc" section, added link to the corrected Microsoft page regarding registering deployments with Azure Stack HCI OS version 23H2, update existing links
  • In "Stage SBE package for installation" deleted duplicate content
  • Added a note to "Deploy the Azure Local instance" topic regarding optional storage intent for single-node configurations
  • In "Deploy an Azure Local instance using Azure portal," edited several figures to blur identifiers
  • In the "Deploy an Azure Local instance using the Microsoft ARM template" procedure, corrected a capitalization error in the JSON snippet example
  • In "Prerequisites before deploying Azure Local instance using Microsoft ARM template" section, removed all topics because they are no longer needed from Azure Local release 2507 onwards
  • In the "Deploy an Azure Local instance using the Microsoft ARM template" procedure, corrected steps, and removed steps or details that do not apply to a single-node configuration, and added note to final step regarding deployment duration
  • In "Restart a cluster node or take a cluster node offline" procedure, corrected steps, and removed steps or details that do not apply to a single-node configuration
  • Split "Update SBE package using PowerShell" into two separate topics for online and offline solutions
  • Minor updates across document
August 2025 4
  • Changed references to the Azure Stack HCI operating system from 23H2 to 24H2 where required
  • Removed the "Update the page file settings" section
  • Removed the "Verify and update firmware and software compliance" section
  • Updated the "Review requirements" section
  • Updated the "Register servers with Azure Arc" section
  • Minor updates across the document
May 2025 3
  • Addition of 'Manual operating system deployment using Dell golden-image ISO' section
  • Removal of 'Factory-installed operating system deployment' section
May 2025 2
  • Rebranded product name and terms throughout the document
  • Updated procedures due to changes to the UI
September 2024 1 Removed the "Create a Storage Account" section.
May 2024 0 Initial publication

Deployment Introduction

Document overview

The Dell AX Solutions for Microsoft product family includes:

  • Dell AX System for Azure Local (based on Azure Stack HCI operating system)
  • Dell AX System for Windows Server (not described in this guide)

This deployment and operations guide provides an overview of Dell AX System for Azure Local with a single-node cluster configuration. The guide includes:

  • Guidance on how to integrate solution components
  • Instructions for preparing and deploying the solution infrastructure
NOTE: This guide only applies to infrastructure that is built using the validated and certified AX nodes from Dell Technologies and the Azure Stack HCI operating system.

Audience and scope

The audience for this document includes systems engineers, field consultants, partner engineering team members, and customers with knowledge about deploying hyperconverged infrastructures (HCIs) with the Azure Stack HCI operating system, Hyper-V, and Storage Spaces Direct. Customers who do not have Volume License agreements with Microsoft can order AX nodes from Dell Technologies with a factory-installed operating system and OEM license or as a bare-metal installation.

An Azure Local instance can be deployed in the following ways:

  • Dell Technologies Services-led—Certified deployment engineers ensure accuracy, speed, and reduced risk and downtime.
  • Customer led—Customers who have the qualified level of technical expertise follow the instructions in this guide.

Assumptions

This guide assumes that deployment personnel understand the following technologies and tasks:

  • AX nodes from Dell Technologies
  • Deploying and configuring BIOS and integrated Dell Remote Access Controller (iDRAC) settings

Known issues

Before starting the cluster deployment, see Azure Local release information.

Solution Overview

Single-node cluster configuration overview

Dell AX System for Azure Local include various configurations of AX nodes from Dell Technologies. These nodes power the primary compute and storage cluster that is deployed as a hyperconverged infrastructure (HCI). The HCI uses a flexible solution architecture rather than a fixed component design.

Microsoft provides a feature to support a single-node cluster on an Azure Stack HCI operating system.

Single-node clusters are similar to standalone Storage Spaces nodes but are delivered as a Microsoft Azure service. Single‑node Azure Local instances support most Azure Local capabilities, except features requiring node‑level fault tolerance.

On a single-node cluster, there is no automatic provision of failover to another node. A hard drive is the fault domain in a single-node cluster, and only a single-tier configuration (All-Flash or All-NVMe) is supported.

NOTE: Node-level high availability cannot be supported on a single-node cluster. However, you can choose application-level or VM-level replication to maintain high availability in your infrastructure.

Single-node configuration

Like a multi-node cluster with Azure Stack HCI OS, a single-node cluster is delivered as a Microsoft Azure service and has all the hybrid-cloud features. Because the disk is the fault domain for a single-node cluster, it does not have to replicate any data over the network.

Dell Technologies recommends that you include an RDMA NIC in the setup. The RDMA NIC can help in future expansions or be used in VM traffic.

You can also use 25 GbE or 100 GbE adapters with Hyper-V Replica for application replication or Shared-Nothing Live Migration to move VMs to other clusters.

Solution Deployment

Solution deployment introduction

You can deploy Dell AX System for Azure Local by manually installing the operating system on AX nodes from Dell Technologies.

Each deployment has its own prerequisites, including configuring network switches, as described in this guide.

NOTE:  Instructions in this deployment guide are applicable to the Azure Stack HCI operating system, version 24H2.

Each task in this deployment guide requires running one or more PowerShell commands. Dell Technologies recommends using these commands to complete the deployment tasks.

Deployment prerequisites

Dell Technologies assumes that the management services that are required for the operating system deployment and Azure Local instance configuration are in the existing infrastructure where the instance is being deployed.

The following table describes the management services:

Management services. Management services
Management service Purpose Required or optional
Active Directory User authentication Required only for AD-based deployments.
Domain Name System Name resolution Required
Azure Deploy and manage Required
DHCP Hosts get IPs before and after host configuration using Network ATC Optional

Registering a Partner Admin Link (PAL) for Azure related solutions

Partner Admin Link (PAL) is a simple telemetry-based capability that is built into Microsoft Azure. PAL enables Microsoft to track partner involvement in Azure related technical engagements.

Adding a Dell Partner ID to the Service Principal does not provide Dell with additional access to the customer system and does not change any Azure Role-Based Account Controls (RBACs).

NOTE: Adding a Dell Partner ID to the Service Principal associates Dell to the customer entity, which is persistent. This means that changes in customer system administrators do not break this association.

Dell Technologies employees can add a PAL using the user ID associated with either the subscription or Service Principal that is used for Arc or for Azure Local registrations. During a deployment, the customer creates the Service Principal for their system.

Dell Technologies recommends that you use the user ID associated with the Service Principal for the registration as described in Add a PAL through the Azure portal by using Azure PowerShell with Service Principal user ID.

Alternatively, you can follow the procedure that is described in Add a PAL through the Azure portal using the subscription user ID.

Add a PAL through the Azure portal by using PowerShell

Dell Technologies recommends that you use the Azure portal and PowerShell with the Service Principal user ID to register the Partner Admin Link (PAL).

Before you begin

Before you begin, install the Microsoft Azure CLI extension to your local system where you run the registration. Run the following command:

az extension add --name managementpartner
NOTE: The CLI-based update is audit-log tracked.

To add a PAL to a customer account, do the following:

Procedure

  1. To log in to the customer tenant, in Azure CLI, run the following command:
    az login --service-principal -u <app-id> -p <password-or-cert> --tenant <tenant>
  2. To link the Dell Partner ID, run the following command and add the partner ID from the list in Dell Technologies Partner IDs for Partner Admin Link.

    Example: az managementpartner create --partner-id 913990

    az managementpartner create --partner-id <Partner ID>

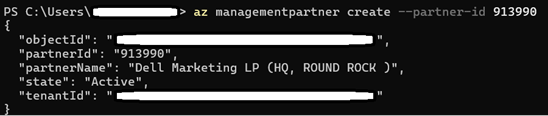

    The following figure shows an example of a completed registration in Azure CLI.

    screenshot of CLI code after running the az managementpartner create command

    Successful addition of Partner ID to customer tenant

  3. Alternatively, you can verify the registration, either using the following CLI command or in the Azure portal. This command displays a similar output to the az managementpartner create command used in the previous step.
    az managementpartner show
    NOTE: If there is an error when you add the Dell Partner ID, use the following command to correct the registration:
    az managementpartner update --partner-id <Partner ID>

Results

The PAL is now registered.

Add a PAL through the Azure portal using the subscription user ID

You can register the Partner Admin Link (PAL) with the subscription user ID through the Azure portal.

NOTE: Portal-based registrations tie the PAL association with the customer user entering the information. If the customer user changes roles, the portal-based PAL association also ends.
  • The portal-based update is not audit-log tracked, while the CLI-based update is tracked.
  • If possible, Dell Technologies recommends that you use the user ID associated with the Service Principal for PAL registration.

To add a PAL to a customer user account using the subscription user ID, do the following:

Procedure

  1. Go to the Microsoft Azure portal and log in to the customer environment.
  2. From the menu bar, click the Settings icon.

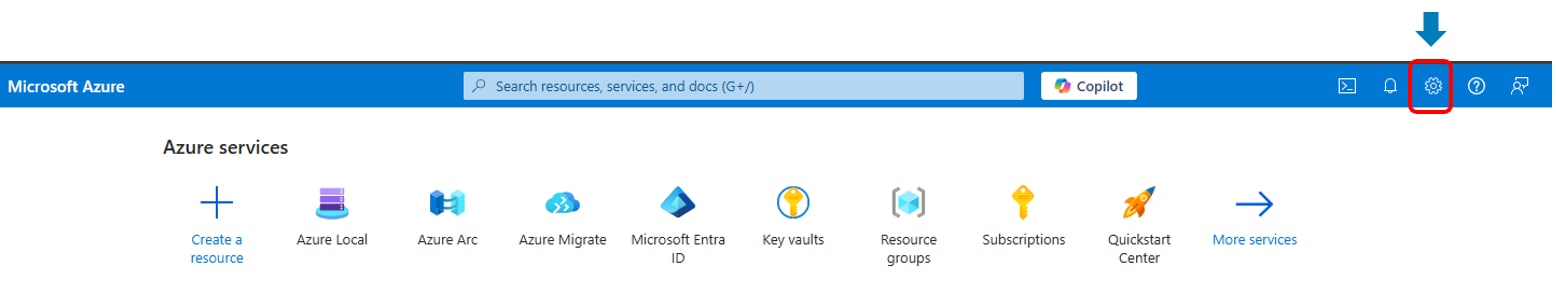

    Shows the menu icons on the blue bar at the top of the screen with the Settings icon highlighted in a red box.

    Settings icon above menu

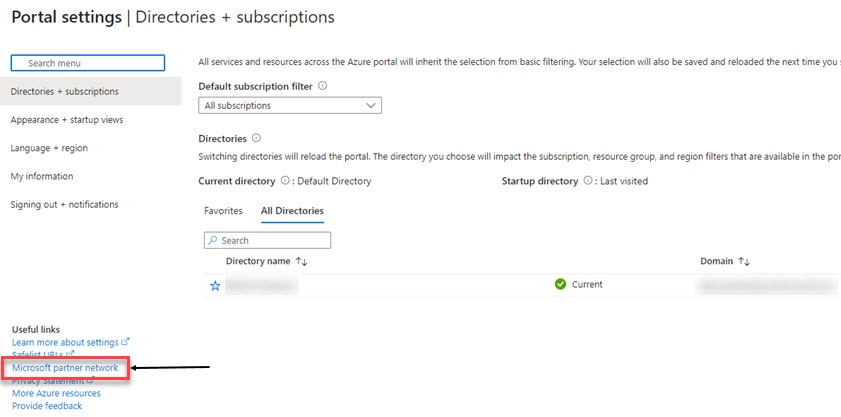

  3. From Portal Settings, under Useful links, select Microsoft partner network.

    shows the Microsoft partner network link in the Portal Settings window in the Useful links list

    Microsoft partner network link under Portal Settings

    NOTE: If multiple directories are listed, confirm the Azure tenant, and then use the tenant that is associated with Arc registration.

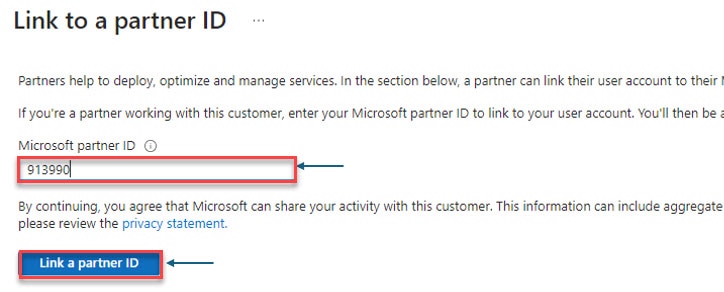

  4. In the Link to a partner ID view, for the Microsoft partner ID, enter the Microsoft Partner Network (MPN) identifier that is associated with the country of the engagement. The available country MPNs are listed in the table in Dell Technologies Partner IDs for Partner Admin Link.

    shows the Link to a Microsoft page where you enter the partner ID, and then click the button called "Link a Partner ID"

    Microsoft partner ID field

  5. To activate it, click Link to a partner ID.
    The PAL is now registered.

Dell Technologies Partner IDs for Partner Admin Link

The following table provides a list of Microsoft Partner Network (MPN) partner IDs for Dell Technologies that can be used for Partner Admin Link (PAL) registration with Microsoft.

NOTE: For a country whose MPN partner ID is not listed in the following table, contact the applicable Strategic Partnerships email for help:
Dell Technologies MPN partner IDs for PAL use. Dell Technologies list of MPN Partner IDs for PAL use
Country MPN ID
Argentina 1973856
Australia 1576776
Austria 1444496
Belgium 1447258
Brazil 1563635
Canada 742767
Chile 2389235
China 2580218
Colombia 1736279
Czech Republic 1980606
Denmark 1449600
Finland 1993462
France 892181
Germany 1449416
Greece 3679221
Hong Kong Sar 2790298
India 2419713
Indonesia 2834572
Ireland 1447272
Italy 1446223
Japan 578508
Korea 2153293
Malaysia 2731874
Mexico 724848
Netherlands 1446198
New Zealand 1872429
Norway 1446238
Panama 1477223
Poland 3697305
Portugal 1552205
Romania 1735552
Russia 4543982
Singapore 2773797
Slovakia 3812320
South Africa 1970176
Spain 1004323
Sweden 1449417
Switzerland 1449592
Taiwan 5097219
Thailand 2345177
Turkey 3396579
United Arab Emirates 3159758
United Kingdom 1447267
United States 913990

Install Windows Admin Center

Microsoft Windows Admin Center is a browser-based management tool that enables you to monitor and manage Windows Servers, failover clusters, and hyperconverged clusters.

You can download the latest version of Windows Admin Center from Microsoft Windows Admin Center and install it on a supported operating system.

You can install Windows Admin Center directly on a managed node to manage itself. You can also install Windows Admin Center on a separate management station to manage the AX nodes remotely.

The Windows Admin Center installer wizard performs the configuration tasks that are required for Windows Admin Center functionality. These tasks include creating a self-signed certificate and configuring trusted hosts for remote node access. Optionally, you can supply the certificate thumbprint that is already present in the target node local certificate store. By default, Windows Admin Center listens on port 443, but you can change the port during the installation process.

NOTE:  The automatically generated self-signed certificate expires in 60 days. If you intend to use Windows Admin Center in a production environment, ensure that you use a certificate-authority-provided SSL certificate.

For complete guidance on installing Windows Admin Center on supported operating systems, see the Microsoft article Install Windows Admin Center.

After the installation is complete, you can access Windows Admin Center at either https://ManagementStationName or https://ManagementStationName:<PortNumber>, as shown in the following figure.

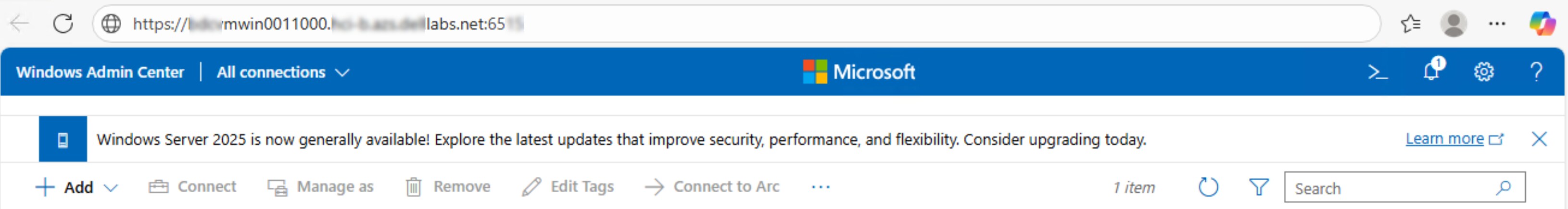

Windows Admin Center All Connections window

Windows Admin Center All Connections window

Install Dell OpenManage Integration with Microsoft Windows Admin Center

You can install Dell OpenManage Integration with Microsoft Windows Admin Center.

Before you begin

Microsoft Windows Admin Center must already be installed.

To install Dell OpenManage Integration with Windows Admin Center, do the following steps:

Procedure

  1. In Windows Admin Center, go to Settings > Extensions.
  2. Under the Available extensions tab, select and install Dell OpenManage Integration.

Results

When Dell OpenManage Integration with Windows Admin Center is installed, you can access it on the left panel on the cluster manager, under Extensions.

Predeployment configuration

Before deploying AX nodes, complete the required predeployment configuration tasks.

Complete the following predeployment configuration before deploying the Dell AX System for Azure Local solution.

Configuring iDRAC and BIOS

AX nodes from Dell Technologies are factory-configured with optimized system BIOS and iDRAC settings.

NOTE: Dell Technologies recommends that you verify that the settings you want to use for iDRAC and BIOS align with the configuration recommendations. You can do this verification either before deployment through the iDRAC and BIOS settings or after deployment through the Compliance window in the Dell OpenManage Integration extension.
CAUTION: Do not enable the Automatic Update feature in iDRAC or manually perform out-of-band component firmware updates through iDRAC. All firmware, BIOS, and drivers must align with the Support Matrix and be applied strictly through supported update workflows.

The iDRAC in AX nodes can be configured to obtain an IP address from a DHCP server or can be assigned a static IP address. When the Out-of-band (OOB) network is not configured to obtain IP addresses from a DHCP server, you must manually set a static IPv4 address on each iDRAC network interface. You can use KVM or other means to access the physical server console and set the addresses.

NOTE: For more details about BIOS and iDRAC settings, see BIOS and iDRAC configuration recommendations.

Verify iDRAC pass-through IP address subnet mask on AX-670 and AX-770 servers

Verify and configure the OS to iDRAC Pass-through USB NIC subnet mask on 17th-generation servers, including Dell AX-670 and Dell AX-770, to ensure proper in-band communication between the host operating system and Integrated Dell Remote Access Controller (iDRAC).

To verify the correct setting of the USB NIC, do the following:

Procedure
  1. Log in to iDRAC
  2. Go to iDRAC Settings > Connectivity > Network > OS to iDRAC Pass-through.
    The OS to iDRAC Pass-through window is displayed.
  3. If USB NIC Subnet Mask is not already set to 255.255.255.0, change the field to this value.
  4. Click Apply.
  5. To confirm that the IP is accessible and the link is established between iDRAC and the host operating system, click Test Network Configuration.

Configure BIOS settings including the IPv4 address for iDRAC

Perform these steps to configure the IPv4 address for iDRAC. You can also perform these steps to configure any additional BIOS settings.

Procedure
  1. During the system boot, press F2.
  2. At System Setup Main Menu, press iDRAC Settings.
  3. Under iDRAC Settings, select Network.
  4. Under IPV4 SETTINGS, at Enable IPv4, select Enabled.
  5. Enter the static IPv4 address details.
  6. Click Back, and then click Finish.

Configure Intel E810 or E823 NICs

The Intel E810 or E823 network adapter supports both iWARP and RoCE v2 RDMA protocols.

Before you begin

Ensure that the network card or port is enabled for RDMA traffic.

To configure the Intel E810 or E823 network adapter for each port, do the following:

Procedure

  1. During system startup, to enter system setup, press F2 and then select Device Setting.
  2. From the list of adapters, select Intel network adapter.
  3. Click Device Level Configuration.
    (Optional) Set Virtualization Mode to SR-IOV to enable the prerequisite capability that allows tenant virtual machines to use the Azure Accelerated Networking option.
  4. Click Back.
  5. In the Main Configuration window, for NIC + RDMA Mode select Enabled.
  6. To save the settings, select Back > Finish > Yes.
  7. To return to the Device Settings window, click Yes.
  8. Select the next port of the Intel adapter and repeat the previous steps.
  9. To return to the System Setup window, click Finish.
  10. To reboot the system, click Finish.

Configure NVIDIA (Mellanox) ConnectX-6 NICs

To enable support for SR-IOV in the operating system and virtual machines, you must configure the NVIDIA (Mellanox) ConnectX-6 NICs for each port.

Before you begin

Ensure that the network card or port is enabled for RDMA traffic.
To configure the NVIDIA (Mellanox) ConnectX-6 NIC (network adapter), do the following:

Procedure

  1. During system startup, to enter the system setup, press F2, and then select System Setup.
  2. Select Device Settings.
  3. From the list of adapters, select NVIDIA ConnectX-6 adapter.
    NIC+RDMA is set to Enabled.
  4. Click Device Level Configuration.
    (Optional) Set Virtualization Mode to SR-IOV to enable the prerequisite capability that allows tenant virtual machines to use the Azure Accelerated Networking option.
  5. To return to the main configuration window, click Back. To save your changes, on the main configuration page, click Finish.
  6. Repeat the steps for all NVIDIA adapters.

Configure Broadcom NICs

The Broadcom 57504 and 57416 NICs support only RoCE v2 RDMA protocol and can be configured on both converged and hyperconverged deployments. Both OCP and PCIe cards are available.

Before you begin

Ensure that the network card or port is enabled for RDMA traffic.

To configure the Broadcom NIC for each port, do the following:

Procedure

  1. During system startup, to enter System Setup, press F2, and then select Device Settings.
  2. From the list of adapters, select Broadcom network adapter.
  3. Select Device Level Configuration, and from the menu choose the DCBX Mode option, and then choose Enabled (IEEE Only).
    (Optional) Set Virtualization Mode to SR-IOV to enable the prerequisite capability that allows tenant virtual machines to use the Azure Accelerated Networking option.
  4. Click Back.
  5. In the Main Configuration window, set NIC + RDMA Mode to Enabled. To save the settings, click Finish.
  6. To return to the Device Settings window, click Yes.
  7. Select the next port of the Broadcom adapter and repeat the previous steps.
  8. To return to the System Setup window, click Finish.
  9. To reboot the system, click Finish.

Operating system deployment

The following instructions are for manual deployment of the Microsoft Azure Stack HCI OS version 24H2 on AX nodes from Dell Technologies. Unless otherwise specified, perform the steps on the physical machine in the infrastructure that is part of Azure Local.

NOTE:
  • The command output that is shown in the following sections might show only Mellanox ConnectX-4 LX adapters as physical adapters. The output is shown only as an example.
  • Before creating a cluster through the Azure Portal, for Azure Stack HCI OS version 24H2 and later, you must use Dell Golden image ISO for all deployments.

Adapter requirements

Azure Local requires using the same adapter card vendor and model for the machines in an instance that support instance operations. The ports that are used by the same Network ATC intent must use the same vendor, model, and speed.

Starting with Azure Local Solution version 2603, Azure Local instances that require NIC-level high availability can use the Azure portal or ARM templates to configure Network ATC intents using NIC ports from adapters that share the same PCIe Vendor ID and PCIe Device ID. This capability enables ports from both an OCP NIC and a PCIe riser NIC to be included within a single Network ATC intent, provided the adapters are of the same NIC model.

CAUTION: If you use optics or cables from one vendor with an adapter card from another vendor, Dell cannot guarantee that your configuration will work as expected. Before you mix vendor equipment in an Azure Local instance, consult the Dell Technologies cable and optics in the Support Matrix.

Manually deploy operating system using Dell golden-image ISO

You must use a Dell provided Azure Local golden-image ISO to install the baseline operating system image for Azure Local instances.

The golden image includes the Azure Stack HCI operating system, Microsoft operating system image customization, Azure Arc extensions, LCM service, registration modules, and Dell customization. Customization includes device drivers that align with the Dell support matrix for Azure Local.

For an Azure Local solution version 2503 and later, you must use a Dell provided Azure Local golden-image ISO. To download the latest Dell provided golden-image ISO, go to Azure Local Support Matrix, and then click Azure Local Support Matrix (Version X) > Azure Local Golden Images (Version X).

NOTE: To access any of the Dell provided Azure Local golden-image ISOs, you must have a Dell Support account.
Before you begin
Before you deploy the Azure Local instance using the Azure Portal or an ARM template, for a single-node cluster configuration, install the golden-image ISO on the machine that is used for Azure Local instance creation. You can use the iDRAC virtual media feature to mount the golden-image ISO.
Procedure
  1. Open the iDRAC interface for the node and re-create the virtual disk on the BOSS-N1 controller where the host operating system is located. If the BOSS virtual disk is in a good state, you can choose to clean the drive, install the operating system on it, and then go to step 2.
    Optionally, if the existing BOSS virtual disk is degraded, you can do the following:
    1. Delete the virtual disk on the BOSS. For more information, see Dell Boot-Optimized Storage Solution-N1 User's Guide.
    2. Create a virtual disk on the BOSS and initialize it. For more information, see Dell Boot-Optimized Storage Solution-N1 User's Guide.
  2. Open iDRAC virtual console and mount the golden-image ISO.
  3. Boot the system from the golden-image ISO. Because no other operating system is installed on the host, it should automatically boot from the ISO without requiring you to select a boot device.
  4. Image the server using the procedure in Install the Azure Stack HCI operating system.
    NOTE: You must delete any previously created partitions on the boot drive during the deployment procedure.
    CAUTION: Do not enable the Automatic Update feature in iDRAC or manually perform out-of-band component firmware updates through iDRAC. All firmware, BIOS, and drivers must align with the Support Matrix and be applied strictly through supported update workflows.

Configure host networking

Identify the network interface cards to be used for the management or compute traffic and assign the IP address to the first port.

Before you begin

NOTE: If you have a DHCP server in your environment, skip the procedure.

Ensure that the host is assigned to an IP address in the correct VLAN.

NOTE: The host IP, DNS, and gateway addresses that are used throughout the guide are examples. You must use the relevant IPs that are based on your environment.
NOTE: You can use the optional 1_AzLocal.ps1 script from Dell ProSupport GSE on GitHub to automate the operating-system configurations for host networking, rename the system name, and register with Azure. You must still do firmware updates before the deployment. Dell Technologies Solutions Engineering has not validated this code. Use at your own risk.

To log in to the host console of each system using the iDRAC virtual console and assign host IPs and respective VLANs, do the following:

Procedure

  1. To disable the DHCP on all management adapters (NICs) except the NDIS NIC, run the following command:
    Get-NetAdapter | Where-Object {$_.InterfaceDescription -NotMatch 'NDIS' } | Set-NetIPInterface -Dhcp Disabled
  2. To disable disconnected network interface controllers, run the following command:
    Get-NetAdapter | Where-Object {$_.status -eq "disconnected"} | Disable-NetAdapter
  3. To assign the management IP address to the first port, run the following command:
    New-NetIPAddress -InterfaceAlias "Integrated NIC 1 Port 1-1" -IPAddress 192.168.10.11 -DefaultGateway 192.168.10.1 -PrefixLength 24 -AddressFamily IPv4 –Verbose
  4. To set DNS IP addresses, run the following command:
    Set-DnsClientServerAddress -InterfaceAlias "Integrated NIC 1 Port 1-1" -ServerAddresses 192.168.11.50, 192.168.11.51
  5. To assign VLAN ID for the management adapters, run the following command:
    NOTE: If the management network has any untagged VLANs that are configured in the switch, then this step is not required.
    Get-NetAdapter -Name "Integrated NIC 1 Port 1-1" | Set-NetAdapter -VlanID 202 -Confirm: $false
    Get-NetAdapter -Name "Integrated NIC 1 Port 2-1" | Set-NetAdapter -VlanID 202 -Confirm: $false

Change the hostname

By default, the operating system deployment assigns a random name as the host system name. For easier identification and uniform configuration, Dell Technologies recommends that you change the hostname to something that is relevant and easily identifiable.

CAUTION: The computer and cluster names cannot be more than 15 characters. If the name exceeds the character limit, the deployment will fail when the system tries to encrypt the volume.
To change the hostname, run the following Rename-Computer command:
Rename-Computer -NewName <NewHostName> -Restart
NOTE:  The command induces an automatic restart at the end of the renaming operation.

Registry settings

For more information about registry settings, see Dell Support Knowledge Base article: Azure Local OS OEM Information Registry Setting.

Configuration to prepare nodes

To allow the issuing of remote commands to nodes that are not in the domain, run the following command on each node:
#Enable Remote Desktop
Set-ItemProperty -Path "HKLM:\System\CurrentControlSet\Control\Terminal Server" -Name "fDenyTSConnections" -Value 0
Enable-NetFirewallRule -DisplayGroup "Remote Desktop"

#Configure time source using NTP server FQDN address
w32tm /config /manualpeerlist:"<NTP Server 1 FQDN> <NTP Server 2 FQDN>" /syncfromflags:manual /update

#Check time source
w32tm /query /status

#Optionally configure the machine to accept remote management and allow pings for troubleshooting purposes.

#Enable ICMP firewall rule
netsh advfirewall firewall add rule name="ICMP Allow incoming V4 echo request" protocol=icmpv4:8,any dir=in action=allow

Configuring firewall settings

For Azure Stack HCI operating system, configure firewall settings for outbound endpoints and internal rules and ports. For more information about configuring the firewall settings, see Firewall requirements for Azure Local | Microsoft Learn.

Deploying an Azure Local instance

Azure Local instance deployment prerequisites

Before deploying Azure Local instance, you must ensure that the deployment prerequisites are met.

Deployment prerequisites

Prerequisites

Review requirements and complete the deployment prerequisites that are described in Prerequisites to deploy Azure Local - Azure Local | Microsoft Learn are met.

NOTE: Ensure that you unmount any virtual media from the iDRAC.

Management services

Dell Technologies assumes that the management services that are required for the operating-system deployment and cluster configuration are in the existing infrastructure where the Azure Local instance is being deployed.

The following table describes the management services:

Management services. The table lists the required and optional management services and their purpose.
Management service Purpose Required or optional
Azure Deploy and manage Required
Active Directory User authentication Required only for AD-based deployments
Domain Name System Name resolution Required
DHCP Hosts get IPs before and after host configuration Optional

Review requirements

Assigning required permissions for Azure Local deployment

To assign the required permissions for user roles, see Assign required permissions for Azure Local deployment.

Register machine with Azure Arc

Before registering the machine with Azure Arc:

NOTE: Manual installation of PowerShell modules is no longer required. The registration procedure changed with the introduction of golden images (10.2503) or Microsoft-provided composed images.

You can use one of the following options to register the Azure Local machines with Azure Arc using PowerShell commands. For details, see:

(Optional)

If you prefer to use a guided UI-based workflow instead of the Arc script, you can select the Via Configurator App tab on the Microsoft pages that are listed above.

NOTE: Dell Technologies has validated the registration of machines using the Configurator app. However, Dell Technologies does not officially support this functionality. If users encounter any issues, they must contact Microsoft directly.

Drift detection for Azure Local

For identifying configuration related deviations or troubleshooting issues in your Azure Local environment, see Drift Detection for Azure Local. You can run drift detection either before or after the cluster is created.

Check Azure Arc registration after reboot

During Azure Arc registration, when the update phase completes, if the system reboots, check the Arc registration status on the system after the reboot completes.

When registering Azure Arc on machines that are imaged with a specific Golden image (operating system customization 12.2506.0.3136), a required update triggers a reboot.

To check the Azure Arc registration, do the following:

NOTE: If you are using the latest Dell Golden-image ISO, you can ignore the following message if the message appears during the ARC registration process: "You are not running the latest Azure Local version. Older versions can only be deployed using the ARM template. Deployment using the Azure Portal cloud wizard is not supported."

Procedure

  1. To monitor the reboot registration status, run the following command:
    (Get-ArcBootstrapStatus).Response.Status
  2. If the system completes registration and returns a status of:
    • Succeeded, no further action is required.
    • Failed, rerun the Invoke-AzStackHciArcInitialization command.
  3. (Optional) After a successful registration, run azcmagent.exe on the Azure Local machine.
    # Expect a status of Connected and a recent Last Heartbeat

    azcmagent.exe show 'Agent Status' 'Agent Version' 'Agent Last Heartbeat'
    Sample output
    Agent Version: 1.58.03228.2572
    Agent Status: Connected
    Agent Last Heartbeat: 2026-01-27T14:49:58Z


Prepare Active Directory for Azure Local instance

You must set up an Active Directory environment before deploying Azure Local instance. To prepare your Active Directory environment, see Prepare Active Directory for Azure Local deployment.

SBE package installation

When you use the Dell provided golden image to image a node, the SBE files are automatically placed in the C:\SBE directory. The SBE package is installed as part of the cluster deployment.

Deploy the Azure Local Instance

You can deploy an Azure Local instance in the following ways:

NOTE: The creation of a storage intent is optional for single-machine deployments.

Deploy an Azure Local instance using Azure portal

The deployment wizard guides you through the creation of an Azure Local instance.

You can use the wizard to define all instance‑level and machine‑level configuration settings. The wizard guides you through the following windows:

  1. Basics
  2. Configuration
  3. Networking
  4. Management
  5. Security
  6. Advanced
  7. Tags (optional)
  8. Validation
  9. Review and create

To create an Azure Local instance:

Procedure

  1. To start the wizard from Home > Azure Local, select Deploy Azure Local.
  2. Under Get Started, in Deploy Azure Local, select Create instance.
  3. In the Basics window, as shown in the following figure, under Project details, select the Subscription and Resource group from the options lists.

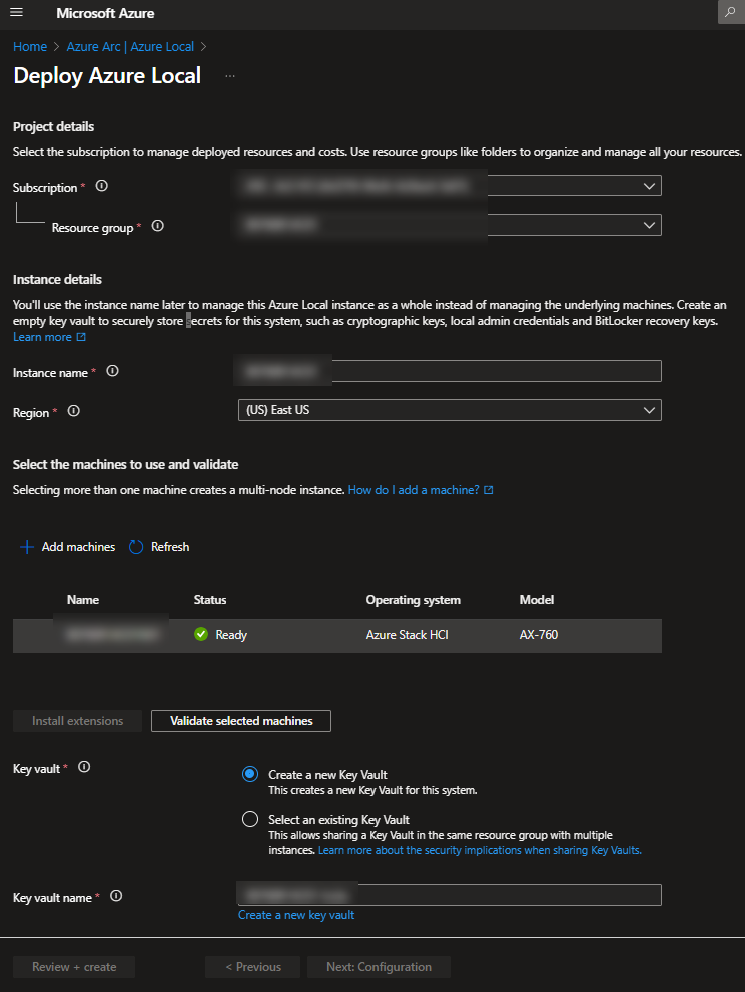

    deployment basics wizard window showing key vault naming and server validation

    Deployment wizard - Basics window

  4. Under Instance details, enter the Instance Name and Region.

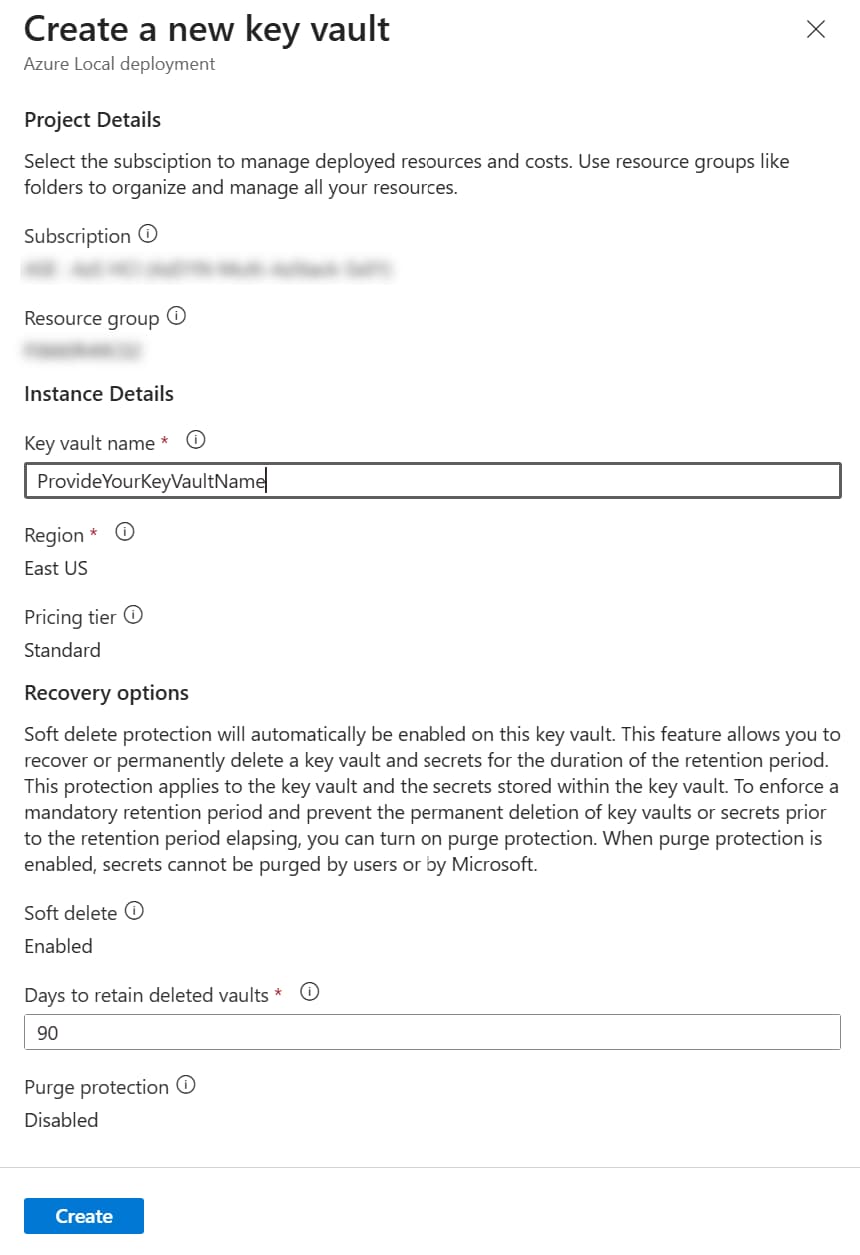

  5. To create a new key vault, enter a Key vault name, and then click Create a new key vault.
    NOTE:
    • If a previously created key vault for a decommissioned instance with the same name exists, you must first delete and purge the old key vault before creating one.
    • Azure Local does not support deploying a cluster by using an existing Azure key vault that has private endpoints enabled.
  6. If one or more servers show a status of Missing ARC Extensions, select the affected servers, and then click Install Extensions. Wait for the extension installation to complete and for the node status to update to Ready.
  7. To validate the servers for use, select one or more, and then click Validate selected servers.
    After you validate the servers, a green checkbox displays next to Validate selected servers.
  8. To go to the next window, click Next: Configuration.
  9. In the Configuration window, enter details about the instance.
  10. To go to the next window, click Next: Networking, shown in the following figure.

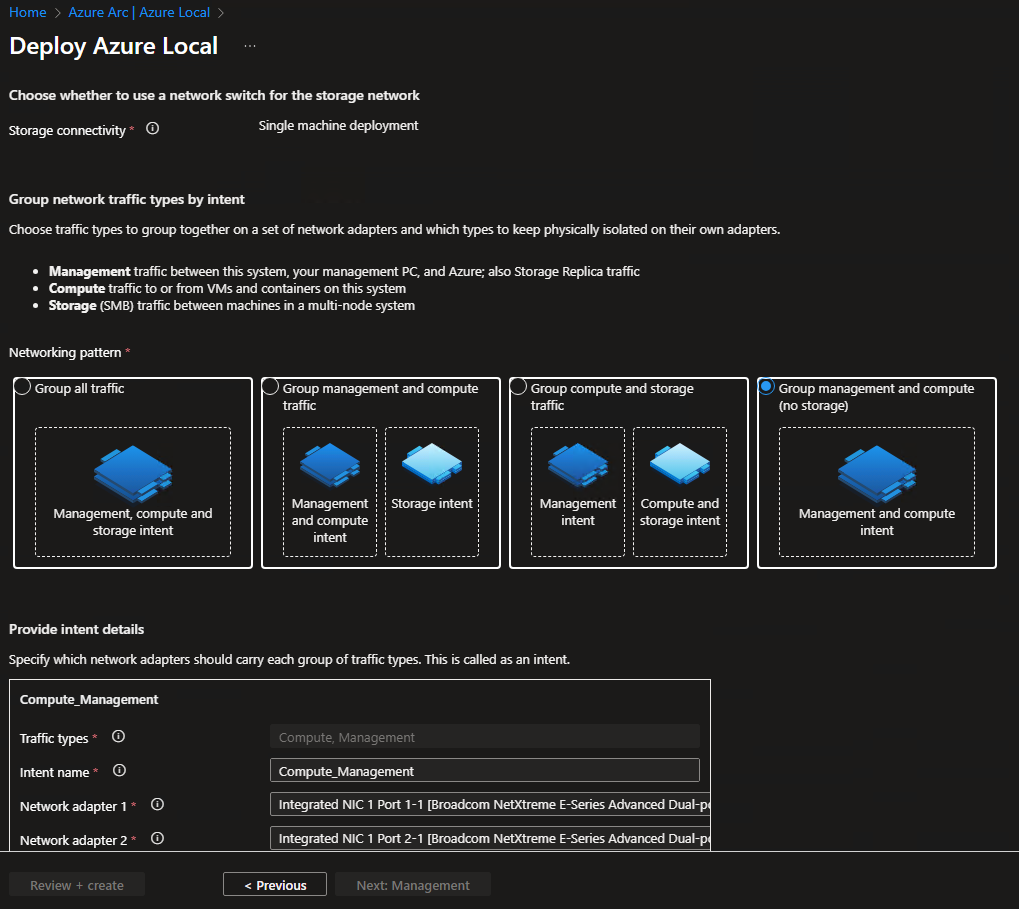

    Deployment wizard - networking window with details to be selected or entered

    Deployment wizard - Networking window

  11. In the Networking window, for Storage connectivity, choose whether you use a network switch for the storage network.
  12. Under Group network traffic types by intent, based on your network topology, select the Networking pattern. For a single- machine instance, Dell Technologies recommends that you select Group Management and Compute (no storage).
    The following table shows the Quality of Service (QoS) flow priorities for each network type:
    QoS priorities for network intents. The table shows the QoS flow priorities that are based on traffic class for each network type.
    Traffic class Purpose QoS flow ETS bandwidth allocation
    3 RDMA (SMB Direct) Enabled 50 percent
    7 Cluster network Disabled
    • 10 GbE equals 2 percent
    • Greater than 25 GbE equals 1 percent
    0-2, 4-6 0 - Best-effort traffic Disabled Remaining percentage distributed across the traffic classes
  13. Under Provide intent details, for management-network-intent creation, select the network adapters.
  14. Under Allocate IP addresses to the system and services, provide the required details as shown in the following figure.

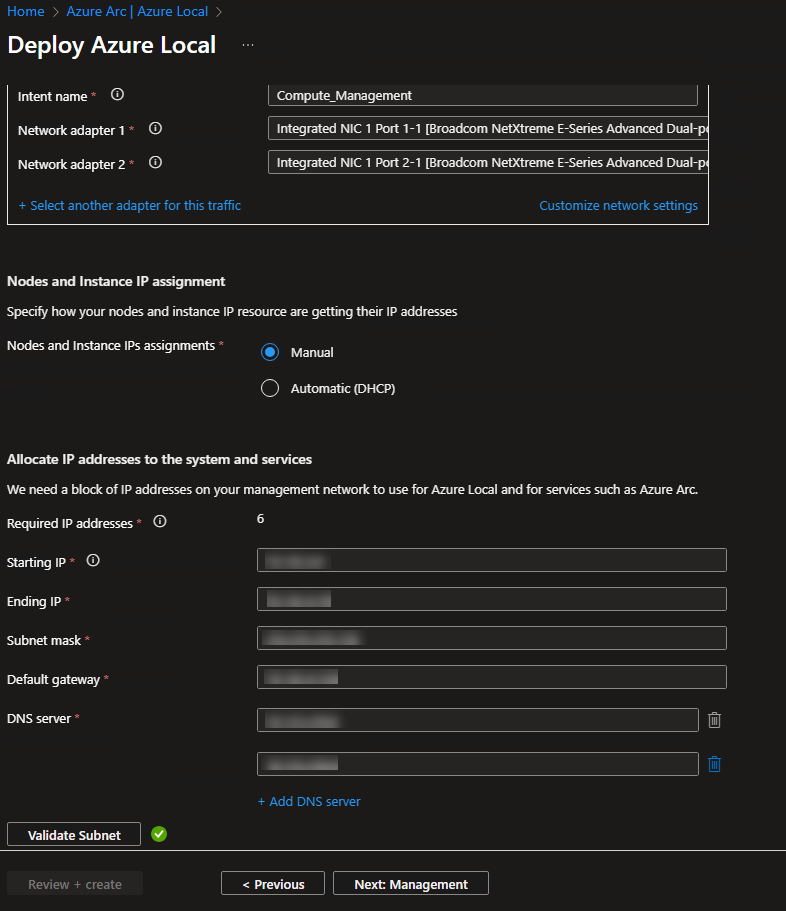

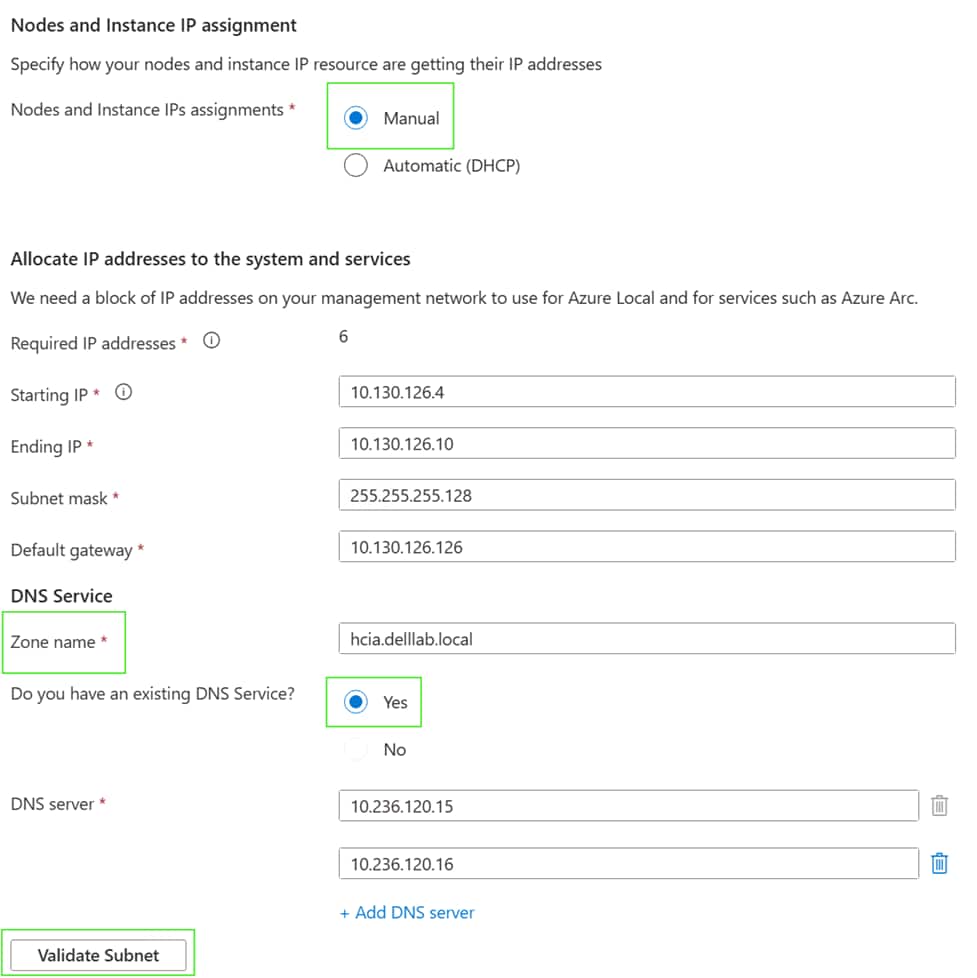

    allocate IP addresses to the system and services

    Allocate IP addresses section

  15. Under Compute_Management, to update information such as network intent, data center bridging, and adapter properties including Jumbo Frame size and RDMA protocol, click Customize network settings.
    NOTE:  For management network intents, RDMA must be disabled, as shown in the following figure.

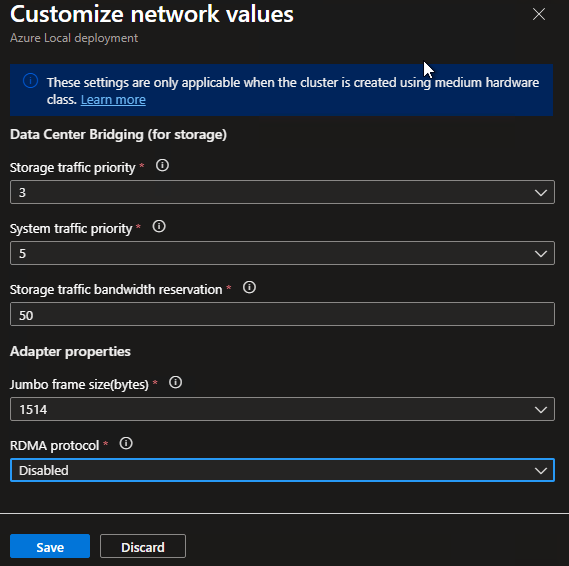

    customize the network values and disable the RDMA for management network intents

    Customize network values window with disabled RDMA protocol

    NOTE: Microsoft recommends that you set System Traffic Priority to 7 for new cluster deployments. A priority value of 5 is also supported and acceptable. Ensure that the QoS settings on the top‑of‑rack (ToR) switches match the QoS settings that are configured in the host operating system.

    For more information about this step, see Specify network settings.

  16. Under Management shown in the following figure, to identify this system when creating resources, enter the Custom location name.

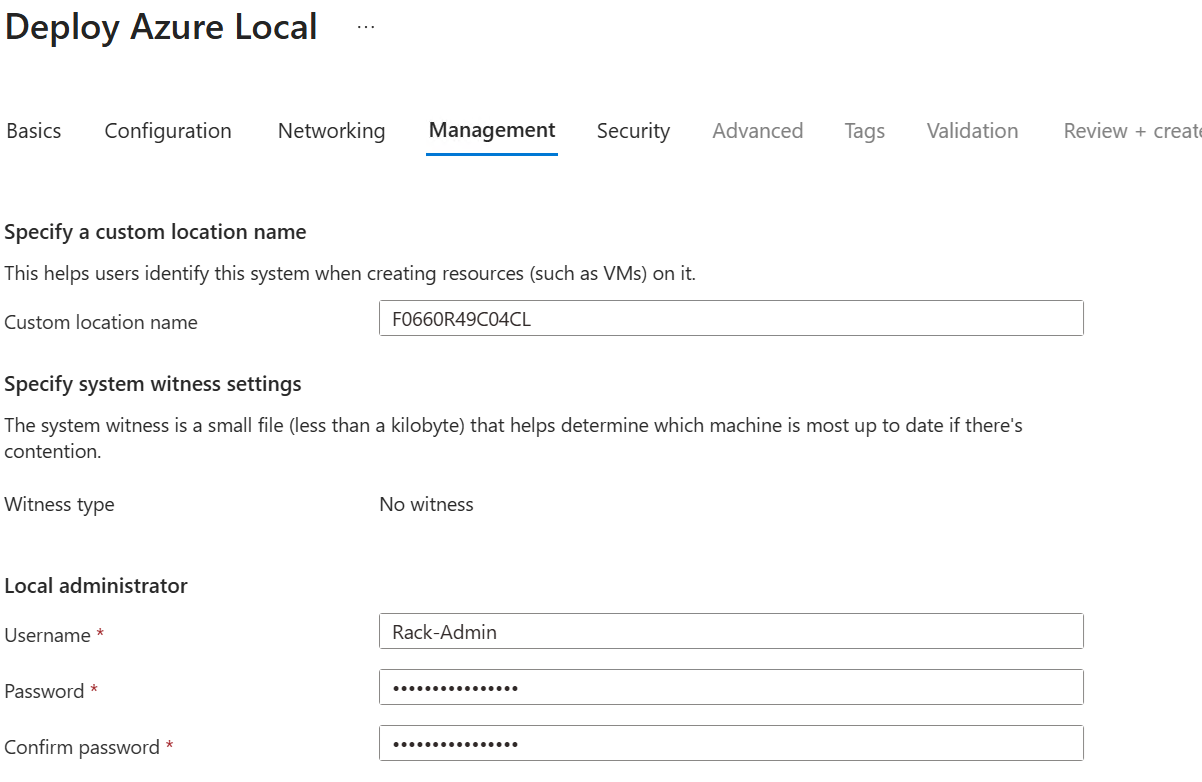

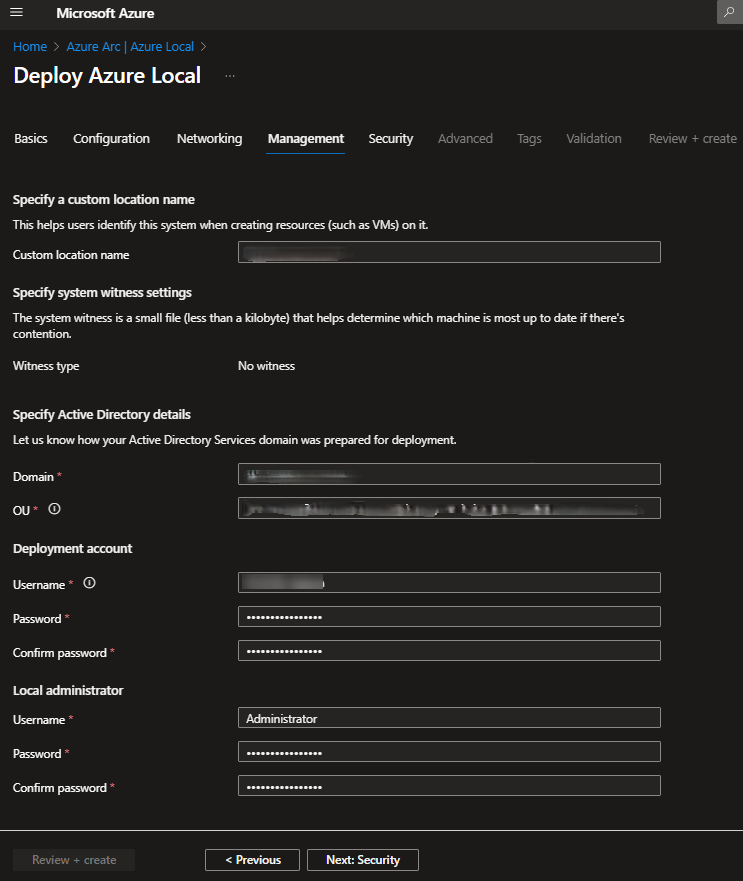

    deployment wizard management window

    Deployment wizard - Management window

  17. Enter the Active Directory and deployment account details.

    For more information, see Specify management settings.

  18. Click Next: Security.
  19. Under Security shown in the following figure, Dell Technologies and Microsoft recommends that you choose Recommended security settings, which offers the highest level of security settings.

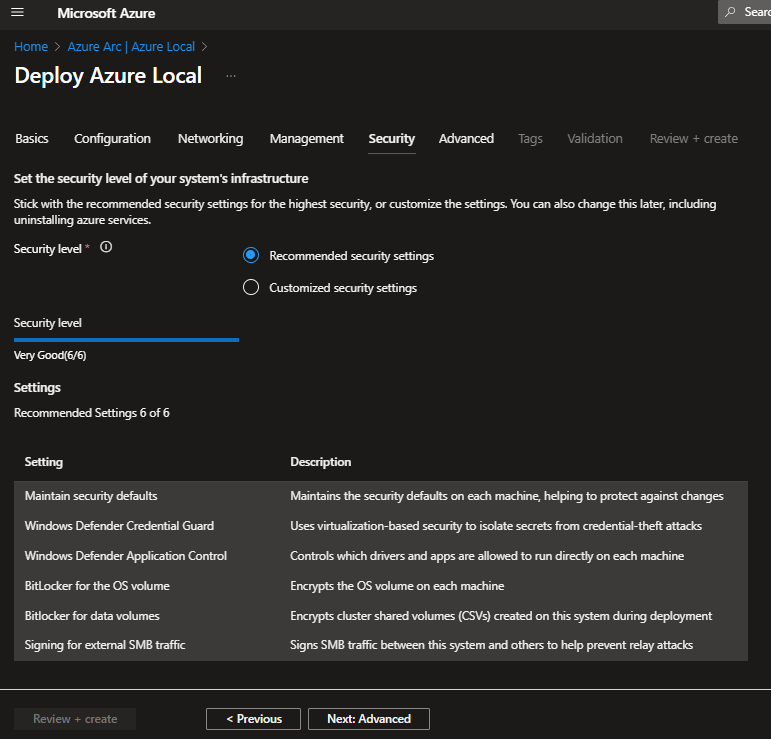

    deployment wizard security window with recommended security settings selected

    Deployment wizard - Security window

  20. Click Next: Advanced.
  21. Under Advanced, choose Create workload volumes and required infrastructure volumes.
  22. Click Next: Tags.
  23. Under Tags, enter tag information (optional).
  24. Click Next: Validation.
  25. Under Validation, click Start validation, as shown in the following figure.

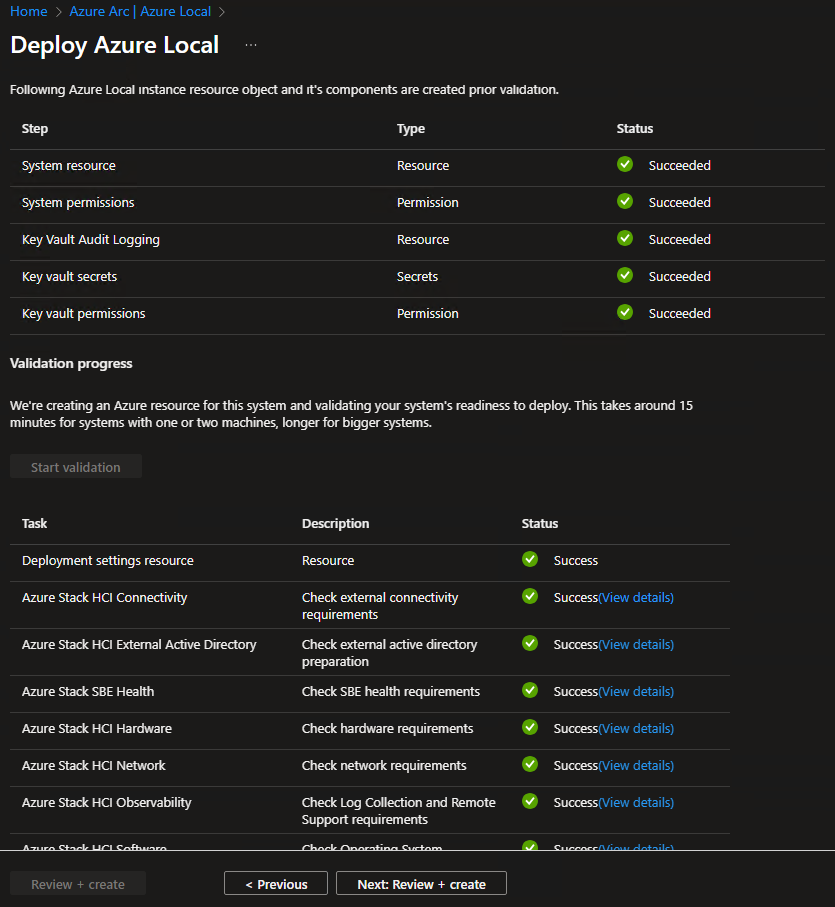

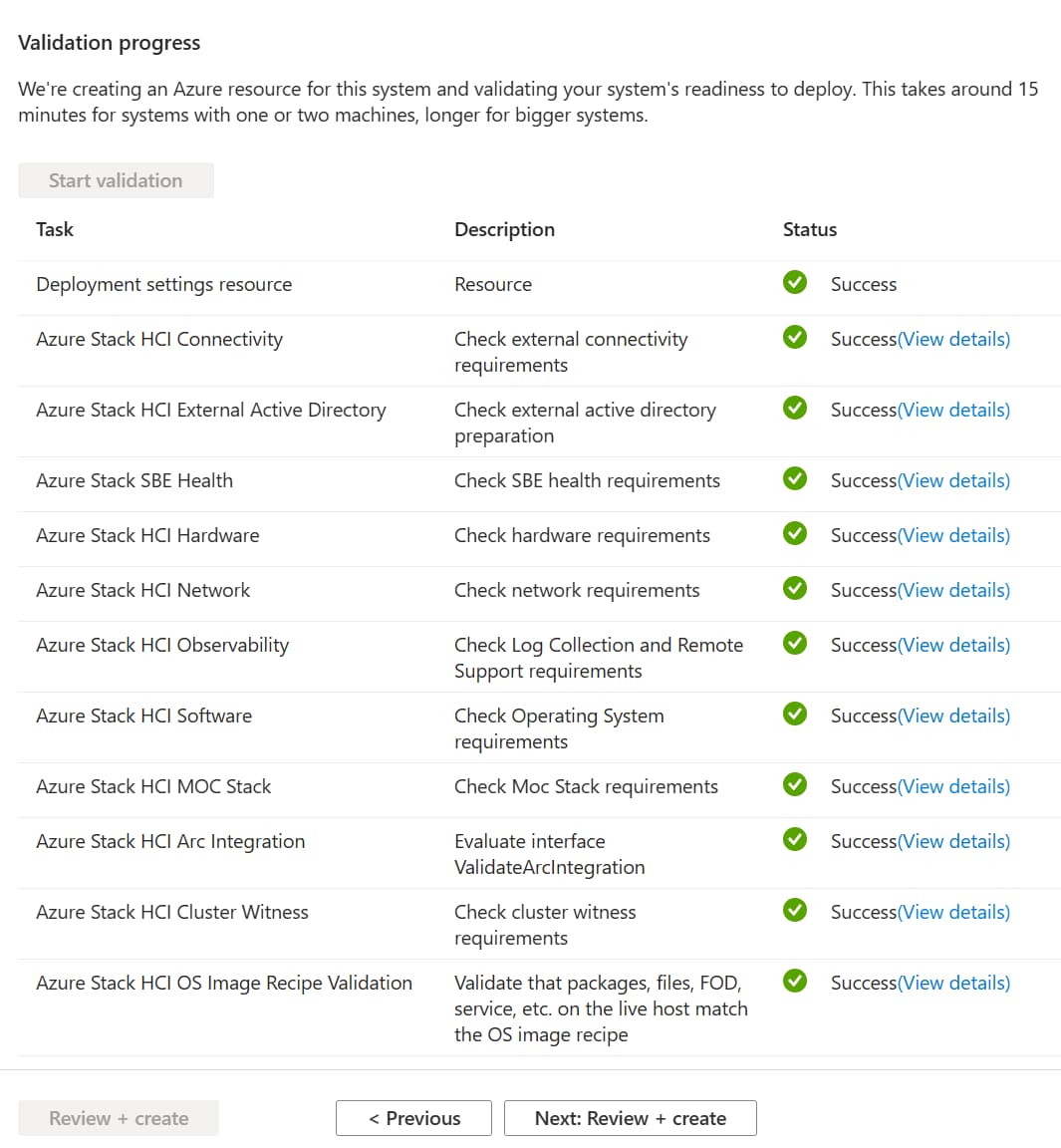

    Deployment wizard - Validation window showing validation in progress

    Deployment wizard - Validation window

    For more information, see Validate the system.

    The system creates a resource object and its components for the instance. The validation process typically completes within 15 minutes for a single-server deployment, though it may take longer depending on system conditions or environmental factors. This process assesses the system readiness for cluster deployment.
  26. Click Next: Review + create.
  27. The Review + create window shows the configuration information that you entered or selected in the previous steps for creating the instance. To return to a previous step to change any settings, click Previous.
    Deployment wizard - review window

    Deployment wizard - Review and create window

  28. To start the instance creation process, review and confirm your settings, and then click Create .
  29. To view the deployment progress in the Azure portal, go to <Instance name > > Deployments. To view the latest update, click Refresh.
    When the deployment is complete, all tasks display a status of Success.

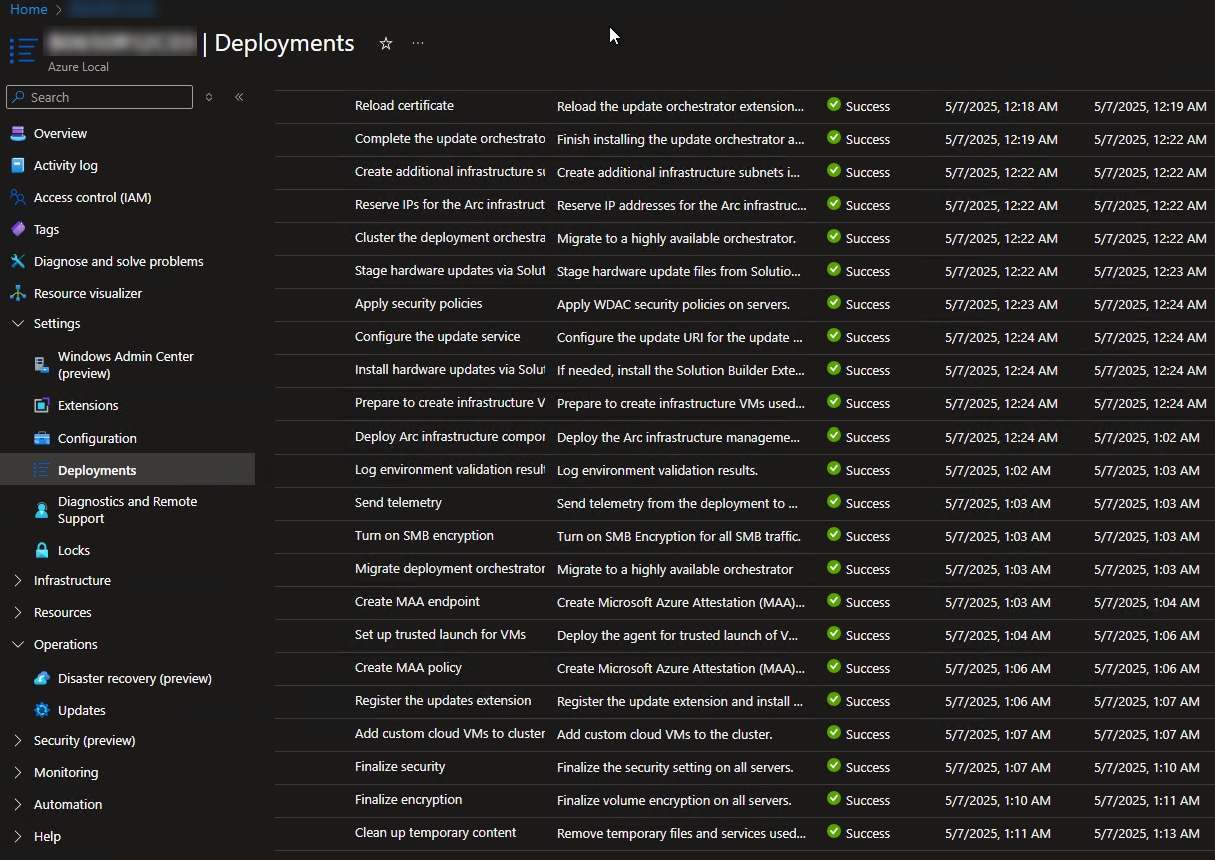

    validation of deployment of an instance when all tasks have a success status

    Validation of deployment creation success

  30. To access your Azure Local instance remotely, enable Remote Desktop Protocol (RDP).
    For more information about deploying an instance, see Deploy Azure Local using the Azure portal.
    For more information about enabling RDP, see Enable RDP.

Deploy an Azure Local instance using the Microsoft ARM template

Deploy an Azure Local instance using the Microsoft Azure Resource Manager (ARM) template.

Before you begin

Before using the Microsoft Azure Resource Manager (ARM) template to deploy an Azure Local instance, you must complete the prerequisite procedures. Procedures are correct at publication but are subject to change without notice. For the most current details, see Deploy Azure Local via Azure Resource Manager deployment template > Prerequisites.

For more information about creating a service principal, service secret, and client secret for Azure Local release 2507 onwards, see Deploy Azure Local via Azure Resource Manager deployment template.

To deploy an Azure Local instance using the ARM template, do the following:

NOTE: Procedures are correct at publication but are subject to change without notice. For the most up-to-date details, see Deploy an Azure Local via Azure Resource Manager deployment template.

Procedure

  1. In the Azure portal, from Home, click Create a Resource.
  2. Click Template deployment (deploy using custom templates).
  3. Under Start with a quickstart template or template spec, choose Quickstart template.

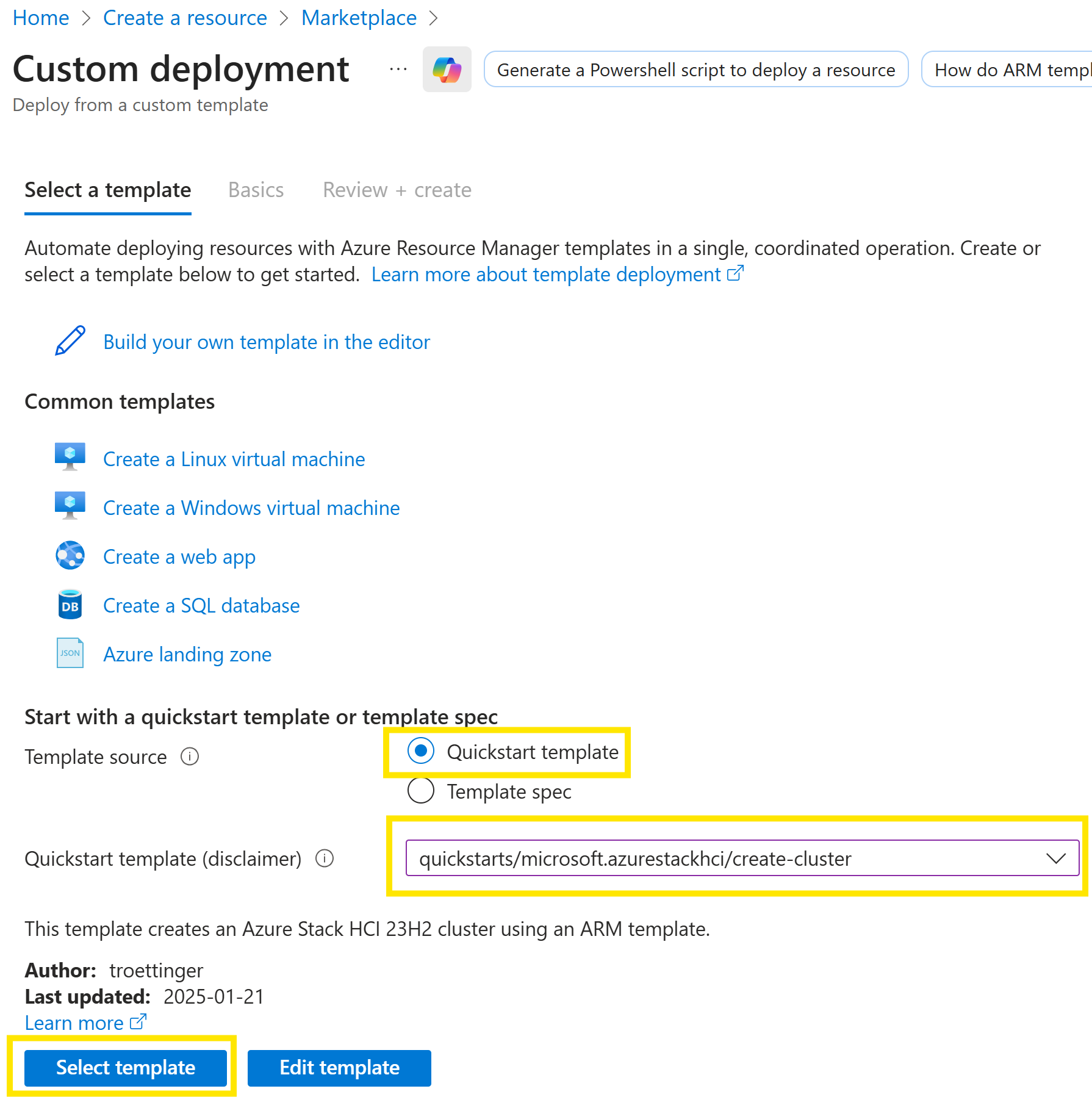

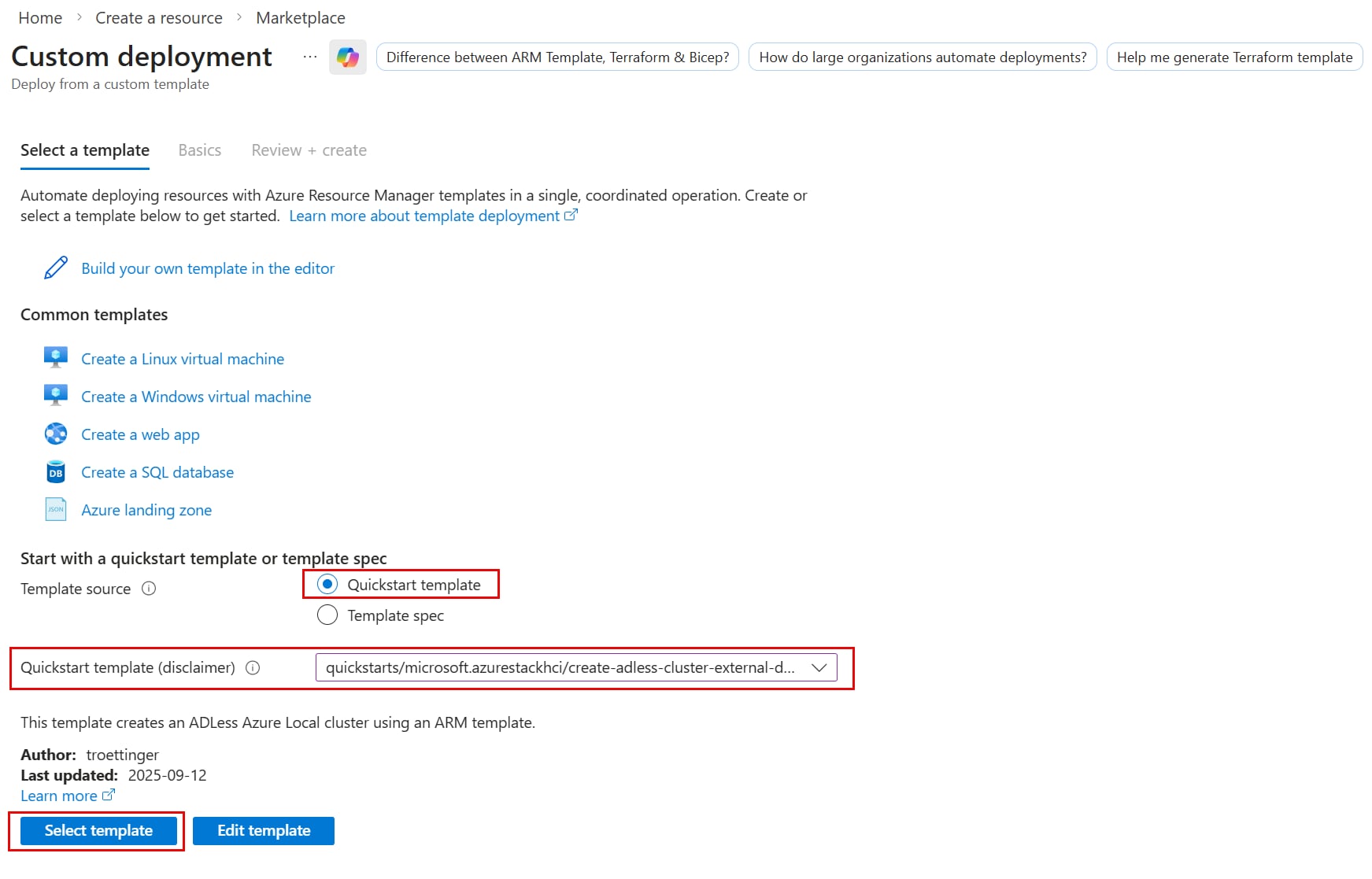

    choose the quick template option and then select the one that you want

    Custom deployment window > Select a template

  4. From the Quickstart template list, choose quickstarts/microsoft.azurestackhci/create-cluster, and then click Select template.
  5. From the Basics tab, select the resource group where the Arc-enabled servers are registered for the deployment.
  6. Select Region, and then, in Deployment Mode, select Validate.
  7. Enter the Key Vault Name and Cluster Name.
  8. Enter Local Admin and Azure Stack LCM Admin credentials.
  9. Enter the following data from information collected in the previous steps:
    1. Arb Deployment App ID
    2. Arb Deployment App Secret
    3. Arb Deployment SPN Object ID
    4. Azure Stack HCI Resource Provider Object ID
  10. Enter the Arc Node Resource IDs that you collected in previous steps.
  11. Enter the Domain FQDN and Active Directory OU path.
  12. Enter the following:
    1. Subnet Mask
    2. Default gateway
    3. Starting IP address
    4. Ending IP address
    5. DNS Servers IP
    NOTE: Azure Local deployment requires six IP addresses for the system and services.
  13. Under Physical Nodes Settings, enter the Hostname and IP addresses for the machines, for example:
    [{"name":"YourHostName","ipv4Address":"172.18.30.1"}
  14. Under Networking type, select SingleServerDeployment.
  15. Under Networking Pattern, choose Select ConvergedManagementCompute to Group management and compute traffic.
  16. Click Edit Parameters.
  17. Edit Network intent details based on the network topology that you are using for the deployment.
    The following table shows the Quality of Service (QoS) flow priorities for each network type:
    QoS priorities for network intents. The table shows the QoS flow priorities that are based on traffic class for each network type.
    Traffic class Purpose QoS flow ETS bandwidth allocation
    3 RDMA (SMB Direct) Enabled 50 percent
    7 Cluster network Disabled
    • 10 GbE equals 2 percent
    • Greater than 25 GbE equals 1 percent
    0-2, 4-6 0 - Best-effort traffic Disabled Remaining percentage distributed across the traffic classes
    The following snippet shows an example of the multi- machine ConvergedManagementCompute network topology.
    "intentList": {
          "value": [
            {
              "name": "Compute_Management","trafficType": [
                "Management",
                "Compute"
              ],
              "adapter": [
                "Integrated NIC 1 Port 1-1",
                "Integrated NIC 1 Port 2-1"
              ],
              "overrideVirtualSwitchConfiguration": false,
              "virtualSwitchConfigurationOverrides": {
                "enableIov": "",
                "loadBalancingAlgorithm": ""
              },
              "overrideAdapterProperty": true,
              "adapterPropertyOverrides": {
                "jumboPacket": "1514",
                "networkDirect": "Disabled",
                "networkDirectTechnology": ""
             }
             ]
             }
             }
  18. Save the parameters file. Leave all remaining parameters set to their default values.
  19. Select Review + create, and then click Create.
    This step validates the deployment and creates the prerequisites that are required for the deployment.
  20. When validation is complete, click Redeploy.
  21. Select Edit parameters, load the parameter JSON file, and then click Save.
  22. Select the Resource Group.
  23. Change Deployment Mode from Validate to Deploy.
  24. To begin the deployment, select Review + create, and then click Create.
  25. To check the deployment progress, open a new browser window, go to the resource group, and then click the cluster resource. Go to Settings > Deployment, and then click Refresh.
    NOTE: Deployment typically takes 2.5 to 3 hours under normal conditions. However, actual time may vary depending on factors such as environment complexity, network performance, and system load.

External SAN support for Azure Local

Explains how Azure Local integrates with external SAN storage and describes supported deployment architectures, storage protocols, and configuration workflows.

Overview

External SAN support enables hybrid deployments that combine Storage Spaces Direct (S2D) local storage with external SAN storage. This architecture allows organizations to reuse existing SAN investments while running Azure Local workloads.

The hybrid deployment model provides flexibility to place workloads on either local Storage Spaces Direct storage or external SAN storage based on performance, capacity, and operational requirements.

This documentation applies to post-deployment integration of external SAN storage with Azure Local clusters.

External SAN support deployment workflow

To integrate external SAN storage with Azure Local:

  1. Review supported SAN solutions.
  2. Verify system requirements.
  3. Plan SAN integration.
  4. Configure Fibre Channel or iSCSI connectivity.
  5. Configure MPIO.
  6. Verify SAN connectivity.
  7. Create Cluster Shared Volumes.
  8. Configure workload storage paths.
  9. Validate operations.

For more information, see Enable External Storage on Azure Local.

Hybrid Deployment Architecture for Azure Local

Explains how Storage Spaces Direct and external SAN storage are used together in a hybrid Azure Local deployment.

Overview

A hybrid deployment combines local Storage Spaces Direct storage with external SAN storage.

In a hybrid deployment:

  • Compute nodes run the Azure Local operating system and host virtual machines.
  • Local storage is provided by Storage Spaces Direct.
  • External SAN storage is presented to cluster nodes through Fibre Channel or iSCSI.
  • Cluster Shared Volumes can consume storage from either Storage Spaces Direct or SAN LUNs.
  • Workloads allows choosing the right storage tier for each workload.

Benefits of using hybrid deployment architecture

  • Reuse existing SAN infrastructure.
  • Scale storage independently from compute.
  • Maintain existing SAN operational practices.
  • Provide enterprise-class performance and reliability.
  • Support dual-fabric redundancy and multipath failover.

Supported SAN solutions for Azure Local

Lists supported storage arrays and storage protocols for Azure Local external SAN deployments.

Supported storage vendors

Azure Local currently supports:

  • Dell PowerStore T appliances
  • Dell PowerStore Q appliances
NOTE: PowerStore systems must run PowerStoreOS version 3.0 or later.

Supported storage protocols

  • Fibre Channel (FC): FC provides low-latency block storage connectivity through dedicated storage fabrics.
  • iSCSI: iSCSI provides block storage connectivity over Ethernet networks using TCP/IP.

For more information, see Supported SAN solutions on Azure Local.

External SAN requirements

Lists requirements for Azure Local external SAN deployments.

Azure Local requirements for external SAN deployments

Lists the Azure Local requirements for integrating external SAN storage.

System requirements

To use external SAN storage with Azure Local, the environment must meet the following requirements:

  • Azure Local version 2604 or later
  • Fully deployed and operational Azure Local cluster
  • Multipath I/O (MPIO) enabled
  • High-bandwidth, low-latency connectivity between Azure Local nodes and the SAN array

Fibre Channel requirements for Azure Local external SAN deployments

Lists the Fibre Channel (FC) infrastructure and hardware requirements for connecting Azure Local to external SAN storage.

System requirements

To use FC connectivity with Azure Local, the environment must meet the following requirements:

  • Windows Server 2025-certified FC host bus adapters (HBAs) installed on all nodes
  • Certified and supported HBA drivers are installed on all nodes. For information about the supported component models, see Dell AX System for Azure Local Support Matrix.
  • Properly configured FC fabrics
  • Independent vSAN configured for each fabric
  • Dual-fabric deployment recommended for redundancy and high availability

iSCSI requirements for Azure Local external SAN deployments

Lists the networking and adapter requirements for connecting Azure Local to external SAN storage using iSCSI.

System requirements

To use iSCSI connectivity with Azure Local, the environment must meet the following requirements:

  • Dedicated physical network adapters for iSCSI traffic
  • Matching NIC firmware and driver versions are installed across all nodes. For information about the supported component models, see Dell AX System for Azure Local Support Matrix.
  • Consistent network adapter configuration on all nodes
  • Reliable, high-bandwidth, low-latency iSCSI network connectivity
  • Optional CHAP authentication for additional security

SAN array requirements for Azure Local external SAN deployments

Lists the storage array requirements for integrating external SAN storage with Azure Local.

System requirements

To use external SAN storage with Azure Local, the SAN array must meet the following requirements:

  • LUNs presented to all cluster nodes
  • NTFS-formatted volumes for Cluster Shared Volumes (CSVs)
  • Consistent MPIO configuration across all nodes
  • Dedicated LUNs assigned to individual Cluster Shared Volumes

Planning considerations for Azure Local external SAN deployments

Describes the planning activities that should be completed before integrating external SAN storage with an Azure Local cluster.

Overview

Proper planning helps ensure a successful external SAN integration and reduces deployment issues. Before connecting SAN storage to an Azure Local cluster, review storage, network, and infrastructure requirements.

Planning activities

Before integrating external SAN storage with Azure Local:

  • Verify cluster deployment: Ensure that the Azure Local cluster is fully deployed and operational.
  • Plan the storage architecture: Determine which workloads will use Storage Spaces Direct (S2D) storage and which workloads will use external SAN storage.
  • Assess SAN capacity: Verify that sufficient LUN capacity is available to meet workload requirements.
  • Review SAN documentation: Consult SAN vendor documentation for LUN creation, zoning, masking, and connectivity requirements.
  • Prepare network infrastructure: Verify that Fibre Channel or iSCSI networking is configured and operational.
  • Document WWNs or IQNs: Collect initiator identifiers that will be used for zoning and LUN masking configuration.

Configuration considerations for Azure Local external SAN deployments

Describes deployment and configuration considerations for integrating external SAN storage with Azure Local.

External SAN deployments require consistent configuration across all cluster nodes and supporting infrastructure. Review the following considerations before configuring SAN connectivity:

  • Delay Fibre Channel zoning until after deployment: Do not zone Fibre Channel host bus adapter (HBA) World Wide Names (WWNs) to the SAN array until Azure Local deployment is complete. This helps prevent deployment and discovery issues.
  • Use identical HBA configurations: Configure all cluster nodes with the same HBA model, firmware version, and driver version.
  • Maintain MPIO consistency: Apply identical MPIO settings across all cluster nodes.
  • Plan for node reboots: Changes to MPIO policies require a rolling reboot of all cluster nodes.

Configure Fibre Channel SAN connectivity for Azure Local

Describes how to connect an Azure Local cluster to external SAN storage using Fibre Channel.

Before you begin

Before configuring Fibre Channel connectivity, ensure that the following requirements are met:

  • Azure Local cluster is fully deployed and running version 2604 or later.
  • Fibre Channel host bus adapters (HBAs) are installed on all cluster nodes.
  • Fibre Channel fabrics are configured with independent VSANs.
  • SAN array is accessible on the FC fabric with management access configured.

Procedure

  1. Verify and enable Multipath I/O (MPIO).

    Verify that Multipath I/O (MPIO) is enabled on all cluster nodes.

    1. To enable the MPIO feature, run the following PowerShell command:
      Enable-WindowsOptionalFeature -Online -FeatureName MultipathIO
    2. To verify the MPIO status, run the following PowerShell command:
      Get-WindowsOptionalFeature -Online -FeatureName MultipathIO |
          Select-Object FeatureName, State, RestartNeeded
      If RestartNeeded returns True, perform a rolling reboot of all cluster nodes before proceeding.
  2. Collect Fibre Channel initiator identifiers.

    To collect the World Wide Port Names (WWPNs) from the FC HBAs of each node, run the following PowerShell command:

    Get-InitiatorPort | Where-Object ConnectionType -eq 'Fibre Channel' |
    Select-Object NodeAddress, PortAddress, ConnectionType | Format-Table -AutoSize
    Document the WWPN associated with each HBA port and provide the information to the SAN administrator.
  3. Configure SAN zoning and LUN masking.

    Work with the SAN administrator to complete the following tasks:

    1. Create Fibre Channel zones for each cluster node HBA port.
    2. Configure LUN masking to present required LUNs to all cluster nodes.
    3. Verify that zoning is active on all Fibre Channel switches.
    4. Create the required LUNs on the SAN array.
    5. Present the LUNs to all cluster nodes.
  4. Verify LUN visibility.

    To verify that all cluster nodes can access the presented LUNs, run the following PowerShell command:

    Get-PhysicalDisk

    Confirm that all expected LUNs report the following values:

    • Status: OK or Healthy
    • HealthStatus: Healthy
    • BusType: FC
    NOTE: Do not initialize the disks after they are presented to the cluster. The disks must remain in RAW format so that Azure Local can use them as Cluster Shared Volumes (CSVs).

Results

All cluster nodes can access the Fibre Channel SAN LUNs, and the storage is ready for CSV configuration.

Configure iSCSI SAN connectivity for Azure Local

Describes how to connect an Azure Local cluster to external SAN storage by using iSCSI.

Before you begin

Before configuring iSCSI connectivity, ensure that the following requirements are met:

  • Azure Local cluster is fully deployed and running version 2604 or later.
  • Dedicated physical network adapters are available for iSCSI traffic. Virtual network adapters (vNICs) are not supported.
  • Network adapter firmware and drivers comply with Azure Local hardware catalog requirements.
  • The iSCSI target array is accessible on the network with management access.

Procedure

  1. Enable the iSCSI Initiator service.

    To enable and start the Microsoft iSCSI Initiator service on each cluster node, run the following PowerShell command:

    Set-Service -Name MSiSCSI -StartupType Automatic
    Start-Service -Name MSiSCSI

    1. To verify the service status, run the following PowerShell command:
      Get-Service -Name MSiSCSI | Select-Object Name, Status, StartType

    The MSiSCSI service shows a Status of Running and a StartType of Automatic.

  2. Configure network adapters for iSCSI.

    To configure dedicated network adapters for iSCSI connectivity, assign a static IP address and disable DNS registration on each iSCSI adapter. Update the adapter name and IP address values to match the deployment requirements.

    $adapter = Get-NetAdapter | Where-Object Name -eq "Ethernet 3"
    New-NetIPAddress -IPAddress 100.68.120.11 -PrefixLength 25 -InterfaceIndex $adapter.ifindex
    Set-DnsClient -InterfaceIndex $adapter.ifindex -RegisterThisConnectionsAddress $false

    Repeat this step for each dedicated iSCSI adapter on every cluster node, incrementing the IP address for each node.

  3. Collect iSCSI initiator identifiers.

    To collect the iSCSI Qualified Name (IQN) from each cluster node, run the following PowerShell command:

    (Get-InitiatorPort | Where-Object ConnectionType -eq 'iSCSI').NodeAddress

    Document the IQN for each node and provide the information to the SAN administrator for host registration and LUN masking configuration.

  4. Configure iSCSI target portals.

    Configure iSCSI target portals for each available network path on every cluster node. Update the target and local IP address values to match the deployment environment.

    $TargetIP1 = "100.68.121.100"
    $TargetIP2 = "100.68.122.100"
    $LocalIP1 = Get-NetIPAddress -InterfaceIndex $adapter1.ifindex
    $LocalIP2 = Get-NetIPAddress -InterfaceIndex $adapter2.ifindex

    New-IscsiTargetPortal -TargetPortalAddress $TargetIP1 -InitiatorPortalAddress $LocalIP1.IPAddress[1]
    New-IscsiTargetPortal -TargetPortalAddress $TargetIP2 -InitiatorPortalAddress $LocalIP2.IPAddress[1]
  5. Connect to iSCSI targets.

    To connect to the discovered iSCSI targets and enable multipath connectivity, run the following PowerShell command:

    $targets = Get-IscsiTarget | Where-Object { $_.IsConnected -eq $false }

    foreach ($target in $targets) {
        Connect-IscsiTarget -NodeAddress $target.NodeAddress -TargetPortalAddress $TargetIP1 -InitiatorPortalAddress $LocalIP1.IPAddress[1] -IsPersistent $true -IsMultipathEnabled $true
        Connect-IscsiTarget -NodeAddress $target.NodeAddress -TargetPortalAddress $TargetIP2 -InitiatorPortalAddress $LocalIP2.IPAddress[1] -IsPersistent $true -IsMultipathEnabled $true
    }
  6. Verify LUN visibility.

    To verify that the presented LUNs are visible to the cluster nodes, run the following PowerShell command:

    Get-PhysicalDisk

    Confirm that all expected LUNs report the following values:

    • Status: OK or Healthy
    • HealthStatus: Healthy
    • BusType: iSCSI

Results

All cluster nodes can access the iSCSI SAN LUNs through the configured network paths, and the storage is ready for multipath validation and Cluster Shared Volume (CSV) configuration.

MPIO for Azure Local external SAN deployments

Explains the role of Multipath I/O (MPIO) in Azure Local external SAN deployments.

Overview

Multipath I/O (MPIO) provides redundancy and load balancing for SAN storage connections. MPIO must be configured consistently across all Azure Local cluster nodes.

To integrate MPIO with Azure Local external SAN deployments, complete the folowing:

  1. Review the default MPIO settings.
  2. Register the storage vendor with MPIO.
  3. Configure the MPIO load-balancing policy.
  4. Verify the MPIO configuration.

Default MPIO settings for Azure Local

Lists the default Multipath I/O (MPIO) settings included with Azure Local version 2604 and later.

Default MPIO settings for Azure Local version 2604 and later. The following table lists the default MPIO settings that Azure Local version 2604 and later applies to all cluster nodes. Review these values before making configuration changes to ensure that any customizations align with your storage array recommendations and operational requirements.
Setting Default value
PathVerificationState Enabled
PathVerificationPeriod 30
PDORemovePeriod 20
RetryCount 6
RetryInterval 3
CustomPathRecovery Disabled
CustomPathRecoveryTime 20
DiskTimeoutValue 60
Load Balance Policy Round Robin (RR)
NewDiskPolicy OfflineShared

Register storage vendor with MPIO

Describes how to register your storage vendor with Microsoft Device Specific Module (MSDSM) for MPIO management.

Before MPIO can manage storage array LUNs, your storage vendor must be registered with Microsoft Device Specific Module (MSDSM). Registering your storage vendor allows MPIO to claim and manage the storage devices presented to Azure Local.

Procedure

  1. Verify whether your storage vendor is already registered.

    To check whether the vendor and product combination is already registered with MSDSM for Dell PowerStore arrays, run the following PowerShell command:

    $MSDSMSupportedHW = Get-MSDSMSupportedHW | Where-Object {$_.VendorId -eq "DellEMC" -and $_.ProductId -eq "PowerStore"}

    If the command returns a result, the storage vendor is already registered with MSDSM and you can skip Step 2. If no result is returned, proceed to Step 2 to register the vendor.

  2. Register the storage vendor.

    To register the Dell PowerStore storage array with MSDSM if the vendor is not already registered, run the following PowerShell command:

    if (!$MSDSMSupportedHW) {
    	New-MSDSMSupportedHW -VendorId "DellEMC" -ProductId "PowerStore"

    The Dell PowerStore vendor and product identifier are registered with MSDSM on the cluster node. Repeat this step on all cluster nodes to ensure a consistent MPIO configuration.

Results

The Dell PowerStore storage array is registered with MSDSM, allowing MPIO to claim and manage the presented SAN LUNs.

Configure the MPIO load-balancing policy

Describes how to configure the MPIO load-balancing policy for SAN-connected storage.

MPIO uses a load-balancing policy to distribute I/O traffic across available storage paths. Configure the load-balancing policy on all Azure Local cluster nodes to ensure consistent path selection behavior.
Procedure
To set the MPIO load-balancing policy to Round Robin (RR), run the following PowerShell command:
Set-MSDSMGlobalDefaultLoadBalancePolicy -Policy RR
Results

MPIO uses the Round Robin load-balancing policy to distribute storage traffic across available paths on all cluster nodes.

Configure Dell PowerStore MPIO timers

Apply Dell PowerStore MPIO timer settings and perform the required rolling reboot on Azure Local cluster nodes.

After configuring the Dell PowerStore MPIO timer settings and the MPIO load-balancing policy, perform a rolling reboot of each cluster node to ensure that the configuration changes take effect.

Perform this procedure on one node at a time to maintain cluster availability.

Procedure
  1. Pause the node and move workloads to other cluster nodes before performing maintenance.
    For more information, see Pause and drain the server.
  2. To configure the Dell PowerStore specific MPIO timers, run the following command:
    Set-MPIOSetting -NewRetryCount 3 -CustomPathRecovery Enabled `
    -NewPathRecoveryInterval 10 -NewDiskTimeout 30
  3. Verify that the Dell PowerStore MPIO timer settings and load-balancing policy are correctly configured on the node.
    For more information, see Verify the configuration and reboot.
  4. To restart the node, run the following command:
    Restart-Computer -Force

    Wait for the node to restart and rejoin the cluster.

  5. Resume the node and restore normal cluster operations.
    For more information, see Resume the server .
  6. Wait for storage resynchronization to complete before proceeding to the next node.
    For more information, see Wait for storage to resync.
Results

The Dell PowerStore MPIO timer settings and load-balancing policy are applied consistently across all cluster nodes, and storage is synchronized and healthy before workloads resume.

Verify the MPIO configuration

Describes how to verify MPIO devices, path availability, and load-balancing configuration on Azure Local nodes.

After configuring MPIO, verify that all SAN LUNs are claimed by MPIO, multiple storage paths are available, and the configured load-balancing policy is applied consistently across all cluster nodes.

Procedure
  1. Verify that MPIO devices are detected.

    To list all storage devices managed by MPIO, run the following command:

    Get-MPIOAvailableHW

    Review the output to confirm that the expected storage devices are available for MPIO management.

  2. Verify MPIO paths.

    To display path information for each SAN LUN, run the following command

    Get-MSDSMPathInfo

    Review the output to confirm that each LUN has multiple active paths.

  3. Verify SAN disk health.

    To check the health and operational status of all SAN-connected disks, run the following command:

    # Verify all LUNs have multiple paths
    Get-PhysicalDisk | Format-Table FriendlyName, BusType, OperationalStatus, HealthStatus

    Verify that:

    • The expected SAN disks are visible.
    • The disk health status is Healthy.
    • The operational status indicates normal operation.
  4. Verify path status and load-balancing policy.

    To verify path state and load-balancing configuration, run the following command:

    Get-MSDSMPathInfo | Format-Table PathId, DiskNumber, State, LoadBalancePolicy

    Review the output to confirm that:

    • All expected paths are available.
    • Path states are healthy.
    • The configured load-balancing policy is applied to all SAN LUNs.
Results

MPIO devices, storage paths, SAN disks, and load-balancing policies are verified and operating as expected.

Post-deployment verification for Azure Local external SAN deployments

Explains the validation and monitoring activities that should be performed after integrating external SAN storage with Azure Local.

After configuring external SAN connectivity, verify that the SAN LUNs are visible to all cluster nodes, that Multipath I/O (MPIO) is operating correctly, and that storage paths remain healthy during normal cluster operations.

Complete the following activities after configuring Fibre Channel or iSCSI SAN connectivity:

  1. Verify SAN connectivity.
  2. Verify MPIO path availability for SAN storage.
  3. Monitor SAN path health and cluster status.

Verify SAN connectivity for Azure Local external SAN deployments

Describes how to verify that all Azure Local cluster nodes can access the SAN LUNs presented by the storage array.

Before using external SAN storage for workloads, verify that all cluster nodes can detect and access the presented SAN LUNs.

Procedure

  1. On each cluster node, run the following command:
    Get-PhysicalDisk
  2. Verify the disk status.

    Review the output and confirm that all expected SAN LUNs report the following values:

    • Status: OK or Healthy
    • HealthStatus: Healthy
    • BusType: FC (Fibre Channel) or iSCSI
  3. Verify disk consistency across all nodes.

    Confirm that the same number of SAN disks is visible on every cluster node.

Results

All cluster nodes can access the expected SAN LUNs, and the presented storage is healthy and available for workload use.

Verify MPIO path availability for SAN storage

Describes how to verify that SAN LUNs are accessible through multiple active MPIO paths on Azure Local cluster nodes.

After configuring Multipath I/O (MPIO), verify that each SAN LUN has multiple active paths and that path failover protection is functioning as expected.

Procedure

  1. To verify the number of paths per LUN, run the following command:
    Get-MSDSMPathInfo | Group-Object DiskNumber | Select-Object Name, Count

    Review the output to confirm that each SAN LUN is associated with multiple paths.

  2. To verify that all paths are active, run the following command:
    Get-MSDSMPathInfo | Where-Object {$_.State -ne "Active"} | Format-Table

    Review the output for inactive or failed paths.

  3. Investigate inactive paths.

    If inactive paths are detected, work with the SAN administrator to identify and resolve zoning, masking, connectivity, or storage path issues.

Results

All SAN LUNs are accessible through multiple active MPIO paths, providing redundancy and load balancing for storage traffic.

Monitor SAN path health for Azure Local external SAN deployments

Describes how to monitor SAN path health, failover events, and cluster health in an Azure Local external SAN environment.

After configuring SAN connectivity and MPIO, regularly monitor storage paths to identify path failures, failover events, and cluster health issues before they affect workload availability.

Procedure

  1. Review MPIO-related events:
    1. To review MPIO-releated events, select Event Viewer > Windows Logs > System.
    2. Look for events generated by the mpio event source.
  2. Monitor storage performance.

    Click Performance Monitor to:

    • Track disk I/O performance metrics.
    • Monitor path failover events.
    • Monitor path recovery events.
  3. Verify cluster health.

    To verify cluster health, run the following command:

    Get-ClusterResource
    Get-ClusterNode | Select-Object Name, State

Results

SAN path health, failover activity, storage performance, and cluster health are monitored and operating as expected.

Create and use external SAN storage in Azure Local

Explains how to provision external SAN storage and make it available for Azure Local workloads.

After verifying SAN connectivity and Multipath I/O (MPIO) configuration, you can provision external SAN storage for Azure Local workloads. Using SAN-backed Cluster Shared Volumes allows virtual machines and applications to consume external SAN storage while remaining highly available across the cluster.

To provision and use external SAN storage:

  1. Create Cluster Shared Volumes from SAN LUNs.
  2. Configure workload storage paths on SAN-backed Cluster Shared Volumes.

Create Cluster Shared Volumes from SAN LUNs

Describes how to create Cluster Shared Volumes (CSVs) from SAN-provided LUNs.

After verifying SAN connectivity and MPIO configuration, create Cluster Shared Volumes from the SAN LUNs before using the storage for workloads.

Procedure

  1. To initialize the SAN LUNs, run the following command:
    Get-PhysicalDisk | Where-Object {$_.BusType -eq "FC" -or $_.BusType -eq "iSCSI"} | Initialize-Disk
  2. To create a partition and format the volume with NTFS, run the following command:
    New-Partition -DiskNumber <disk_number> -UseMaximumSize -AssignDriveLetter
    Format-Volume -DriveLetter <drive_letter> -FileSystem NTFS -NewFileSystemLabel "SAN-CSV-01"
  3. To add the volume to Cluster Shared Volumes, run the following command:
    Add-ClusterSharedVolume -Name "Cluster Disk X"

Results

The SAN LUN is available as a Cluster Shared Volume and can be used by Azure Local workloads.

Configure workload storage paths on SAN-backed Cluster Shared Volumes

Describes how to configure workload storage locations on SAN-backed Cluster Shared Volumes.

After creating Cluster Shared Volumes, configure workload storage locations so that virtual machines and applications use SAN-backed storage.

Procedure

  1. Log in to the Azure portal and go to your Azure Local cluster resource.
  2. Select Settings > Storage path.
  3. Select + Add storage path.
  4. Enter the Cluster Shared Volume path. For example:
    C:\ClusterStorage\Volume1
  5. Confirm and save.
  6. Repeat for each SAN CSV.

Results

Virtual machines and applications store data on SAN-backed Cluster Shared Volumes.

Troubleshoot Azure Local external SAN deployments

Provides troubleshooting guidance for common issues encountered when integrating external SAN storage with Azure Local.

External SAN storage integration issues typically involve storage path visibility, LUN presentation, or multipath failover. When troubleshooting SAN connectivity, verify storage connectivity, MPIO configuration, zoning, masking, and hardware health.

Troubleshoot MPIO paths not visible

Describes how to diagnose and resolve issues where MPIO paths are not visible or are not functioning correctly.

Use the following steps when you observe any of these symptoms:

  • SAN LUNs are visible, but expected MPIO paths are missing.
  • Storage devices do not appear to be managed by MPIO.
  • Storage path redundancy is unavailable.

Procedure

  1. Verify HBA drivers.

    To verify that FC or iSCSI drivers are installed and current, run the following command:

    Get-CimInstance -ClassName Win32_PnpSignedDriver | Where-Object {$_.DeviceName -like "*Fibre Channel*" -or $_.DeviceName -like "*iSCSI*"}
  2. Verify Fibre Channel zoning.

    Confirm that Fibre Channel zoning is configured correctly and active on all switches.

  3. Verify MPIO device claiming.

    To check MPIO automatic claim settings, run the following command:

    Get-MSDSMAutomaticClaimSettings
  4. Verify LUN visibility.

    To confirm that the SAN LUNs are visible, run the following command:

    Get-PhysicalDisk -CanPool $true
  5. Review Windows Event Viewer for MPIO-related errors and warnings.

Results

MPIO paths are visible and operating correctly.

Troubleshoot SAN LUN masking issues

Describes how to diagnose and resolve SAN LUN masking issues that prevent LUN visibility across cluster nodes.

Use the following steps when you observe any of these symptoms:

  • SAN LUNs are visible on some nodes but not others.
  • Newly presented LUNs do not appear on cluster nodes.
  • Inconsistent storage visibility across the cluster.

Procedure

  1. Verify SAN LUN masking.

    Confirm that the SAN array masking configuration is correct.

  2. Verify initiator identifiers.

    Confirm that all node WWPNs or IQNs are included in the masking configuration.

  3. Verify Fibre Channel zoning.

    Verify that Fibre Channel zoning includes all cluster node HBA ports.

  4. Check switch restrictions.

    Review Fibre Channel switches for port-level zoning restrictions.

  5. Review vendor documentation.

    Consult SAN vendor documentation for array-specific LUN masking requirements and procedures.

Results

All SAN LUNs are visible to all cluster nodes.

Troubleshoot SAN path failover issues

Describes how to diagnose and resolve SAN storage path failover issues.

Use the following steps when you observe any of these symptoms:

  • Storage traffic does not fail over to alternate paths.
  • MPIO path recovery does not occur.
  • Storage connectivity is lost during path failures.

Procedure

  1. Verify MPIO configuration.

    Confirm that MPIO is enabled on all cluster nodes.

  2. Verify policy consistency.

    Confirm that identical MPIO policies are configured across all cluster nodes.

  3. Verify HBA firmware.

    Verify that HBA firmware versions are current and supported.

  4. Verify hardware health.

    Inspect Fibre Channel or iSCSI adapters, ports, and cables for hardware issues.

  5. Review SAN logs.

    Review SAN array logs for connectivity, path, or controller-related issues.

  6. Review vendor documentation.

    Consult vendor-specific MPIO guidance for the storage platform.

Results

Storage paths fail over and recover correctly when path failures occur.

Deploy Azure Local using Local Identity with Azure Key Vault

This chapter describes the additional requirements, configuration differences, and deployment considerations for deploying an Azure Local instance using Local Identity with Azure Key Vault (also known as AD‑less deployment).

This chapter does not replace the standard Azure Local deployment workflow. Unless explicitly stated otherwise, all deployment steps follow the procedures that are described in:

  • Chapter 3: Solution Deployment
  • Chapter 4: Deploying Azure Local Instance with Azure Stack HCI OS, version 24H2 or later

About Local Identity with Azure Key Vault

Overview

Azure Local can be deployed without Active Directory by using a local identity model with Azure Key Vault, previously known as AD-less deployment. This deployment option is available starting with Azure Local version 2411 and later.

In a local identity deployment:

  • A dedicated local administrator account is used on each machine.
  • Certificate‑based authentication is configured cluster‑wide.
  • Azure Key Vault is used to securely back up secrets such as BitLocker keys and other critical configuration data that is required for secure cluster operation.

Benefits of local identity with Azure Key Vault (without Active Directory)

  • Minimal edge infrastructure: Enables secure identity and secret handling in environments that do not use Active Directory.
  • Secure secret store: Azure Key Vault stores sensitive items such as BitLocker keys and node passwords, reducing the risk of unauthorized access and improving overall security.
  • Simplified management: Consolidates deployment and local identity secrets in a single vault, making them easier to manage and retrieve.
  • Simplified deployment: Azure portal workflows store required secrets in Azure Key Vault, reducing reliance on Active Directory and helping simplify Operational Technology network firewall configurations.

Most deployment steps are identical for Active Directory–based Azure Local deployments and deployments that use local identity with Azure Key Vault. For more information, see Deploy Azure Local using local identity with Azure Key Vault.

Key differences from Active Directory–based deployments

Key differences between Active Directory–based and Local Identity–based Azure Local deployments. The following table summarizes the functional differences between Active Directory–based and Local Identity–based Azure Local deployments
Area Active Directory deployment Local Identity deployment
Identity provider Active Directory Local administrator account
Authentication AD objects Certificate‑based authentication
Secret storage Cluster and AD Azure Key Vault
Domain join Required Not supported
AD preparation Required Not applicable

Deployment prerequisites for Azure Local deployment using local identity

Dell Technologies assumes that the management services that are required for the operating system deployment and Azure Local instance configuration are in the existing infrastructure where the instance is deployed.

For more information, see Prerequisites for cluster deployment using local identity.

The following table describes the management services:

Management services. Management services
Management service Purpose Required or optional
Domain Name System Name resolution Required
DNS suffix Enables workgroup cluster nodes to communicate using fully qualified domain names. Required
Azure Deploy and manage Required
Static IP addresses for management Assign IP addresses to hosts before and after host configuration using Network ATC Required
New local non–built‑in user in the local Administrators group Administrative user account for deployment and management Required

Prepare Azure Local machines for Local Identity

Before deploying AX nodes, complete the required predeployment configuration tasks.

Perform all machine preparation procedures described in Chapter 3: Solution Deployment, including:

  • Host network configuration
  • Hostname configuration
  • Node preparation configuration

These procedures are identical for Active Directory and Local Identity deployments.

Local identity-specific machine configuration procedures

Create DNS A records for hosts and cluster

Create DNS A records for the hosts and cluster to enable name resolution for individual machines and the cluster name object (CNO).

For more information, see Configure DNS server for Azure Local.

Procedure

  1. Create a DNS A record for each machine.
  2. Create a DNS A record for the cluster name (CNO).
  3. (Optional) Create PTR records.

Create a local user and add to the local Administrators group

Create a dedicated local administrative user on each Azure Local node for deployment and cluster management operations.

Before you begin

  • Azure Local deployments that use local identity require a non built-in local administrator account. This account is used for cluster-wide management operations, such as adding or repairing nodes, and must be consistent across all nodes in the Azure Local instance.
    NOTE: You are responsible for life cycle management of this account, including expiration, rotation, and security. The default local policy sets a maximum password age of 42 days. ​This can be modified using PowerShell or by changing the underlying password policy configuration.
  • Use the same username and password on all machines. The password must meet Azure complexity requirements and include at least 14 characters with a combination of lowercase letters, uppercase letters, numbers, and special characters.

Procedure

On each Azure Local node, create a new local user account, and update the $AdminUser value accordingly.
NOTE: Do not use the built-in Administrator account.
# Create new dedicated user

$AdminUser = '<DedicatedAdminUser>'
# Sample data:
# $AdminUser = 'adless-admin'
$Credentials = Get-Credential -UserName $AdminUser -Message 'Enter password:'
$Description = 'Local AD-less user'
New-LocalUser -Name $AdminUser -Password $Credentials.Password -FullName $AdminUser -Description $Description

# Add user to local admin group
Add-LocalGroupMember -Group 'Administrators' -Member $AdminUser

# Optional: Validate the new user account
Get-LocalGroupMember -Group administrators
# The output should include the user account specified by $AdminUser.
# If it is not listed, the account was not created or added successfully.

Deploy the Azure Local instance using local identity with Azure Key Vault

You can deploy an Azure Local instance in the following ways:

  • Azure portal deployment without ARM templates, which only uses the UI in the Azure portal to deploy an Azure Local instance. For more information, see Deploy an Azure Local instance using the Azure portal.
  • Manual ARM Template deployment, which allows you to manually create an ARM template (JSON file) and deploy it using Azure CLI, PowerShell, or REST APIs. For more information, see: Deploy Azure Local via Azure Resource Manager deployment template.
  • Azure portal deployment with Quickstart Template (template deployment), which uses the UI in the Azure portal to deploy ARM templates. This method is not documented in this guide.

Deploy Azure Local Instance using Azure portal

The Azure portal wizard guides you through steps to create an Azure Local instance.

You can use the wizard to define all instance‑level and machine‑level configuration settings. The wizard guides you through the following windows:

  1. Basics
  2. Configuration
  3. Networking
  4. Management
  5. Security
  6. Advanced
  7. Tags (optional)
  8. Validation
  9. Review and create

To create an Azure Local instance:

  1. To start the wizard from Home > Azure Local, select Deploy Azure Local.
  2. Under Get Started, in Deploy Azure Local, select Create instance.
  3. Specify the Subscription name, Resource group, and Instance name.

    Instance name = Cluster Name Object (CNO)

  4. For Cluster options, select either Standard or Rack aware.
  5. For Identity provider, select Local identity with Azure Key Vault.
  6. Select the machines to be added to the Azure local Instance. Click Add machines.

    The required extensions are automatically installed during this step.

  7. When the extensions are installed and the status shows as Ready, click Validate selected machines.
  8. To create a new key vault, enter a Key vault name, and then click Create a new key vault.
    NOTE:
    • If a previously created key vault for a decommissioned instance with the same name exists, you must first delete and purge the old key vault before creating one.
    • Azure Local does not support deploying a cluster by using an existing Azure key vault that has private endpoints enabled.

    "Create a new key vault" window with details of key vault

    Create a new key vault

  9. To go to the next window, click Next: Configuration.
  10. In the Configuration window, enter details about the instance.
  11. To go to the next window, click Next: Networking, shown in the following figure.
    Deployment wizard - networking window with details to be selected or entered

    Deployment wizard - Networking window

  12. In the Networking window, for Storage connectivity, choose whether you use a network switch for the storage network.
  13. Under Group network traffic types by intent, based on your network topology, select the Networking pattern. For a single- machine instance, Dell Technologies recommends that you select Group Management and Compute (no storage).

    The following table shows the Quality of Service (QoS) flow priorities for each network type:

    QoS priorities for network intents. The table shows the QoS flow priorities that are based on traffic class for each network type.
    Traffic class Purpose QoS flow ETS bandwidth allocation
    3 RDMA (SMB Direct) Enabled 50 percent
    7 Cluster network Disabled
    • 10 GbE equals 2 percent
    • Greater than 25 GbE equals 1 percent
    0-2, 4-6 0 - Best-effort traffic Disabled Remaining percentage distributed across the traffic classes
  14. Under Provide intent details, for management-network-intent creation, select the network adapters.
  15. Under Allocate IP addresses to the system and services, provide the required details as shown in the following figure.
    Allocate IP addresses

    Allocate IP addresses

  16. Under Compute_Management, to update information such as network intent, data center bridging, and adapter properties including Jumbo Frame size and RDMA protocol, click Customize network settings.
    NOTE:  For management network intents, RDMA must be disabled, as shown in the following figure.
    customize the network values and disable the RDMA for management network intents

    Customize network values window with disabled RDMA protocol

    NOTE: Microsoft recommends that you set System Traffic Priority to 7 for new cluster deployments. A priority value of 5 is also supported and acceptable. Ensure that the QoS settings on the top‑of‑rack (ToR) switches match the QoS settings that are configured in the host operating system.

    For more information about this step, see Specify network settings.

  17. Under Management shown in the following figure, to identify this system when creating resources, enter the Custom location name.
    Management window with details

    Management window

  18. Continue to specify Local Administrator details. Use the same account that was created earlier. See Create a local user and add to the local Administrators group. Do not use the built-in Administrator account.
  19. Click Next: Security.
  20. Under Security shown in the following figure, Dell Technologies and Microsoft recommends that you choose Recommended security settings, which offers the highest level of security settings.
    deployment wizard security window with recommended security settings selected

    Deployment wizard - Security window

  21. Click Next: Advanced.
  22. Under Advanced, choose Create workload volumes and required infrastructure volumes.

    For more information, see Optionally change advanced settings and apply tags.

  23. Click Next: Tags.
  24. Under Tags, enter tag information (optional).
  25. Click Next: Validation.
  26. Under Validation, click Start validation, as shown in the following figure.

    Validation of system readiness

    Validation of system readiness

    For more information, see Validate the system.

    The system creates a resource object and its components for the instance. The validation process typically completes within 15 minutes for a single-server deployment, though it may take longer depending on system conditions or environmental factors. This process assesses the system readiness for cluster deployment.

  27. Click Next: Review + create.
  28. The Review + create window shows the configuration information that you entered or selected in the previous steps for creating the instance. To return to a previous step to change any settings, click Previous.
  29. To start the instance creation process, review and confirm your settings, and then click Create .

    When the deployment is complete, all tasks display a status of Success.

    validation of deployment of an instance when all tasks have a success status

    Validation of deployment creation success

  30. To access your Azure Local instance remotely, enable Remote Desktop Protocol (RDP).

    For more information about deploying an instance, see Deploy Azure Local using the Azure portal.

    For more information about enabling RDP, see Enable RDP.

Deploy an Azure Local instance using the Microsoft ARM template

Deploy an Azure Local instance using the Microsoft Azure Resource Manager (ARM) template.

Before you begin

Before using the Microsoft Azure Resource Manager (ARM) template to deploy an Azure Local instance, you must complete the prerequisite procedures. Procedures are correct at publication but are subject to change without notice. For the most current details, see Deploy Azure Local via Azure Resource Manager deployment template > Prerequisites.

For more information about creating a service principal, service secret, and client secret for Azure Local release 2507 onwards, see Deploy Azure Local via Azure Resource Manager deployment template.

To deploy an Azure Local instance using the ARM template, do the following:

NOTE: Procedures are correct at publication but are subject to change without notice. For the most up-to-date details, see Deploy an Azure Local via Azure Resource Manager deployment template.

Procedure

  1. In the Azure portal, go to Home, and then click Create a Resource.
  2. Under Template deployment (deploy using custom templates) , click Create.
  3. From the Start with a quickstart template or template spec, select Quickstart template as the template source.
    Select the adless quickstart template

    Custom deployment window > Select a template

  4. From the Quickstart template (disclaimer) list, select the Azure Local AD‑less cluster template, quickstarts/microsoft.azurestackhci/create-adless-cluster-external-dns-public-preview, and then click Select template.
  5. On the Basics tab, select the resource group where the Arc-enabled servers are registered for the deployment.
  6. Select Region, and then, in Deployment Mode, select Validate.
  7. Enter the Key Vault Name and Cluster Name.
  8. Enter the Local Admin credentials.
  9. Enter the following data from information collected in the previous steps:
    1. Arb Deployment App ID
    2. Arb Deployment App Secret
    3. Arb Deployment SPN Object ID
    4. Azure Stack HCI Resource Provider Object ID
  10. To collect Arc Machine Resource IDs, run (Get-AzConnectedMachine -ResourceGroupName "<your-resource-group>").Id on one of the machines. Enter the details in Arc Machine Resource IDs.
  11. Enter the following:
    1. Subnet Mask
    2. Default gateway
    3. Starting IP address
    4. Ending IP address
    5. DNS Servers IP
    NOTE: Azure Local deployment requires six IP addresses for the system and services.
  12. Under Physical Nodes Settings, enter the Hostname and IP addresses for the machines, for example:
    [{"name":"YourHostName","ipv4Address":"172.18.30.1"}
  13. Under Networking type, select SingleServerDeployment.
  14. Under Networking Pattern, choose Select ConvergedManagementCompute to Group management and compute traffic.
  15. Set Storage Connectivity Switchless to:
    • True for switchless networking
    • False for switched networking
  16. Click Edit Parameters.
    NOTE: For an example of a parameter file that shows the format of various inputs, see azuredeploy.parameters.json on GitHub.
  17. Edit Network intent details based on the network topology that you are using for the deployment.
    The following table shows the Quality of Service (QoS) flow priorities for each network type:
    QoS priorities for network intents. The table shows the QoS flow priorities that are based on traffic class for each network type.
    Traffic class Purpose QoS flow ETS bandwidth allocation
    3 RDMA (SMB Direct) Enabled 50 percent
    7 Cluster network Disabled
    • 10 GbE equals 2 percent
    • Greater than 25 GbE equals 1 percent
    0-2, 4-6 0 - Best-effort traffic Disabled Remaining percentage distributed across the traffic classes
    The following script shows an example from the ARM template and demonstrates how the Local Identity (with Azure Key Vault) deployment differs from the Active Directory deployment. The configuration that is shown corresponds to one of the possible network patterns “convergedManagementCompute.”

    For readability, unrelated sections are not shown and are marked with dots (....).

    For more information, see Full Azure Local/Azure Stack HCI 'create-cluster' template and parameter examples that are published in the Azure Quickstart Templates GitHub repository.

    …………………..
    "parameters": {
            "apiVersion": {
                "value": "2025-09-15-preview"
            }
    …………………..

     "identityProvider": {
                "value": "LocalIdentity"
            },
    …………………..

     "dnsZones": {
                "value": [
                    {
                        "dnsZoneName": "MyDNSserver.local.net",
                        "dnsForwarder": []
                    }
                ]
            },
            "dnsServerConfig": {
                "value": "YourDnsServer"
            },
    …………………..
           "intentList": {
                "value": [
                    {
                        "name": "Compute_Management",
                        "trafficType": [
                            "Management",
                            "Compute"
                        ],
                        "adapter": [
                            "Integrated NIC 1 Port 1-1",
                            "Integrated NIC 1 Port 2-1"
                        ],
                        "overrideVirtualSwitchConfiguration": false,
                        "virtualSwitchConfigurationOverrides": {
                            "enableIov": "",
                            "loadBalancingAlgorithm": ""
                        },
                        "overrideQosPolicy": true,
                        "qosPolicyOverrides": {
                            "priorityValue8021Action_Cluster": "5",
                            "priorityValue8021Action_SMB": "3",
                            "bandwidthPercentage_SMB": "50"
                        },
                        "overrideAdapterProperty": true,
                        "adapterPropertyOverrides": {
                            "jumboPacket": "1514",
                            "networkDirect": "Disabled",
                            "networkDirectTechnology": ""
                        }
                    }
  18. Save the parameters file. Leave all remaining parameters set to their default values.
  19. Select Review + create, and then click Create.
    This step validates the deployment and creates the prerequisites that are required for the deployment.
  20. When validation is complete, click Redeploy.
  21. Select Edit parameters, load the parameter JSON file, and then click Save.
  22. Select the Resource Group.
  23. Change Deployment Mode from Validate to Deploy.
  24. To begin the deployment, select Review + create, and then click Create.
  25. To check the deployment progress, do the following:
    1. Open a new browser window, go to the resource group, and then click the cluster resource.
    2. Go to Settings > Deployment, and then click Refresh .
      NOTE: Deployment takes between 2.5 and 3 hours.

Post-deployment tasks

Perform necessary post-deployment tasks including verifying BitLocker keys in Azure Key Vault, updating configurations, recovering deleted Key Vaults, and monitoring Key Vault integration health.

Management tool compatibility for Azure Local with Azure Key Vault

Management tooling support varies across the Azure Local ecosystem for environments that use Azure Key Vault for identity management.

Management tools

The following table provides the management tools that are supported for Azure Local environments that use Azure Key Vault for identity management:

Management tools. Table lists the management tools compatibility for Azure environments that use Azure Key Vault for identity management.
Category Tools Notes
Supported
  • PowerShell
  • Azure Monitor
  • Azure portal
Fully supported for typical management and monitoring workflows.
Unsupported/Limited support
  • Windows Admin Center
  • System Center Virtual Machine Manager (SCVMM)
Not supported or only partially supported - avoid relying on these as primary management tools.
Mixed compatibility Microsoft Management Consoles (MMCs)
  • Compatibility varies by scenario.
  • Some MMC tools such as Hyper-V Manager, and Failover Cluster Manager may not work in all the scenarios.
  • Test critical workflows before using MMCs in production.

Post-deployment Updates and Maintenance

Post-deployment best practices

Dell Technologies recommends that you follow the guidelines that are described in this section.

Antivirus exclusions

As part of best practices, Dell Technologies and Microsoft recommend that you plan appropriate antivirus exclusions.

Azure Local instance machines by default are deployed and configured with security features including Microsoft Defender Antivirus.

If you prefer to use non-Microsoft antivirus and security software, Dell Technologies and Microsoft recommend that your vendor has validated your preferred software for Azure Local.

Follow the guidance and antivirus exclusions on Security features for Azure Local.

CAUTION: If your antivirus software is not cluster-aware, see Antivirus software that isn't cluster-aware may cause problems with Cluster Services.

Suspend and resume a cluster node

Before you begin

Ensure the following:
  • You have local administrator privileges to access the cluster node
  • Cluster node is running Azure Local version 2311.2 or later
  • Client used to connect to Azure Local has PowerShell installed
  • Suspend or resume the cluster node in Windows Failover Clustering
NOTE: Verify the health status of the cluster and volumes before and after the process using the relevant PowerShell commands.
To suspend and then resume a cluster node for maintenance, do the following:

Procedure

Suspend node

  1. Log in to a node on the cluster with local administrator credentials.
  2. To stop the virtual machines and suspend the node, run the following command as an administrator:
    Suspend-ClusterNode -Name "<MachineName>" -Drain
    This step may take some time, depending on the number of virtual machines that are migrated.
  3. To confirm the node is suspended, run the following command:
    Get-ClusterNode

Resume node

  1. Log in to a node on the cluster with local administrator credentials.
  2. To resume the node, run the following command as an administrator:
    Resume-ClusterNode -Name "<machineName>" -failback immediately
    This step may take some time, depending on the number of virtual machines that are migrated.
  3. To confirm the node is resumed, run the following command:
    Get-ClusterNode
  4. To verify the health of the storage pool, run the following command:
    Get-StoragePool -FriendlyName "<StoragePoolName>"
    NOTE: If the pool is not reported as healthy, to check the status of the storage repair jobs, run the following command:
    Get-StorageJob

Results

For more information, see Suspend and resume Azure Local machines for maintenance.

Update Azure Local instances using SBE package

Download Connector

Download Connector is a component in the Solution Builder Extension (SBE) package that automates the download of new SBE bundles as they become available for your Azure Local instance.

When an SBE that includes the Download Connector is installed on your instance, manual downloading and importing of subsequent versions is no longer required. The update service automatically retrieves the next available SBE, similar to how solution updates are handled.

Download Connector is part of SBE version 4.1.2505.1501 and later. These versions also feature system and update health checks that proactively verify connectivity to the required remote resource before downloading the next SBE. System health checks run daily, while update health checks occur at the beginning of the update process.

Download Connector firewall requirements

The Solution Builder Extension (SBE) Download Connector requires outbound Internet access to retrieve update bundles and catalogs.

The SBE Download Connector that runs on the Azure Local instance must periodically connect to Internet resources to enable Download Connector to download SBE bundles for your instance. The following table lists the outbound connectivity that is required:

Outbound connectivity for SBE Download Connector. Outbound connectivity details for SBE Download Connector
Endpoint description Endpoint URL Port
SBE bundle download dl.dell.com/* 443
SBE download catalog downloads.dell.com/filestore/Prod/SbeDownloadCatalog/AX_SBE_Download_Catalog.xml 443
SBE download catalog redirection aka.ms/DellAzureLocalSBEDownloadCatalog 443
Digicert Certificate Revocation Status http://crl3.digicert.com/* 80
Digicert Certificate Revocation Status http://crl4.digicert.com/* 80

For more information about SBE packages with Download Connector capability and installation procedure, see Solution Builder Extensions for Azure Local - Integrated System AX Server Release Notes.

SBE package update prerequisites

You can apply solution updates to your Azure Local instance using the Dell Solutions Builder Extensions (SBE) package. You can update your instance either by:

  • Downloading offline solution updates
  • Discovering online solution updates and then applying the updates

You must ensure that:

  • You have a functioning Azure Local instance with Azure Stack HCI operating system, version 24H2. The instance is registered to Azure.
  • You have access to the online solution update package or offline solution update package download.

You can do these updates either by:

  • Using PowerShell
  • Using Azure Update Manager service from the Azure portal
NOTE: You must run the Get-SolutionUpdateEnvironment PowerShell command. If the SBE package (latest version is 4.0.0.0) is only partially installed, complete the installation by following the procedures that are outlined in Download Connector – Automated download of future SBE release > Installation in the Azure Local Dell Solution Builder Extensions Release Notes (Dell 2512) on GitHub.

Update SBE package using PowerShell (online)

The process for updating the SBE package using PowerShell in online mode can be used for both multi-machine or single-machine Azure Local instances.

To perform an online solution update, do the following:
Procedure
  1. Depending on your deployment configuration, ensure that your Azure Local instance single-machine has or your multi-machines have good Internet connectivity.
  2. To verify that the update service discovers the solution update, run the following command:
    Get-SolutionUpdate | Format-Table DisplayName, State
  3. To install the solution update, run the following command:
    Get-SolutionUpdate | Start-SolutionUpdate

Updating SBE package using PowerShell (offline)

The process for updating the SBE package using PowerShell in offline mode can be used for both multi-machine or single-machine Azure Local instances.

CAUTION: Before proceeding, verify that sufficient space is available on the selected Cluster Shared Volume (CSV).

To do an offline solution update, follow the steps that are described in Azure Local Dell Solution Builder Extensions Release Notes > Installation

Update SBE package using Azure portal

Azure Update Manager allows you to apply, view, and manage updates for your cluster node (also known as Azure Local instance machine).

Before the updates start, Azure Update Manager checks the cluster readiness and lists available updates. You can also monitor the status of the updates that are being applied.

To identify and install updates, do the following:

Procedure
  1. Go to Azure Update Manager. In the left panel, under Resources, click Azure Local.
    Alternatively, you can perform the procedure by going to Azure Arc > Azure Local, and then clicking Azure Local ClusterUpdates.
  2. Select the cluster from the list, and then click One-time update.
    The Install Updates window appears and lists available updates.

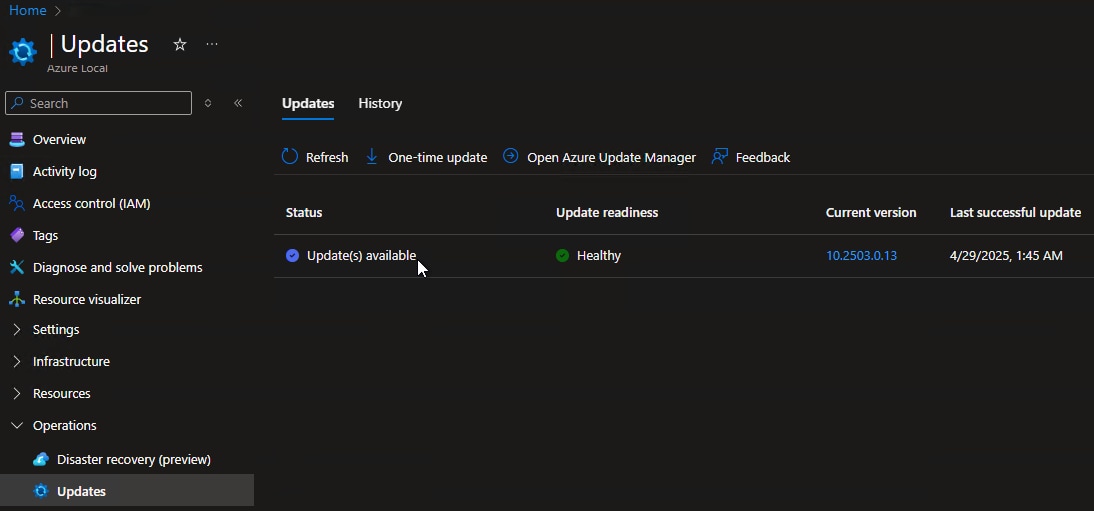

    Results of running one-time update, which are listed in the Updates window

    Updates window

  3. On the Check readiness tab, review the checks and their results. When verified, click Next.
  4. On the Select updates tab, select the available update or updates that you want to install, and then click Next.
  5. On the Review + install tab, verify the previously selected options, and then click Install.
  6. To monitor the update progress, go to Azure Update Manager > Resources > Azure Local. Select your Azure Local Instance. In the left panel, under Operations > Updates, select History.
    The cluster with the updated status appears.
  7. To review updated status details for one or more Azure Local instances:
    1. Find and select the update in the list with an Update status of In progress.
    2. Review the results in the Download updates tab, and then click Next.
    3. From the Install tab, review the updates in progress. When the updates are complete, you see results similar to the following figure:

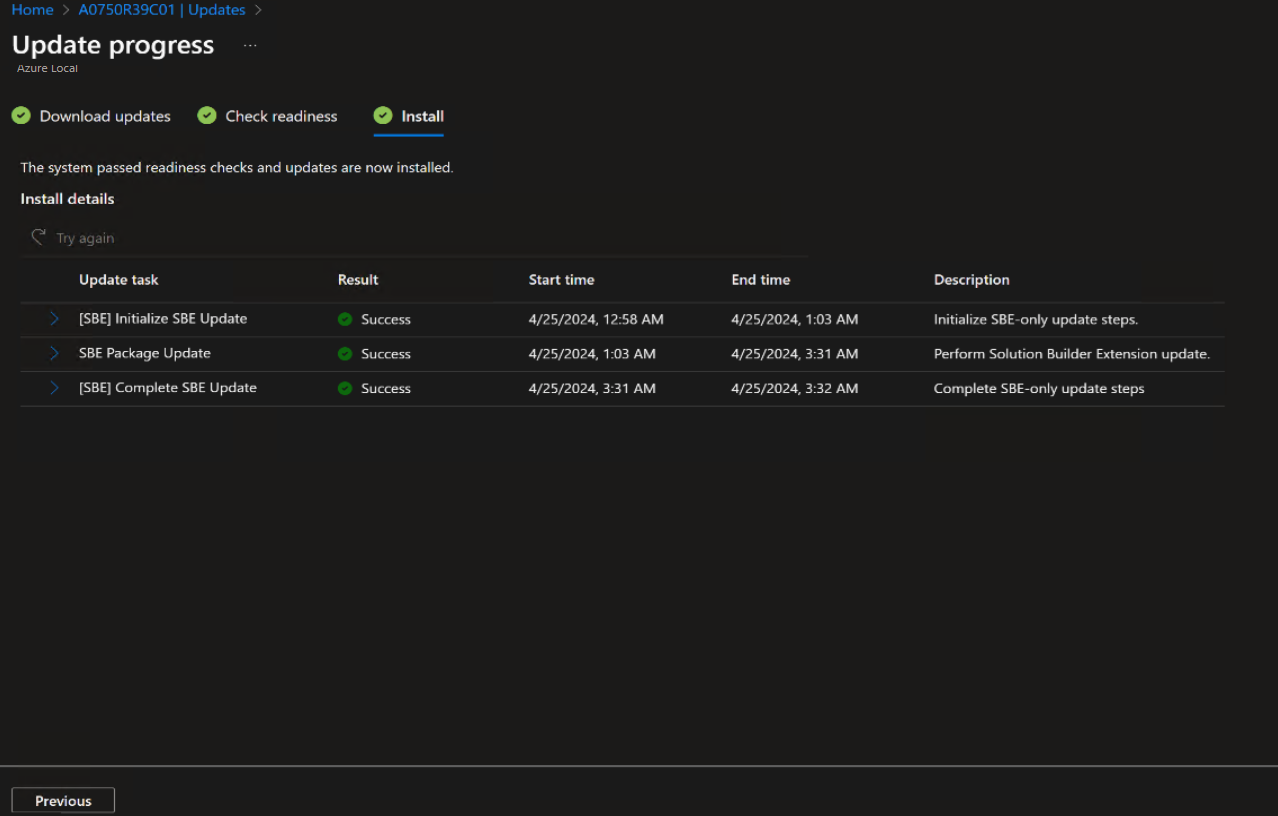

      Successful installation of updates on a cluster

      Successful installation of updates on a cluster

GPU Integration

Installing and configuring GPUs on AX platforms

You can install and configure GPUs on AX platforms. For a list of GPUs that are supported on AX nodes from Dell Technologies, see the Dell Solutions for Microsoft Azure > Azure Local Support Matrix.

NOTE: You must order AX nodes that are preconfigured for GPU integration, or converted for GPU use, including the required components.

Guidelines for installing GPU hardware

For deployed Azure Local instance, or Windows Server 2025 (or later instance before performing any GPU hardware changes, place the target machine into maintenance mode (pause and drain).

Use Dell Support to follow the platform-specific GPU installation procedure for your server model.

For model-specific GPU slot or riser matrices and riser configuration options, see the applicable Dell installation and service manual sections for your platform, including:

  • Expansion card riser specifications
  • Expansion card installation guidelines
  • GPU kit (if available)
  • GPU specifications

For the most up-to-date list of supported GPUs for AX nodes, see the Dell Solutions for Microsoft Azure > Azure Local Support Matrix.

GPU Discrete Device Assignment (DDA)

You can use Discrete Device Assignment (DDA) on supported GPUs so that the Azure Stack HCI and Windows Server 2025 and later operating system servers contain GPU-enabled clustered VMs.

For a list of supported GPUs, see the latest version of the Dell Technologies Solutions for Microsoft Azure Local > Support Matrix.

Download and install guest drivers

Download and install guest drivers from NVIDIA Application Hub.

To download and install a guest driver, do the following:

Procedure
  1. To download the drivers, go to NVIDIA Application Hub Login and log in with your enterprise account.
  2. Click the NVIDIA licensing portal, and then click SOFTWARE DOWNLOADS.
    All software that is available for download is listed.
  3. To locate the driver, apply the following filters:
    PRODUCT FAMILY: VGPU and either:
    • For Azure Stack HCI operating system: PLATFORM: Azure Local
    • For Windows Server 2025 operating system or later: PLATFORM: Windows Server

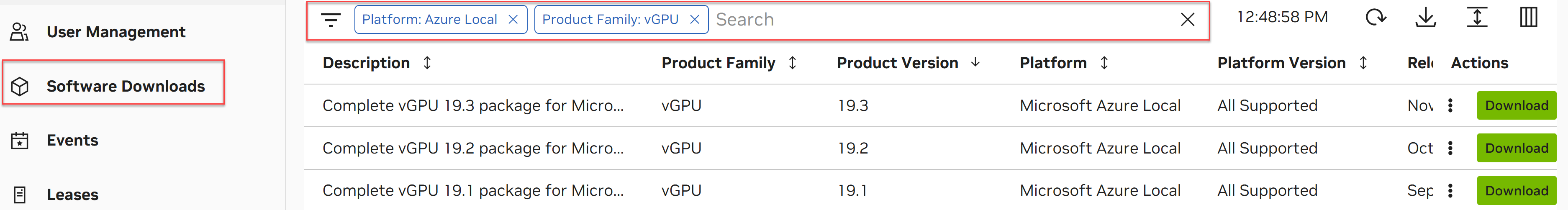

    Shows two filter options selected to find GPU guest driver version to download

    GPU guest driver download filter options

  4. Always verify that the driver supports your GPU and its intended use.
    The package contains the required driver for the virtual machine to use a GPU that is assigned through Discrete Device Assignment (DDA). With DDA (full device passthrough), you install the NVIDIA driver that enables GPU functionality in the guest virtual machine. In the DDA workflow, the NVIDIA guest driver is not required on the host. If no vendor display driver is installed, the host can show the GPU as a 3D Video Controller.
    You can do DDA with either Windows Admin Center (WAC) or PowerShell. Dell Technologies recommends using WAC to reduce user error and to conform to best practices.
    NOTE: Before configuring DDA, to make the GPU available for assignment to the virtual machine, you must disable and dismount the GPU from the host-management operating system.
    If you are using Windows Admin Center (WAC) to configure GPU assignment, WAC automatically performs the required disable and dismount operations as part of the workflow, so you do not have to complete this step manually. This automation is one of the reasons that Dell Technologies recommends that you use WAC for GPU-related actions. For more information about configuring and performing a DDA, see Use GPUs with Discrete Device Assignment in clustered VMs.
  5. When DDA is complete and the GPU is assigned to the virtual machine, install the NVIDIA guest driver inside the guest virtual machine so that the virtual machine can use the GPU.
    NOTE: For Windows guests, the driver is in the Guest_Drivers folder of the archive and has an .exe extension.
Results
When the guest driver is installed, your virtual machine is ready to use the DDA GPU. For NVIDIA software licensing requirements, modes, and license-server configuration guidance, see the NVIDIA Virtual GPU Software Client Licensing User Guide.

GPU partitioning

On the Azure Stack HCI or Windows Server 2025 or later operating-system servers, you can use GPU partitioning (GPU-P) for different workloads, such as artificial intelligence. To avoid mistakes and for a streamlined visual experience, Dell Technologies recommends that you use Windows Admin Center (WAC) for GPU-P.

For the latest supported GPU-P enabled GPUs, see Dell Technologies for Microsoft Azure Local > Support Matrix.

Dell Technologies servers do not come with a GPU-P driver. The GPU-P driver requires separate licensing from NVIDIA. For more information about licensing options and the benefits of GPU-P, see: NVIDIA Virtual GPUs.

NOTE: For GPU-P to work, you must have both a host driver and a GPU-P enabled guest (VM) driver and the correct activated license.

Download and install host and guest drivers

For GPU partitioning (GPU-P) to work, you must have both a host driver and a GPU-P enabled guest (VM) driver and the correct activated license.

To download and install host and guest drivers, do the following:
Procedure
  1. To download the drivers, go to NVIDIA Application Hub Login and log in with your enterprise account.
  2. Click the NVIDIA licensing portal, and then click SOFTWARE DOWNLOADS.
    All software that is available for download is listed.
  3. To locate the driver, apply the following filters:
    PRODUCT FAMILY: VGPU and either:
    • For Azure Stack HCI operating system: PLATFORM: Azure Local
    • For Windows Server 2025 operating system or later: PLATFORM: Windows Server
    Shows two filter options selected to find GPU guest driver version to download

    GPU guest driver download filter options

  4. Verify that the driver supports your GPU and its intended use. For more information, see Virtual GPU Software for Microsoft Azure Local Release Notes.
    This package contains the host and guest drivers.
    NOTE: Before proceeding to install the GPU-P drivers on the host, remove any Tesla drivers, if previously installed.
  5. After the host driver is installed on every cluster node, do the GPU-P.
    For information about GPU-P, see Partition and assign GPUs to a virtual machine. If you are using an Azure Local cluster, you can use the Azure portal to partition and assign GPUs to a virtual machine. For more information, see Manage GPUs via Discrete Device Assignment for Azure Local (preview).
    NOTE: Dell Technologies recommends that you use WAC and GPU extensions.
  6. When you have assigned GPU partitions to the virtual machine, install the guest driver.
  7. After you install the virtual-machine guest driver, to start using GPU-P, activate the guest virtual machine with an NVIDIA license.
    For information about activating the guest virtual machine, see Configuring a Licensed Client on Windows with Default Settings of the Virtual GPU Software Client Licensing User Guide.

Dell OpenManage Integration with Windows Admin Center

Overview of Dell OpenManage Integration with Windows Admin Center

Dell OpenManage Integration with Windows Admin Center (OMIMSWAC) enables IT administrators to manage the HCI that is created by using Dell AX System for Azure Local. OMIMSWAC simplifies the tasks of IT administrators by remotely managing the AX nodes and clusters throughout their life cycle.

For more information about the features, benefits, and installation of OMIMSWAC, see the Dell Technologies documentation at Dell OpenManage Integration with Microsoft Windows Admin Center.

Managing Microsoft HCI-based clusters

Procedure

  1. In the upper left of Windows Admin Center, from the menu, select Cluster Manager.
  2. In the Cluster Connections window, click the cluster name.
  3. In the left pane of Windows Admin Center, under EXTENSIONS, click Dell OpenManage Integration.
  4. Review the Dell Software License Agreement and Customer Notice, and select the checkbox to accept the terms of the license agreement.

Validate and remediate a cluster

By using the HCI Configuration Profile (HCP) Compliance feature, you can see the cluster compliance by using HCP checks, see the recommendations, and remediate noncompliant components.

Before you begin

Before you begin, the cluster:

  • Must be Dell AX System for Azure Local, version 24H2.
  • Nodes must have a valid Dell OpenManage Integration with Microsoft Windows Admin Center (OMIMSWAC) premium license installed.
  • Supported node models are listed in the Azure Local Support Matrix.
To run an HCP compliance check in Dell OpenManage Integration extension, perform the following steps by selecting the single-node cluster in the Cluster Manager:

Procedure

  1. Go to View > Compliance. When another menu appears, select HCP .
    The Compliance Summary page appears. If the Check Compliance button is enabled, go directly to step 3.
  2. If Check Compliance is disabled, ensure:
    • All the prerequisites are met.
    • Required inputs are provided in the Configure Cluster Settings tab.

      If not, to save the settings for future use, choose the network topology and the deployment model, and then click Save. To generate compliance for Dell Operating System Configuration policies, the following settings are required:

      • Network topology
        • Fully-converged: All storage ports from the server are connected to the same network fabric. Within the host operating system, the NIC ports are used for both storage and management or VM traffic.
        • Non-converged-Physical: Storage traffic is on the physical storage NIC ports and management, or VM traffic goes through a SET that is created using network ports of the server rNDC.
        • Non-Converged-Set: Storage traffic uses virtual adapters in the host operating system that is connected to a SET.
      • Deployment model
        • Scalable model supports from 2 to 16 nodes in a cluster and uses top-of-rack (ToR) switches for management and storage traffic networking
        • Switchless model uses full mesh connections between the cluster nodes for storage traffic and supports from 2 to 4 nodes in a cluster
        • Stretched clusters with Azure Stack HCI operating system consist of nodes residing at two different locations or sites, with each site having two or more nodes, replicating volumes either in synchronous or asynchronous mode.
  3. To View HCP Compliance Summary, click Check Compliance.
    Optional: If Internet connection is not available, perform the following steps to run HCP check in offline mode:
    1. Download the asHCISolutionSupportMatrix.json file from the location that is listed in the following table that is based on the AX node model:
      Download locations by AX node model. The table lists the AX server models and provides the download location link of the relevant JSON file
      AX node Download location
      • Dell AX-4510c
      • Dell AX-4520c
      • Dell AX-640
      • Dell AX-650
      • Dell AX-6515
      • Dell AX-740xd
      • Dell AX-7525
      • Dell AX-750
      Dell Downloads...15G_asHCISolutionSupportMatrix.json.cab
      Dell AX-660 and Dell AX-760 Dell Downloads...16G_asHCISolutionSupportMatrix.json.cab
    2. Place the files in C:\Users\Dell\HCPMetaData folder in the gateway system where Windows Admin Center is installed.
    3. Run the HCP compliance check.
    The Dell OpenManage Integration extension fetches the applicable policies, validates the cluster node attributes against the policy attributes, and displays the compliance summary.
  4. To fix noncompliant policies, click Fix Compliance.
    WARNING: Fix Compliance is disabled if Dell Hardware Symmetry Policy is noncompliant with a critical error. You are not allowed to remediate other policies.
    Before proceeding to the next step, to resolve the error, review the recommendations, view the details, and then contact Dell.com/support if required. The critical error states that this aspect of node configuration is not supported. You must correct the issue before you can deploy a symmetric HCI cluster.
    • Manual Fixes include policies that require physical interventions and recommendations that can be remediated manually.
      NOTE: Ensure that the cluster is compliant with Dell Hardware Symmetry Policy and Dell Operating System Configuration Policies, otherwise the cluster performance is not guaranteed.
    • Automatic Fixes include policies that can be remediated using the Dell OpenManage Integration extension.
  5. To apply the configurations, if any of the policy fixes require a cluster reboot, choose the reboot option to apply the configurations by restarting your cluster in Cluster-Aware Updating mode.
    1. Choose from:
      • Apply at Next Reboot: Immediately applies BIOS, NIC, and iDRAC attributes concurrently to all the cluster nodes and restarts the cluster in Cluster-Aware Updating mode.
      • Apply and Reboot Now: Applies BIOS, NIC, and iDRAC attributes concurrently to all the cluster nodes now and restarts the cluster
        NOTE:  If you choose to apply the changes at the next reboot, to apply the changes, ensure that you disable the infrastructure lock before the next reboot starts.
    2. Click the Schedule Reboot checkbox to schedule the date and time when BIOS, NIC, and iDRAC attributes are applied concurrently to all the cluster nodes and restart the cluster in Cluster-Aware Updating mode.
  6. If the infrastructure lock is enabled, a window appears to allow you to disable the lock and the proceed. To allow the Dell OpenManage Integration extension to automatically lock the infrastructure after the operation is complete, select Allow OMIMSWAC. This step re-enables the infrastructure lock after the operation is complete.
  7. To trigger the updates, click Apply.
    • If Kernel Soft Reboot is enabled for the cluster, the Dell OpenManage Integration extension ignores this trigger and performs a full reboot to apply all BIOS-related settings. For more information, see When to use Kernel Soft Reboot.
    • The operation enables CredSSP. To improve the security, after the operation is complete, disable CredSSP.
    If any error occurs while applying the updates or the update job fails, see Troubleshooting in the latest version of the Dell OpenManage Integration with Microsoft Windows Admin Center User's Guide.
  8. To see the update status and progress at node level, click View Details.
    After the status finishes, the Dell OpenManage Integration extension rechecks the compliance and displays the updated compliance summary.
  9. To export the HCP Compliance report to a Microsoft Excel spreadsheet, which can be useful when contacting the Dell Technologies support team, click Export compliance summary.

View HCI compliance summary

Dell OpenManage Integration with Microsoft Windows Admin Center (OMIMSWAC) computes the compliance using different types of Dell HCI Configuration Profile policies that are mentioned and displays the report.

The following table provides information about each Dell policy:

Dell HCI Configuration Profile policies. The Dell HCI Configuration Profile policies table names and describes each policy.
Policy name Description
Dell Infrastructure LockDown Checks whether the HCI cluster infrastructure is locked.
Dell Hardware Symmetry Checks whether cluster nodes have validated and supported hardware components and have symmetrical hardware configurations.

For more information about checks, see Dell OpenManage Integration with Microsoft Windows Admin Center

Dell HCI Hardware Configuration Checks whether cluster nodes have Dell Technologies recommended BIOS, NIC, and iDRAC configurations
Dell OS Configuration Checks whether cluster nodes have Dell Technologies, and Microsoft recommended operating-system configurations
  • If the compliance summary is already generated, the last report is displayed with the timestamp. In this case, Re-Check Compliance is enabled.

    To see the latest compliance report, click Re-Check Compliance.

    For a brief description of the compliance summary sections, see the Details of Compliance summary sections table.

Policy Summary Displays compliance of each cluster node and its components for each policy type. For a description of each policy type, see the Details of Policy Summary sections table.

The compliance summary is divided into several sections as described in the following table:

Details of Compliance summary sections. The compliance summary sections table lists and describes the sections.
Compliance summary section Description
Overall Compliance Displays the overall compliance of the cluster such as compliance percentage, number of policies compliant, and total number of policies from the displayed policy types
Overall Compliance State Displays overall compliance of the cluster using a doughnut chart and color codes. The color codes indicate different compliance types. You can select different color codes, if any, to filter the respective policy details and its cluster nodes.

For example, when you select the red color code, policies that are not compliant and their respective cluster nodes are displayed.

For a description of each color code, see the Icons shapes and color codes for Overall Compliance State options table.

The table lists the Overall Compliance State options and provides a description of the relevant icon shape and color code for the compliant state options:

Icons shapes and color codes for Overall Compliance State options. The table lists the compliance state options and provides a description of the relevant icon shape and color code for the compliant state options:
Compliance state Description and color code
Compliant Displays that all cluster nodes are compliant with all Dell policies.

Icon is a checkmark in a green circle.
Errors Displays if any cluster machine is not compliant with Dell Hardware Symmetry policy.

Icon is an exclamation mark in a red hexagon.
Warnings Displays if any cluster machine is not compliant with any optional policies.

Icon is an exclamation mark in an orange triangle.

Unknown Displays if any cluster machine inventory could not be retrieved when the machine is down or not reachable.

Icon is a question mark inside a gray circle.

The following table describes each section of the Policy Summary and what it contains:

Details of Policy Summary sections. The following table describes each section of the Policy Summary and what it contains.
Policy component Description
Policy Name Name of Dell Technologies policies
Description Description of Dell Technologies policies
Overall Status Displays overall status of compliance of the cluster for each policy type
Overall State Displays how many policies are compliant out of the total number of policies and its percentage
Errors Displays several policies that are noncompliant and must be fixed
Warnings Displays several policies that are noncompliant and must be fixed
Unknown Displays several unknown issues, or unable to run or fetch the data
Details Displays additional information about each node and its components and their compliance status

Onboard Dell policies to Azure Arc from Windows Admin Center to monitor HCI clusters

In the Dell OpenManage Integration extension, you can deploy the Dell HCI Configuration Profile (HCP) policies onto Azure Arc, and then use these policies in Azure Arc to monitor your Azure Stack HCI clusters. This feature is supported for single-node HCI clusters.

Before you begin

  • The single-node HCI cluster must be Dell AX System for Azure Local, version 24H2.
  • Dell OpenManage Integration with Microsoft Windows Admin Center (OMIMSWAC) premium license must be installed on each cluster node.
  • To monitor the policies from Azure, the Internet must be available on Windows Admin Center and target nodes.
  • Ensure that you have the necessary permission to create, write, or read policies into Azure. Also, you must be a member of the Gateway users role.
  • Azure Stack HCI Cluster and WAC gateway must be registered on Azure and use the same account to sign in. For more information about Azure registration, see Register Windows Admin Center with Azure.
  • Cluster nodes must be Arc-enabled and onboarded to Azure Arc. See Azure Arc-enabled servers. Ensure that all nodes are registered to the same resource group.
  • In the cluster node, ensure that all RDMA enabled network adapters are connected to the same NIC ports as recommended by Dell Technologies. For more information, see the relevant deployment and operations guide at Technical Guides for Dell AX Solutions for Microsoft .
To deploy Dell HCP policies to Azure Arc, do the following steps:

Procedure

  1. Sign in to Windows Admin Center.
  2. From the All connections window, to connect to the cluster, select it.
  3. From the left pane, under Extensions, click Dell OpenManage Integration, and then click View > Azure Integration.
    • OpenManage Integration checks the prerequisites. If all prerequisites are successful, a Sign In button appears.
    • If any prerequisites fail, a list of prerequisites with status and recommendations for failed prerequisites appears. Follow the recommendations to ensure that all prerequisites are successful before moving to the next step.
  4. Click Sign In. A sign-in window opens to let you sign in to your Azure account. Specify your Azure subscription account details.
    When signed-in, the button shows as Signed-in.
  5. In the Onboarding Checklist section, the OpenManage Integration extension verifies and displays the list of checks and shows the recommendations if checklist items are not met.
    • Click Show Details to see the list of checklists, status, and recommendations if the checklists do not match. You cannot move to the next step until all the checklists are successful.
    • Click Refresh Checklist to see the checklist with the updated status.

    For more information about the checklist, see Azure built-in roles in the Microsoft document.

  6. In the Onboard Policies section, do the following:
    • To view the Azure account subscription details, click View Subscription Details.
    • To edit network topology, deployment model, and RDMA protocol for network direct technology, click Configure Cluster Settings, specify the details, and click Save to save the settings for future use. The policies are displayed based on your cluster settings. Once you save the settings, they are applied to all relevant features in OMIMSWAC. For more information about the settings, see the relevant deployment and operations guide at Technical guides for Microsoft HCI Solutions from Dell Technologies
      NOTE:
      • For single node HCI cluster, Configure Cluster Settings option is not available.
      • Dell Technologies recommends that the resource group has no other Arc-enabled nodes that are not part of the current cluster.
      • Network Topology
        • Fully Converged: All storage ports from the server are connected to the same network fabric. Within the host operating system, the NIC ports are used for both storage and management/VM traffic.
        • Non-Converged-Physical: Storage traffic is on the physical storage network adapter ports, and management/VM traffic through a SET created using network ports of the server rNDC.
        • Non-Converged-Set: Storage traffic uses virtual adapters in the host operating system that is connected to a SET.
      • Deployment Model
        • Scalable model supports from 2 to 16 nodes in a cluster and uses top-of-rack switches for management and storage traffic networking.
        • Switchless model uses full mesh connections between the cluster nodes for storage traffic and supports from 2 to 4 nodes in a cluster.
        • Stretch cluster with Azure Stack HCI consists of servers residing at two different locations or sites, with each site having two or more servers, replicating volumes either in synchronous or asynchronous mode.
      • Network Direct Technology: This property is available only for Azure Stack HCI clusters using Intel E810 and E823 Network adapters. Choose the appropriate RDMA protocol, either iWARP or RoCEV2 that was used during the deployment. Based on this setting, appropriate network adapter policies are displayed for compliance.
    • If policies are not onboarded to Azure Arc, click Onboard Policies to see the details of the applicable Dell HCP policies for onboard and go to the next step.
  7. The Onboard Dell HCI Configuration Profile policies for Azure window appears on the right side showing the available policies for onboarding or update. The window also shows the version of the previously onboarded policy, if any, and shows with a green dot the number of policies that are already onboarded. All mandatory policies are selected by default and cannot be changed. You can clear any optional policies. To onboard or update the onboarded policies, click Onboard.
  8. After the policies are onboarded, the policy onboarding status appears next to the Onboard Policies button. Click View Details to see the Policy Onboarding Status page that displays the status of each policy that was onboarded to the Azure Arc.
    To export the onboarded policies in a CSV format, click Export Details.
  9. After the policies are successfully onboarded, log in to the Azure portal (Azure Arc) using the same subscription account to monitor your cluster using Dell HCP policies. In the Azure portal, click the Resource Groups to find the resources you want to monitor (Go to step 6 to find the resource group name in the view subscription details.)
    Cluster node details are displayed.
  10. To check the cluster compliance, click Policies under Settings.
    The Policy page displays the cluster compliance and lists all the applicable policies including the default policies.
    NOTE:  Ignore the policy details of the "Dell Exempted Policy" as it only helps in tracking policy versions of onboarded Dell HCP policies and does not impact cluster performance or compliance.
  11. To find the policies that are onboarded from the Dell OpenManage Integration extension, on the Search box, enter Dell. Select a policy to have a deeper look at the compliance for that particular policy. For more information about viewing compliance data in the Azure portal, see Microsoft Azure Policy documentation.

Secure connect gateway

Secure connect gateway (SCG) is an enterprise monitoring technology that is delivered as an appliance and a stand-alone application. It monitors your devices and proactively detects hardware issues that may occur. Depending on your service contract, it also automates support request creation for issues that are detected on the monitored devices. When a hardware issue is detected, SCG automatically collects the telemetry that is required for troubleshooting the issue. The collected telemetry helps technical support to provide a proactive and personalized support experience.

For more information about SCG, see Secure Connect Gateway - Application Edition.

References

Dell Technologies documentation

These links provide more information from Dell Technologies:

Tags:
