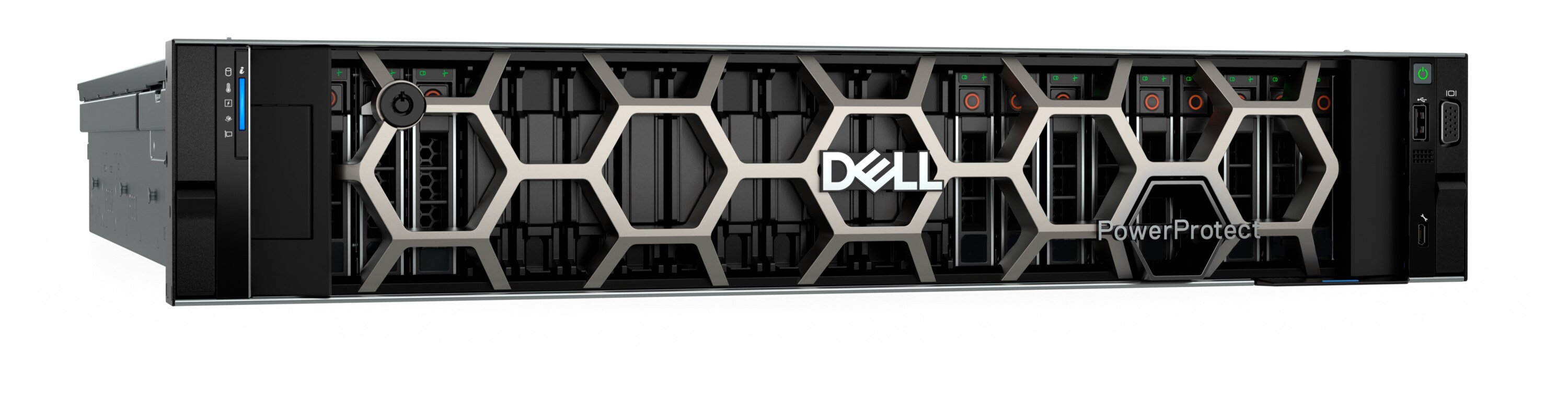

PowerProtect Data Domain DD6410 backup appliance
Explore models:
Enterprise protection storage built for cyber resilience in mid-sized organizations—across on-premises and multicloud environments. Built on the Data Domain Platform, this backup appliance delivers trusted data services for faster recovery.
Software compatibility:
Dell and third-party software
Logical capacity:
Up to 16.6 PB
Logical capacity with Cloud Tier:
Up to 49.9 PB
Usable capacity:
12 TB - 256 TB; 10.9 TiB – 232.8 TiB
Usable capacity with Cloud Tier:
Up to 768 TB; Up to 698.4 TiB
- Software compatibility: Dell and third-party software
- Logical capacity: Up to 16.6 PB
- Logical capacity with Cloud Tier: Up to 49.9 PB
- Usable capacity: 12 TB - 256 TB; 10.9 TiB – 232.8 TiB
- Usable capacity with Cloud Tier: Up to 768 TB; Up to 698.4 TiB
Capacity
Usable Capacity: Up to 256 TB, 232.8 TiB
Usable Capacity W/ Cloud Tier: Up to 768 TB, 698.5 TiB
Logical Capacity: Up to 16.6 PB
Logical Capacity W/ Cloud Tier : Up to 49.9 PB
Networking
Built-In Networking:
1x Management port LOM
Required Networking (rNDC or OCP):
Quad port 10/25G OCP SFP+
Quad-port 10G OCP Base-T
Optional Networking with I/O Cards:
Up to 2 quad port 10G Base-T or quad port 25G SFP+ cards
One additional quad port 10G Base-T or dual port 10G/25G SFP+
Up to 2 quad port 32Gb FC HBA
Physical
Weight: Up to 43.8 kg / 96.5 lbs
Width: 44.8 cm / 17.63 in
Height: 8.7 cm / 3.41 in
Depth: 83.6 cm / 32.9 in
2U EIA rack units
Power
Power 100-120/200-240v~, 50/60 Hz: 4 SSDs 20 HDDs; 800 VA
Thermal Rating (Watts): 4 SSDs 20 HDDs; 760 Watts
Thermal Rating (BTU/hr): 4 SSDs 20 HDDs; 2592 btu/h
Operating Temperature/Altitude: 10°C to 35°C (50°F to 95°F) with no direct sunlight on equipment, 900 meters or 3117 ft
Non-Operating (Transportation) Temperature: -40°C to +65°C (-40°F to +149°F)
Operating Humidity: 8% RH with -12°C (10.4°F) min. dew point to 80% RH with 21°C (69.8°F) max. dew point
Operation Acoustic Noise (Sound Power): LWAd: 7.8 bels
Operation Acoustic Noise (Sound Pressure): LpAm: 67 db
Regulatory
Statement of Compliance
Dell Information Technology Equipment is compliant with all currently applicable regulatory requirements for Electromagnetic Compatibility, Product Safety, and Environmental Regulations where placed on market.
Detailed regulatory information and verification of compliance is available at the Dell Regulatory Compliance website.
Storage Devices
Storage Shelves
ES120 SHELF: SAS
Safeguard your data from tampering and corruption
- Achieve multiple layers of Zero Trust security to help ensure data immutability and integrity.
- Protect against threats with end-to-end encryption, Hardware Root of Trust, Secure Boot, retention lock, role-based access control, and more.
- Keep backup data recoverable at all times with industry-exclusive Data Invulnerability Architecture (DIA), offering 100% validation from end to end.
Optimize IT assets and resources while reducing costs
- Achieve up to 38% faster backups and up to 44% faster restores.
- Realize up to 65:1 data reduction with advanced data deduplication technology.
- Conserve space and power by scaling up to 1.5 PB of usable capacity within a single rack, and up to 3 PB for long-term retention.
Maximize deployment options and minimize geographic risk
- Secure all of your business-critical data from core to edge to multicloud.
- Maximize performance and efficiency with native Dell PowerStore and PowerMax integration.
- Leverage a broad ecosystem of compatible data protection software, including Dell PowerProtect Data Manager, Commvault, Veritas, and Veeam.
