Dell Networking SONiC MC-LAG se verá afectado cuando el estado de la sesión keepalive se reduzca
Summary: En este artículo, se explica cómo MC-LAG se ve afectado cuando el estado de la sesión keepalive deja de funcionar en SONiC.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
MC-LAG se ve afectado cuando el estado de la sesión keepalive deja de funcionar en SONiC.
El siguiente estado de MC-LAG se observa en el momento de la sesión keepalive inactiva:
El siguiente estado de MC-LAG se observa en el momento de la sesión keepalive inactiva:
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown
Cause

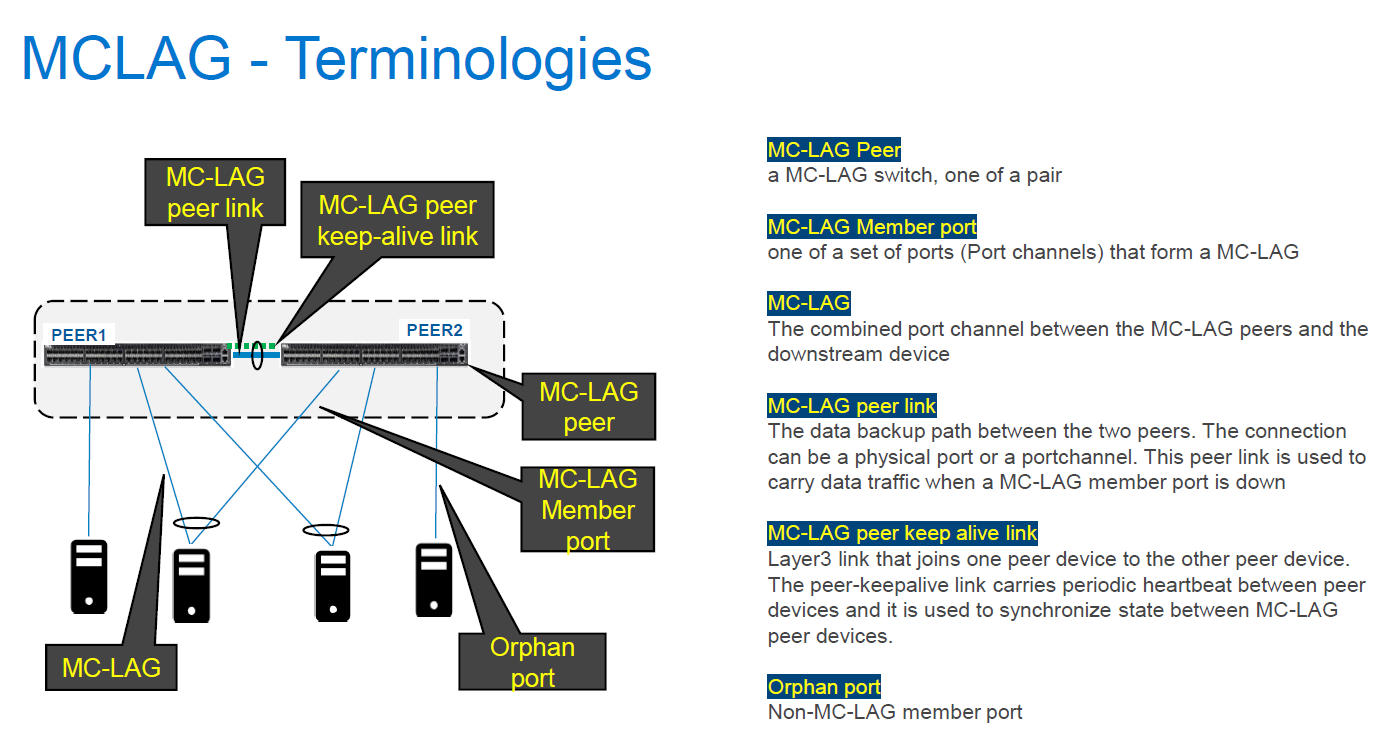

MC-LAG se ve afectado cuando el estado de la sesión keepalive deja de funcionar en SONiC. El keepalive en SONiC está configurado con una comunicación IPv4 L3 similar al enlace de respaldo en OS9 y OS10, que generalmente no afecta el estado de VLT-Portchannel. El estado del enlace entre pares en OS9 y OS10 afectará al estado de VLT-Portchannel en su lugar. Sin embargo, en SONiC, el estado de la sesión keepalive debe estar activo para que MC-LAG esté activo. Para el vínculo keepalive, lleva un latido periódico entre los dispositivos pares MC-LAG y también se utiliza para sincronizar el estado entre los dispositivos pares MC-LAG. A diferencia de SONiC, OS9 y OS10 utilizan el enlace par para sincronizar el estado entre los dispositivos pares de VLT.

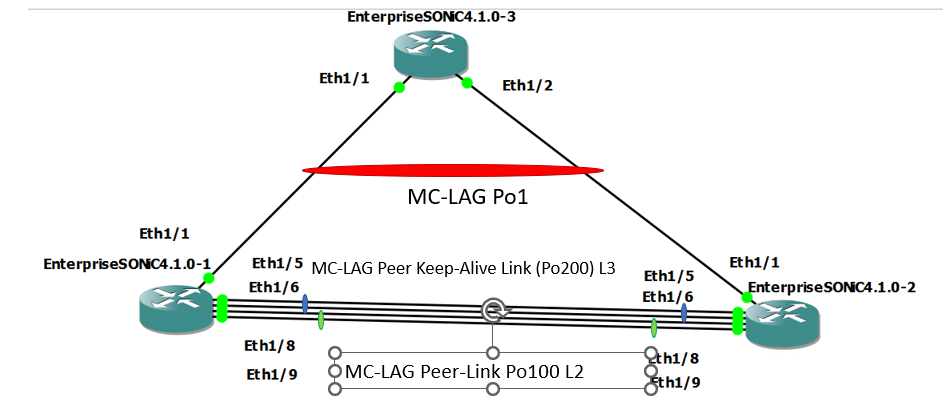

Una vez que el vínculo de la sesión keepalive se desactiva, el estado de MC-LAG en ambos dispositivos pares de MC-LAG se vuelve activo/desconocido debido a la falla de sincronización entre ambos dispositivos pares.
En estado normal
En estado de problema (Keepalive-link Status Down by Shut down Po200 Member Ports)
Una vez que el vínculo de la sesión keepalive se desactiva, el estado de MC-LAG en ambos dispositivos pares de MC-LAG se vuelve activo/desconocido debido a la falla de sincronización entre ambos dispositivos pares.
En estado normal
SONIC-1#show version Software Version : 4.1.0-Enterprise_Base Product : Enterprise SONiC Distribution by Dell Technologies Distribution : Debian 10.13 Kernel : 5.10.0-8-2-amd64 Config DB Version : version_4_1_1 Build Commit : 93589a15db Build Date : Tue Apr 18 17:56:48 UTC 2023 Built By : sonicbld@sonic-lvn-csg-001 Platform : x86_64-kvm_x86_64-r0 HwSKU : DellEMC-S5248f-P-25G-DPB SONIC-1# show ip interfaces Flags: U-Unnumbered interface, A-Anycast IP ----------------------------------------------------------------------------------------------------------------- Interface IP address/mask VRF Admin/Oper Flags ----------------------------------------------------------------------------------------------------------------- PortChannel200 192.168.2.1/24 up/up Vlan636 172.16.0.1/24 up/up SONIC-1# SONIC-1# SONIC-1# show PortChannel summary Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members) ---------------------------------------------------------------------------------------------------------------------------- Group PortChannel Type Protocol Member Ports ---------------------------------------------------------------------------------------------------------------------------- 1 PortChannel1 (U) Eth LACP Eth1/1(P) 100 PortChannel100 (U) Eth NONE Eth1/8(P) Eth1/9(P) 200 PortChannel200 (U) Eth LACP Eth1/5(P) Eth1/6(P) SONIC-1# SONIC-1# SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : up Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/up SONIC-1# SONIC-1# SONIC-1# show running-configuration interface PortChannel 1 ! interface PortChannel1 mode active switchport trunk allowed Vlan 636 no shutdown mclag 1 SONIC-1# show running-configuration interface PortChannel 100 ! interface PortChannel100 mode on switchport trunk allowed Vlan 1-4094 no shutdown SONIC-1# show running-configuration interface PortChannel 200 ! interface PortChannel200 mode active no shutdown ip address 192.168.2.1/24 SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 //IP address assigned to VLAN636 on uplink SW. PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.26 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.47 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=3.21 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.84 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=11.1 ms ^C SONIC-1#
SONIC-2#show version
Software Version : 4.1.0-Enterprise_Base
Product : Enterprise SONiC Distribution by Dell Technologies
Distribution : Debian 10.13
Kernel : 5.10.0-8-2-amd64
Config DB Version : version_4_1_1
Build Commit : 93589a15db
Build Date : Tue Apr 18 17:56:48 UTC 2023
Built By : sonicbld@sonic-lvn-csg-001
Platform : x86_64-kvm_x86_64-r0
HwSKU : DellEMC-S5248f-P-25G-DPB
SONIC-2# show ip interfaces
Flags: U-Unnumbered interface, A-Anycast IP
-----------------------------------------------------------------------------------------------------------------
Interface IP address/mask VRF Admin/Oper Flags
-----------------------------------------------------------------------------------------------------------------
PortChannel200 192.168.2.2/24 up/up
Vlan636 172.16.0.2/24 up/up
SONIC-2#
SONIC-2#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (U) Eth LACP Eth1/5(P)
Eth1/6(P)
SONIC-2#
SONIC-2#
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : up
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/up
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2# show running-configuration interface PortChannel 1
!
interface PortChannel1 mode active
switchport trunk allowed Vlan 636
no shutdown
mclag 1
SONIC-2# show running-configuration interface PortChannel 100
!
interface PortChannel100 mode on
switchport trunk allowed Vlan 1-4094
no shutdown
SONIC-2# show running-configuration interface PortChannel 200
!
interface PortChannel200 mode active
no shutdown
ip address 192.168.2.2/24
SONIC-2#
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.48 ms
64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=2.94 ms
^CSONIC-2#
En estado de problema (Keepalive-link Status Down by Shut down Po200 Member Ports)
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=8.00 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.08 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=2.99 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.92 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=3.07 ms ^C SONIC-1#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (D) Eth LACP Eth1/5(D)
Eth1/6(D)
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : down
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/unknown
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
^C
Resolution
Para que MC-LAG siga funcionando sin ningún problema, el estado del enlace keepalive también debe mantenerse en funcionamiento. El puerto de administración se utiliza normalmente para el enlace keepalive, pero el canal de puerto con la dirección IP asignada se puede utilizar para el enlace keepalive con fines de redundancia. El comportamiento (ese MC-LAG se verá afectado cuando el estado del enlace keepalive se desactiva) que se describe en este artículo de la base de conocimientos se espera en todas las versiones al menos hasta la versión 4.2.0 de SONiC.
