Dell Latitude 3189 Visual Guide
Summary: The following article provides a visual guide to your Latitude 3189 computer and lists the external ports and features of your laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:

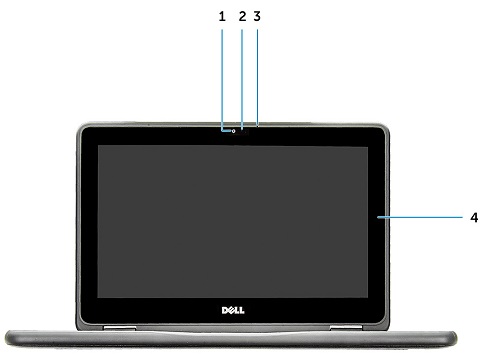

Front Open View
(Fig.1 Front Open View)
| 1 | Camera | 2 | Camera Status LED |
| 3 | Microphone | 4 | LCD Panel |

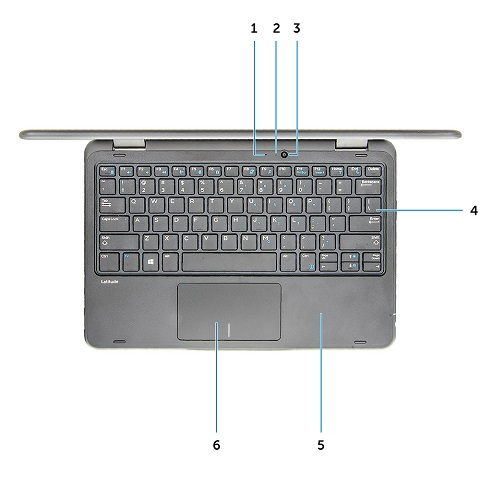

Front Top View
(Fig.2 Front Top View)
| 1 | World-Facing Microphone | 2 | World-Facing Camera Status LED |
| 3 | World-Facing Camera | 4 | Keyboard |
| 5 | Palmrest | 6 | Touchpad |
Note: For a guide to the keyboard see the following article:

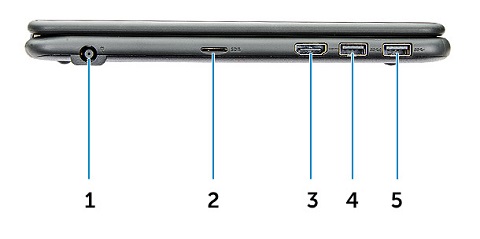

Left View
(Fig.3 Left Hand Side View)
| 1 | Power Connector | 2 | Micro SD Card Reader |
| 3 | HDMI Connector | 4 | USB 3.1 Gen1 Connector with PowerShare |
| 5 | USB 3.1 Gen1 Connector |

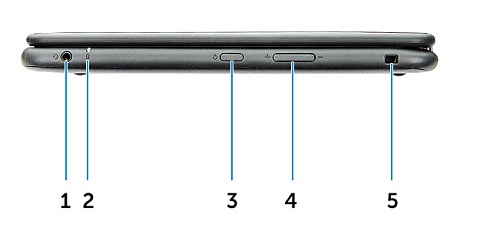

Right View
(Fig.4 Right Hand Side)
| 1 | Universal Audio Jack | 2 | Battery Status LED |
| 3 | Power Button | 4 | Volume Control Button |
| 5 | Noble Wedge Lock Slot |
AC Adapter View
(Fig.5 65W AC Adapter)
| Type 65W | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Cause
Not Applicable.
Resolution
Not Applicable.
Additional Information
Affected Products
Latitude 3189Article Properties
