Precision 5540: Visual Guide to your Computer
Summary: The following article provides a visual guide to your Precision 5540 Mobile Workstation and lists the external ports and features of your laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description of each location, go to the laptops manual at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Cause
Front View

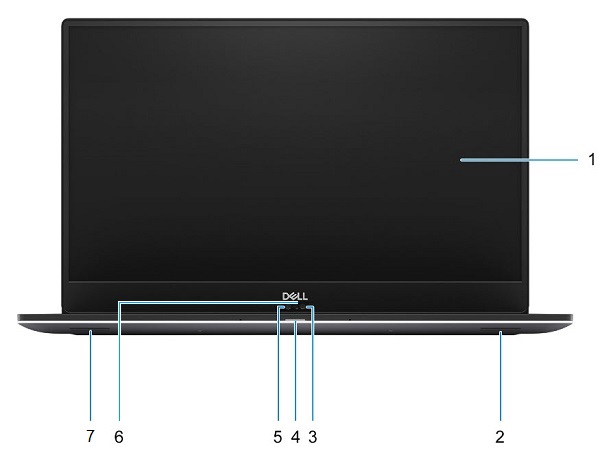

(Figure.1 Front View)
| 1 | Display | 2 | Right Speaker |
| 3 | Infrared Camera | 4 | Battery/Status LED |
| 5 | HD Camera | 6 | Camera Status LED |
| 7 | Left Speaker |
Top View

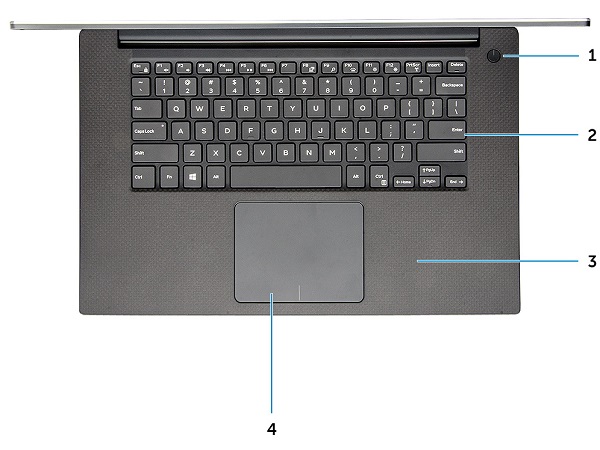

(Figure.2 Top View)
| 1 | Power Button w/LED or Power Button w/Fingerprint Reader (Optional) | 2 | Keyboard |
| 3 | Palmrest | 4 | Touchpad |
Bottom View

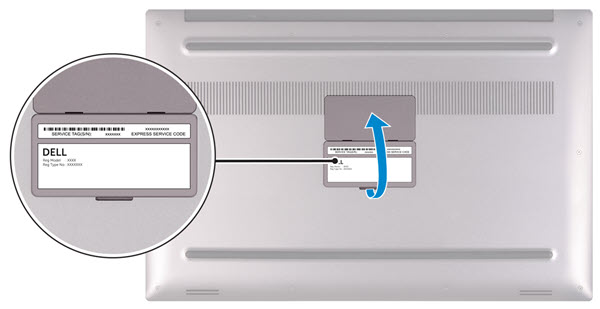

(Figure.3 Bottom View)
| 1 | Service Tag | 2 | Regulatory Label |
Left-Hand Side View

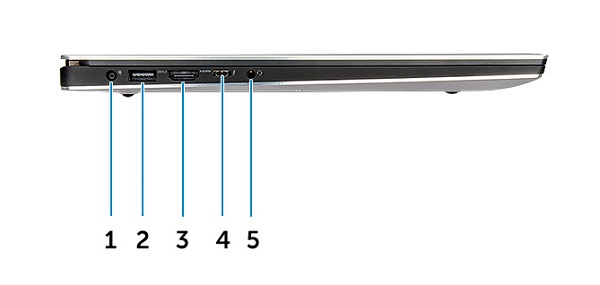

(Figure.4 Left-Hand Side View)
| 1 | Power Connector | 2 | USB 3.1 Gen1 Connector w/PowerShare |
| 3 | HDMI Connector | 4 | Thunderbolt 3 Type-C Connector |
| 5 | Headset Connector |
Right-Hand Side View

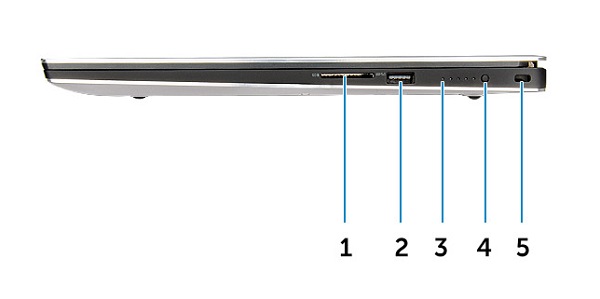

(Figure.5 Right-Hand Side View)
| 1 | Memory Card Reader | 2 | USB 3.1 Gen1 Connector w/PowerShare |
| 3 | Battery-Charge Status LED | 4 | Battery-Charge Status Button |
| 5 | Noble Wedge Security Slot |
Resolution
AC Adapter View

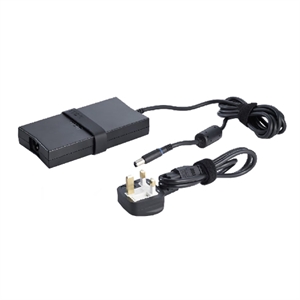

(Figure.6 130W Adapter)
| Type 130W Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 6.67 A (Continuous) |
| Output Power | 130 W |
| Output Voltage | 19.5 VDC |
Additional Information
- Precision 5540 Teardown removal guide for customer replaceable units (CRUs)
- Dell Precision 5540 Online Manual and documents
