Article Number: 000178016
Support for Integrated Dell Remote Access Controller 9 (iDRAC9)
Summary: The Integrated Dell Remote Access Controller 9 (iDRAC9) provides comprehensive, embedded management across the PowerEdge family of servers, automation that lets your organization grow, and security that ensures peace of mind. From the variety of tools and technologies in the OpenManage portfolio, you can build a management solution that matches your needs, and by leveraging iDRAC, ensures optimal server management. ...
Article Content
Symptoms

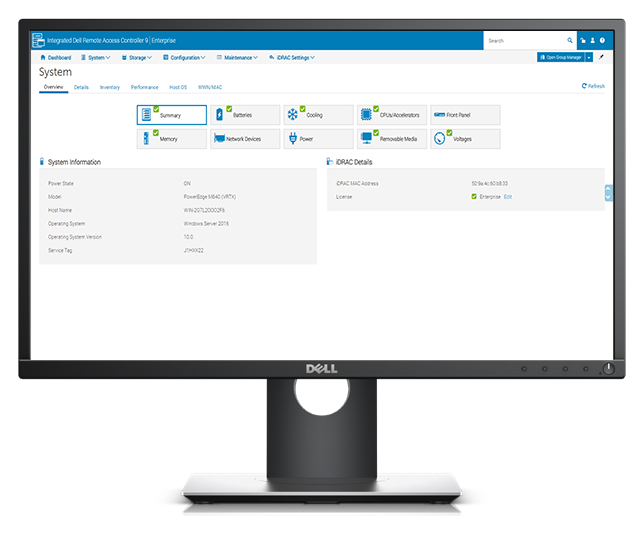

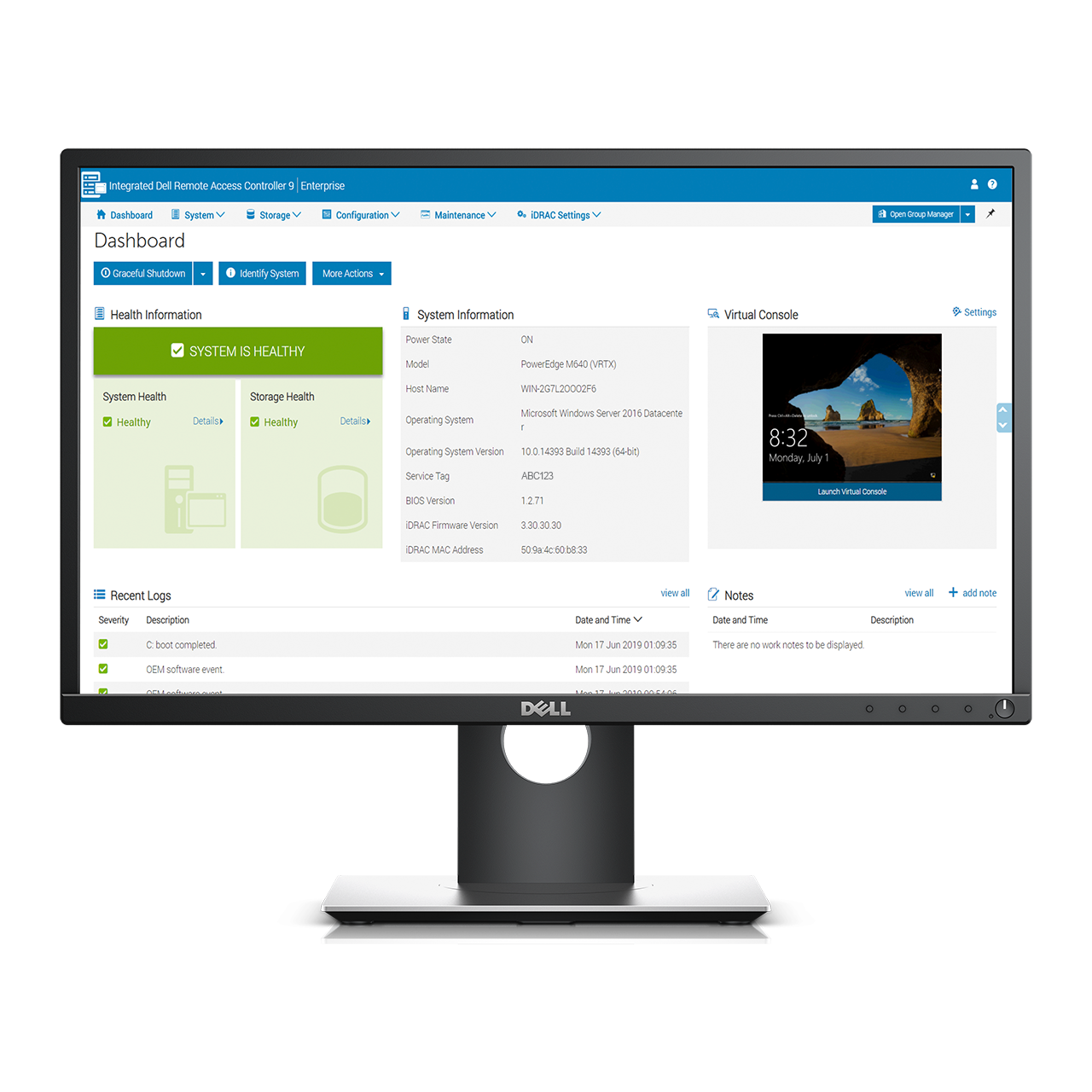

Integrated Dell Remote Access Controller 9
- Agent-free local and remote embedded server management
- Automate with RESTful API with Redfish support
- Deploy, update, monitor, and maintain your server
The iDRAC9 provides comprehensive, embedded management across the PowerEdge family of servers, automation that lets your organization grow, and security that ensures peace of mind. From the variety of tools and technologies in the OpenManage portfolio, you can build a management solution that matches your needs, and by leveraging iDRAC, ensures optimal server management.
Benefits of iDRAC9
Scalable Automation: By using standards-based APIs and robust scripting, you can efficiently manage thousands of servers and increase productivity.
Secure Management: Security-Enhanced Linux and configurable options like HTTPS, TLS 1.2, Smart Card authentication, LDAP, and Active Directory integration provide security in your working environment. You can also protect your system from unwanted configuration changes via system lockdown mode.
Streamlined Support: With embedded SupportAssist tools, you can view a continuously updated health and status report that monitors 5,000+ system parameters.
For additional information about iDRAC solutions, award & reviews and related offerings, Learn More >
Features in iDRAC9
| Feature | Benefit |
|---|---|
| BIOS Recovery | Detect an invalid, untrusted BIOS image when a boot is attempted and recover to an authenticated, trusted BIOS image |
| Connection View | Quickly check if server LOMs/NDCs and iDRAC are connected to the correct switches and ports via the GUI or by command line interface. This helps prevent costly remote dispatch of technicians to remediate cabling errors |
| Full Power Cycle | By utilizing the iDRAC Service Module, DC power, including AUX power, can be temporarily removed via local or remote control to reset all power nodes in a server, saving time when troubleshooting |
| iDRAC Direct | Secure front-panel USB connection to iDRAC web interface, which eliminates the need for crash carts or a trip to the hot aisle of your data center. You can use the same port to insert a USB key to upload new system profile for secure, rapid system configuration |
| iDRAC Group Manager | Provides built-in, one-to-many monitoring and inventory of local iDRACs with no software to install. Ideal for customers who do not want to install and maintain a separate monitoring console. This feature does require iDRAC Enterprise licenses |
| DRAC RESTful API | With this API, iDRAC enables support for the Redfish standard and enhances it with Dell extensions. |
| Cipher Select | Cipher Select is an advanced user setting where the user can choose to block undesired ciphers negotiated by iDRAC, providing increased security |
| OpenManage Mobile and Quick Sync 2 | Use the OpenManage Mobile 2.0 (or higher) app on your handheld device to securely retrieve critical health data and easily perform bare-metal server configuration tasks via BLE/Wi-Fi connectivity. Compatible with various iOS and Android devices |
| System Erase | With proper authentication, administrators can securely erase data from local storage (HDDs, SSDs, NVMes) |
| System Lockdown | Helps to prevent configuration or firmware changes to a server when using Dell tools. Requires iDRAC Enterprise License |
| Zero touch deployment and provisioning | When ordered with Zero Touch, PowerEdge servers can be automatically configured when they are initially connected to your network. This process uses a Server Configuration Profile to ensure each server is set to your specifications |
| SElinux | iDRAC code is built upon SELinux, a security that helps protect the system in the event of an attack |
For complete listing of licensed features in iDRAC9, Learn More >
Licensing for iDRAC9
iDRAC9 features are available based on the type of the license, for complete listing of licensed features, expand the following feature list:
iDRAC9 Licensed Features
| Basic | Express | Enterprise | Datacenter |
|---|---|---|---|
|
|
|
Granular Insight and Control
|
|
|
Enhanced Security
|
|
|
|
Thermal Manage Features
|
|
|
|
||
|
|
||
|
|
||
|
|
| iDRAC Licenses / Server Model | 100-500 Series Rack / Tower | 600+ Rack / Tower / Modular |
|---|---|---|
| Basic: Basic instrumentation with iDRAC web GU5 is the default license included with 100-500 series rack and tower servers | Standard | n/a |
| Express: All the features of Basic and expanded remote management and server lifecycle features is the default license included with 600+ series rack, tower and modular servers | Upgrade | Standard |
| Enterprise: All the features of Express and additional remote presence features with advanced, Enterprise-class, management capabilities | Upgrade | Upgrade |
| Datacenter: All the features of Enterprise and additional features such as extended remote insight in to server details, focused on high-end server options and granular power and thermal management | Upgrade | Upgrade |
An iDRAC9 license is a perpetual license that is valid for the life of a server, and can be bound to the Service Tag of only one server at a time. Upgraded iDRAC9 license can be included at time of server purchase or purchased separately and downloaded from Dell Digital Locker.
Trial License:
- A 30-day evaluation Enterprise and Datacenter trial licenses are available to fully test and experience all the features to help with purchasing decision. Learn More and download >
Upgrade License:
- Upgrading iDRAC9 license can be included at time of server purchase or to purchase separately, contact your local Dell EMC sales representative.
Downloading an upgraded or replacing a lost license:
- The iDRAC9 license can be downloaded from Dell Digital Locker. License keys will be stored online and can be downloaded if needed. If an existing license key is not available in the Dell Digital Locker or there is an issue with a license key, contact Dell EMC Technical Support or Customer Care.
Managing iDRAC9 Licenses
iDRAC licenses can be managed on either an individual server basis or through the Dell EMC License Manager which is a one-to-many license and deployment tool.- Individual server
Utilize iDRAC to manage the license for an individual server. iDRAC web interface, License tab can be utilized to import, export licenses or RACADM CLI License command can be utilized to manage licenses as described in the RACADM CLI Guide. - Group of servers Dell EMC License Manager is a one-to-many license deployment and reporting tool for OpenManage Enterprise Advanced, iDRAC and CMC licenses. By using License Manager, you can download, bind, deploy, inventory and back up OpenManage Enterprise Advanced Licenses as well as iDRAC, CMC and storage sled license. This tool can also inventory licensable systems to report the licensing status and features of the currently enabled management controller.
Cause
Update to latest iDRAC9 Firmware
Dell EMC recommends keeping your system up to date with the latest iDRAC9 firmware available. This ensures the best performance as well as the latest security updates and bug fixes. iDRAC updates do not require a reboot of the host, allowing for in place updates. The iDRAC firmware version can differ from one system to another, for the listing of iDRAC9 versions available, Learn More >
Resolution
Resources for iDRAC
Community
Engage in the Systems Management community to find:
- Boards to post questions and answers
- Blogs to read and comment on articles
- Idea exchanges to improve products and vote for ideas that other community members have posted
- And more...
Documentation
Refer to iDRAC9 Documentation for the latest documentation.
iDRAC9 Virtual Media Solution for ISO and IMG
December 2022
22 page white paper
iDRAC9 Virtual Media Solution supports HTML5 Virtual Media and Remote File Share which allows attaching of both and ISO and IMG file to Host as CD/DVD or Disk Drive. This Whitepaper captures Virtual Media Solution Enhancement and use cases.
Read the white paper
Discovery and Reporting of NUMA topology with iDRAC9 on Dell EMC PowerEdge Servers
December 2021
18 page white paper
This paper discusses the options to configure NUMA topology to help minimize latency and maximize performance. Methods to discover and report include Redfish, RACADM, and the Web UI.
Read the white paper
iDRAC9 Virtual Power Cycle: Remotely power cycle Dell EMC PowerEdge Servers
June 2021
5 page Direct from Development technical paper
Describes the methods to perform a Dell EMC PowerEdge iDRAC9 virtual power cycle feature through the iDRAC console or agent-based routines to restore or reset power states. This remote capability is essential to keeping distributed and scaled out IT environments running smoothly.
Read the Direct from Development technical paper
In-band or out-of-band: Advantages of iDRAC and iSM compared to OMSA
May 2020
15 page white paper
This paper showcases the advantages and features that out-of-band tools provide and compares them to the use of in-band agents for Dell EMC PowerEdge Systems Management.
Read the white paper
iDRAC9: Enabling Telco Transformation, Accelerating automation from the core to the far edge
April 2020
8 page white paper
This paper provides an explanation on iDRAC and how CSPs can leverage its capabilities to build out 5G and edge networks to deploy new services to customers.
Read the white paper
Direct from Development - iDRAC9 v4.0 Thermal Manage Features & Benefits
February 2020
4 page Tech Note
This tech note discusses the Thermal Manage feature part of the iDRAC Datacenter license. The Thermal Manage feature provides key thermal telemetry and associated control features that facilitate deployment and customization challenges.
Read the Tech Note
Side-by-side comparison of the features of Dell EMC iDRAC9 and iDRAC8
October 2017
10 page Tech Brief
Technical brief comparing the changes and improvements in iDRAC9 to iDRAC8. Also provides references to Dell EMC technical white papers that provide in-depth information about the new features provided by iDRAC9 introduced in the 14th generation PowerEdge servers.
Read the Brief
Features and Options available at time of ordering a new server
June 2017
22 page white paper
Technical white paper briefly describing features and license options available in iDRAC9 with Lifecycle Controller, and then provides a matrix that compares availability of different features by using different license options.
Read the white paper
iDRAC9 with Lifecycle Controller — Best in class management
June 2017
14 page white paper
This technical white paper lists the enhancements that iDRAC9 with Lifecycle Controller provides the customers in the Dell EMC 14th generation PowerEdge servers. The method in which the cutting edge technologies offered by PowerEdge servers align with the four pillars of IT infrastructure management are discussed in brief.
Read the white paper
14G support for HTTP and HTTPS across iDRAC9 interfaces
June 2017
35 page white paper
This technical white paper describes the enhanced support for HTTP and HTTPS file services in the 14th generation Dell EMC PowerEdge servers. These enhancements enable iDRAC9 with Lifecycle Controller embedded management automation for server inventory, provisioning, monitoring, and update to operate by using performant and secure HTTP and HTTPS-based file sharing.
Read the white paper
Managing PowerEdge server software licenses by using Digital Licensing
July 2017
45 page white paper
This technical white paper provides an overview of Dell enterprise software that utilizes digital licensing. Several key enterprise products have taken advantage of the ease of use and simplicity to upgrade that digital licensing provides. Products such as the Dell integrated Remote Access Controller 8 (iDRAC8), iDRAC7, OpenManage Essentials Server Configuration Management, and the Enterprise versions of Chassis Management Controller (CMC) for VRTX. Dell License Management portal controls all these licenses. This technical white paper uses the iDRAC licenses as an example.
Read the white paper
Using Server Message Block (SMB) in iDRAC9 of Dell EMC PowerEdge Servers
September 2017
7 page white paper
This technical white paper is aimed at the customers using iDRAC9’s file sharing service by using the Server Message Block (SMB) protocol. Starting from the 14th generation of Dell EMC PowerEdge servers, iDRAC9 usesSMB 2.0 as the minimum SMB protocol version.
Read the white paper
Telemetry Configuration using Server Configuration Profile
December 2021
14 page white paper
This white paper introduces iDRAC Custom Telemetry configuration using iDRAC Server Configuration Profile (SCP) feature.
Read the white paper
Telemetry Metric Report Definition Explained
August 2021
19 page white paper
This white paper explains different parameters of Metric Report Definitions that are configurable using Redfish, Server Configuration Profile (SCP), and iDRAC Graphical User Interface for the desired telemetry report data and the streaming behavior.
Read the white paper
Telemetry Streaming with iDRAC9— Custom Reports Get Started
May 2021
28 page white paper
Dell EMC PowerEdge Servers with iDRAC9 4.0 Datacenter stream data to help IT administrators better understand the inner workings of their server environment. This white paper explains the Telemetry Streaming feature and basic steps to configure iDRAC9, including adding custom report definitions on iDRAC9 4.40 or above.
Read the white paper
iDRAC9 Telemetry Enhancements: Customizable Reports and Multiple Consoles
April 2021
3 page Tech Note
iDRAC9 telemetry enhancements include the ability to create user defined custom reports and balance volume of streamed telemetry across more than one collection point. iDRAC9 data streamed to an external ingress collector, from which tools like Splunk or ELK Stack can be used to aggregate data, examine trends, issue alerts, and generate timely reports.
Read the tech note
iDRAC9 Telemetry streaming visualization with Splunk
October 2020
7 page Test Report
Dell Technologies commissioned The Tolly Group to demonstrate the use of iDRAC9 Telemetry Streaming data when used in conjunction with the Splunk "big data" analysis solution. Through a general use case, the report explores several key areas iDRAC9 telemetry data in the Splunk Platform can be used to provide deeper insights into your compute environment and deliver optimum user experience.
Read the test report
How to integrate iDRAC9 Telemetry Data into the Splunk platform
September 2020
10 page white paper
Explains the steps to integrate iDRAC9 Telemetry Data into the Splunk Platform. Dell EMC PowerEdge Servers can provide a stream of over 180 telemetry metrics via iDRAC9. Using an analytics solution, such as the Splunk platform, to store, analyze and visualize PowerEdge telemetry data, Infrastructure Managers have the ability to identify trend, utilization, and performance issues.
Read the white paper
Telemetry Streaming with iDRAC9 - Power and Thermal Metrics
August 2020
16 page white paper
Dell EMC PowerEdge Servers with iDRAC9 4.x Datacenter streams data to help IT administrators better understand the inner workings of their server environment. This white paper explains how to use the Telemetry Power and Thermal reports for monitoring and creating graphs for PowerEdge server power and thermal subsystems.
Read the white paper
Telemetry Streaming with iDRAC9 - Storage Reports
July 2020
14 page white paper
Dell EMC PowerEdge Servers with iDRAC9 4.x Datacenter stream data to help IT administrators better understand the inner workings of their server environment. This white paper explains how to use the Telemetry Storage reports for getting the details of the drives and cards on the PowerEdge servers.
Read the white paper
Telemetry Streaming with iDRAC9 Server - Telemetry Performance Reports
June 2020
9 page white paper
Dell EMC PowerEdge Servers with iDRAC9 4.x Datacenter stream data to help IT administrators better understand the inner workings of their server environment. This white paper details the Performance Reports, and how to use them for monitoring and analyzing PowerEdge server utilization.
Read the white paper
iDRAC9 Telemetry Streaming: What you need to get started
March 2020
28 page white paper
Dell EMC PowerEdge Servers with iDRAC9 4.0 Datacenter streams data to help IT administrators better understand the inner workings of their server environment. This white paper explains the Telemetry Streaming feature and basic steps to configure iDRAC9, and provides troubleshooting tips.
Read the white paper
iDRAC9 Telemetry Streaming: Evaluation of The Performance and Efficiency of Telemetry Streaming
February 2020
6 page Tech Note
White paper developed by The Tolly Group reports that the latest version of iDRAC9 v4.0 Datacenter license, provides significantly more raw data and high-value data reports combined with new data streaming technology yielding dramatically improved network efficiency.
Read the Tech Note
Direct from Development - Transform Datacenter Analytics with iDRAC9 Telemetry Streaming
February 2020
5 page Tech Note
This tech note discusses the Telemetry Streaming feature part of the iDRAC Datacenter license. The Telemetry feature provides high-performance streaming of over 180 unique server and peripheral metrics with our industry-leading agent-free architecture. The comprehensive telemetry data can be fed into analytics tools to predict failure events, optimize server operation, and enhance cyber-resiliency.
Read the Tech Note
Direct from Development - PowerEdge Multi-Vector Cooling
July 2017
3 page Tech Note
Dell EMC’s multi-faceted approach to server thermal control, which addresses and resolves not only cooling but also power consumption, airflow consumption and acoustics.
Read the Tech Note
Viewing the network switch connections between iDRAC & server network ports
June 2017
23 page white paper
This technical white paper explains how to reduce cabling errors in data centers and helping the customer catch them by using iDRAC user interfaces. Describes how to visualize physical connectivity between iDRAC and server network ports, and adjacent switches. This can be achieved by using the Connection View feature in iDRAC9 on the 14th generation Dell EMC PowerEdge servers.
Read the white paper
Understanding Dell EMC network adapters relationship to iDRAC
July 2017
8 page white paper
The number of server networking cards continues to grow at a rapid rate, as does the support for these cards from iDRAC with Lifecycle Controller. There are some limitations, and this technical white paper helps you understand the differences to help you make the best choice to fit their requirement. This technical white paper lists the network cards supported by the 14th generation Dell EMC PowerEdge servers featuring iDRAC9 with Lifecycle Controller.
Read the white paper
iDRAC9 User Interface to Redfish Mapping
January 2023
307 page white paper
This paper provides an overview of the iDRAC9 User Interface (UI) and how to extract same content using the Redfish Application Programing Interface (API).
Read the white paper
iDRAC9 RACADM to Redfish Mapping
December 2022
102 page white paper
This paper provides an overview of the iDRAC9 RACADM commands and how to extract same content using the Redfish Application Programing Interface (API).
Read the white paper
Zero-Touch, Bare-metal Server Provisioning Using the iDRAC9 with Auto Config
August 2022
48 page white paper
This technical white paper provides an overview of the Auto Config feature available in iDRAC9 for Dell PowerEdge Servers. Examples about configuring Auto Config by the user interface, RACADM, and Redfish commands are discussed. A list of tentative issues and resolutions is also provided.
Read the white paper
Getting Started with iDRAC Command Line Interface RACADM
January 2022
34 page white paper
This paper discusses the options to set up and use the command-line interface (CLI) used by iDRAC – the Remote Access Controller Administrator or RACADM.
Read the white paper
iDRAC9 vs. iDRAC8 RESTful API Capabilities
July 2021
124 page white paper
The iDRAC RESTful API provides a modern, secure, and scalable interface for PowerEdge server management, supporting both the DMTF Redfish standard and value-added Dell EMC APIs. This technical whitepaper provides a comparison of iDRAC9 vs. iDRAC8 RESTful APIs.
Read the white paper
Operating System deployment including server and storage configuration with iDRAC9 Server Configuration Profiles
April 2021
20 minute video
iDRAC9 Version 4.00.00.00 adds zero-touch OS deployment capabilities to existing server and storage configuration capabilities through iDRAC9 Server Configuration Profiles (SCP). This video provides an example server deployment including RAID volume creation, setting boot order, and install of an OS.
View the video
Server cloning by using Server Configuration Profiles on PowerEdge servers
December 2020
35 page white paper
Overview of iDRAC9 with Lifecycle Controller on PowerEdge servers that provides the ability to capture an entire configuration in a single human-readable output called a Server Configuration Profile. This profile can be applied to multiple servers, enabling rapid, reliable, and reproducible configuration. An administrator can clone or replicate a profile, modify that profile as needed, and then preview the deployment on a target server. Being able to take these steps saves time and minimizes configuration errors, thereby reducing the need for manual intervention and decreasing configuration time.
Read the white paper
Server Configuration Profile (SCP) Files
iDRAC based Server Configuration Profiles (SCP) Files
iDRAC Server Configuration Profile files grouped by iDRAC firmware version. Each archive contains html based help files, json examples, python and XML schema descriptions (XSD) for scripting.
Download SCP Files
Managed Object Format (MOF) Files
iDRAC based Managed Object Format (MOF) Files
Dell provided Managed Object Format (MOF) defines the data and event classes for WMI providers to manage and monitor a Dell PowerEdge server grouped by iDRAC firmware version. Each archive contains the MOF files organized by component item.
Download MOF Files
Using Server Configuration Profiles to Deploy Operating Systems to Dell EMC PowerEdge Servers
April 202027 page white paper
This white paper describes best practices to install an operating system automatically via a Server Configuration Profile. This method can be deployed to multiple servers, greatly reducing the time required to get a server up and running.
Read the white paper
RACADM Error Codes for iDRAC RACADM command-line utility
February 2020
19 page white paper
RACADM error code or return code is an integer value that represents the status of a command run. This guide identifies the failure type based on the error code returned.
Read the report
Dell EMC iDRAC9 provisioning SSL automation infographic
iDRAC9 firmware 4.0February 2020
1 page Info graphic
Highlights two new features in iDRAC9 v4.0 for Dell EMC PowerEdge servers: automate OS deployment and iDRAC SSL certificate enrollment and renewal, freeing up hours or even days of hands-on admin time.
Read the report
Reduce hands-on deployment time to near zero with iDRAC9
iDRAC9 firmware 4.0February 2020
5 page report
White paper developed by Principled Technologies reports that the latest version of iDRAC Enterprise and Datacenter licenses, makes it easier to deploy and update PowerEdge servers by reducing time and effort for administrators. The amount of admin-attended time and steps it took to deploy new servers once the first server was in place, was dramatically reduced, cutting 30 minutes of manual admin time and 40 steps down to just 16 seconds and 4 steps.
Read the report
The science behind Reduce hands-on deployment time to near zero with iDRAC9
iDRAC9 firmware 4.0February 2020
10 page report details
White paper developed by Principled Technologies provides the science behind the feature validation testing on iDRAC9 v4.0 Zero-Touch Provisioning.
Read the report
Overview of new features in iDRAC9 3.30.30.30 API
March 2019
87 page white paper
This technical white paper provides an overview of iDRAC RESTful API enhancements provided with iDRAC9 firmware version 3.30.30.30 and later, illustrating the new APIs with scripted examples.
Read the white paper
RESTful NIC and HBA Management with iDRAC RESTful API
June 2018
20 page white paper
This technical white paper provides an overview with scripting examples of the Redfish APIs for Network Interface Card (NIC) and Fibre Channel Host Bus Adapter (FC-HBA) management for the12th, 13th, and 14th generation of Dell EMC PowerEdge servers, delivered by the integrated Dell Remote Access Controller (iDRAC) RESTful API.
Read the white paper
RESTful Storage Management with iDRAC RESTful API
June 2018
24 page white paper
Dell EMC’s multi-faceted approach to server thermal control, which addresses and resolves not only cooling but also power consumption, airflow consumption and acoustics.
Read the white paper
Implementation of the DMTF Redfish API on Dell EMC PowerEdge servers
June 2018
43 page white paper
This technical white paper provides an overview of the Redfish Scalable Platforms Management API standard and describes the Dell implementation of Redfish for the12th, 13th, and 14th generation PowerEdge servers—delivered by the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller.
Read the white paper
Server Management with PowerShell Using iDRAC REST API
August 2017
22 page white paper
This technical white paper provides an overview of using Microsoft PowerShell to script operations of the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller REST API with Redfish. This technical white paper provides tips for getting started with Microsoft PowerShell scripting for iDRAC REST and Redfish and describes the key use cases.
Read the white paper
RESTful Server Configuration Profiles with iDRAC RESTful API
October 2018
53 page white paper
This document provides an overview of the iDRAC RESTful API, the Redfish Scalable Platforms Management API standard, and details the use of the iDRAC SCP RESTful API for RESTful configuration management of PowerEdge servers.
Read the white paper
Optimizing WS-Man to retrieve Lifecycle Logs from iDRAC9
June 2017
13 page white paper
This technical white paper is aimed at the customers of WS-Man APIs, who want to retrieve Lifecycle Controller Logs efficiently. Starting from 14th Generation of Dell EMC PowerEdge servers, iDRAC9 introduces an efficient partial Lifecycle Controller Log retrieval mechanism by using filter dialects for WS-Man.
Read the white paper
WS-Man File Transfer in 14th Generation Dell EMC PowerEdge Servers
June 2017
53 page white paper
This technical white paper describes enhancements to the iDRAC WS-Man API enabling the “streaming” of information to/from files local to the WS-Man client, removing the necessity of network file shares for a range of iDRAC operations.
Read the white paper
Configuring server boot options on 14th generation PowerEdge servers
June 2018
16 page white paper
This technical white paper describes the options available from PowerEdge BIOS to manage and control boot sources such as hard drives, solid-state drives (SSDs), PXE servers, and HTTP network shares for both legacy BIOS and UEFI mode.
Read the white paper
Setting up BIOS on 14th Generation Dell EMC PowerEdge servers
April 2018
37 page white paper
This Dell EMC technical white paper describes the BIOS attributes that you can use to manage and customize your Dell EMC 14G PowerEdge servers. It also defines the fields used in configuring these attributes and best practices for defining values in each field, where appropriate.
Read the white paper
Signing UEFI images for Secure Boot with PowerEdge servers
June 2017
15 page white paper
This technical white paper provides an overview about signing UEFI images for development and test by using Microsoft Windows hosted tools.
Read the white paper
Secure Boot Management on 14th generation PowerEdge servers
June 2018
55 page white paper
This technical white paper describes step-step process to manage Secure Boot and its certificates effectively to ensure your business-critical operations are safe and uninterrupted.
Read the white paper
Defining a Secure Boot Policy on PowerEdge servers
September 2014
16 page white paper
This deployment and configuration guide explains how to use the System Setup utility to configure Secure Boot, a BIOS feature which helps protect the preboot environment.
Read the white paper
Best practices for obtaining and updating a PowerEdge server BIOS
February 2018
4 page Tech Note
This document serves as a brief guide of Dell EMC recommended best practices for obtaining and applying BIOS updates.
Read the Tech Note
Update Dependency by using Lifecycle Controller in PowerEdge servers
June 2017
10 page white paper
This technical white paper will explain how to detect and report the necessary Update Package dependencies to help the customer understand and apply these dependencies in a proper order.
Read the white paper
PowerEdge Updates with Repository Manager Best Practices Guide
October 2014
13 page white paper
Dell Repository Manager (DRM) is designed to assist in the creation and maintenance of a baseline configuration of BIOS, Firmware and Driver levels.
Read the white paper
Online Capacity Expansion and RAID-Level Migration of Virtual Drives by using PERC 9 and PERC 10
September 2017
19 page white paper
This technical white paper describes the advantages of using RAID OCE and RLM on Dell EMC PowerEdge servers to increase capacity and change RAID level of an existing VD without having to restart the system.
Read the white paper
Real Time Storage Configuration Using PERC9 on Dell 13th Generation PowerEdge Servers
January 2015
37 page white paper
This Dell technical white paper provides information about PERC9 real time storage configuration using supported iDRAC interfaces.
Read the white paper
Express Flash NVMe PCIe SSD Monitoring, Inventory and Configuring in PowerEdge servers
August 2014
27 page white paper
This Dell Technical white paper provides detailed information about Express Flash NVMe PCIe SSD device Monitoring and Inventory using various interfaces such as WS-Man, RACADM and GUI.
Read the white paper
Enable iDRAC Local Key Management (iLKM) on Dell PowerEdge Servers
April 2022
20 page white paper
iDRAC Local Key Management is a solution for users that do not plan to use Secure Enterprise Key Management (SEKM) immediately but would like to secure devices using iDRAC and migrate to SEKM at a later point in time. In this solution, iDRAC will act as a key manager and generate authentication keys that can then be used to secure supported storage devices. Once users decide to move to SEKM, they can then migrate from iDRAC based Local Key Management (LKM) to iDRAC based SEKM solution.
Read the white paper
Enable OpenManage Secure Enterprise Key Manager (SEKM) on Dell EMC PowerEdge Servers
April 2022
81 page white paper
The OpenManage SEKM enables you to use an external Key Management Server (KMS) to manage keys that can then be used by iDRAC to lock and unlock storage devices on a Dell EMC PowerEdge server. iDRAC requests the KMS to create a key for each storage controller, and then fetches and provides that key to the storage controller on every host boot so that the storage controller can then unlock the SEDs.
Read the white paper
Improved iDRAC9 Security using TLS 1.3 over HTTPS on Dell PowerEdge Servers
December 2021
2 page Direct from Development technical paper
iDRAC9 5.10.00.00 supports TLS 1.3 over HTTPS, to encrypt data and authenticate connections for moving data over the internet.
Read the Direct from Development technical paper
Improved security with iDRAC9 using Root of Trust and BIOS Live Scanning
June 2021
14 page white paper
iDRAC9 4.10.10.10 (AMD platforms) and 4.40.20.00 (Intel platforms) provides an improved Root of Trust mechanism that helps reduce the risk of malware infiltration into sensitive server areas. For newer Intel and AMD platforms, additional BIOS live scanning checks to ensure that no unauthorized changes occur.
Read the white paper
Introduction to iDRAC Delegated Authorization
May 2021
6 page Tech Note
This white paper provides an overview of iDRAC Delegated Authorization. It explains Delegated Authorization and how it addresses the limitations with the current iDRAC web-based authorization architecture. It provides a solution overview and briefly describes the OAuth 2.0 authorization framework along with some key terminology from the perspective of an iDRAC.
Read the tech note
iDRAC9 System Lockdown: Preventing Unintended Server Changes
April 2021
2 page Tech Note
Enabling system lockdown mode is part of Dell Technologies’ cyber resilient architecture of Protect, Detect and Recover. System Lockdown helps prevent change or “drift” in system firmware images and critical server configuration settings.
Read the tech note
Cyber Resilient Security in Dell EMC PowerEdge Servers
March 2021
32 page white paper
Covers the variety of security processes and features in the 14th and 15th generations PowerEdge Servers, featuring iDRAC9.
Read the white paper
Using iDRAC9 RSA SecurID 2FA
December 2020
25 page white paper
Learn how to improve security by configuring iDRAC9 to enable RSA SecurID two-factor authentication (2FA) for local users, and Active Directory and LDAP users.
Read the white paper
Improved security with iDRAC9 via Root of Trust and BIOS Live Scanning
June 2020
13 page white paper
iDRAC9 4.10.10.10 provides an improved Root of Trust mechanism that helps reduce the risk of malware infiltration into sensitive server areas. For newer AMD platforms, additional BIOS live scanning checks to ensure that no unauthorized changes occur.
Read the white paper
System Erase with iDRAC9 to easily erase storage devices, cache and logs
April 2020
1 page Tech Note
When repurposing or retiring servers, use the System Erase function to easily secure server data.
Read the Tech Note
Direct from Development - iDRAC9 Automatic Certificate Enrollment
February 2020
2 page Tech Note
Tech note discusses the Automatic Certificate Enrollment feature part of the iDRAC Datacenter license. Automatic Certificate Enrollment is a new security feature to keep your iDRAC SSL/TLS certificates current for both bare-metal and previously installed systems.
Read the Tech Note
iDRAC SSL certificate renewals feature in iDRAC9 v4.0
iDRAC9 firmware 4.0February 2020
5 page Info graphic
White paper developed by Principled Technologies reports automating SSL certificate enrollment and renewal with iDRAC9 v4.0 Datacenter license, administrators can save significant time and effort over manual approaches. The qualitative benefits of this iDRAC Datacenter license feature means with automation the option to renew your SSL certificates more often, alleviates the time and effort spent tracking and planning renewals, and reduces the risk of server vulnerability.
Read the report
The science behind iDRAC SSL certificate renewals feature in iDRAC9 v4.0
iDRAC9 firmware 4.0February 2020
8 page Info graphic
White paper developed by Principled Technologies provides the science behind the feature validation testing on iDRAC9 v4.0 SSL Certificate Automation.
Read the report
iDRAC9 Cipher Select – Improved Security for Dell EMC PowerEdge Servers
May 2019
10 page white paper
Cipher Select is an advanced user setting where the user can choose to block undesired ciphers negotiated by iDRAC, providing increased security.
Read the white paper
Improved Server Security features in iDRAC9 using SELinux
September 2018
8 page white paper
Dell EMC 14th generation PowerEdge servers offer greater risk mitigation in iDRAC9 using SELinux. This document introduces the new security features in iDRAC9.
Read the white paper
Improved security of iDRAC9 with Lifecycle Controller via SMB2 Protocol
October 2018
12 page white paper
This technical white paper provides detailed information about SMB2 Protocol support in iDRAC with Lifecycle controller.
Read the white paper
Dell EMC iDRAC Response to CVE-2018-1249, 1244, 1212 and 1243
September 2018
2 page security advisory
The following is Dell EMC’s response to multiple CVEs in Integrated Dell Remote Access Controller (iDRAC). iDRAC firmware versions listed below contain fixes for these security vulnerabilities that could potentially be exploited by malicious users to compromise the affected system.
Read the security advisory
Dell EMC iDRAC Response to Vulnerabilities CVE-2017-1000251 “BlueBorne”
September 2017
1 page security advisory
The following is the Dell EMC response to the recent CVE related to the BlueBorne vulnerability.
Read the security advisory
To protect, detect and recover from cyber attacks, security in server design
July 2017
4 page Tech Note
Server security is critical for securing the IT infrastructure. While much customer focus on cybersecurity concerns protecting the OS and applications, less attention is devoted to the underlying server infrastructure including hardware and firmware.
Read the Tech Note
Securing 14th generation Dell EMC PowerEdge servers with System Erase
June 2017
23 page white paper
This technical white paper provides an overview of the System Erase function which simplifies the process of safeguarding server data during server repurposing and retirement. This technical white paper includes step by step procedure to complete the System Erase process.
Read the white paper
Factory Generated Default Password for iDRAC9 for PowerEdge servers
September 2017
26 page white paper
This technical white paper explains the factors driving the introduction of the factory generated default password feature for iDRAC9 for Dell EMC 14th generation (14G) PowerEdge servers. Also, it provides guidance on how to adopt the feature in terms of best practices for provisioning, configuring, and maintaining.
Read the white paper
Managing Web Server Certificates on iDRAC for secure communications
November 2014
18 page white paper
This Dell technical white paper explains how to configure the web server certificates on iDRAC to establish secure remote connections.
Read the white paper
Configure iDRAC to use Active Directory Authentication
July 2021
27 page white paper
This Dell technical white paper explains how to configure and test iDRAC with Microsoft’s Active Directory authentication and Single Sign-On Logon
Read the white paper
iDRAC9 Assert and De-Assert Event Messages Correlation
March 2022
21 page white paper
Dell PowerEdge Servers log system health related critical and warning event messages (assert) whenever there is an abnormal condition that arises on the system and logs informational event messages (de-assert) that corresponds to clearing of the condition. However, messages are independently logged without any correlation. This white paper explains how to correlate the assert and de-assert messages to help analyze and report current state of the server.
Read the white paper
Manage iDRAC alerts by using the Redfish Eventing feature in iDRAC8 and iDRAC9
August 2021
18 page white paper
In PowerEdge servers, alerts are generated and delivered to predict or foresee any actions to be done. This technical white paper enables you to configure and subscribe for alerts generated in iDRAC by using the Redfish Eventing feature.
Read the white paper
Events and Error Messages Reference Guide
Real time
Lookup for Event and Error Codes
Error and Event Messages are displayed on the graphical user interface, command line interface, and stored in log files. Messages are displayed or stored as a result of user action, automatic event occurrence, or for data logging purposes. For information about the event and error messages generated by the PowerEdge server firmware and agents that monitor system components, View the Error Code Lookup page at qrl.dell.com > Look Up > Error Code, type the error code.
Lookup Event and Error Code
Prefailure alerts provided by Dell EMC PowerEdge server systems management
June 2020
20 page white paper
Discover the various methods by which OpenManage tools can help provide better server uptime with prefailure alerts.
Read the white paper
Accessing Remote Desktop using VNC on PowerEdge Servers and MX7000
February 2019
36 page white paper
This technical white paper provides information about establishing secure remote desktop connections to server host operating systems by using the standard VNC clients.
Read the white paper
Understanding Quick Sync 2 for Dell EMC PowerEdge 14th Gen Servers and MX7000 Chassis
September 2018
14 page white paper
Technical white paper provides information about enhanced wireless configuration, monitoring and troubleshooting.
Read the white paper
Understanding OpenManage Mobile and Quick Sync Security
June 2017
11 page white paper
This technical white paper helps you understand mobile management security features and optimize your environment for maximum security on Dell EMC PowerEdge servers.
Read the white paper
Managing the Rollup Health status by using iDRAC9 on PowerEdge servers
June 2017
22 page white paper
This technical white paper provides an overview of the Rollup Health status feature that indicates the server status by considering individual components’ health status. The graphical user interface (GUI) and WS-Man methods to manage the Rollup health status is described.
Read the white paper
Monitoring & configuring Server Group by using iDRAC Group Manager
June 2017
45 page white paper
This Dell EMC technical white paper introduces the iDRAC Server Group Manager feature and describes the procedures to effectively set up and manage a group of Dell PowerEdge servers.
Read the white paper
Managing iDRAC9 Event Alerts on 14th generation PowerEdge Servers
June 2017
23 page white paper
This technical white paper describes the Lifecycle log and Alerts capabilities of iDRAC9 in Dell EMC PowerEdge servers.
Read the white paper
SupportAssist Collections on Dell EMC’s 14th generation of PowerEdge servers
June 2017
39 page white paper
This white paper describes the various options available in the 14th generation of PowerEdge servers for generating and accessing SupportAssist collections across all iDRAC and Lifecycle Controller interfaces. It also provides resources and information required to use the available options in iDRAC and Lifecycle Controller.
Read the white paper
SupportAssist on Dell EMC’s 14th generation of PowerEdge servers
June 2017
32 page white paper
This white paper provides an overview of SupportAssist available on the 14th generation of PowerEdge servers. It also provides resources and information required to register SupportAssist for event monitoring and to automatically generate collections from the server.
Read the white paper
iDRAC Service Module – OS based capabilities for Out-of-band management with iDRAC9
May 2021
12 page white paper
Summary of the latest enhancements that iDRAC Service Module (iSM) provides to out-of-band management with iDRAC9 to the customers in the Dell EMC 14th and 15th generation PowerEdge servers.
Read the white paper
Installing iDRAC Service Module using iDRAC9 on PowerEdge servers
June 2017
16 page white paper
This technical white paper describes various options available in the iDRAC9 of Dell EMC 14G PowerEdge servers for installing iDRAC Service Module (iSM) in Host by using various iDRAC9 interfaces. It also provides resources and information required to build on the options available in iDRAC.
Read the white paper
iDRAC Service Module 2.1 or later on Ubuntu & Debian Linux Operating Systems
September 2015
19 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC Service Module v2.1 or later on Ubuntu and Debian Linux Operating systems.
Read the white paper
iDRAC Service Module - Windows Management Instrumentation
April 2015
17 page white paper
This White paper is about using iDRAC Service Module to monitor the various hardware profiles through the Windows Management Instrumentation (WMI) client interfaces such as Windows PowerShell, Windows Management Instrumentation Command-line, Windows Remote Management client (WINRM), WBEMTEST.
Read the white paper
iDRAC CPU Hard Reset using iDRAC Service Module (minimum version 2.3.0)
July 2016
8 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC CPU Hard Reset feature in iDRAC Service Module v2.3 or later.
Read the white paper
iDRAC Service Module - iDRAC Access via Host Operating System
July 2016
18 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC Access via the Host Operating System feature in iDRAC Service Module v2.3 or later.
Read the white paper
In-Band iDRAC SNMP Alerts by using iDRAC Service Module
July 2016
13 page white paper
This White Paper provides information about the usage and troubleshooting of InBand iDRAC SNMP Alerts in iDRAC Service Module v2.3 or later.
Read the white paper
In-Band iDRAC SNMP Alerts by using iDRAC Service Module
January 2017
14 page white paper
This White Paper provides information about the usage, configuration and troubleshooting of In-Band iDRAC SNMP Alerts in iDRAC Service Module v2.3 or later.
Read the white paper
iDRAC Service Module - iDRAC Access via Host Operating System
January 2017
17 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC Access via Host Operating System feature in iDRAC Service Module v2.3 or later.
Read the white paper
Telemetry Streaming with iDRAC9 – Metric Reports Using Rsyslog
IPv6 Best Practices using iDRAC
Managing IO Identity and Server State Information
Optimizing I/O Identity and Applying Persistence Policy on Network and Fibre Channel Adapters
Retrieving Server OS Networking Information through iDRAC
Understanding PreBoot Networking on Dell PowerEdge Servers
Auto-Discovery Network Setup Specification
Configuring BIOS and NIC Using RACADM through Dell iDRAC
Converged Network Adapters with NIC, iSCSI, and FCoE Support
OS to BMC Pass-through operation
FCoE Boot Configuration Setup on Intel Card
FCoE boot using Broadcom card
Network IO Identity
Reinitiate Auto-Discovery
Remote NIC Configuration Management
Overview of Dell Systems Management using IPMI
Understanding Physical Computer System View Profile Implementation
Lifecycle Controller Workflow Optimization
Lifecycle Controller (with WS-Man) Best Practices Specification (Jan 2017)
Lifecycle Controller 2 Web Services Interface Guide (WS-Man Scripting Guide) for Windows (Jan 2017)
Lifecycle Controller 2 Web Services Interface Guide (WS-Man Scripting Guide) for Linux (Jan 2017)
Creating Applications using the WS-Man API
Methods to Save and Restore PowerEdge Server Configuration Settings and Firmware Images
Using Filter Dialects with the WS-Man API
Automatic Backup Server Profile
Creating and Managing Server Configuration Profiles
Hardware Inventory Viewing Script
How to Build Inventory Reports
iDRAC Cloning
Import and Export Server Profiles
Server Configuration Profile - XML File Structure (files)
Streamlined OS deployment using bootable USB devices and Lifecycle Controller
Unattended Installation of Red Hat Enterprise Linux 7 Operating System on Dell PowerEdge Servers Using iDRAC With Lifecycle Controller
Unattended Installation of Windows 2012 (12G and 13G)
Operating System Deployment in PowerEdge Servers
Operating Systems Deployment using iSCSI or FCOE LUN
Creating and updating iDRAC repository with Repository Manager
Lifecycle Controller with Dell Repository Manager
Recommended methods of Updating Firmware on Dell Servers
Recommended Workflow for Performing Firmware Updates on PowerEdge Servers
Remote Firmware Update
Using Dell Repository Manager to create a Bootable ISO and perform updates
vFlash Overview
vFlash Partition Management
Web Services Eventing Support for Hardware Inventory and Monitoring
Enhanced Out of Band Performance Monitoring
Agent-free Inventory and Monitoring for Storage and Network Devices
Discovering Features in the iDRAC Remote Services API
Motherboard Replacement
Lifecycle Controller Part Replacement
Dell EMC Response to CVEs 2018-1207, 2018-1211, and 1000116 [updated June] (June 2018)
Dell update regarding CVE-2016-2183 - Birthday attacks on 64-bit block ciphers (aka Sweet32 attack) (May 2016)
Dell iDRAC Best Practices regarding Transport Layer Security (TLS) Protocols (September 2016)
Dell response to 2016 Leap Second Issue (November 2016)
Dell PowerEdge 13G server security white paper (Nov. 2016)
Dell's response to CVE-2016-5685 (November 2016)
Dell Response to CVE-2016-2108 (OpenSSL) (18 May 2016)
Dell OpenManage Response to CVE-2015-7547, glibc overflow (March 2016)
Dell OpenManage Response to CVE-2016-0800, CVE-2016-0703 and CVE-2016-0704 (March 2016)
Dell iDRAC Response to recent CVE notices (Dec 2015)
IPv6 Best Practices using iDRAC
Managing IO Identity and Server State Information
Optimizing I/O Identity and Applying Persistence Policy on Network and Fibre Channel Adapters
Retrieving Server OS Networking Information through iDRAC
Understanding PreBoot Networking on Dell PowerEdge Servers
Auto-Discovery Network Setup Specification
Configuring BIOS and NIC Using RACADM through Dell iDRAC
Converged Network Adapters with NIC, iSCSI, and FCoE Support
OS to BMC Pass-through operation
FCoE Boot Configuration Setup on Intel Card
FCoE boot using Broadcom card
Network IO Identity
Reinitiate Auto-Discovery
Remote NIC Configuration Management
Overview of Dell Systems Management using IPMI
Understanding Physical Computer System View Profile Implementation
Lifecycle Controller Workflow Optimization
Lifecycle Controller (with WS-Man) Best Practices Specification (Jan 2017)
Lifecycle Controller 2 Web Services Interface Guide (WS-Man Scripting Guide) for Windows (Jan 2017)
Lifecycle Controller 2 Web Services Interface Guide (WS-Man Scripting Guide) for Linux (Jan 2017)
Creating Applications using the WS-Man API
Methods to Save and Restore PowerEdge Server Configuration Settings and Firmware Images
Using Filter Dialects with the WS-Man API
Automatic Backup Server Profile
Creating and Managing Server Configuration Profiles
Hardware Inventory Viewing Script
How to Build Inventory Reports
iDRAC Cloning
Import and Export Server Profiles
Server Configuration Profile - XML File Structure (files)
Streamlined OS deployment using bootable USB devices and Lifecycle Controller
Unattended Installation of Red Hat Enterprise Linux 7 Operating System on Dell PowerEdge Servers Using iDRAC With Lifecycle Controller
Unattended Installation of Windows 2012 (12G and 13G)
Operating System Deployment in PowerEdge Servers
Operating Systems Deployment using iSCSI or FCOE LUN
Creating and updating iDRAC repository with Repository Manager
Lifecycle Controller with Dell Repository Manager
Recommended methods of Updating Firmware on Dell Servers
Recommended Workflow for Performing Firmware Updates on PowerEdge Servers
Remote Firmware Update
Using Dell Repository Manager to create a Bootable ISO and perform updates
vFlash Overview
vFlash Partition Management
Web Services Eventing Support for Hardware Inventory and Monitoring
Enhanced Out of Band Performance Monitoring
Agent-free Inventory and Monitoring for Storage and Network Devices
Discovering Features in the iDRAC Remote Services API
Motherboard Replacement
Lifecycle Controller Part Replacement
Dell EMC Response to CVEs 2018-1207, 2018-1211, and 1000116 [updated June] (June 2018)
Dell update regarding CVE-2016-2183 - Birthday attacks on 64-bit block ciphers (aka Sweet32 attack) (May 2016)
Dell iDRAC Best Practices regarding Transport Layer Security (TLS) Protocols (September 2016)
Dell response to 2016 Leap Second Issue (November 2016)
Dell PowerEdge 13G server security white paper (Nov. 2016)
Dell's response to CVE-2016-5685 (November 2016)
Dell Response to CVE-2016-2108 (OpenSSL) (18 May 2016)
Dell OpenManage Response to CVE-2015-7547, glibc overflow (March 2016)
Dell OpenManage Response to CVE-2016-0800, CVE-2016-0703 and CVE-2016-0704 (March 2016)
Dell iDRAC Response to recent CVE notices (Dec 2015)
Videos
Dell EMC iDRAC9 v4.0 GUI Enhancements
Highlights of the iDRAC9 v4.0 enhancements and benefits including use of search, job status dashboard, system lockdown, and virtual clipboard.
February 2020Data Telemetry Streaming with iDRAC9
This 4-1/2 minute video describes how customers are using analytics to proactively manage and optimize their IT infrastructures.
February 2020Automatic Certificate Enrollment with iDRAC9
This concise 2-minute video gives an overview of the Automatic Certificate Enrollment feature in iDRAC9.
February 2020Thermal Management Features with iDRAC9 Datacenter License
This brief, 2-minute tech talk covers the thermal management features available with the iDRAC9 Datacenter License.
February 2020Evaluation of the performance and efficiency of iDRAC9 Telemetry Streaming
Discussion of the iDRAC9 Telemetry Streaming feature providing an overview, use cases, description of the feature.
February 2020PowerEdge server lifecycle management with iDRAC9
Tech Talk covering simplified and automated PowerEdge server management with iDRAC9.
February 2019iDRAC9 videos for initial setup and updates
iDRAC9 playlist of 7 videos:
Setup of iDRAC9
Setup of SupportAssist
Login with default password
iDRAC9 Connection View to remotely view the server's network connection
With iDRAC9 Connection View, see how a PowerEdge server's Network Daughter Card ports and iDRAC are connected to the switches/ports
July 2017Secure Boot Configuration and Certificate Management using RACADM
Certificate management tasks such as exporting, importing, deleting, and restoring the secure boot certificates using RACADM
July 2017Introducing OpenManage Mobile and Quick Sync 2
Demonstration of OpenManage Mobile and PowerEdge servers with Quick Sync 2
July 2017Secure Boot Configuration and Certificate Management using WS-Man
Certificate management tasks such as exporting, importing, deleting, and restoring the secure boot certificates using WS-Man
July 2017Article Properties
Affected Product
iDRAC9
Last Published Date
16 May 2023
Version
42
Article Type
Solution
