Support for Integrated Dell Remote Access Controller 8 (iDRAC8)

Summary: Dell integrated Dell Remote Access Controller, iDRAC8 provides comprehensive, embedded management across the PowerEdge family of servers, automation that lets your organization grow,See more

Article Content


Instructions
Dell EMC Intergrated Dell Remote Access Controller

Support for the Integrated Dell Remote Access Controller 8

  • Agent-free local and remote embedded server management
  • Automate with RESTFul API with Redfish support
  • Deploy, update, monitor, and maintain your server

The iDRAC provides comprehensive, embedded management across the PowerEdge family of servers, automation that lets your organization grow, and security that ensures peace of mind. From the variety of tools and technologies in the OpenManage portfolio, you can build a management solution that matches your needs, and by leveraging iDRAC, ensures optimal server management.

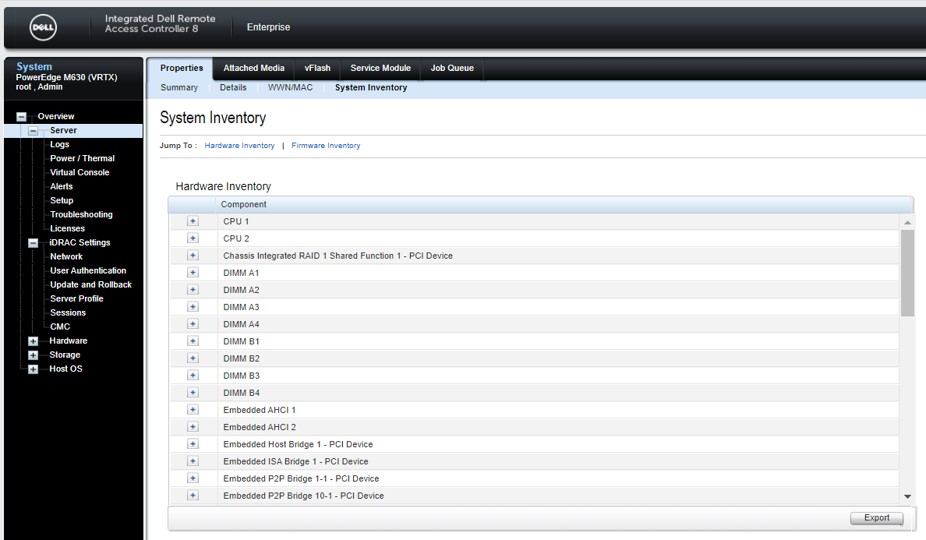

Dell EMC iDRAC8 Server Invetory

Benefits of iDRAC8

Increased Availability: Early notification of potential or actual failures that help prevent a server failure or reduce recovery time after failure.
Improved Productivity and Lower Total Cost of Ownership: Extending the reach of administrators to larger numbers of distant servers can make IT staff more productive while driving down operational costs such as travel.
Secure Environment: By providing secure access to remote servers, administrators can perform critical management functions while maintaining server and network security.

Security is a top priority for iDRAC users. With that in mind, the iDRAC web interface, remote RACADM utility, and WS-Man interfaces all support TLS 1.2. Every web page served by the iDRAC web server is delivered with TLS encryption (unless configured otherwise). Dell also supports encryption on the virtual KVM (virtual console redirection) and virtual media over TLS. The iDRAC Virtual Console and Media also benefit from SSL encryption. Additionally, the iDRAC firmware is equipped with a default security certificate, which can be replaced by a customer with one of their own choosings.

Enhanced Embedded Management through Lifecycle Controller: Lifecycle Controller provides deployment and simplified serviceability through Lifecycle Controller GUI for local deployment and Remote Services (WS-Management) interfaces for remote deployment integrated with Dell OpenManage Essentials and partner consoles.
Agent-free Management: Agent-free management puts IT administrators in control. Once a PowerEdge server is connected to power and networking, that system can be monitored and managed from in front of the system with a USB key or from a distant location. With no need for software agents, an IT administrator can monitor, manage, update, troubleshoot, and remediate Dell servers regardless of operating system or hypervisor presence. With features like zero-touch deployment, iDRAC8 with Lifecycle Controller extends administrators’ reach to larger numbers of remote servers and increases IT staff productivity.

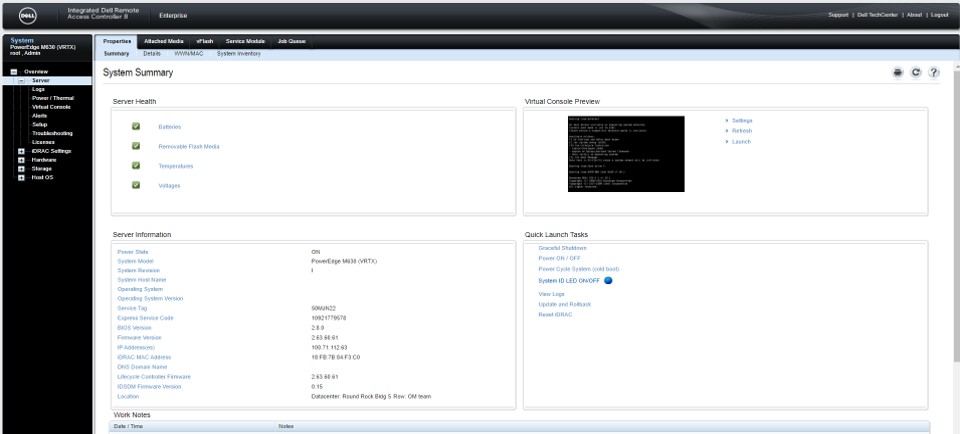

iDRAC8 System Summary

Features in iDRAC8

Feature Benefit
iDRAC Direct Secure front-panel USB connection to iDRAC web interface, which eliminates the need for crash carts or a trip to the hot aisle of your data center. You can use the same port to insert a USB key to upload new system profile for secure, rapid system configuration.
OpenManage Mobile and Quick Sync Use the OpenManage Mobile app on your handheld device to securely retrieve critical health data and easily perform bare-metal server configuration tasks. Compatible with Android devices.
Easy Restore Automatically restore hardware configuration and license information during system board replacement.
SupportAssist Gather all hardware logs, OS logs (requires iDRAC Service Module) and inventory information required for technical support.
Agent-free Monitoring Monitor hardware and storage device health / performance metrics including memory, CPU, I/O, 12Gb SAS and PCIe SSDs.
DRAC RESTful API With this API, iDRAC enables support for the Redfish standard and enhances it with Dell extensions.
Cipher Select Cipher Select is an advanced user setting where the user can choose to block undesired ciphers negotiated by iDRAC, providing increased security.
System Erase With proper authentication, administrators can securely erase data from local storage (HDDs, SSDs, NVMes).
Zero touch deployment and provisioning When ordered with Zero Touch, PowerEdge servers can be automatically configured when they are initially connected to your network. This process uses a Server Configuration Profile to ensure each server is set to your specifications.




Licensing for iDRAC8

iDRAC8 features are available based on the type of the license, for complete listing of licensed features expand the following feature list:

iDRAC8 Licensed Features

Feature iDRAC8 Basic iDRAC8 Express iDRAC8 Express for Basic iDRAC8 Enterprise
Interfaces / Standards
IPMI 2.0 Yes Yes Yes Yes
DCMI 1.5 Yes Yes Yes Yes
Web-based GUI Yes Yes Yes Yes
RACADM command line (local/remote) Yes Yes Yes Yes
Redfish Yes Yes Yes Yes
SMASH-CLP (SSH-only) Yes Yes Yes Yes
Telnet Yes Yes Yes Yes
SSH Yes Yes Yes Yes
WSMAN Yes Yes Yes Yes
Network Time Protocol No Yes Yes Yes
Connectivity
Shared NIC (LOM) Yes Yes N/A Yes
Dedicated NIC1 Yes Yes Yes Yes2
VLAN tagging Yes Yes Yes Yes
IPv4 Yes Yes Yes Yes
IPv6 Yes Yes Yes Yes
DHCP Yes Yes Yes Yes
Dynamic DNS Yes Yes Yes Yes
OS pass-through Yes Yes Yes Yes
Front panel USB Yes Yes Yes Yes
Security
Role-based authority Yes Yes Yes Yes
Local users Yes Yes Yes Yes
SSL encryption Yes Yes Yes Yes
IP blocking No Yes Yes Yes
Directory services (AD, LDAP) No No No Yes
Two-factor authentication (smart card) No No No Yes
Single sign-On (kerberos) No Yes Yes Yes
PK authentication (for SSH) No Yes Yes Yes
Remote Presence
Power control Yes Yes Yes Yes
Boot control Yes Yes Yes Yes
Serial-over-LAN Yes Yes Yes Yes
Virtual Media No No Yes Yes
Virtual Folders No No No Yes
Remote File Share No No No Yes
Virtual Console No No Single user 6 users
VNC connection to OS No No No Yes
Quality/bandwidth control No No Yes Yes
Virtual Console collaboration (up to six simultaneous users) No No No Yes
Virtual Console chat No No No Yes
Virtual Flash partitions No No No Yes 1,2

Power and Thermal

Automatic power on after loss Yes Yes Yes Yes
Real-time power meter Yes Yes Yes Yes
Power thresholds and alerts (includes headroom) No Yes Yes Yes
Real-time power graphing No Yes Yes Yes
Historical power counters No Yes Yes Yes
Power capping No No No Yes
Power Center integration No No No Yes
Temperature monitoring Yes Yes Yes Yes
Temperature graphing No Yes Yes Yes

Health Monitoring

Full agent-free monitoring Yes Yes Yes Yes
Predictive failure monitoring Yes Yes Yes Yes
SNMPv1, v2, and v3 (traps and gets) Yes Yes Yes Yes
Email Alerting No Yes Yes Yes
Configurable thresholds Yes Yes Yes Yes
Fan monitoring Yes Yes Yes Yes
Power Supply monitoring Yes Yes Yes Yes
Memory monitoring Yes Yes Yes Yes
CPU monitoring Yes Yes Yes Yes
RAID monitoring Yes Yes Yes Yes
NIC monitoring Yes Yes Yes Yes
HD monitoring (enclosure) Yes Yes Yes Yes
Out of Band Performance Monitoring No No No Yes

Update

Remote agent-free update Yes Yes Yes Yes
Embedded update tools Yes Yes Yes Yes
Sync with repository (scheduled updates) No No No Yes
Auto-update No No No Yes

Deployment and Configuration

Embedded OS deployment tools Yes Yes Yes Yes
Embedded configuration tools (iDRAC Settings Utility) Yes Yes Yes Yes
Embedded configuration wizards (Lifecycle Controller wizards) Yes Yes Yes Yes
Auto-Discovery Yes Yes Yes Yes
Remote OS deployment No Yes Yes Yes
Embedded driver pack Yes Yes Yes Yes
Full configuration inventory Yes Yes Yes Yes
Inventory export Yes Yes Yes Yes
Remote configuration Yes Yes Yes Yes
Zero-touch configuration No No No Yes
System Retire/Repurpose Yes Yes Yes Yes
Diagnostics, Service, and Logging
Embedded diagnostic tools Yes Yes Yes Yes
Part Replacement Yes Yes Yes Yes
Server Configuration Backup No No No Yes
Server Configuration Restore No No No Yes
Easy Restore (system configuration) Yes Yes Yes Yes
Health LED / LCD Yes Yes Yes Yes
Quick Sync (require NFC bezel) Yes Yes N/A Yes
iDRAC Direct(front USB management port) Yes Yes Yes Yes
iDRAC Service Module (iSM) Yes Yes Yes Yes
SupportAssist Collection (embedded) Yes Yes Yes Yes
Crash screen capture5 No Yes Yes Yes
Crash video capture5 No No No Yes
Boot capture No No No Yes
Manual reset for iDRAC Yes Yes Yes Yes
Virtual NMI Yes Yes Yes Yes
OS watchdog Yes Yes Yes Yes
Embedded Health Report Yes Yes Yes Yes
System Event Log Yes Yes Yes Yes
Lifecycle Log Yes Yes Yes Yes
Work notes Yes Yes Yes Yes
Remote Syslog No No No Yes
License management Yes Yes Yes Yes
[1] Requires vFlash SD card media.
[2] 500 series and lower rack and tower servers require a hardware card to enable this feature; this hardware is offered at additional cost.
[3] Remote agent-free update feature is available only using IPMI.
[4] Available only using IPMI.
[5] Requires OMSA agent on target server.
iDRAC Licenses: Basic, Express & Enterprise

iDRAC8 default licenses included with PowerEdge servers by model.
iDRAC Licenses / Server Model 100-500 Series Rack / Tower / Modular 600+ Rack / Tower / Modular
Basic: Basic instrumentation with iDRAC web GUI, this is the default license included with 100-500 series rack and tower servers. Standard n/a
Express: All the features of Basic and expanded remote management and server lifecycle features, this is the default license included with 600+ series rack, tower, and modular servers. Upgrade Standard
Enterprise: All the features of Express and additional remote presence features with advanced, Enterprise-class, management capabilities. Upgrade Upgrade

An iDRAC license is a perpetual license that is valid for the life of a server, and can be bound to the Service Tag of only one server at a time. Upgraded iDRAC license can be included at time of server purchase or purchased separately and downloaded from Dell Digital Locker.

Trial License:
  • A 30-day evaluation Enterprise trial license is available to fully test and experience all the features to help with purchasing decision. Learn More and download >
Upgrade License:
  • To upgrade an iDRAC license, please contact your local Dell EMC sales representative.
Downloading an upgraded or replacing a lost license:
  • The iDRAC license can be downloaded from Dell Digital Locker. License keys will be stored online and can be downloaded if needed. If an existing license key in not available in the Dell Digital Locker or there is an issue with a license key, please contact Dell EMC Technical Support or Customer Care.

Managing iDRAC Licenses

iDRAC licenses can be managed on either an individual server basis or through the Dell EMC License Manager which is a one-to-many license and deployment tool.
  • Individual server
    Utilize iDRAC to manage the license for an individual server. iDRAC web interface, License tab can be utilized to import, export licenses or RACADM CLI License command can be utilized to manage licenses as described in the RACADM CLI Guide.
  • Group of servers
    Dell EMC License Manager is a one-to-many license deployment and reporting tool for OpenManage Enterprise Advanced, iDRAC, and CMC licenses. By using License Manager, you can download, bind, deploy, inventory and back up OpenManage Enterprise Advanced Licenses as well as iDRAC, CMC, and storage sled license. This tool can also inventory licensable systems to report the licensing status and features of the currently enabled management controller.

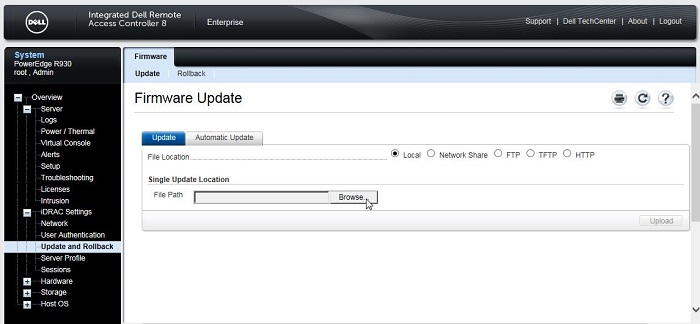

iDRAC8 Firmware Update

Update to latest iDRAC8 Firmware

Dell EMC recommends keeping your system up to date with the latest iDRAC8 firmware available. This ensures the best performance as well as the latest security updates and bug fixes. iDRAC updates do not require a reboot fo the host, allowing for in place updates. The iDRAC8 firmware version for a server model may vary from other server models with iDRAC8. To download the latest iDRAC8 firmware for your system:

  • Navigate to Dell.com/support and select the server model or enter the service tag.
  • Select Drivers & Downloads tab
  • Select Category iDRAC with Lifecycle Controller
  • Optionally, select the Operating system for your system
  • Download the latest version provide for iDRAC with Lifecycle Controller firmware




Resources for iDRAC8

Community

Engage in the Systems Management community to find:

  • Boards to post questions and answers
  • Blogs to read and comment on articles
  • Idea exchanges to improve products and vote for ideas that other community members have posted
  • And more...

Documentation

Select your iDRAC8 firmware version, then the Documentation tab for the version specific documentation.

White Papers and Server Configuration Profiles (SCP) Files

iDRAC Service Module - iDRAC Access via Host Operating System


January 2017
17 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC Access via Host Operating System feature in iDRAC Service Module v2.3 or later.

Read the white paper

iDRAC Service Module - Enable In-Band iDRAC SNMP Alerts


January 2017
13 page white paper
This White Paper provides information about the usage, configuration and troubleshooting of In-Band iDRAC SNMP Alerts in iDRAC Service Module v2.3 or later.

Read the white paper

iDRAC Service Module-How to perform an iDRAC CPU Hard Reset


July 2016
8 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC CPU Hard Reset feature in iDRAC Service Module v2.3 or later.

Read the white paper

iDRAC Service Module 2.1 (min) on Ubuntu and Debian Linux Operating Systems


September 2015
19 page white paper
This White Paper provides information about the usage and troubleshooting of iDRAC Service Module v2.1 or later on Ubuntu and Debian Linux Operating systems.

Read the white paper

iDRAC Service Module – Windows Management Instrumentation


April 2015
17 page white paper
This White paper is about using iDRAC Service Module to monitor the various hardware profiles through the Windows Management Instrumentation (WMI) client interfaces such as Windows PowerShell, Windows Management Instrumentation Command-line, Windows Remote Management client (WINRM), WBEMTEST.

Read the white paper

Videos

Introducing OpenManage Mobile and Quick Sync 2



Demonstration of OpenManage Mobile and PowerEdge servers with Quick Sync 2

July 2017

OpenManage Mobile & iDRAC8 QuickSync Overview



An overview of the iDRAC QuickSync system, including the NFC bezel and OMM software.

April 2020

iDRAC8 Quick Sync



How to install the iDRAC Quick Sync bezel, and use Open Manage Mobile to view and change server configurations.

April 2020

Connect to iDRAC8 and Change default password



Be sure to change the default password on your equipment to something secure. How to connect to iDRAC8 and change the password either at the first run prompt, from the web UI or from the command line.

April 2020

iDRAC8 Lifecycle Controller videos playlist



iDRAC8 with Lifecycle Controller playlist of videos
