Dell OptiPlex 3080 Visual Guide
Summary: The following article provides a visual guide to your Dell OptiPlex 3080 and lists the external ports and features of your computer.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
For a more detailed description about each location, go to the system manuals at Dell Drivers and Downloads.
Table of Contents:
- Mini Tower (MT) Front View
- Mini Tower (MT) Rear View
- Small Form Factor (SFF) Front View
- Small Form Factor (SFF) Rear View
- Micro Form Factor (MFF) Front View
- Micro Form Factor (MFF) Rear View
- Additional Info
Mini Tower (MT) Front View

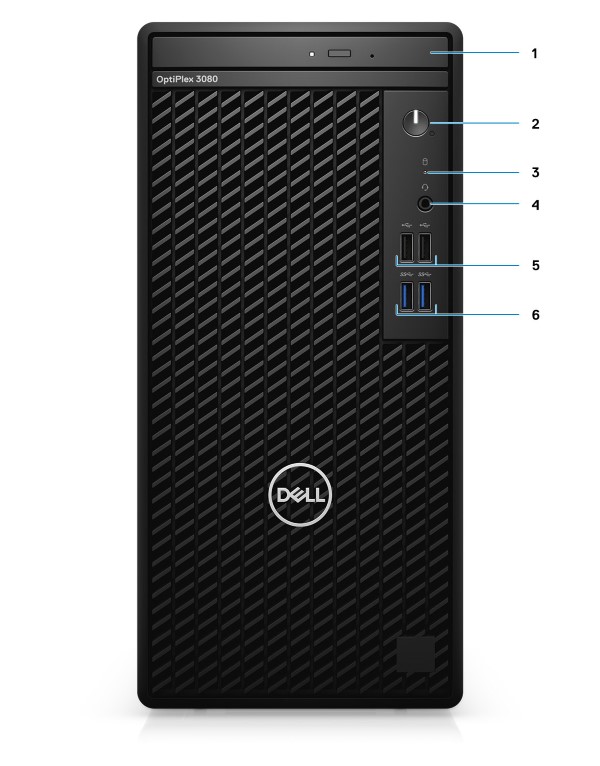

(Fig.1 OptiPlex 3080 MT Front View)
| 1 | Optical Disk Drive (optional) | 2 | Power button with diagnostic LED |
| 3 | Hard-disk drive activity light | 4 | Universal audio jack port |
| 5 | Two USB 2.0 ports | 6 | Two USB 3.2 Gen 1 Type-A ports |
Mini Tower (MT) Rear View
(Fig.2 OptiPlex 3080 MT Rear View)
| 1 | Line-out re-tasking Line-in audio port | 2 | HDMI 1.4b port |
| 3 | DisplayPort 1.4 | 4 | Slot for Serial/PS2 |
| 5 | Two USB 3.2 Gen 1 Type-A ports | 6 | Two USB 2.0 ports with Smart Power on |
| 7 | Three expansion card slots:
Supports only Slot 1, Slot 2, and Slot 3.
|
8 | Power connector port |
| 9 | Power supply diagnostic light | 10 | Knock out slot (optional SMA connector) |
| 11 | Kensington security-cable slot | 12 | Ethernet port (10/100/1000 Mbps) |
| 13 | Padlock loop | 14 | Slot for 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) (optional) |
Small Form Factor (SFF) Front View

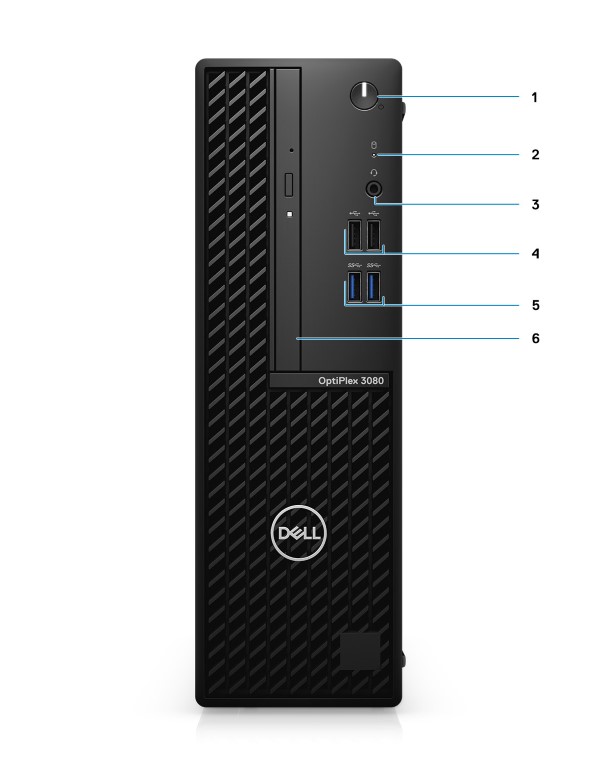

(Fig.3 OptiPlex 3080 SFF Front View)
| 1 | Power button with diagnostic LED | 2 | Hard-disk drive activity light |
| 3 | Universal audio jack port | 4 | Two USB 2.0 ports |
| 5 | Two USB 3.2 Gen 1 Type-A ports | 6 | Optical Disk Drive (optional) |
Small Form Factor (SFF) Rear View

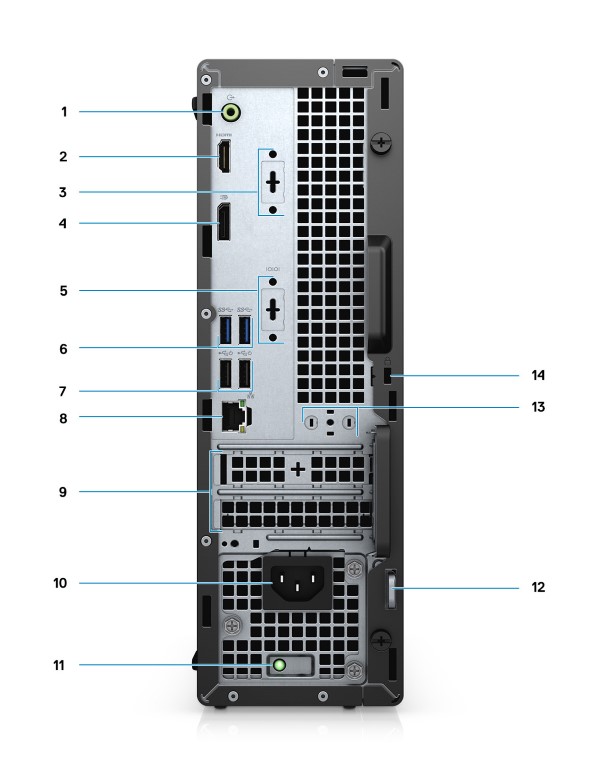

(Fig.4 OptiPlex 3080 SFF Rear View)
| 1 | Line-out re-tasking Line-in audio port | 2 | HDMI 1.4b port |
| 3 | Slot for 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) (optional) | 4 | DisplayPort 1.4 |
| 5 | Serial/PS2 slot (Optional) | 6 | Two USB 3.2 Gen 1 Type-A ports |
| 7 | Two USB 2.0 ports with Smart Power on | 8 | Ethernet port (10/100/1000 Mbps) |
| 9 | Two expansion card slots | 10 | Power connector port |
| 11 | Power supply diagnostic light | 12 | Padlock loop |
| 13 | Antenna module slot | 14 | Kensington security-cable slot |
Micro Form Factor (MFF) Front View

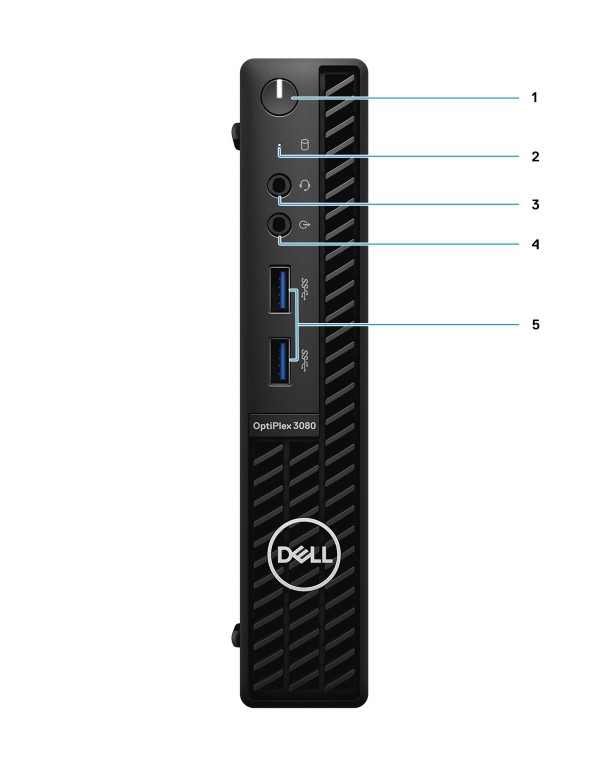

(Fig.5 OptiPlex 3080 MFF Front View)
| 1 | Power Button with status LED | 2 | Hard drive activity LED |
| 3 | Headset/Universal Audio Connector | 4 | Line-out port (retaskable Line-in) |
| 5 | USB 3.2 Gen 1 Type-A ports x2 |
Micro Form Factor (MFF) Rear View

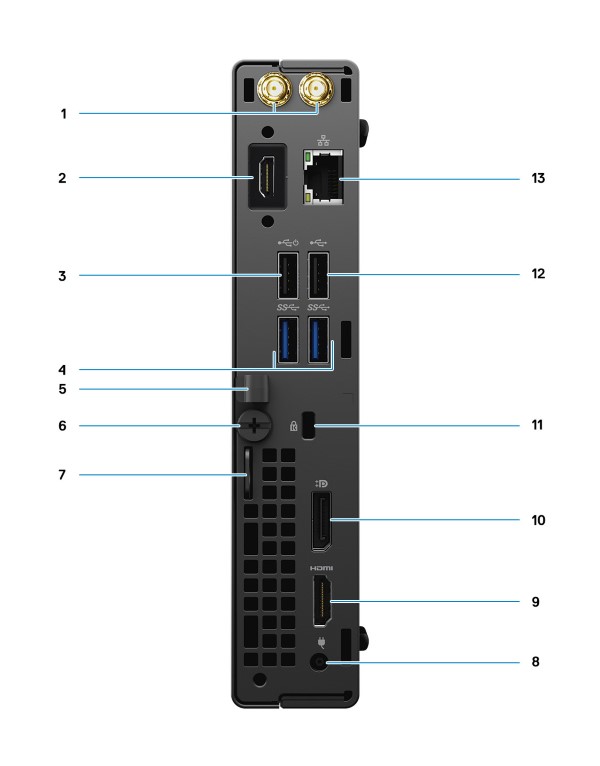

(Fig.6 OptiPlex 3080 MFF Rear View)
| 1 | External antenna connectors | 2 | Serial/Video Port (Serial/PS2/DP 1.4/HDMI 2.0b/VGA) (Optional) |
| 3 | USB 2.0 port with Smart Power on | 4 | USB 3.2 Gen 1 Type-A ports x2 |
| 5 | Cable holder | 6 | Thumbscrew |
| 7 | Padlock loop | 8 | Power connector port |
| 9 | HDMI 1.4 port | 10 | DisplayPort 1.4 |
| 11 | Kensington security-cable slot | 12 | USB 2.0 port |
| 13 | Ethernet port 10/100/1000 Mbps |
