VxRail: Fliken "Nätverksinställningar" för att lägga till nod är tom

Summary: Fliken i guiden Lägg till nod är tom på grund av att IPv6 inte är aktiverat på vmk0.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Skärmbild av en tom flik

Liknande problem rapporteras i short.term.log:

"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.679285223Z stdout F 2022-11-02 21:11:51,679 [INFO] <ThreadPoolExecutor-0_25:140582357804800> segment_network_service.py format_network_info() (62): Create network info for traffic: management"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.679355458Z stdout F 2022-11-02 21:11:51,679 [INFO] <ThreadPoolExecutor-0_25:140582357804800> global_config_handler.py _get_from_config_service() (26): get ip_version from configuration service..."
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687939041Z stdout F 2022-11-02 21:11:51,687 [ERROR] <ThreadPoolExecutor-0_25:140582357804800> exp_general_controller.py get() (123): Internal Error During fetching cluster network info."
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687954848Z stdout F Traceback (most recent call last):"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687959497Z stdout F   File ""/home/app/runtime_operations_app/main/controllers/exp_general_controller.py"", line 119, in get"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687964135Z stdout F     network_info = ClusterNetwork().get_network()"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.68796846Z stdout F   File ""/home/app/runtime_operations_app/main/services/segment_network_service.py"", line 85, in get_network"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687972257Z stdout F     network_info[traffic_type] = self.format_network_info(traffic_type)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687976359Z stdout F   File ""/home/app/runtime_operations_app/main/services/segment_network_service.py"", line 63, in format_network_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.68798425Z stdout F     ip_list, ipv6_list = self._get_ip_list(traffic_type)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687987733Z stdout F   File ""/home/app/runtime_operations_app/main/services/segment_network_service.py"", line 40, in _get_ip_list"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687991083Z stdout F     all_traffic_info = self._get_all_traffic_info()"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687994504Z stdout F   File ""/home/app/runtime_operations_app/main/services/segment_network_service.py"", line 36, in _get_all_traffic_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.687997846Z stdout F     self.all_traffic_info = NetworkAdaptiveInfoHandler().retrieve_all_hosts_traffic_info()"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688021672Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 548, in retrieve_all_hosts_traffic_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688026171Z stdout F     all_traffic_info[hostname] = self.formatter.format_host_traffic_info(hostname, raw_traffic_info)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688041779Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 335, in format_host_traffic_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688045478Z stdout F     formatted_traffic_info: TrafficInfo = self.format_host_specified_traffic_info(host, cluster_portgroups_info, traffic_type)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688048698Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 286, in format_host_specified_traffic_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688052231Z stdout F     network_info = self._get_host_specified_traffic_network_info(host, traffic_type)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688055943Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 282, in _get_host_specified_traffic_network_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688060631Z stdout F     network_info = self._get_specified_network_info(vnics, lambda vnic : vnic['device'] == vmk)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.68806382Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 136, in _get_specified_network_info"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688067352Z stdout F     interface_ipv6, prefix_len, v6_gateway = self._get_vnic_ipv6_addr_prefix_len_and_gw(vnic)"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688070245Z stdout F   File ""/home/app/runtime_operations_app/main/services/network_adaptive_info_handler.py"", line 107, in _get_vnic_ipv6_addr_prefix_len_and_gw"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688073697Z stdout F     ipv6_addresses = ipv6_config.get('ipV6Address', [])"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688076866Z stdout F AttributeError: 'NoneType' object has no attribute 'get'"
"2022-11-02 21:11:52,427" microservice.ms-day2 "2022-11-02T21:11:51.688504301Z stdout F 2022-11-02 21:11:51,688 [WARNING] <ThreadPoolExecutor-0_25:140582357804800> api_error_handler.py unexpected_error_handler() (14): Got unexpected error : Invalid status argument"

Cause

Under en nodexpansion hämtar VxRail Manager (VRM) all IP-information från de befintliga noderna. I det här fallet är ipv6 inaktiverat på en eller flera noder, vilket gör att VRM inte kan hämta informationen.

Befintliga VxRail Cluster-noder bör ha nedanstående vmks och vmk0 aktiverat med ipv6:
Skärmbild av vmk layout

Resolution

Gör så här för att lösa problemet:


  1. Logga in på vSphere.

  2. Flytta till ESXi –>Konfiguration –>VMkernel-adaptrar –> vmk0 i "VxRail Management-XXX"-nätverket.

  3. Redigera inställning för vmk0 –> Gå till sidan för ipv6-inställningar –> välj "Erhåll IPV6-adress automatiskt via routerannonsering".
    Skärmbilder av IPv6-inställningar

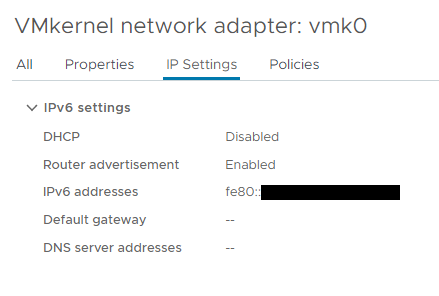

  4. Gå till sidan "IP-inställningar" i vmk0 och kontrollera med förväntade utdata:
  5. Försök att lägga till värd igen.

Om fliken "IPv6 settings" inte är tillgänglig följer du VMware-proceduren för att aktivera IPv6 (värdomstart krävs): Aktivera eller inaktivera IPv6-stöd på en värdDen här hyperlänken tar dig till en webbplats utanför Dell Technologies.

Additional Information

Om vmk0 är för iDRAC-nätverk och problemet med att vmk1 saknas läser du artikeln: VxRail: Den fysiska vyn fungerar inte eller så saknas noden på värdsidan
