OptiPlex 7460 (AIO): Visual Guide to your Computer

Summary: The following article provides a visual guide to your OptiPlex 7460 AIO (All in One) Computer and lists the external ports and features of your desktop computer.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms


Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support


Table of Contents:

  1. Front View
  2. Rear View
  3. Bottom View
  4. Left Hand Side View
  5. Right Hand Side View
  6. Additional Info:



Front View





SLN309977_en_US__27460_FrontView_BK_01

(Fig.1 Front View)

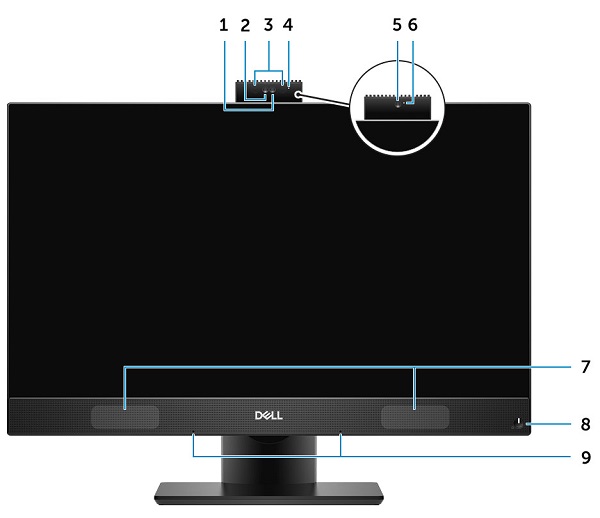

1 Full High Definition (FHD) Camera (optional) 2 FHD Infrared (IR) Camera (Optional)
3 IR Emitters (Optional) 4 Camera Status LED (Optional)
5 FHD Camera (Optional) 6 Camera Status LED (Optional)
7 Speakers 8 Power Button / Power Status LED
9 Microphone Array


Back to Top



Rear View



SLN309977_en_US__37460_RearView_BK_01

(Fig.2 Rear View)

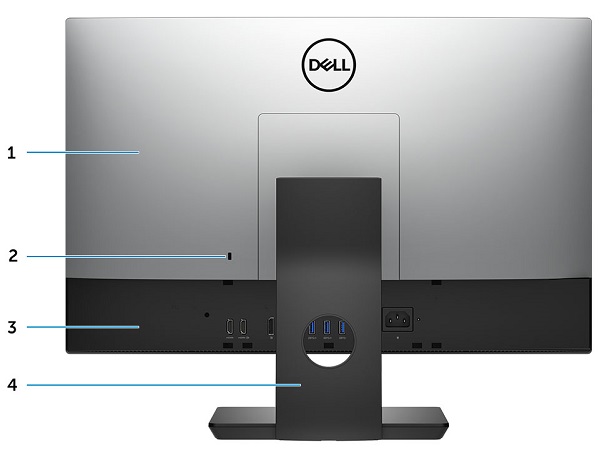

1 Back Cover 2 Security Lock Slot
3 Base Cover 4 Stand



SLN309977_en_US__47460_PortsView_BK_01

(Fig.3 Ports Close Up View)

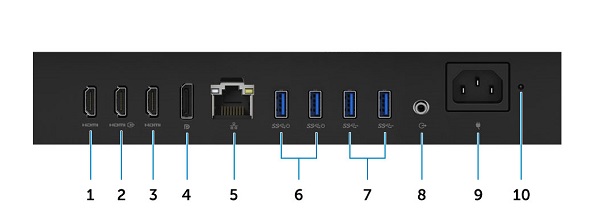

1 HDMI-Out Connector (with discrete graphics card) 2 HDMI-In Connector
3 HDMI-Out Connector (with integrated graphics card) 4 DisplayPort Connector
5 Network (NIC) Connector 6 USB 3.1 Gen1 Connector with Power on/Wake-up support x2
7 USB 3.1 Gen1 Connector x 2 8 Audio Out Connector
9 Power Connector 10 Power Supply Diagnostic LED


Back to Top



Bottom View



SLN309977_en_US__57460_BottomView_BK_01

(Fig.4 Bottom View)

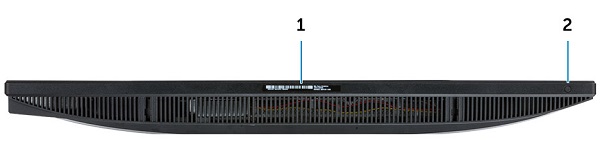

1 Service Tag Label 2 Display BIST (Built in Self Test) Button / Video Input Selector


Back to Top



Left Hand Side View



SLN309977_en_US__67460_LeftView_BK_01

(Fig.5 Left Hand Side View)

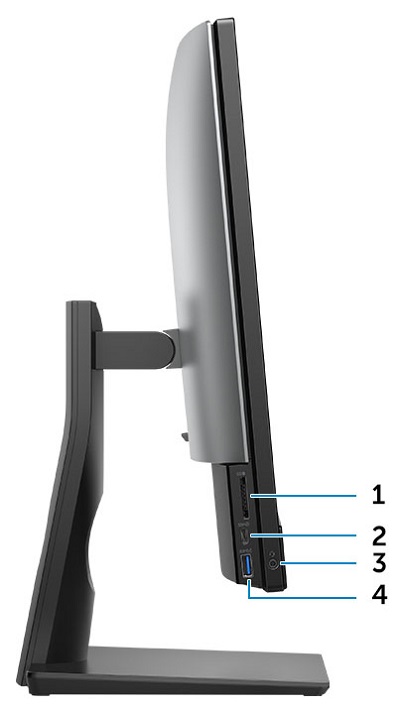

1 SD Card Reader 2 USB 3.1 Gen2 Type-C Connector
3 Headset / Universal Audio Connector 4 USB 3.1 Gen1 Connector with PowerShare


Back to Top



Right Hand Side View



SLN309977_en_US__77460_RightView_BK_01

(Fig.6 Right-Hand Side of Basic Stand)

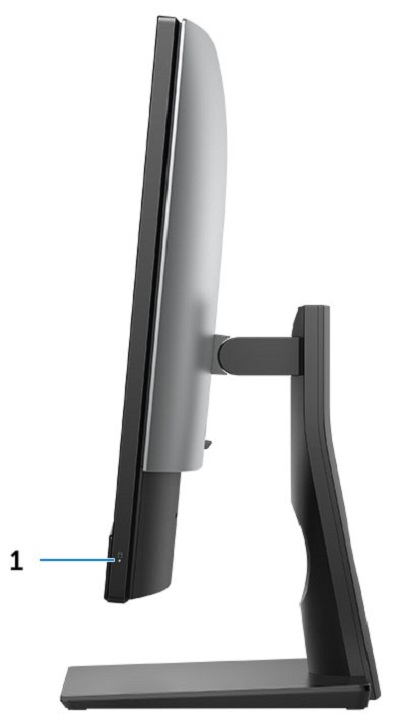

1 Hard Drive Activity LED

SLN309977_en_US__8I_Desktop_Optiplex_7460_AIO_BD_V1

(Fig.7 Right-hand View of the Height Adjustable Stand)

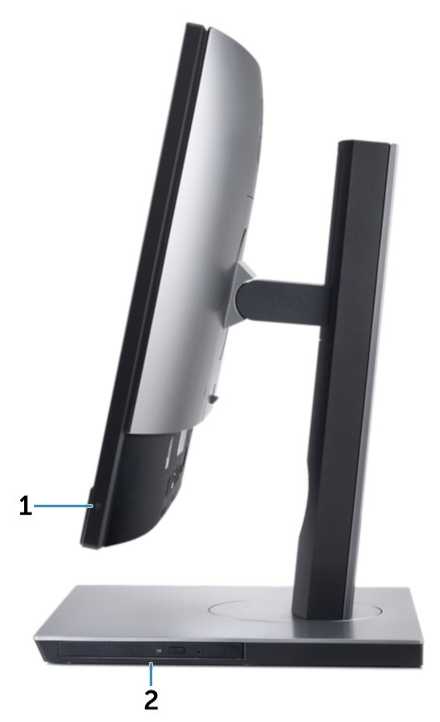

1 Hard Drive Activity LED 2 Optical Disk Drive Available on the Height Adjustable Stand


Back to Top

Cause

Not Applicable.

Resolution

Not Applicable.

Additional Information



Additional Info:




Back to Top

Affected Products

OptiPlex 7460 All-In-One
