Latitude E7270: Visual Guide to your Computer

Summary: This article is a visual guide to the Latitude E7270 laptop and its external ports and features.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content



Note: For a more detailed description about each location, go to the system manuals at

Table of Contents:

  1. Front View
  2. Rear View
  3. Open Top View
  4. Bottom View
  5. Left View
  6. Right View
  7. AC Adapter View
  8. Additional Info:


Front View



(Fig.1 Front View)


1 Speakers 2 Power Status LED
3 Hard Disk Drive Status LED 4 Battery Status LED

Back to Top


Rear View



(Fig.2 Rear View)


1 Ethernet Connector (NIC) 2 HDMI Connector
3 DisplayPort Connector 4 USB 3.0 Connector x 2
5 Power DC-In Connector

Back to Top


Open Top View

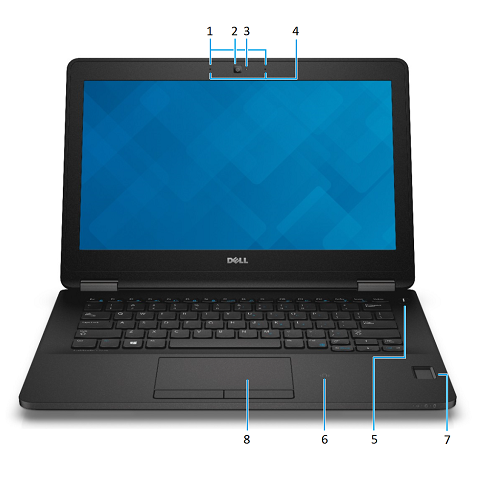

(Fig.3 Open Top View)


1 Microphones (only in touchscreen) 2 Camera
3 Camera Status LED 4 Microphones (only in non-touchscreen)
5 Power Button (no LED indicator) 6 Contactless Smart Card Reader (optional)
7 Fingerprint Reader (optional) 8 Touchpad

Back to Top


Bottom View

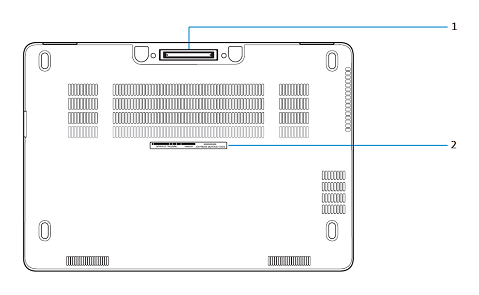

(Fig.4 Bottom View)


1 Dock Connector 2 Service Tag/Express Service Code Label

Back to Top


Left View

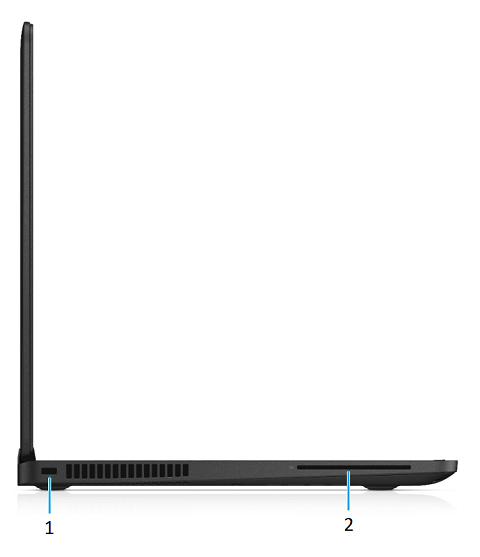

(Fig.5 Left-Hand Side View)


1 Security Cable Slot 2 Smart Card Reader (optional)

Back to Top


Right View

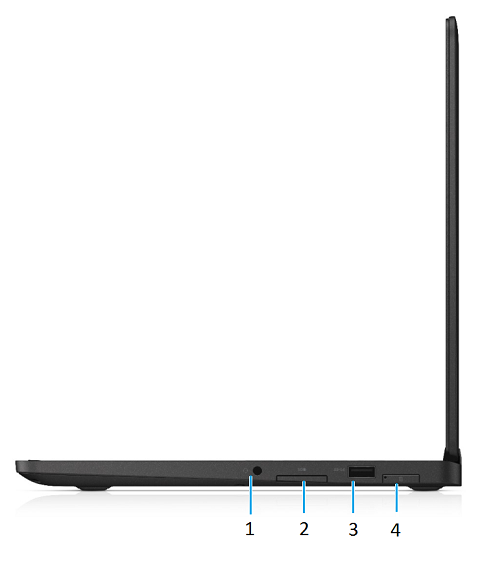

(Fig.6 Right-Hand Side View)


1 Headset Connector 2 Memory Card Reader
3 USB 3.0 Connector with PowerShare 4 SIM Card Port (optional)

Back to Top


7. AC Adapter View



(Fig.7.1 65W AC Adapter)


Type 65W E5 Series Description
Input Voltage 100 VAC to 240 VAC
Output Current 3.34 A (Continuous)
Output Power 65 W
Output Voltage 19.5 VDC




(Fig.7.2 90W AC Adapter)


Type 90W E5 Description
Input Voltage 100 VAC to 240 VAC
Output Current 4.62 A (Continuous)
Output Power 90 W
Output Voltage 19.5 VDC
