Latitude 14 Rugged 7414: Visual Guide to your Computer

Summary: The following article provides a visual guide to your Latitude 14 7414 Rugged Computer and lists the external ports and features of the laptop.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/manuals


Table of Contents:

  1. Top View
  2. Front View
  3. Rear View
  4. Bottom View
  5. Left ViewRight View
  6. AC Adapter View

Cause

Top View



7414 Front

(Figure.1 Top View)



1 Display Latch 7 QuadCool Sealed Thermal Chamber


Back to Top



Front View



7414 Open

(Figure.2 Front View)



2 Microphone 3 Privacy Shutter (Optional)
4 Camera (Optional) 5 Camera Status LED (Optional)
6 Microphone 8 Outdoor Readable Display/Touchscreen
9 Power Button 15 Fingerprint Reader
17 Battery Status LED 18 Hard Drive Status LED
19 Power Status LED 21 Touchpad
22 Stylus


Back to Top

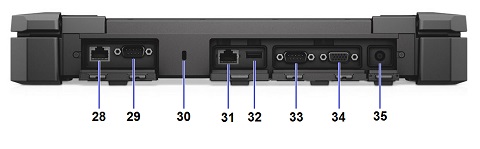

Rear View



7414 Rear

(Figure.3 Rear View)



28 NIC Connector 29 Serial Port Connector
30 Security Cable Slot 31 NIC Connector
32 USB 2.0 Connector 33 Serial Port Connector
34 VGA Connector 35 Power Connector


Back to Top



Bottom View



7414 Bottom

(Figure.4 Bottom View)



36 Radio Frequency Pass-Through Connectors 37 Docking Device Connector


Back to Top



Left View



7414 Left

(Figure.5 Left Hand Side View)



20 Battery 23 Sealed Thermal Chamber
24 USB 3.0 with PowerShare Connector 25 SIM Card Slot
26 HDMI Connector 27 Audio Connector


Back to Top



Right View



7414 Right

(Figure.6 Right Hand Side View)



10 Memory Card Reader 11 USB 3.0 Connector x2
12 Optical Drive 13 Smart Card Reader
14 Hard Drive 16 ExpressCard Reader


Back to Top

Resolution



AC Adapter View



65 W AC adapter

(Figure.7 65W AC Adapter)



Type 65W Description
Input Voltage 100 VAC to 240 VAC
Output Current 3.34 A (Continuous)
Output Power 65 W
Output Voltage 19.5 VDC



90 W AC Adapter

(Figure.8 90W AC Adapter)



Type 90W Optional Description
Input Voltage 100 VAC to 240 VAC
Output Current 4.62 A (Continuous)
Output Power 90 W
Output Voltage 19.5 VDC



90 W_AutoAir AC Adapter

(Figure.9 90W Auto-Air AC Adapter)



Type 90W Auto Air Series Optional Description
Input Voltage 100 VAC to 240 VAC
Output Current 4.62 A (Continuous)
Output Power 90 W
Output Voltage 19.5 VDC



Back to Top

Additional Information


Back to Top

Affected Products

Latitude 7414 Rugged
