Latitude 7390 2-in-1: Visual guide to your Computer
Summary: This article is a visual guide to the external ports and features of the Dell Latitude 7390 2-in-1 Notebook system.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Latitude 7390 2-in-1 Computer and lists the external ports and features of your PC.
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Stylus View
- Service Tag View
- Left Hand Side View
- Right Hand Side View
- AC Adapter View
- Additional Info:
Front View

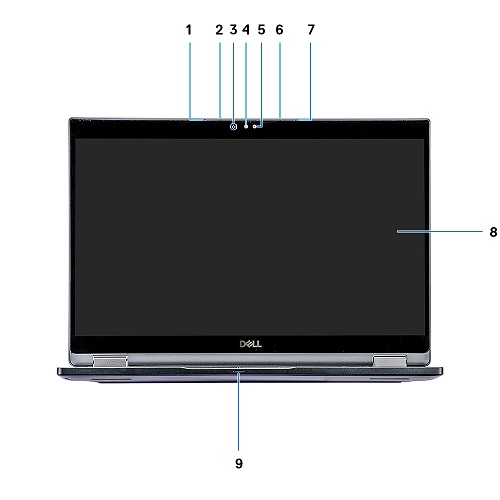

(Fig.1 Front View)
| 1 | Microphones | 2 | Microphones |
| 3 | Infrared (IR) Camera Status LED (Optional) | 4 | Infrared (IR) Camera (Optional) |
| 5 | RGB Camera (Optional) | 6 | Microphones |
| 7 | Microphones | 8 | Display |
| 9 | Battery Charge Status LED |
Top View

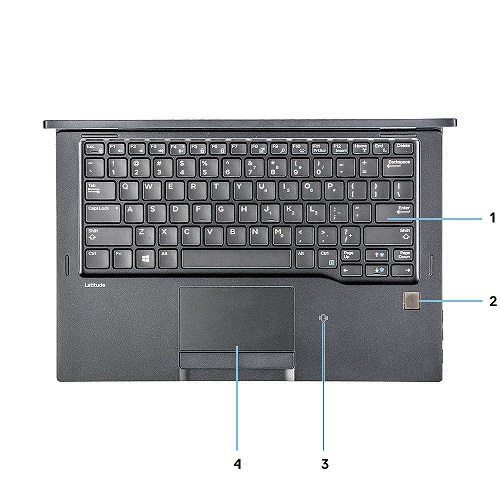

(Fig.2 Top View)
| 1 | Keyboard | 2 | Fingerprint Reader (Optional) |
| 3 | NFC Sensor (Optional) | 4 | Touchpad |
Stylus View

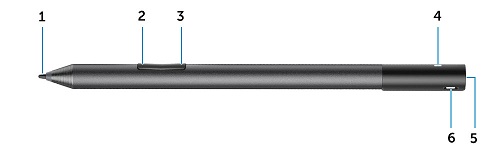

(Fig.3 Stylus View)
| 1 | Tip | 2 | Bottom barrel Button |
| 3 | Top barrel Button | 4 | Bluetooth Pairing LED |
| 5 | Top Button | 6 | Lanyard Slot |
Bottom View
(Fig.4 Bottom View)
| 1 | Air Vent | 2 | Air Vent |
| 3 | Service Tag Label | 4 | Air Vent |
| 5 | Speakers |
Left Hand Side View

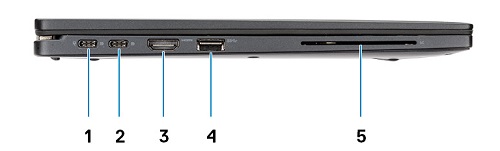

(Fig.5 Left Hand Side View)
| 1 | DisplayPort over USB Type-C Charging Connector / Thunderbolt 3 (Optional) | 2 | DisplayPort over USB Type-C |
| 3 | HDMI Connector | 4 | USB 3.1 Gen1 Connector |
| 5 | Smart Card Reader (Optional) |
Right Hand Side View

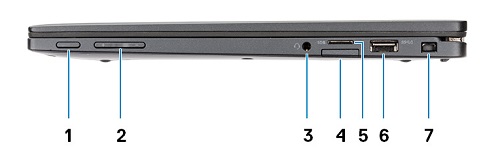

(Fig.6 Right Hand Side View)
| 1 | Power Button / Status LED | 2 | Volume Control Buttons |
| 3 | Headset Connector | 4 | MicroSIM Card Slot |
| 5 | MicroSD Card Reader | 6 | USB 3.1 Gen1 Connector with PowerShare |
| 7 | Noble Wedge Lock Slot |
AC Adapter View
(Fig.6 AC Adapter View)
| Type 45W USB Type-C, 45W SFF USB Type-C and 65W USB Type-C | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 20V / 2/25A (continuous), 15V / 3A (continuous), 9V / 3A (continuous), 5V / 3A (continuous) |
| Output Power | 45W / 65W |
| Output Voltage | 20 VDC / 15 VDC / 9 VDC / 5 VDC |
Additional Info:
Cause
Not required
Resolution
See above
