Precision 3630 Tower Workstation: Visual guide to your computer

Summary: This article is a visual guide to the external ports and features of the Precision 3630 Tower Workstation and some of it's internal parts as it ships from Dell.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content

Symptoms

The following article provides a visual guide to your Precision 3630 Tower Workstation and lists the external ports and features of your PC.


SLN314149_en_US__1icon Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support.


Table of Contents:

  1. Front View
  2. Rear View
  3. Service Tag Location
  4. Additional Info:



Front View



SLN314149_en_US__23630_Front_BK

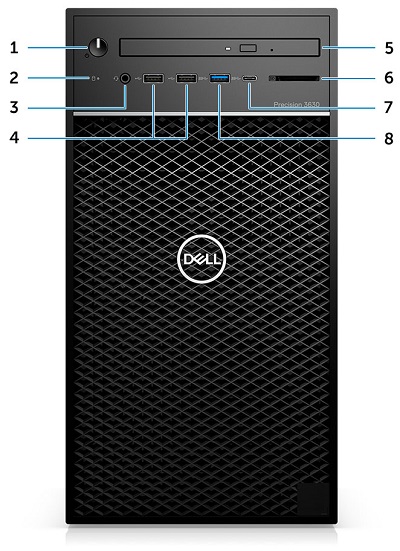

(Fig.1 Front View)



1 Power Button / Diagnostics Indicator 2 Hard Drive Activity LED
3 3.5 mm Stereo Headset / Mic. Combo Connector 4 USB 2.0 Type-A Connector x2
5 Optical Drive / CAC Reader (Optional) 6 Media Card Reader (Optional)
7 USB 3.1 Type-C Connector 8 USB 3.1 Type-A Connector


Back to Top



Rear View



SLN314149_en_US__33630_Rear_BK

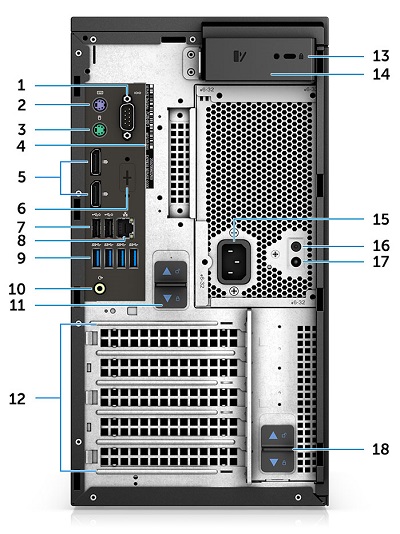

(Fig.2 Rear View)



1 Serial Connector 2 PS/2 Keyboard Connector
3 PS/2 Mouse Connector 4 Service Tag
5 DisplayPort Connector x2 6 Optional Slot for VGA, DP, HDMI, Type-C Daughterboards
7 USB 2.0 Type-A Connector w/SmartPower x2 8 Network (NIC) Connector
9 USB 3.1 Gen1 Connector x4 10 Audio Line Out Connector
11 PSU Hinge Release Latch 12 Expansion Card Slots
13 Kensington / Padlock Slot 14 Cover Release Latch
15 Power Connector 16 PSU (Power Supply Unit) Built in Self Test (BIST) Button
17 PSU Built in Self Test (BIST) LED 18 PSU Hinge Release Latch


Back to Top



Service Tag Location



SLN314149_en_US__43630_Tag_BK

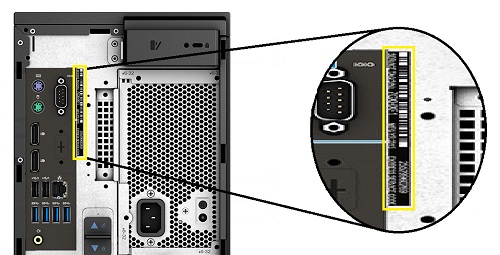

(Fig.3 Service Tag Location)
