Precision 7550 Visual Guide to your computer
Summary: This article is a visual guide to the external ports and features of the Precision Mobile Workstation 7550.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
The following article provides a visual guide to your Precision Mobile Workstation 7550 and lists the external ports and features of your laptop.
NOTE: For a more detailed description, see the product guide at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Rear View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View
Display view with RGB Camera

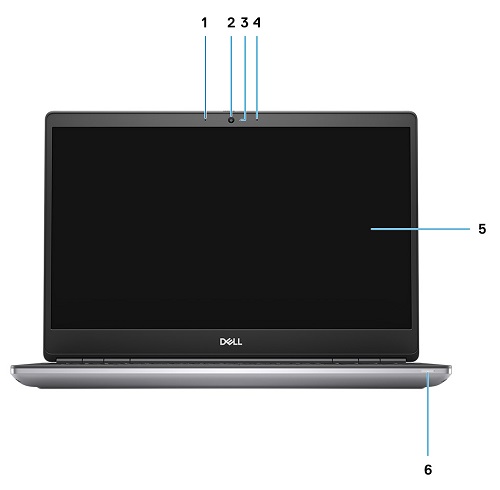

Figure 1: Front View: Display with RGB Camera
| 1 | Microphone | 2 | Camera |
| 3 | Camera LED | 4 | Microphone |
| 5 | Display | 6 | Battery Status LED |
Display view with IR Camera

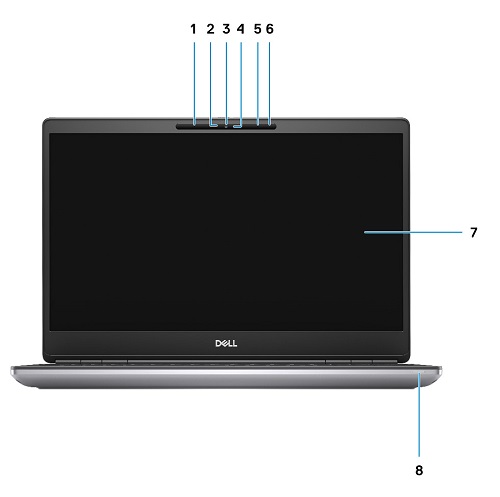

Figure 2: Front View: Display with IR Camera
| 1 | Microphone | 2 | IR camera sensor |
| 3 | Camera | 4 | Camera LED |
| 5 | Microphone | 6 | Proximity sensor |
| 7 | Display | 8 | Battery status LED |
Top View

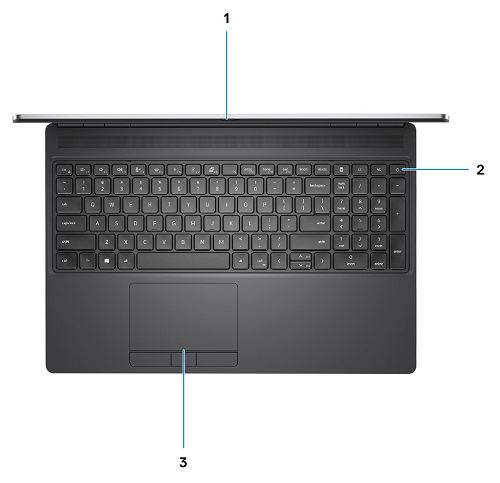

Figure 3: Top View
| 1 | Camera shutter | 2 | Power button (with optional fingerprint reader) |
| 3 | Touchpad |
Bottom View

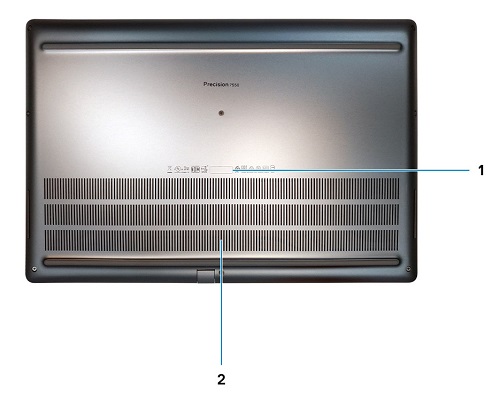

Figure 4: Bottom View
| 1 | Service tag label | 2 | Fan vent |
Rear View
Figure 5: Rear View
| 1 | Mini DisplayPort 1.4 | 2 | HDMI 2.0 port |
| 3 | Network port | 4 | Power adapter port |
Left-Hand Side View

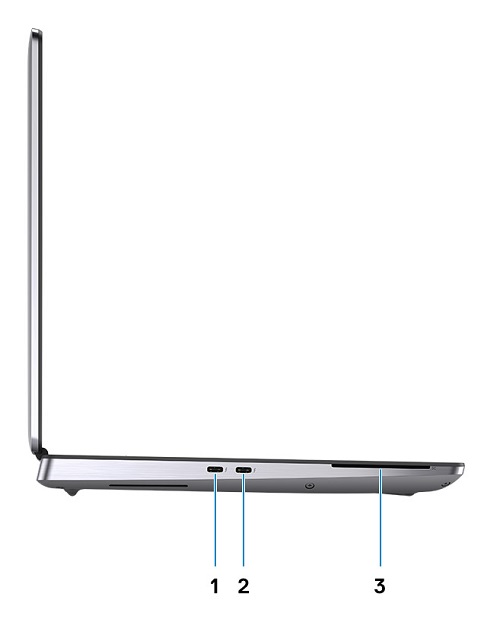

Figure 6: Left-Hand Side View
| 1 | USB 3.2 Gen 2 Type-C Thunderbolt 3 port | 2 | USB 3.2 Gen 2 Type-C Thunderbolt 3 port |
| 3 | Smart card-reader (optional) |
Right-Hand Side View

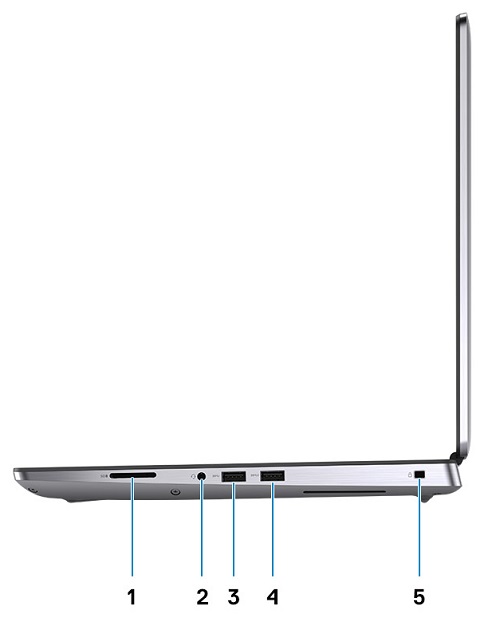

Figure 7: Right-Hand Side View
| 1 | SD-card slot | 2 | Headset and/or Microphone port |
| 3 | USB 3.2 Gen 1 Type-A port | 4 | USB 3.2 Gen 1 Type-A port with PowerShare |
| 5 | Wedge-shaped lock slot |
AC Adapter View
Figure 8: Power Adapter 180 W Barrel Type
| Description | Values |
| Type | 180 W Power Adapter |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 9.23 A |
| Output Power | 180 W |
| Output Voltage | 19.50 VDC |
