No Boot Image Loading Progress Bar When Booting from PXE to Deploy Operating System Using Windows Deployment Service

Summary: This article explains how to get the loading progress bar to show when PXE booting to deploy an Operating System with Windows Deployment Service.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.

Symptoms


No Loading Progress Bar Shown

When you PXE boot to the Windows Deployment Service to deploy an OS to install, you may not see a loading progress bar. This is because the wdsmgfw.efi on some PXE servers switch to the wgl4 font without using the adjusted resolution acquired from bootmgr.efi.

This leads to the display being mismatched while files load from the wdsmgfw.efi. So, while the booting image is loading, the loading progress bar does not get displayed as expected (Figure 1 and 2).

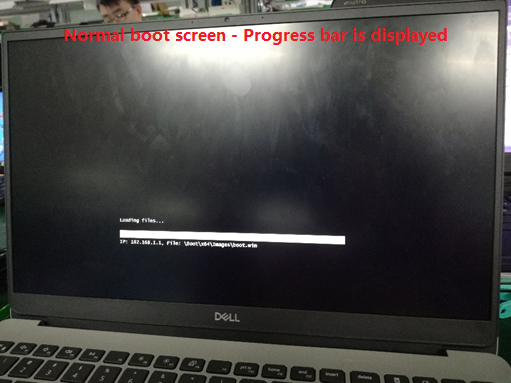

Normal boot screen
Figure 1

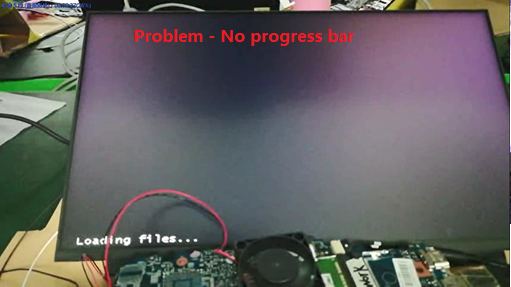

No progress bar
Figure 2

Affected systems:

  • Inspiron 5402
  • Inspiron 5409
  • Inspiron 7500
  • Inspiron 7501
  • Inspiron 5502
  • Inspiron 5509
  • Latitude 3410
  • Latitude 3510
  • Vostro 5402
  • Vostro 5502
  • Vostro 7500


Cause

No cause information

Resolution

To fix this behavior, you must remove the font file "wgl4_boot.ttf" under the "Boot\Fonts" folder which contains the booting image for WDS.

If you have further questions about this article, contact Dell Technical Support.
