Latitude 3301: Visual Guide to your computer
Summary: The following article provides a visual guide to your Latitude 3301 Notebook and lists the external ports and features of your PC.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description of each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View
(Fig.1 Front View)
| 1 | Left-Hand Microphone | 2 | Camera |
| 3 | Camera Status LED | 4 | Right-Hand Microphone |
| 5 | LCD Panel |
Top View

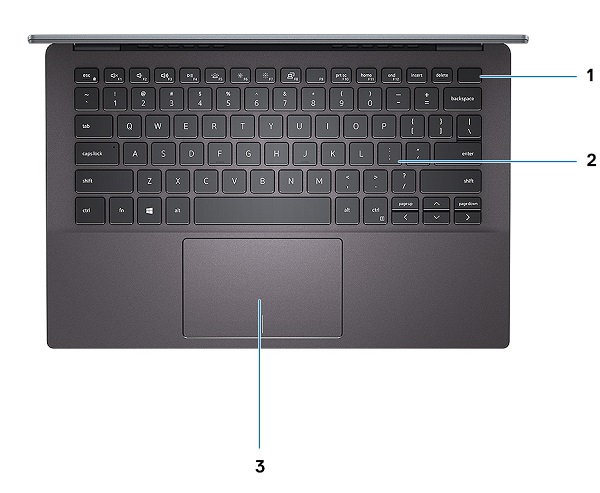

(Fig.2 Top View)
| 1 | Power Button w/Fingerprint Reader (Optional) | 2 | Keyboard |
| 3 | Touchpad |
Bottom View
(Fig.3 Bottom View)
| 1 | Service Tag | 2 | Speakers |
Left-Hand Side View
(Fig.4 Left-Hand Side View)
| 1 | Power Connector | 2 | Status LED |
| 3 | HDMI Connector | 4 | USB 3.1 Gen1 Type-C Connector w/DisplayPort 1.4 |
| 5 | microSD Card Slot |
Right-Hand Side View

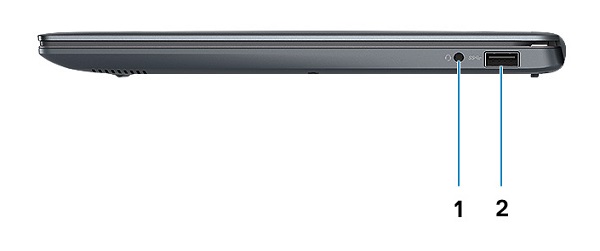

(Fig.5 Right-Hand Side View)
| 1 | Headset Connector | 2 | USB 3.1 Gen1 Connector |
AC Adapter View
(Fig.6 X)
| Type 65W E4 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Cause
Not Applicable.
Resolution
Not Applicable.
