A guide to Havis customized in-Vehicle Dock for use with Latitude Rugged Tablets
Summary: This article gives some information about the Havis Rugged Vehicle dock for the Latitude 12 Rugged 7202 and Rugged Extreme 7212 Tablets.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
The Havis Vehicle Dock Mount
The Rugged Tablet Vehicle Dock is a unique docking solution specially designed for the Dell Latitude 12 Rugged 7202 and Rugged Extreme 7212 Tablets by Havis. It is designed to mount each tablet in the best possible position for vehicle use.
This dock was crash tested to SAE J1455 standards to offer peace of mind when using the tablet in a vehicle. Havis is a company that manufactures customized in-Vehicle mounts.

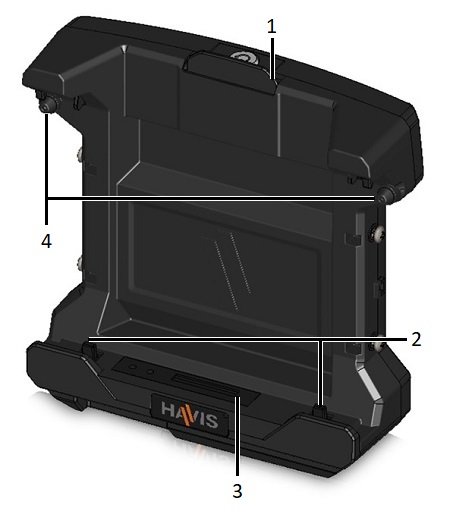

| 1 | Latch Handle | 2 | Alignment Posts x2 |
| 3 | Docking Connector | 4 | Bumpers x2 |

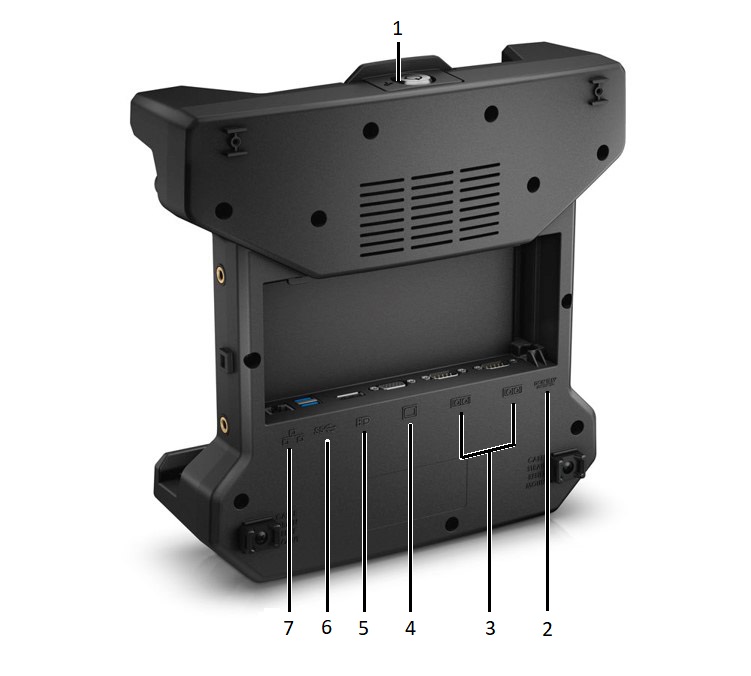

| 1 | Barrel Lock | 2 | Power Connector |
| 3 | Serial Connector x2 | 4 | VGA Connector |
| 5 | DisplayPort Connector | 6 | USB 3.0 Connector x2 |
| 7 | Ethernet Connector |
Affected Products
Latitude 7212 Rugged Extreme Tablet, Latitude 7202 Rugged TabletArticle Properties
