Dell Nautilus Firmware Update Utility: Bootable media for automatic Hard Drive updates

Summary: The Dell Nautilus Firmware Update Utility is flexible and easy to use as it contains all the latest, relevant firmware updates for hard drives in your Dell server.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content


Symptoms



SLN292308_en_US__1icon Note: This article is part of the Server Tutorials: "Raid and Disks" available here .



Using the Dell Nautilus Firmware Update Utility is probably one of the easiest and most flexible ways of updating your hard drive firmware. Below, you will find instructions on how to download and create a bootable CD/DVD, ISO or USB which will automatically update all your Dell branded hard drives, independent on manufacturer and model.

The Dell Nautilus Firmware Update Utility is flexible and easy to use as it contains all the latest, relevant firmware updates for hard drives in your Dell server. To use the utility, all you need to do is follow these three steps:

  1. Download the latest version, which is a self extracting zip file, from the Dell Drivers and Downloads page

    SLN292308_en_US__1icon Note: How to download the latest Nautilus version?
    These files are usually updated every quarter. If you want to look for a newer version you can go to the Dell Support Site and enter your service tag to go directly to your system’s pages. Go to the Get drivers and downloads section, expand the SAS Drive category and look for the Dell Nautilus Firmware Update Utility.
  2. Once you have downloaded and extracted the file, you should run the UsbMake.exe file, located in the folder you extracted the files to, which gives you the option to create a bootable USB stick, or a bootable image which you can either mount as a virtual drive or burn to a CD/DVD to boot from. Choose the option that best suits you.

  3. Boot from the media you just created and follow the onscreen instructions.

    SLN292308_en_US__1icon Warning: This update will not run if any of the following conditions exist:
    1. Any Virtual Disk that is not optimal.
    2. RAID container that is performing a Background Initialization or Consistency Check.
    3. A Rebuild, Resync, or copyback function is taking place.
    4. A RAID set that is Partially Degraded or in a Degraded state.

Additional: Walkthrough of Nautilus Installation using iDRAC Virtual Media

  1. Download the EFI Hard Drive Firmware Update Utility from Dell Drivers and Downloads page

  2. Execute the downloaded file to start the self-extractor

  3. Insert USB drive into system that the files were extracted to

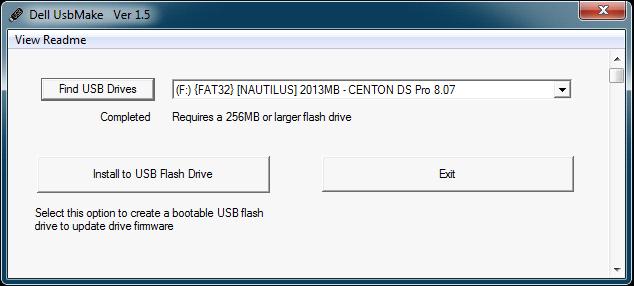

  4. Browse to the extracted files and run USBMake.exe as Administrator by right clicking on the file and choosing 'Run As Administrator'.
    If your USB drive is not listed click 'Find USB Drives' then select your USB drive and click Install to USB Flash Drive (this will format the USB drive)

    SLN292308_en_US__41391549372902.Step 4

  5. Once the file copy to the USB drive is completed Exit the USBMake utility

  6. Connect to the target server's iDRAC and open a remote console session



    SLN292308_en_US__1icon Note: the following steps assume either the "Native" or "Java" plug-in type option is selected for the remote console. Steps for the "HTML5" option may differ slightly.



  7. Connect virtual media and map the USB drive (depending on your iDRAC firmware the location of the virtual media may differ)

    SLN292308_en_US__61391549489447.step 7

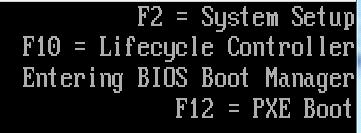

  8. Reboot the target server and press F11 to enter the Boot Manager

    SLN292308_en_US__71391549508602.step 8

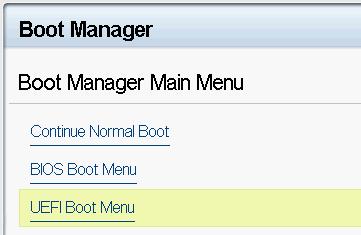

  9. After entering the BIOS Boot Manager select UEFI Boot Menu

    SLN292308_en_US__81391549526508.step 9

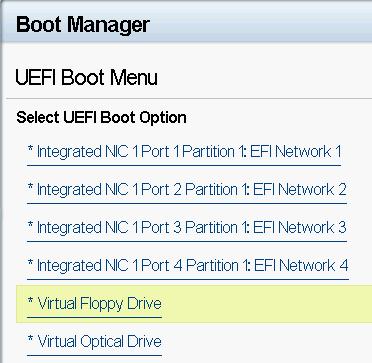

  10. Then select Virtual Floppy Drive (mounting a USB drive through the iDRAC uses floppy emulation)

    SLN292308_en_US__91391549556430.step 10

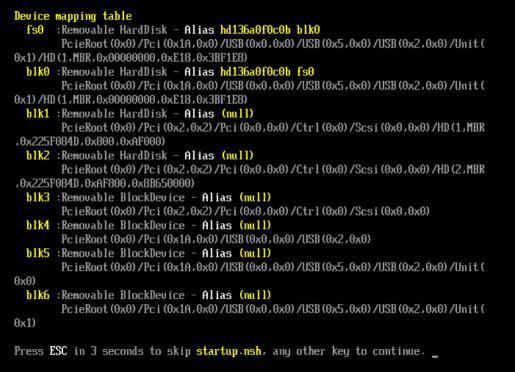

  11. If there is no user interaction the firmware update utility will load automatically

    SLN292308_en_US__101391549587726.step 11

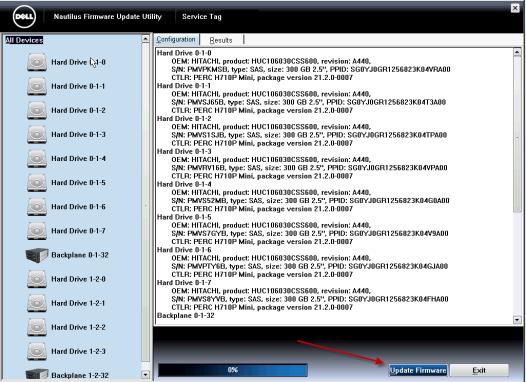

  12. Once loaded press Update Firmware to begin the update process

    SLN292308_en_US__111391549618225.step 12

  13. Once completed the results will be displayed, at this time you can exit the utility and reboot the target server by pressing CTRL-ALT-DEL or, if using the iDRAC console, selecting Power | Reset System (warm boot) from the console menu options.


Cause

-

Resolution

-

Additional Information

Please refer to this video:
