PowerEdge: How to Update the Backplane of a VRTX

Summary: This article explains how to update the firmware of the backplane of a VRTX.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

  1. Download the latest EXE update package on the Dell support site.
  2. Log in to the Chassis Management Controller (CMC) IP. By default, the login credentials are root/calvin.

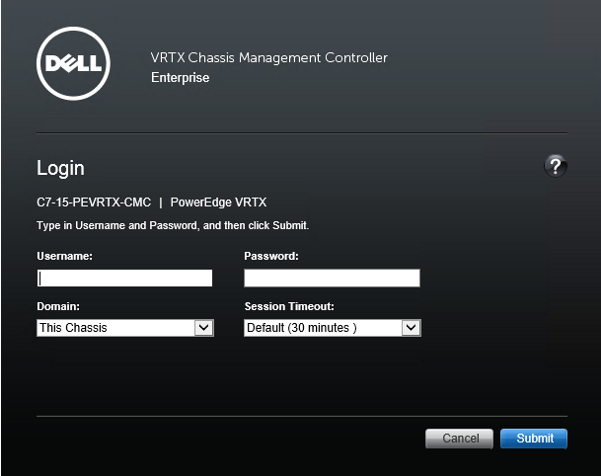

    VRTX CMC Login Page

  3. In the console, click Chassis Overview > Storage > Update.
  4. On the Storage Component Update page, click the Browse button.
  5. Locate and select the Update Package, then click Upload. You see the following message:
    The file is being updated. This may take several minutes.
  6. On the Storage Component Update page, check the Expander box and then click Update. You see the following message:
    The update is in progress. This will take several minutes.
  7. The Expander (backplane) is now updated.


See the pictures below for more details on updating the backplane:

VRTX Storage Update Page
(Click to enlarge)

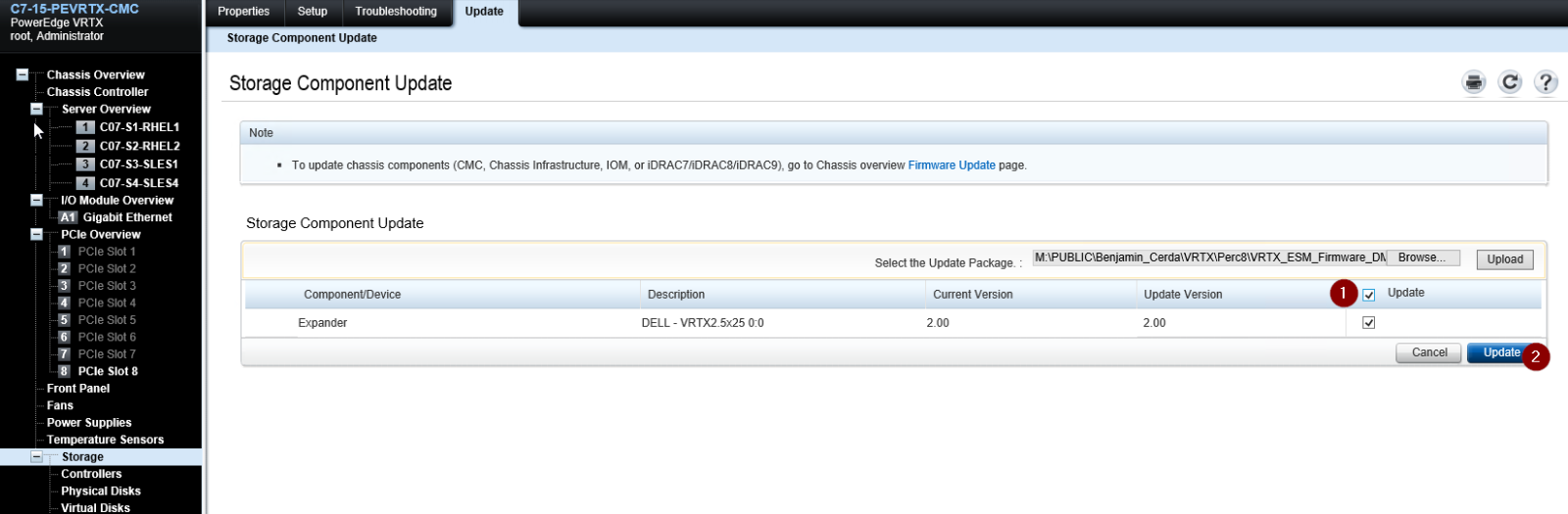

Upload firmware and select Update
(Click to enlarge)
