Latitude 7400 2-in-1: Visual Guide to your Computer
Summary: This article is a visual guide to the external ports and features of the Dell Latitude 7400 2-in-1 laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Latitude 7400 2-in-1 laptop and lists the external ports and features of your laptop.
Note: For a more detailed description about each location, go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View

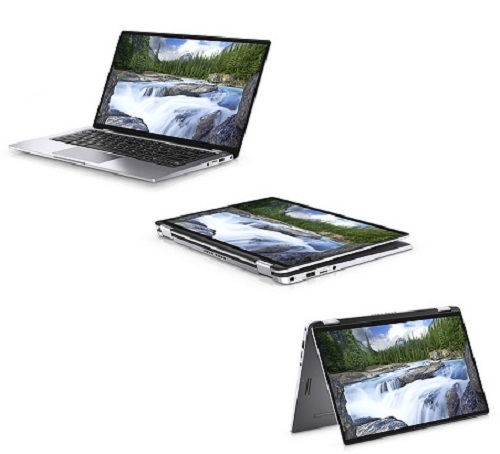

- Chassis Modes
- AC Adapter View
- Additional Info:
Front View
(Fig.1 Front View)
| 1 | Proximity Sensor receiver | 2 | Proximity Sensor emitter |
| 3 | IR emitter | 4 | Camera (IR/RGB) |
| 5 | Camera Status LED | 6 | IR emitter |
| 7 | Ambient Light Sensor (ALS) | 8 | Display Panel |
| 9 | Battery/Diagnostics Status LED |
Top View

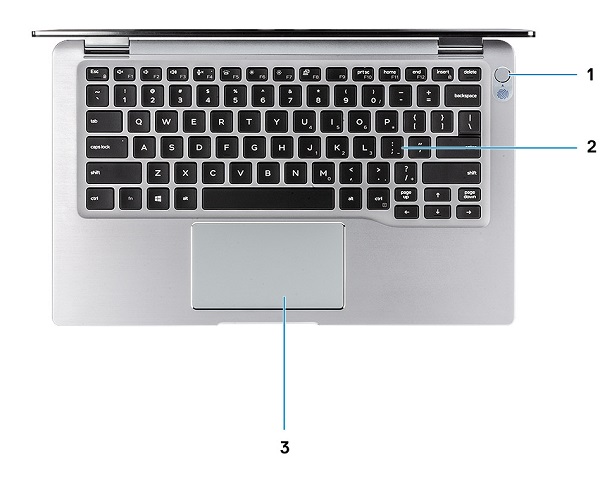

(Fig.2 Top View)
| 1 | Power Button w/fingerprint reader (Optional) | 2 | Keyboard |
| 3 | Touchpad w/NFC (Optional) |
Bottom View
(Fig.3 Bottom View)
| 1 | Service Tag Label | 2 | Speakers |
Left-Hand Side View

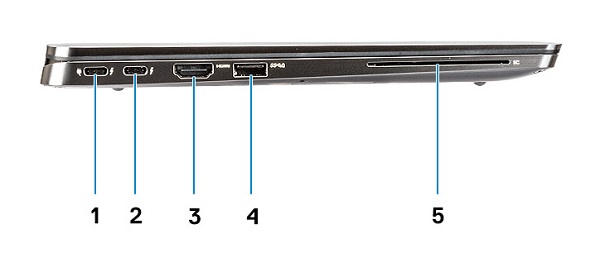

(Fig.4 Left-Hand Side View)
| 1 | USB 3.1 Gen2 Type-C Connector w/Thunderbolt 3 and Power Delivery (PD) | 2 | USB 3.1 Gen2 Type-C Connector w/Thunderbolt 3 and Power Delivery (PD) |
| 3 | HDMI 1.4 Connector | 4 | USB 3.1 Gen1 Type-A Connector w/PowerShare and Power on/Wake support on WLAN |
| 5 | Smart Card Reader (Optional) |
Right-Hand Side View

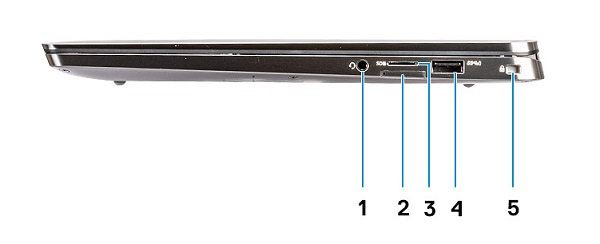

(Fig.5 Right-Hand Side View)
| 1 | 3.5mm Universal Audio Connector | 2 | micro SIM Card Slot |
| 3 | microSD Card Reader | 4 | USB 3.1 Gen1 Type-A Connector w/PowerShare and Power on/Wake support on WLAN |
| 5 | Wedge-shaped Lock Slot |
Cause
Resolution
AC Adapter View
(Fig.7 65W Type-C AC Adapter)
| Type 65W Type-C Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.25 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 20 VDC |
(Fig.8 Optional 90W Type-C AC Adapter)
| Type 90W Type-C Series Optional | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.5 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 20 VDC |
Additional Information
- Latitude 7400 2-in-1: Teardown removal guide for customer replaceable units (CRUs)
- Dell Latitude 7400 2-in-1 Service Manual
