Avamar: VDP: FLR webpage Error http status 404

Summary: VDP Version 6.1.1-19

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms



Unable to open the FLR webpage for VDP.

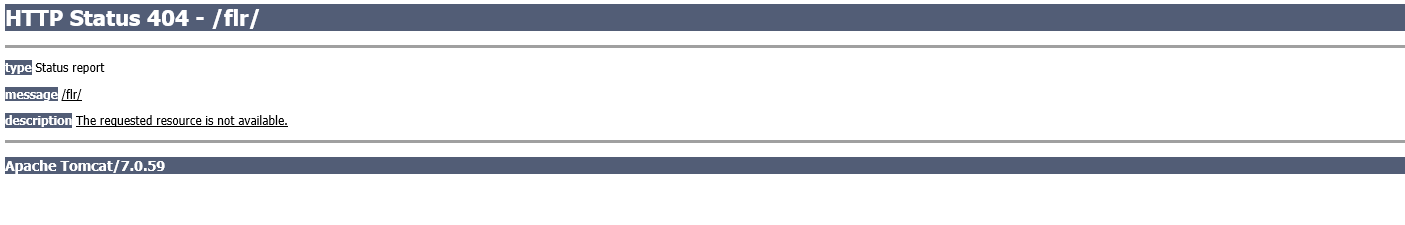

The following error shows up while browsing for flr on https://<VDP_IP>:8543/flr:

Error : HTTP Status 404 - /flr/

type status report
message /flr
description the requested resource is not available.


kA2j0000000RLG4CAO_3_0

Cause

The flr.war file is missing from two different locations:

/usr/local/avamar-tomcat-7.0.59/webapps/
and
/usr/local/avamar/lib/

Resolution

1. Log in to the VDP as root user.
2. Copy the flr.war file from /usr/local/vdr/flr/lib/flr.war

cp -p /usr/local/vdr/flr/lib/flr.war /usr/local/avamar/lib/
cp -p /usr/local/vdr/flr/lib/flr.war /usr/local/avamar-tomcat-7.0.59/webapps/

3. Set correct permissions on the files:

chmod 700 /usr/local/avamar-tomcat-7.0.59/webapps/flr.war
chmod 755 /usr/local/avamar/lib/flr.war

4. Verify permissions:

ls -l /usr/local/avamar-tomcat-7.0.59/webapps/flr.war

Sample output:

-rwx------ 1 root root 47331290 Oct 21  2015 /usr/local/avamar-tomcat-7.0.59/webapps/flr.war

ls -l /usr/local/avamar/lib/flr.war

Sample output:

-rwxr-xr-x 1 root root 47331290 Oct 21  2015 /usr/local/avamar/lib/flr.war

5. Restart services:

service vmwareflr restart
emwebapp.sh --restart
