PowerEdge: STOR042 – Ikke-understøttet værdi for den angivne attributfejl under forsøg på at oprette en virtuel disk i IDRAC9

Summary: Denne artikel indeholder oplysninger om STOR042 fejl under oprettelse af en virtuel disk.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Under oprettelsen af RAID-arrayet skal vi tilføje et navn til den virtuelle disk:


Eksempel: RAID-NAVN

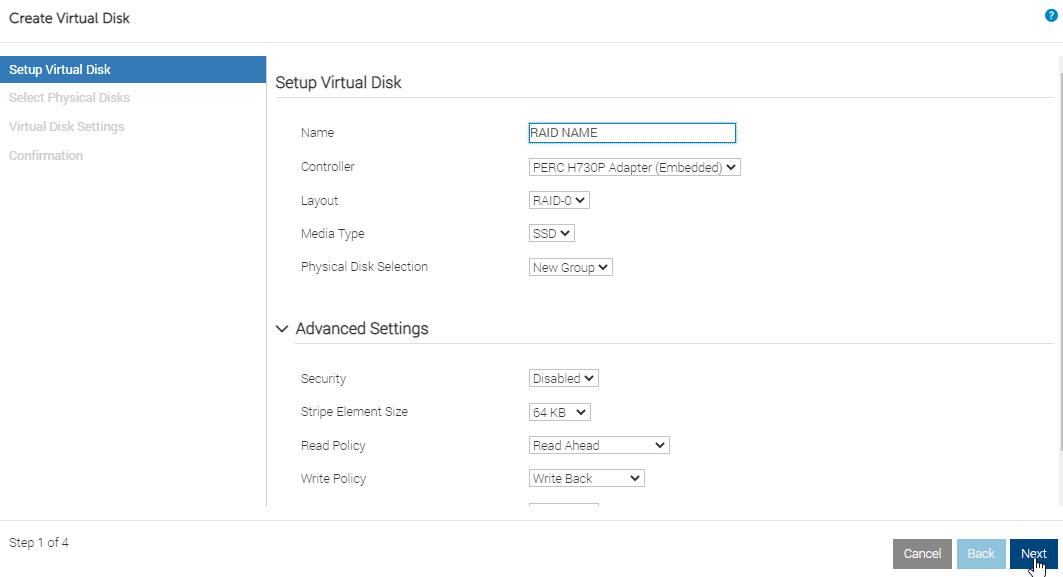

Oprettelse af RAID


Når vi har bekræftet og "Føj til afventende" job:


Føj til ventende job
Vi får følgende fejl:

Advarselsmeddelelse




Løsning:

For at undgå fejlen skal du navngive den virtuelle disk og undgå at bruge mellemrum mellem ord. Eksempel:

"RAID_NAME" eller "RAIDNAME", da mellemrum ikke er tilladt. En yderligere mulighed er at lade navnet stå tomt, og autoname udfylder det, når den virtuelle disk er oprettet.



Eksempel:

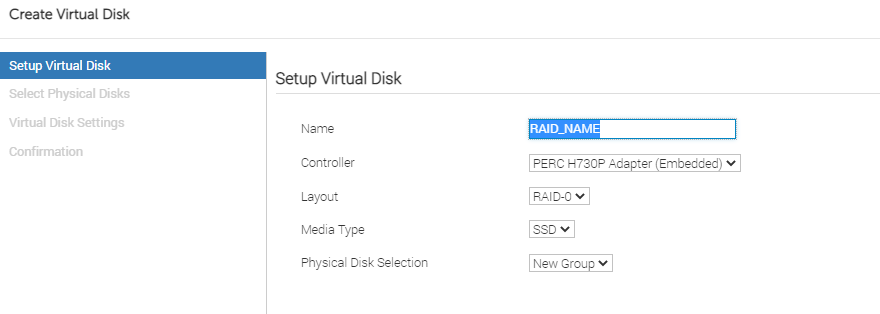

RAID-navn



Oprettelse af virtuel disk

Opsætning af virtuel disk

Bemærk:
  • Autonavnet tildeler et navn som følger: Virtual Disk 0, Virtual Disk 1, Virtual Disk 2... Virtuel disk n." Autoname tillader mellemrum i den forudkonfigurerede navngivning.
  • Fejlen svarer til den, der er i Lifecycle Controller. Gå til F2-enhedsindstillinger >> Konfigurationsværktøj > til Dell PERC HXXXX-adapter Konfigurationsstyring > Opret virtuel disk > Virtuelt disknavn:


Ok besked

Additional Information

Opret en virtuel disk ved hjælp af iDRAC9

Varighed: 00:00:53 (hh:mm:ss)
Når sprogindstillingerne for undertekster er tilgængelige, kan du vælge sprogindstillinger for undertekster ved hjælp af CC-ikonet på denne videoafspiller.

Affected Products

PowerEdge RAID Controller H345, PowerEdge RAID Controller H745, PowerEdge RAID Controller H750 Adapter SAS, PowerEdge RAID Controller H755 Front SAS

Products

PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R440, PowerEdge R450, PowerEdge R540, PowerEdge R550, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515 , PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R670, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R770, PowerEdge R840, PowerEdge R860, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge T140, PowerEdge T150, PowerEdge T160, PowerEdge T340, PowerEdge T350, PowerEdge T360, PowerEdge T40, PowerEdge T440, PowerEdge T550, PowerEdge T560, PowerEdge T640 ...
